5KP SERIES
GLASS PASSIVATED
UNIDIRECTIONAL AND BIDIRECTIONAL
TRANSIENT VOLTAGE SUPPRESSORS
FEATURES
●
Glass passivated chip
●
low leakage
●
Uni and bidirectional unit
●
Excellent clamping capability
●
Plastic material has UL recognition 94V-0
●
Fast response time
.
REVERSE VOLTAGE
- 5.0
to
180Volts
POWER DISSIPATIO
- 5000
Watts
R-6
1.0(25.4)
MIN
.052(1.3)
DIA
.048(1.2)
.360(9.1)
.340(8.6)
2100
.360(9.1)
DIA
.340(8.6)
MECHANICAL DATA
●
Case : Molded Plastic
●
Marking : Unidirectional -type number and cathode band
1.0(25.4)
MIN
Bidirectional-type number only
●
Weight :
0.07ounces, 2.1 grams
Dimensions in inches and(millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Peak Power Dissipation at T
A
=25℃
TP=1ms (NOTE1)
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Steady State Power Dissipation at T
L
=75℃
Lead Lengths 0.375"(9.5mm),See Fig. 4
Maximum Instantaneous Forward Voltage
at 100A for Unidirectional Devices Only (NOTE2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
P
PK
VALUE
Minimum 5000
UNIT
WATTS
I
FSM
400
AMPS
P
M(AV)
V
F
T
J
T
STG
8.0
See NOTE 3
-55 to + 150
-55 to + 175
WATTS
VOLTS
℃
℃
NOTES:1. Non-repetitive current pulse ,per Fig. 5 and derated above T
A
=25℃ per Fig. 1 .
2. 8.3ms single half-wave duty cycle=4 pulses per minutes maximum (uni-directional units only).
3. V
F
=3.5V on 5KP5.0 thru 5KP100A devices and V
F
=5.0V on 5KP110 thru 5KP180 devices.
~ 207 ~

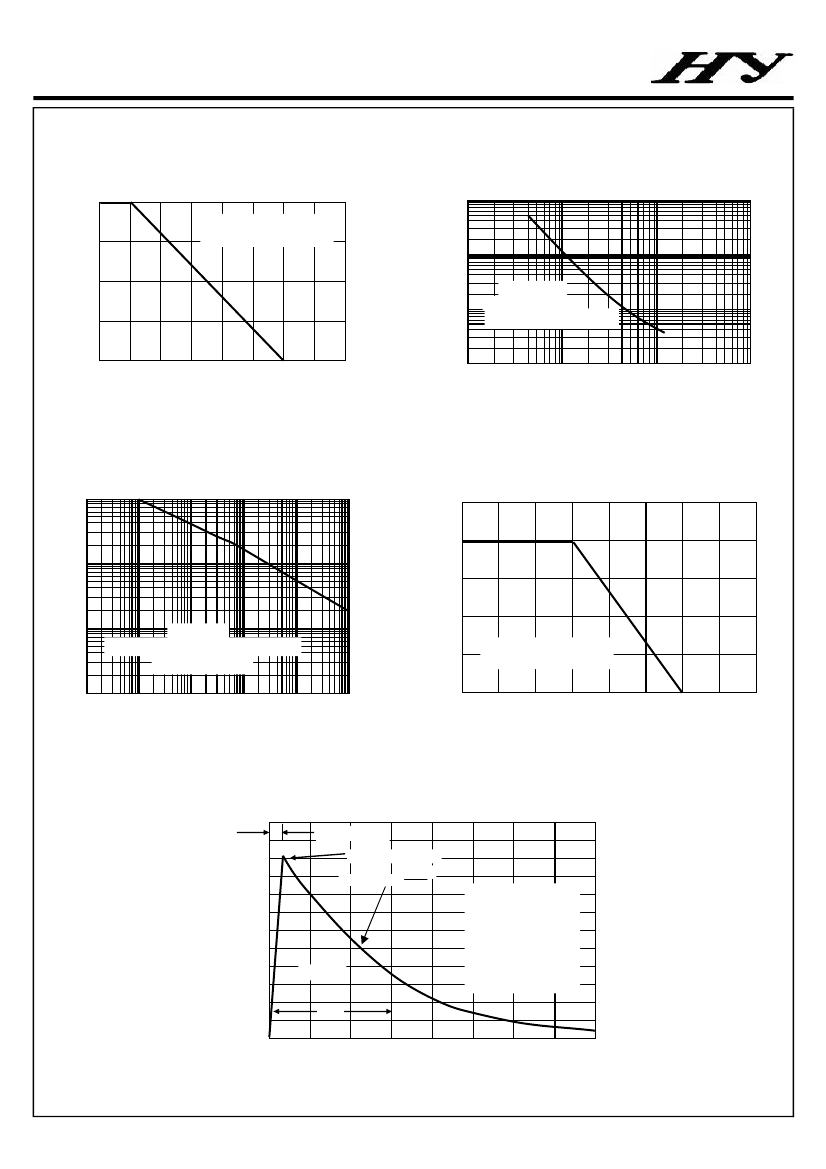

RATING AND CHARACTERTIC CURVES
5KP SERIES
FIG.1-PULSE DERATING CURVE
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
100
10*1000 WAVEFORM
AS DEFINED BY R.E.A
FIG.2-TYPICAL JUNCTION CAPACITANCE
10000
CAPACITANCE
，（
P
F
）
75
1000
T
J
=25℃
50
100
25
0
0
25
50
75
100
125 150
175 200
MEASURED AT
STAND-OFF VOLTAGE
10
1
4
10
100
1000
T
A
AMBIENT TEMPERATURE,℃
REVERSE VOLTAGE,VOLTS
100
P
M
(
AV
), STEADY STATE POWER DISSIPATION (W)
FIG.3-PULSE RATING CURVE
FIG.4-STEADY STATE POWER
DERATING CURVE
10
P
P
, PEAK POWER (
K
w)
8
6
10
4
2
60Hz RESISTIVE OR
INDUCTIVE LOAD
1.0
T
A
=25℃,
NON-REPETIVE PULSE WAVE FORM
SHOWN IN FIG.5
0.1
0.1us
1.0us
10us
100us
1.0ms
10ms
0
25
50
75
100
125
150
175
200
TP, PULSE WIDTH
TL, LEAD TEMPERATURE
FIG.5 -PULSE WAVEFORM
IP
，
PEAK PULSE CURRENT
， （
%
）
T
R
=10us
100
Peak value(I
RSM
)
Half value =
I
RSM
2
Pulse with (Tp) is defined
as that point where the
peak current decays to
50% of I
RSM
50
T
J
=
25
℃
10*1000waveform as
defined by R.E.A
TP
0
0
1.0
2.0
T, TIME (ms)
3.0
4.0
~ 208 ~
