78L08A Overview

3-Terminal Regulators

78LXX

Description

This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These

applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In

addition, they can be used with power-pass elements to make high-current voltage regulators. Each of these regulators can deliver up to

100 mA of output current. The internal limiting and termal shutdown features of these regulators make them essentially immune to

overload. When used as a replacement for a Zener diode-resistor combination, an effective improvement in output impedance can be

obtained together with lower-bias current.

Features

•

3-Terminal Regulators

Output Current Up to 100 mA

No External Components

Internal Thermal Overload Protection

Internal Short-Circuit Limiting

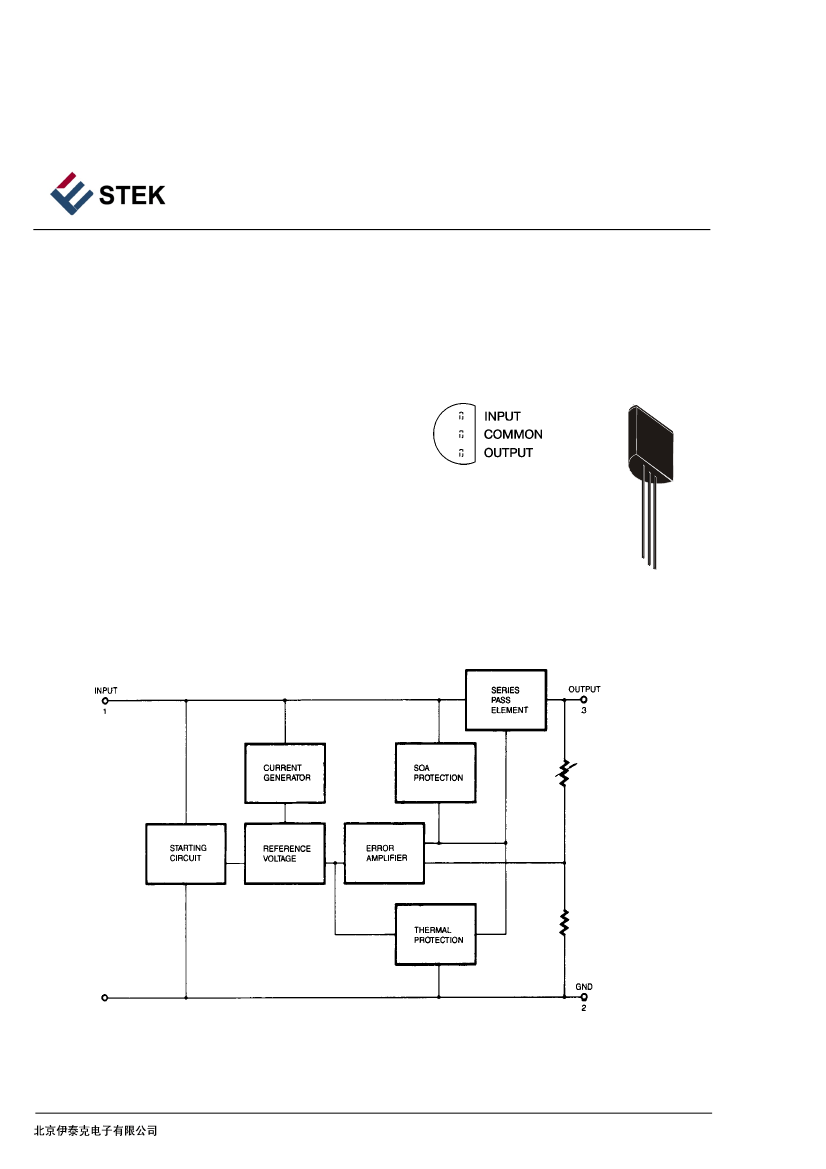

Package TO-92

(top view

Internal Block Digram

Package

BEIJING ESTEK ELECTRONICS CO.,LTD
