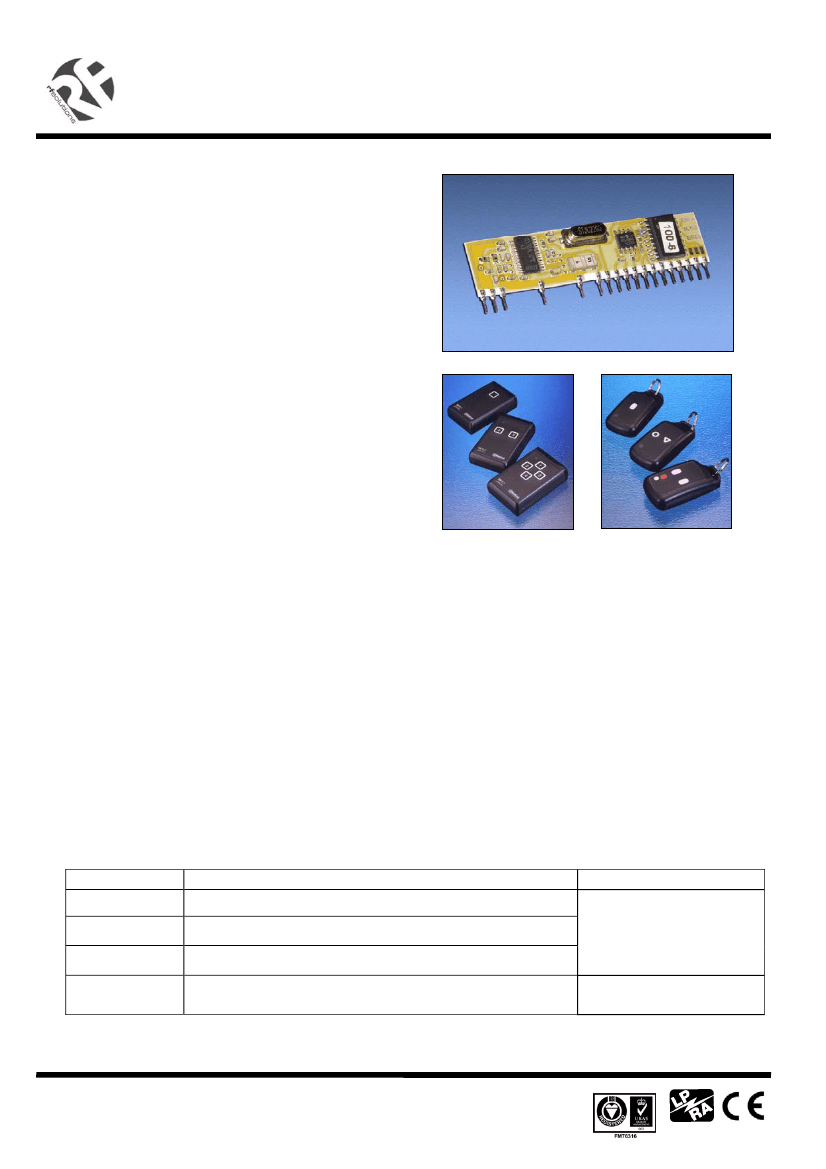

RF R
ECEIVER
D
ECODER
H
YBRID
.
Features
•
Miniature RF Receiver and Decoder.
•
Advanced Keeloq Decoding
•
Advanced Laser Trimmed Ceramic Module
•
AM Range up to 100 Metres
•
FM Range up to 150 Metres
•
Easy Learn Transmitter Feature.
•
Outputs, Momentary or Latching & Serial Data.
•
Direct Led Drive Shows Data Reception
•
Single Supply 5V
•
Flash re-programmable
•
HIR6 Low Power Version (<1mA)
•
Directly compatible with 110 Series
•
Compatible with RF600E
•
EMC Compliant for use in Europe
•
FCC Certified for use in USA
HIRK-315
HIRK-433
HIR6-433
Applications
•
General Remote Control Systems.
•
Garage Door Openers.
•
Car, Caravan, Motorcycle Alarms
•
Remote Switching.
•
Remote Gates.
•
Paging.
Description
A range of miniature single in line (SIL) hybrid modules providing complete four channel Radio
Receiver/Decoder systems available in either AM or FM. When used with the 110-AM or 120-FM series
pocket keyfobs a complete remote telemetry system is obtained with up to 150 metres range.
The module consists of a front end super-heterodyne or super-regen RF receiver with an embedded
microcontroller decoding a highly secure Keeloq protocol signal.
The module has an easy-to-use 'LEARN' facility, and is capable of learning up to 50 unique keyfob encoders.
The module requires a 5V power supply and provides a direct LED drive showing data reception and four
digital data outputs. The outputs may be programmed for momentary or latching configuration.
The modules have flash re-programmability feature to enable field re-programming of the controller.
Part Numbers
Part Number
HiRK-315A
HiRK-433A
HiR6-433A
HIRK-433F
Description
Superhetrodyne Receiver Decoder AM 315MHz
Superhetrodyne Receiver Decoder AM 433MHz
SuperRegenerative Low Power Rx Decoder AM 433MHz
Low Power Rx Decoder FM 433MHz
Compatible Transmitters
110 Series transmitter
keyfobs or
102 ‘A’ Series transmitters
120 Series transmitters
102 ‘F’ series transmitters
DS010-6 May 06
©2006
REG No 277 4001, England.
Page 1
RF R
ECEIVER
D
ECODER
H
YBRID
.
HIRK-315
HIRK-433
HIR6-433
HiRK Versions
This range of modules provides a high sensitivity and selective Superhetrodyne receiver, combined with flash
programmable controller, supplied pre-programmed to operate with a suitable Keeloq Transmitter encoder.
The range from such a system can be up to 150 metres Lin of Sight (LOS).
Custom versions of this product are available, please contact our sales department for further details
Pin Descriptions Superhetrodyne Versions (HiRK series)
Pin No
1
2
3
7
11
13
14
15
16
17
18
19
20
21
22
23
Name
Vcc-RF
GND-RF
ANT
GND-RF
GND-AF
RSSI
O/P-AF
Vcc-digital
Vdd-digital
MCLR**
Link2
Link1
PSW
LED
O/P2
O/P3
+5V Supply Voltage – RF section
RF Ground
Connect Antenna to this input
RF Ground
AF Ground
Received Signal Strength Indicator (RSSI)
Raw Data output from RF receiver (CMOS/TTL signal)
+5V Supply Voltage – digital section
Digital Ground
Pulls Microcontroller into reset if connected to Ground
May be left unconnected if not required (internally tied high)
Connect to GND to make link, may be left O/C if not required
Connect to GND to make link, may be left O/C if not required
Programming Switch input. Used when learning new transmitters and erasing data.
External LED sink output, can be connected directly to cathode of external LED.
Connect Anode of the LED directly to +5V.
Indicates Data reception, and programming status.
Active High data Output 2 (has a 220Ω series resistor)
Active High data Output 3 (has a 220Ω series resistor)
Active High data Output 4 (has a 220
series resistor) or
Battery Low Output: Indicates when the transmitter battery is low voltage (Output is
high when battery low)
Serial Data Output: Outputs the Serial ID of transmitter encoder. Please see
RF600 for serial data format and timings
Active High data Output 1 (has a 220Ω series resistor)
Description
24
O/P4
25
O/P1
Compatibility with older versions of this module
** AM-HiRK: To remain compatible with previous versions of the product, this pin may be removed and
ignored.
AM-HiRH :
Please contact sales for part HiRK-433P534
DS010-6 May 06
©2006
REG No 277 4001, England.
Page 2
RF R
ECEIVER
D
ECODER
H
YBRID
.
HiRK Application Circuit
O/P 1
HiRK
1
3
7
11
15
20
22
25
HIRK-315
HIRK-433
HIR6-433
LED drive example
O/P 4
O/P 3
O/P 2
Vcc
Status
LED
Vcc
LK LK
2
1
Learn
Sw
GND
Data Outputs
Outputs are digital CMOS/TTL (PIC Micro) with a series 220
Ω
protection resistor.
Outputs are all normally low, active high.
Link Positions
Link1
Open
Open
Connected
Connected
Link2
Open
Connected
Open
Connected
O/P 1
Latch
Mom
Mom
Latch
Digital Outputs
O/P 2
O/P 3
Latch
Latch
Mom
Mom
Mom
Latch
Latch
Mom
O/P 4
Latch
Mom
Tx Bat Low
Serial Data
Mom :
This output is valid for the duration of valid key press of the transmitter switch
Latch:
This output changes state on each valid transmitter switch press.
1 Switch Keyfob
2 Switch Keyfob
3 Switch Keyfob
4 Switch Keyfob
Transmitter Switch / Output Table
O/P 1
O/P 2
O/P 3
Centre Switch
LH Switch
RH Switch
LH Switch
RH Switch
Top Switch
Sw 1
Sw 2
Sw 3
O/P 4
Sw 4
Custom versions of this product are available, please contact our sales department for further details
DS010-6 May 06
©2006
REG No 277 4001, England.
Page 3
RF R
ECEIVER
D
ECODER
H
YBRID
.
HiR6 Versions
HIRK-315
HIRK-433
HIR6-433
This range of modules provides a very low power SuperRegenerative receiver, combined with flash
programmable controller, supplied pre-programmed to operate with a suitable Keeloq Transmitter encoder.
The range from such a system can be up to 50 metres Line of Sight (LOS). The current consumption is
1.5mA however this may be reduced to only 1 – 2 uA by placing the device into sleep mode and turning off
the supply to the radio section. A supervisory processor can then wake the module from time to time to allow
it to check for the presence of radio data.
Custom versions of this product are available, please contact our sales department for further details
Pin Descriptions SuperRegenerative Versions (Hir6 series)
Pin No
1
2
3
7
11
13
14
15
16
17
18
19
20
21
22
23
24
25
Name
Vcc-RF
GND-RF
ANT
GND-RF
GND-AF
RSSI
O/P-AF
Vcc-digital
GND-digital
MCLR
Latch/ Mom
Serial Data
O/P1
Learn /
LED
O/P2
O/P3
O/P4
Run / Sleep
+5V Supply Voltage – RF section.
RF Ground.
Connect Antenna to this input.
RF Ground.
AF Ground.
Received Signal Strength Indicator (RSSI)
Raw Data output from RF receiver (CMOS/TTL signal)
+5V Supply Voltage – digital section.
AF Ground – digital section.
Pulls Microcontroller into reset if connected to Ground
May be left unconnected if not required (internally tied high)
Set High: Configures data outputs as latching. NOTE: no pull-up/down provided.
Set Low: Configures data outputs as momentary.
Serial data output
Active Low data Output 1 (has a 220Ω series resistor)
Dual function:
Programming Switch input, When grounded places the HiR6 into ‘Learn’ mode.
External LED output, Indicates data reception, and programming status.
(has a 1K5 series resistor)
Active Low data Output 2 (has a 220Ω series resistor)
Active Low data Output 3 (has a 220Ω series resistor)
Active Low data Output 4 (has a 220Ω series resistor)
Pulled high : HiR6 operating normally.
Pulled Low : HiR6 microcontroller enters sleep mode.
Description
DS010-6 May 06
©2006
REG No 277 4001, England.
Page 4
RF R
ECEIVER
D
ECODER
H
YBRID
.
HiR6 Application Circuit
O/P 1
HIRK-315
HIRK-433
HIR6-433
LED drive example
Vcc
O/P 4
O/P 3
O/P 2
HiR6
1
3
7
11
13
15
20
22
25
Status
LED
Vcc
1K
Vcc
Latch/
Mom
Learn
Sw
Run / Sleep I/P
Serial Data O/P
GND
1 Switch Keyfob
2 Switch Keyfob
3 Switch Keyfob
4 Switch Keyfob
Transmitter Switch / Output Table
O/P 1
O/P 2
O/P 3
Centre Switch
LH Switch
RH Switch
LH Switch
RH Switch
Top Switch
(Red)
Sw 1
Sw 2
Sw 3
O/P 4
Sw 4
Data Outputs
Outputs are digital CMOS/TTL (PIC Micro) with a series 220
Ω
protection resistor.
Outputs are all normally high, active low.
Mom
: This output is valid for the duration of valid key press of the transmitter switch
Latch:
This output changes state on each valid transmitter switch press.
DS010-6 May 06
©2006
REG No 277 4001, England.
Page 5
