HUA23-080-05: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 12W, Hybrid,; CategoryPower/power management The power supply circuit; File Size162KB，2 Pages; ManufacturerSemiconductor Circuits Inc

Download Datasheet Parametric View All

HUA23-080-05 Overview

DC-DC Unregulated Power Supply Module, 2 Output, 12W, Hybrid,

HUA23-080-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -15V OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Efficiency (main output)	80%
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	S-XDMA-P5
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.45 V
Minimum output voltage	14.55 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	12 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

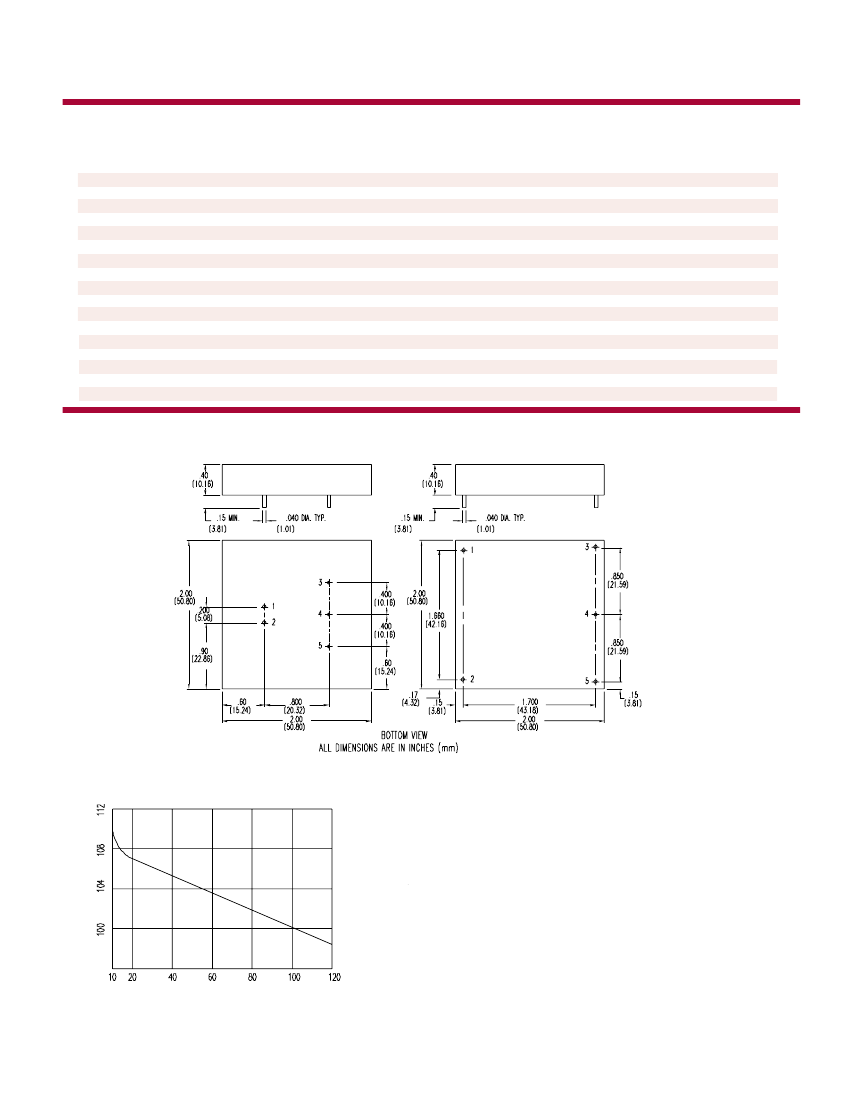

8765432121098765432109876543210987654321

ENVIRONMENTAL

GENERAL

OUTPUT

INPUT

Operating Temperature

Storage Temperature

Cooling

Voltage Tolerance

Ripple and Noise (PARD)

Short Circuit Protection

Temperature Coefficient

Regulation:

Line

Load

Efficiency

I/O Isolation

Switching Frequency

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

Voltage Range

Filtering

DP Series

HUA/HUD Series

-25°C to +71°C No Derating

-25°C to +85°C

Free-air Convection

1% / % Vin (typ.)

See Load Curve

80% (typ)

500 Vdc

40kHz

± 3%

30mV RMS

Short term

0.02% / °C

4.5 - 5.5 Vdc

MOSFET design

Efficiency to 80%

MTBF in excess of

1,000,000 hours

Pi input filter

Operating temperature

range: -25°C to +71°C;

No derating

The HUA/HUD Series is ideally suited

for many analog and digital applica-

tions in process control, microproces-

sors, telecommunications and auto-

matic test equipment

Applications

he HUA/ HUD is a cost-effective

series of DC/DC converters,

offering both single and dual

outputs. These unregulated converters

offer the latest in MOSFET technology.

Featuring efficiencies to 80%, cool

operating case temperatures and a

high level of reliability with a MTBF in

excess of 1,000,000 hours. Additional

standard features include an internal Pi

filter, 500 Vdc I/O isolation, up to 12

watts of output power and operating

temperature of –25°C to +71°C with no

derating. All this in a package measur-

ing 2.0” x 2.0” x 0.40” high.

Single/Dual Outputs

3.75 to 12 Watts
