5326-T039: DescriptionFilter Coils < Pin Type: FB Series>; CategoryAnalog mixed-signal IC filter; File Size79KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5326-T039 Overview

Filter Coils < Pin Type: FB Series>

5326-T039 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknow
ECCN code	EAR99
filter type	DATA LINE FILTER
high	9 mm
length	7.8 mm
Manufacturer's serial number	FB
Installation type	THROUGH HOLE MOUNT
Number of functions	1
physical size	L7.8XB7.8XH9.0 (mm)/L0.307XB0.307XH0.354 (inch)
width	7.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

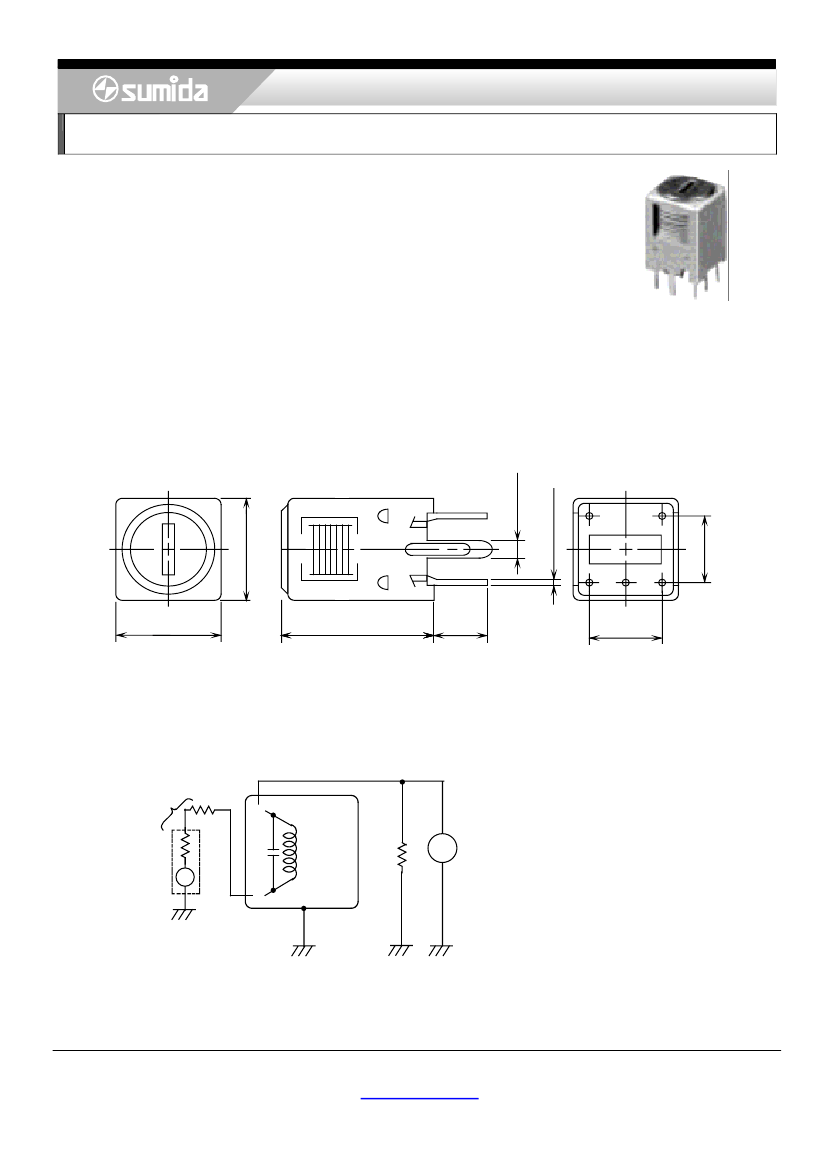

Filter Coils < Pin Type: FB Series>

Type:

FB-7LG

◆

Product Description

・8.3×8.3mm

Max.(L×W), 9.0mm Max. Height.

・Operating

frequency:250kHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Variable

shielded type.

・Two

capacitors can be internally mounted in one section.

・Ideally

used as Audio Filters(LPF, BPF, Delay Line)

・RoHS

Compliance

◆

Dimensions (mm)

1.0 ±0.2

+0.1

φ 0.5-0.05

7.8 ±0.5

9 . 0 M AX .

- 0 .5

3.0

+ 1. 0

4.5 ±0.15

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

◆

Testing Circuit

Rin

③

②

④

Rout

E.V.

R in=Rg+R1=600

Ω

R out=600

Ω

S.G.

∼

①

⑥

S

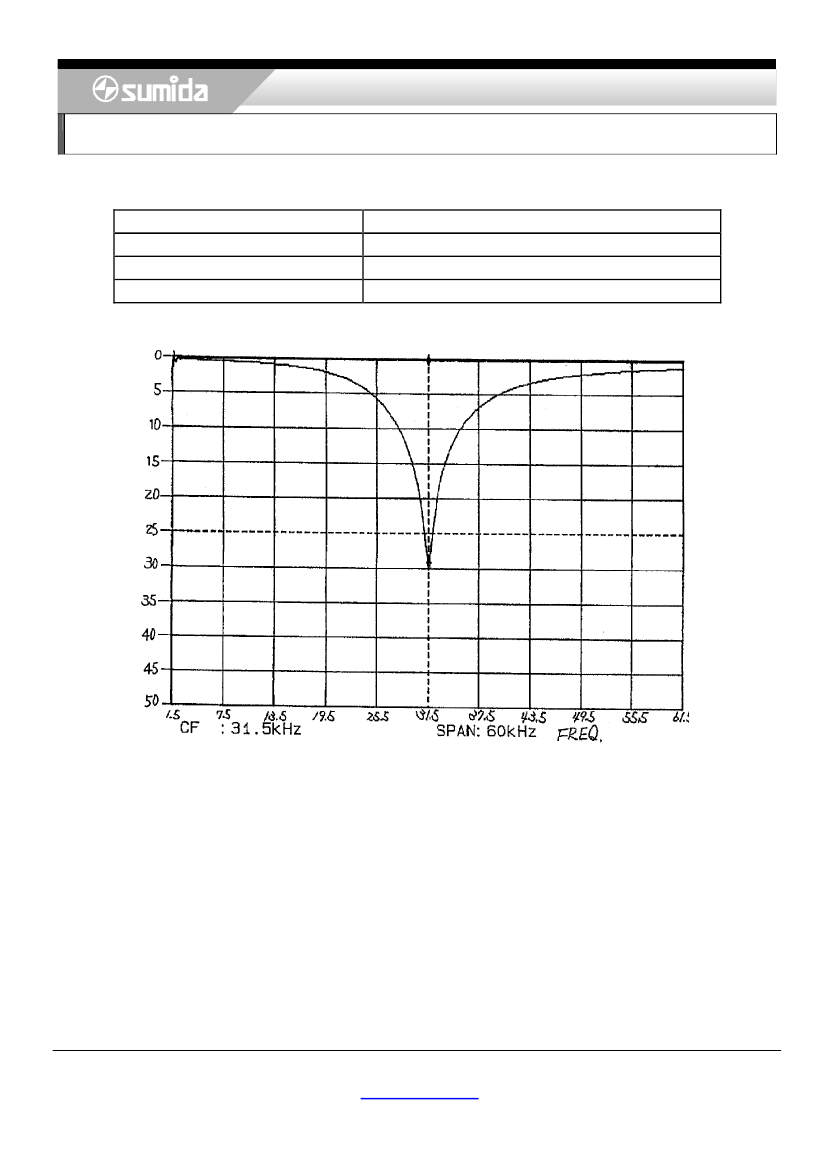

Please refer to the sales offices on our website for a representative near you

www.sumida.com

4.5 ±0.15

7.8 ±0.5

1/1

5326-T039 Related Products

	5326-T039	FB-7LG
Description	Filter Coils < Pin Type: FB Series>	Filter Coils < Pin Type: FB Series>
