BRA124ECMTL: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size107KB，12 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

BRA124ECMTL Overview

Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon

BRA124ECMTL Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.1 A
Minimum DC current gain (hFE)	56
Number of components	1
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.15 W
surface mount	YES
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

BRA144ECM Series

PNP Built-in Resistor Transistor CMPAK Series

Inverter, Driver, Switching

ADE-208-1444B (Z)

Rev.2

Sep. 2001

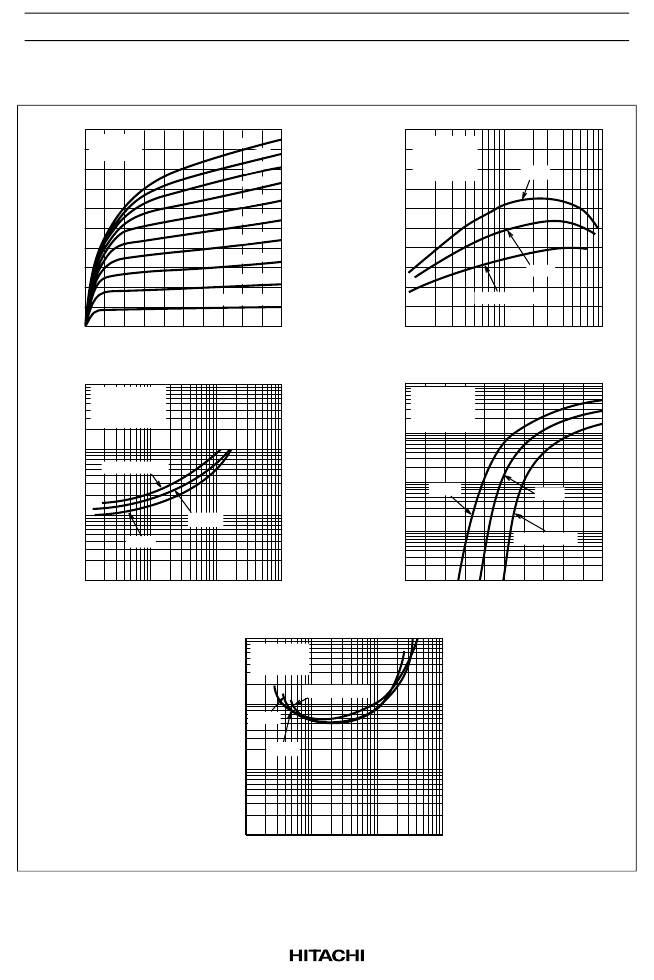

Features

•

Built–in Resistor Type

•

Simplifies Circuit Design

•

Reduces Board Space

•

Complementary pair with BRC144ECM series

Outline

CMPAK

1. Ground (Emitter)

2. Input (Base)

3. Output (Collector)

Note: Marking is shown in below.

Device

BRA144ECM

BRA124ECM

BRA114ECM

BRA143ECM

BRA123ECM

Marking

R1 (kΩ)

Ω

4.7

2.2

R2 (kΩ)

Ω

4.7

2.2

BRA124ECMTL Related Products

	BRA124ECMTL	BRA144ECMTL	BRA144ECMUL	BRA124ECMUL	BRA143ECMTL	BRA143ECMUL	BRA123ECMUL	BRA123ECMTL	BRA114ECMTL	BRA114ECMUL
Description	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Minimum DC current gain (hFE)	56	70	70	56	20	20	20	20	30	30
Number of components	1	1	1	1	1	1	1	1	1	1
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	-	Hitachi （Renesas ）	Hitachi （Renesas ）	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
