50-900 MHz
High Dynamic Range Amplifier
August 2007 - Rev 07-Aug-07
CMM6003-SC

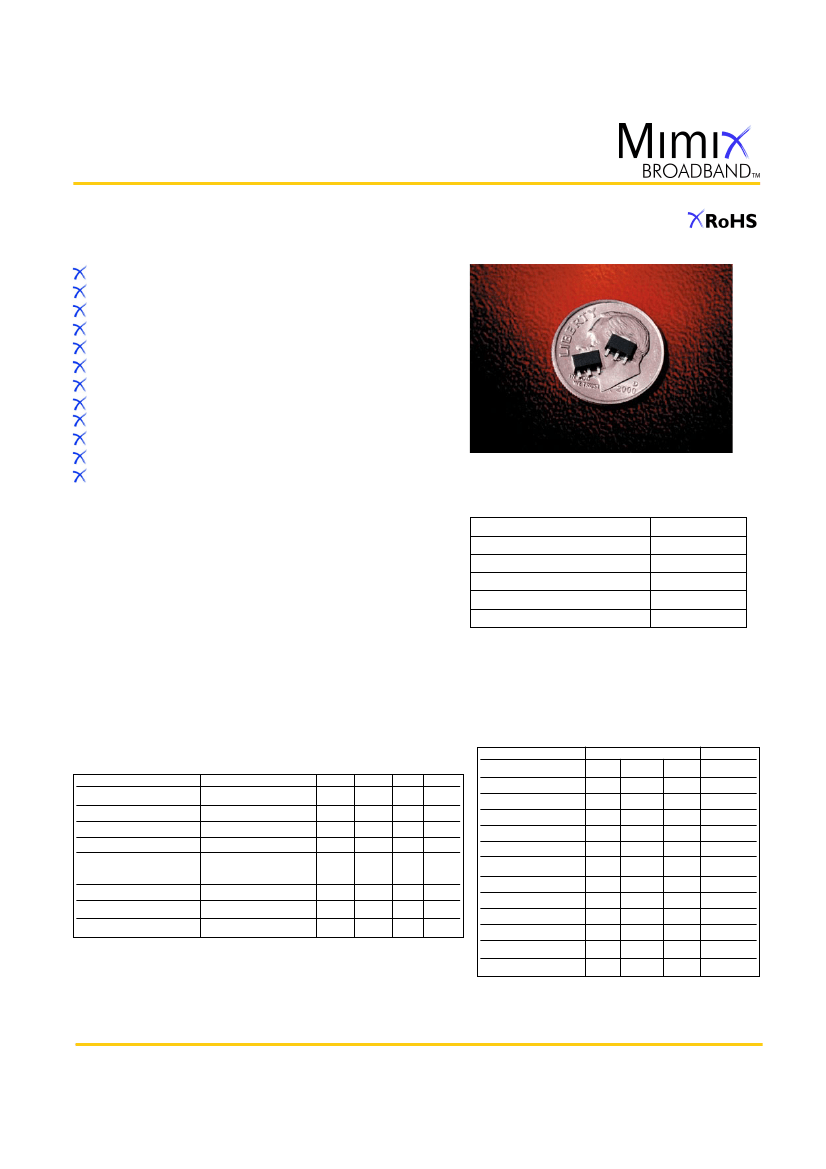

Features
50 to 900 MHz Frequency Range
+41 dBm Output IP3
-71 dBc CTB
-48 dBc CSO
1.6 dB Noise Figure (@ 450 MHz)
17 dB Gain
22 dBm P1dB
RoHS Compliant SOT-89 SMT Package
Single Power Supply
+3V to +5V Voltage Rail
MTBF > 100 Years
Ideal for CATV Applications
Description
The CMM6003-SC is a high dynamic range amplifier suitable
for cable TV applications between 50 and 900 MHz. The
combination of gain flatness, bandwidth, low noise figure and
high third order intercept point make it ideal for cable modem,
CATV distribution and laser diode driver applications. The
CMM6003-SC can operate directly from 5V or 3.3V supply
voltage in 75 ohm systems. The device is manufactured using
a highly reliable GaAs MESFET technology with an MTBF of
over 100 years at a mounting temperature of +85ºC. All
devices are 100% RF (at 800Mhz) and DC tested and they
come in an RoHs compliant SOT-89 package which provides
excellent electrical stability and low thermal resistance.
Absolute Maximum Ratings
Supply Voltage
RF Input Power*
Storage Temperature
Junction Temperature
Operating Temperature
Thermal Resistance
+6.0 V
+10 dBm
-55ºC to 150ºC
150ºC
-40ºC to +85ºC
59º C/W
Operation of this device above any of these parameters may cause damage.
*Operation with more than 10 dBm of input power may cause 2 dB
degradation in OIP3 performance.
Electrical Characteristics
Parameter
Condition
Typical Parameters
Parameter
Typical
Units
Min
Typ
Max
Units
Unless otherwise specified, the following specifications are guaranteed at room temperature
in a Mimix test fixture.
F requency R ange
Gain
Input Return Loss
O utput I P3
Noise Figure
Noise Figure
Output P1dB
Operating Current Range
Supply Voltage
Externally matched
Externally matched
@ 50 MHz
@ 800 MHz
50
15
120
800
17
-11
+41
3.3
1.9
22
150
5. 0
900
18
180
MH z
dB
dB
dB m
dB
dB
dBm
mA
V
Frequency Range
Gain
Input Return Loss
Output Return Loss
Output P1dB
Output IP3
Output IP2
Noise Figure
CTB
CSO
Xmod
Supply Voltage
Current
100
17.5
-12
-16
23
40
52
3.5
-72
-48
-65
5
150
450
17.2
-12
-16
23.6
39
52
1.6
900
16.3
-11
-13
23.8
37
52
2
MHz
dB
dB
dB
dBm
dBm
dBm
dB
dBc
dBc
dBc
V
mA
Notes:
1. T = 25°C, Vdd = 5.0, Frequency = 800 MHz, 50 Ohm system
2. OIP3 measured with two tones at output power of 5 dBm/tone separated by 10 MHz.
5
150
5
150
Notes:
1. Typical values reflect performance in recommended application circuit.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 5
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
50-900 MHz
High Dynamic Range Amplifier
August 2007 - Rev 07-Aug-07
CMM6003-SC

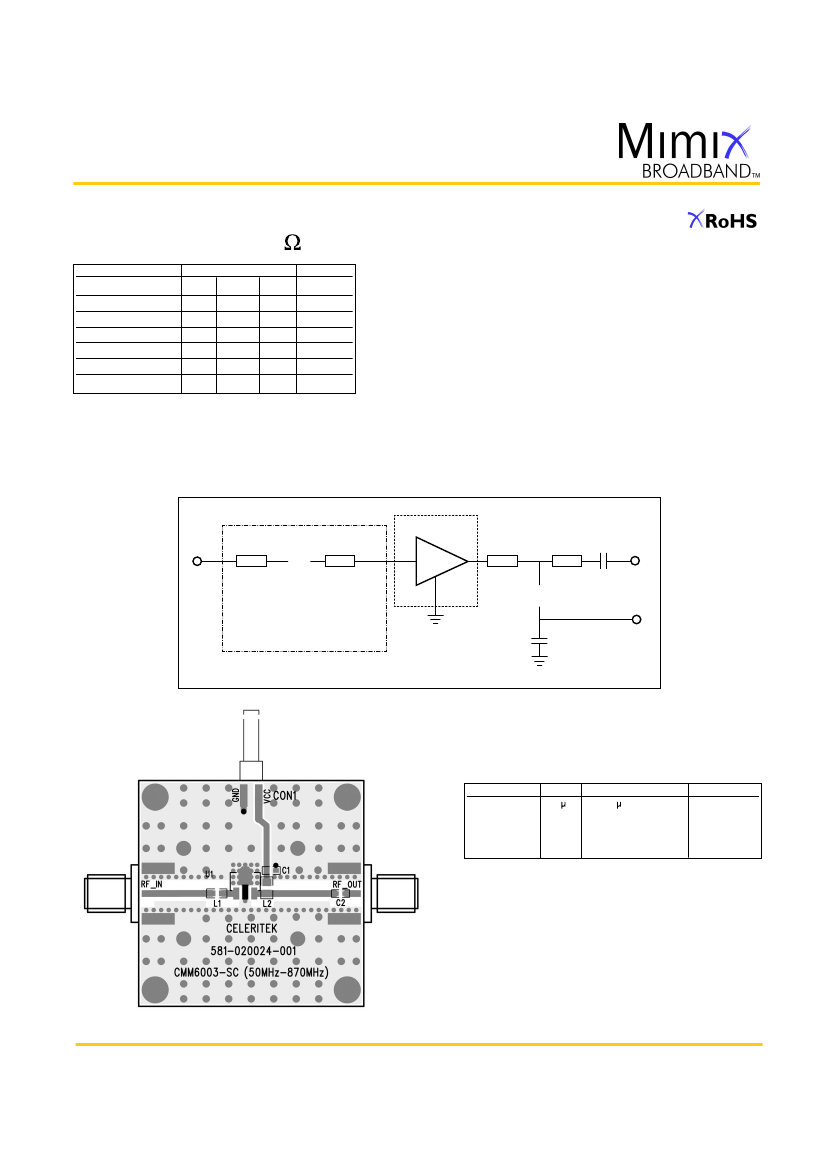

Application Circuit: (75 )
Frequency
Gain
Input Return Loss
Output P1dB
Output IP3
Output IP2
Noise Figure
CTB
CSO
Xmod
Supply Voltage
Current
MHz
dB
dB
dBm
dBm
dBm
dB
dBc
dBc
dBc
V
mA
100
17.5
-12
-16
23
40
52
3.5
-72
-48
-65
5
150
5
150
5
150
450
17.2
-12
-16
23.6
39
52
1.6
870
16.3
-11
-13
23.8
37
52
2
Ref Designator
C1,C2,C3
L1
L2
Value Size
1000 pF 0603
12 nH 0603
270 nH 0603
Output Return Loss
dB
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
0.1
0.2

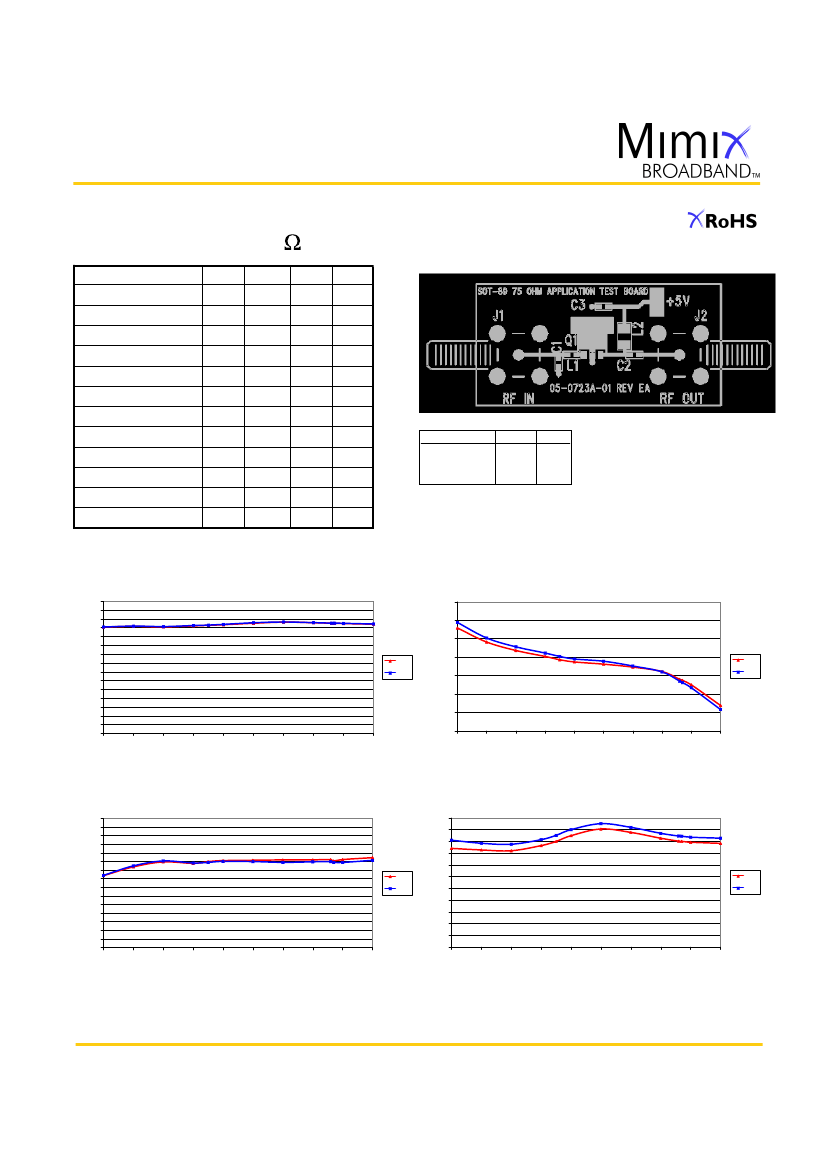

CMM6003-SC: 75 Ohm Board, P1dB
CMM6003-SC: 75 Ohm Board, Gain
17.5
17
16.5
Gain (dB)
OP1dB (dBm)
S#1
S#2
16
15.5
15
14.5
14
S#1
S#2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Frequency (GHz)
Frequency (GHz)
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
0.1
0.2
CMM6003-SC: 75 Ohm Board, OIP3
55
50
45
40
OIP2 (dBm)
CMM6003-SC: 75 Ohm Board, OIP2
OIP3 (dBm)
35
30
25
20
15
10
5
0
S#1
S#2
S#1
S#2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Frequency (GHz)
Frequency (GHz)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 5
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
50-900 MHz
High Dynamic Range Amplifier
August 2007 - Rev 07-Aug-07
CMM6003-SC
Application Circuit: (50 )
Parameter
Typical
Units
Frequency Range
Gain
Input Return Loss
Output Return Loss
Output IP3
Output P1dB
Noise Figure
450
17.2
-12.0
-16
+396
23.6
1.6
800
16.5
-11.5
-14
+41
23.7
1.9
870
16.25
-10.5
-13
+41
23.8
2.0
MHz
dB
dB
dB
dBm
dBm
dB
Notes:
1. Typical values reflect performance in recommended application circuit.
RF
IN
CMM6003-SC
SOT-89
T = 500 mil
L1
6.8 nH
T = 125 mil
T = 70 mil
T = 500 mil
C2
100 pF
RF
OUT
uu
uu
INPUT MATCHING NETWORK
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
uu
uu
L2
390 nH
C1
0.1 µF
Ref Designator
C1
C2
L1
L2
Vcc
5V
Value Description
0.1 F VITR 0.1 F 25V CER
CAP 0603 X7R 10%
100 pF 0603CG101J9B20 T/R
6.8 nH TOKO LL 1608-F6N8J
390 nH Coilcraft 0805CS-391XJBC
Size
0603
0603
0603
0603
Page 3 of 5
50-900 MHz
High Dynamic Range Amplifier
August 2007 - Rev 07-Aug-07
CMM6003-SC

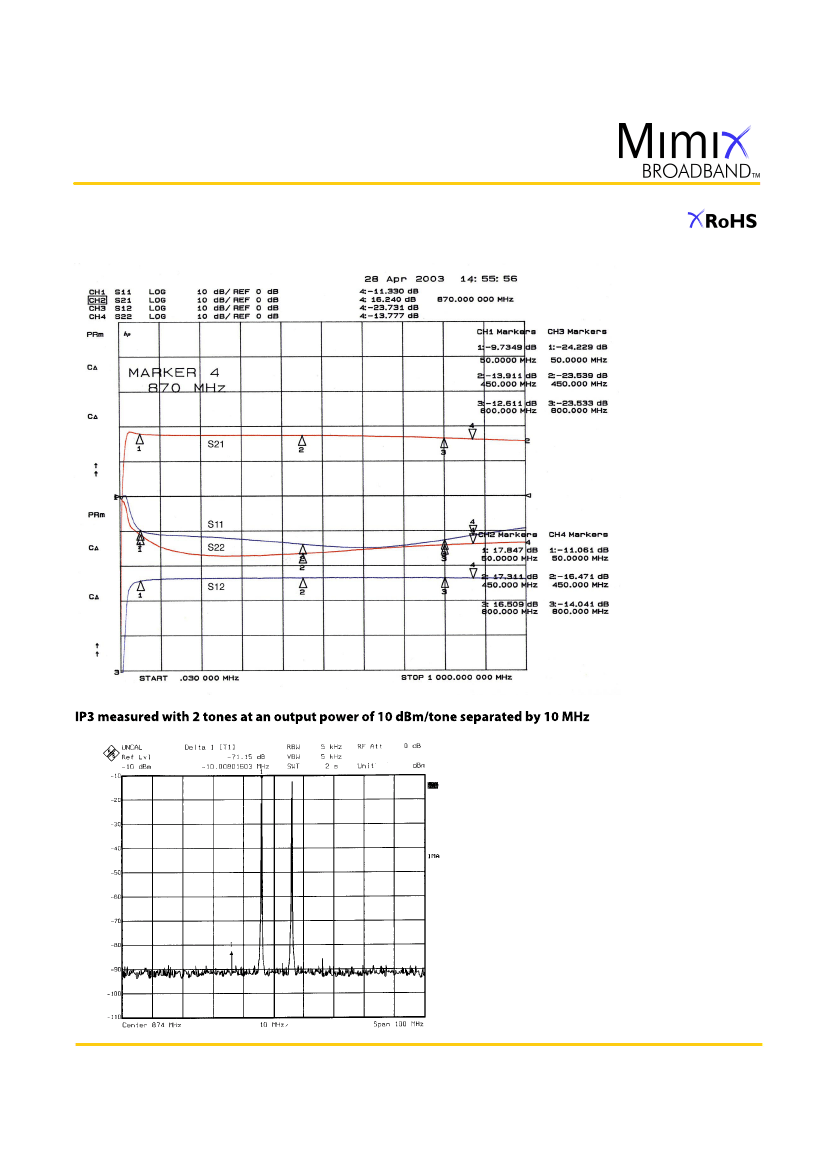

S-Parameters
vs.
Frequency
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 4 of 5
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
50-900 MHz
High Dynamic Range Amplifier
August 2007 - Rev 07-Aug-07
CMM6003-SC
Physical Dimensions
4.50
[0.177]
1.73
[0.068]
4
1.55
[0.061]
0.71
[0.028]
0.38
[0.015]
1.70
[0.067]
0.41
[0.016]
XXXXXXX
XXXXXX
ZYYWW
3.48
[0.137]
2.50
[0.096]
2.06
[0.081]
4.41
[0.163]
5.33
[0.210]
1
2
3
0.99
[0.039]
0.58
[0.023]
1.27
[0.050]
0.86
[0.034]
0.46
[0.18]
3X
1.50
[0.059]
3.00
[0.118]
0.38
[0.015]
0.76
[0.030]
DIMENSIONS IN MILLIMETERS
[INCHES]
0.64
[0.025]
3.86
[0.152]
MARKINGS:
XXXXXXX = MIMIX MODEL NO.
XXXXXX = WAFER LOT NO.
ZYYWW = DATE CODE (YR/WEEK)
FIRST LETTER COUNTRY OF ORIGIN IF OTHER THAT USA
Ordering Information
Part Number for Ordering
CMM6003-SC-0G00
CMM6003-SC-0G0T
PB-CMM6003-SC-0000
PB-CMM6003-SC-00A0
Description
Matte Tin plated RoHS compliant SOT-89 surface-mount power package in
bulk quantity
Matte Tin plated RoHS compliant SOT-89 surface-mount power package in
tape and reel
50 Ohm Evaluation Board
75 Ohm Evaluation Board
We also offer the plastic package with SnPb (Tin-Lead) or NiPdAu plating. Please contact your regional sales manager
for more information regarding different plating types.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 5
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
