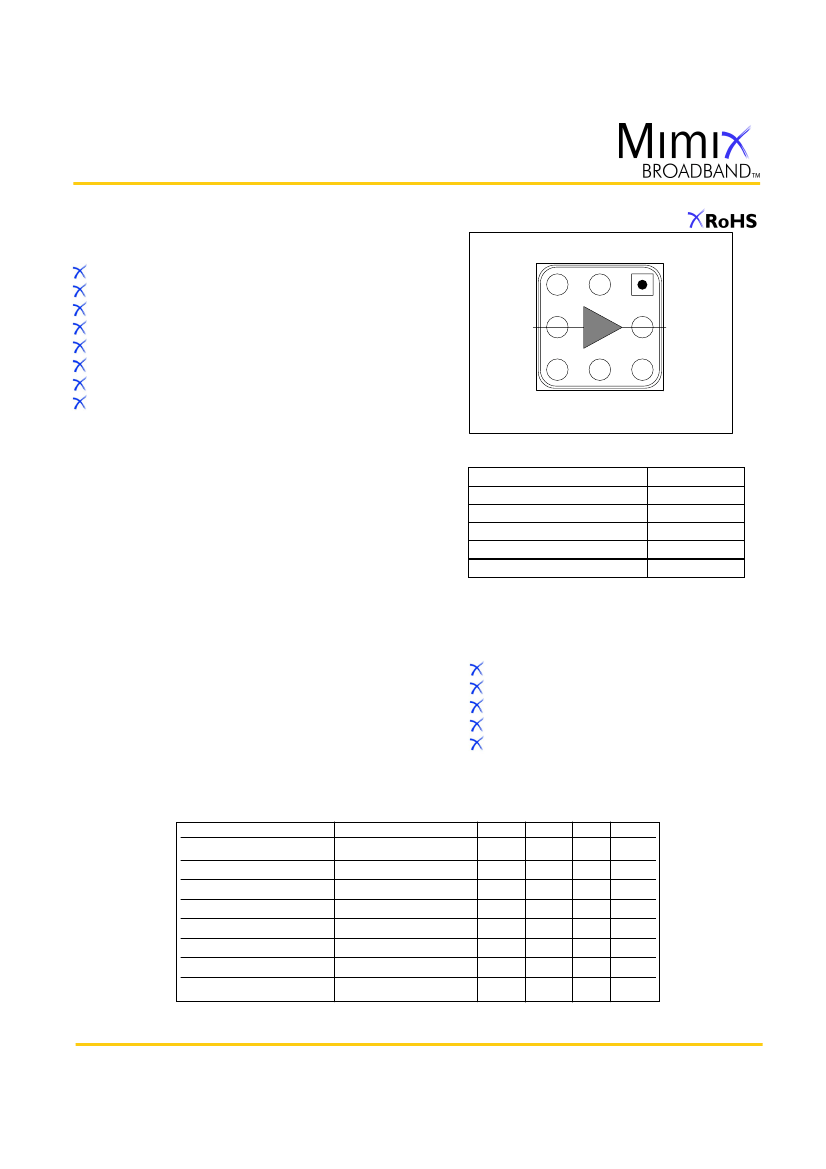

0.25-6.0 GHz
High Dynamic Range Amplifier
February 2008 - Rev 12-Feb-08
CMM6004-AH
Functional Block Diagram
Pin 1
INPUT
OUTPUT
(BIAS)
Features
0.25 to 6.0 GHz Frequency Range
+41 dBm Output IP3
1.7 dB Noise Figure
15 dB Gain
+23 dBm P1dB
LGA Package
Single Power Supply
Single Input Matching
Description
The CMM6004-AH is a high dynamic range amplifier designed for
applications operating within the 0.25 to 6.0 GHz frequency
range. It is an ideal solution for numerous transmit and receive
functions in wireless local loop (WLL) and UNH applications
where high linearity is required.
The amplifier has the flexibility of being optimized for a number
of wireless applications. It is an ideal solution when used as a
driver amplifier in applications including cellular and PCS
(personal communications services) operating from 0.8 to 2.2
GHz; MMDS (multichannel multipoint distribution systems)
operating from 2.2 to 2.7 GHz; WLAN (wireless LAN) operating at
2.4 GHz; WLL (wireless local loop) operating at 3.5 GHz; and
HiperLAN (high performance LAN) and U-NII (unlicensed national
information infrastructure) operating from 5.0 to 6.0 GHz.
ALL OTHER PINS GROUNDED
Absolute Maximum Ratings
Supply Voltage
RF Input Power*
Storage Temperature
Junction Temperature
Operating Temperature
Thermal Resistance
+6.0 V
+20 dBm
-55ºC to 125ºC
150ºC
-40ºC to +85ºC
50ºC/W
Operation of this device above any of these parameters may cause
permanent damage.
*Operation with more than 10 dBm of RF input power may cause 2 dB
degradation in OIP3 performance.
Applications
Wireless Local Loop Transmit and Receive
UNH Transmit and Receive
Dual Band 802.11 WLAN
WiMAX
LAN
The CMM6004-AH is packaged in a low-cost, space efficient,
Land Grid Array (LGA) package which provides excellent
electrical stability and low thermal resistance. All devices are
100% RF and DC tested. With single input matching the part
simplifies design by keeping board space and cost to a
minimum.
Electrical Characteristics (T=25ºC)
Parameter
Condition
Frequency Range
Gain
Externally matched
Input Return Loss
Externally matched
Output IP3
Noise Figure
Output P1dB
Operating Current Range
Supply Voltage
Unless otherwise specified, the following specifications are guaranteed at room temperature in a Mimix test fixture.
Min
0.25
13.5
38
Typ
15
-10
41
1.7
23.0
150
5.0
Max Units
6.0
GHz
dB
dB
dBm
dB
dBm
mA
V
120
180
Notes:
1. T = 25ºC, Vdd = 5V, Frequency = 2 GHz, 50 Ohm system.
2. OIP3 measured with two tones at output power of 5 dBm/tone separated by 10 MHz.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 6
Characteristic Data and Specifications are subject to change without notice.
©2008
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
0.25-6.0 GHz
High Dynamic Range Amplifier
February 2008 - Rev 12-Feb-08
CMM6004-AH

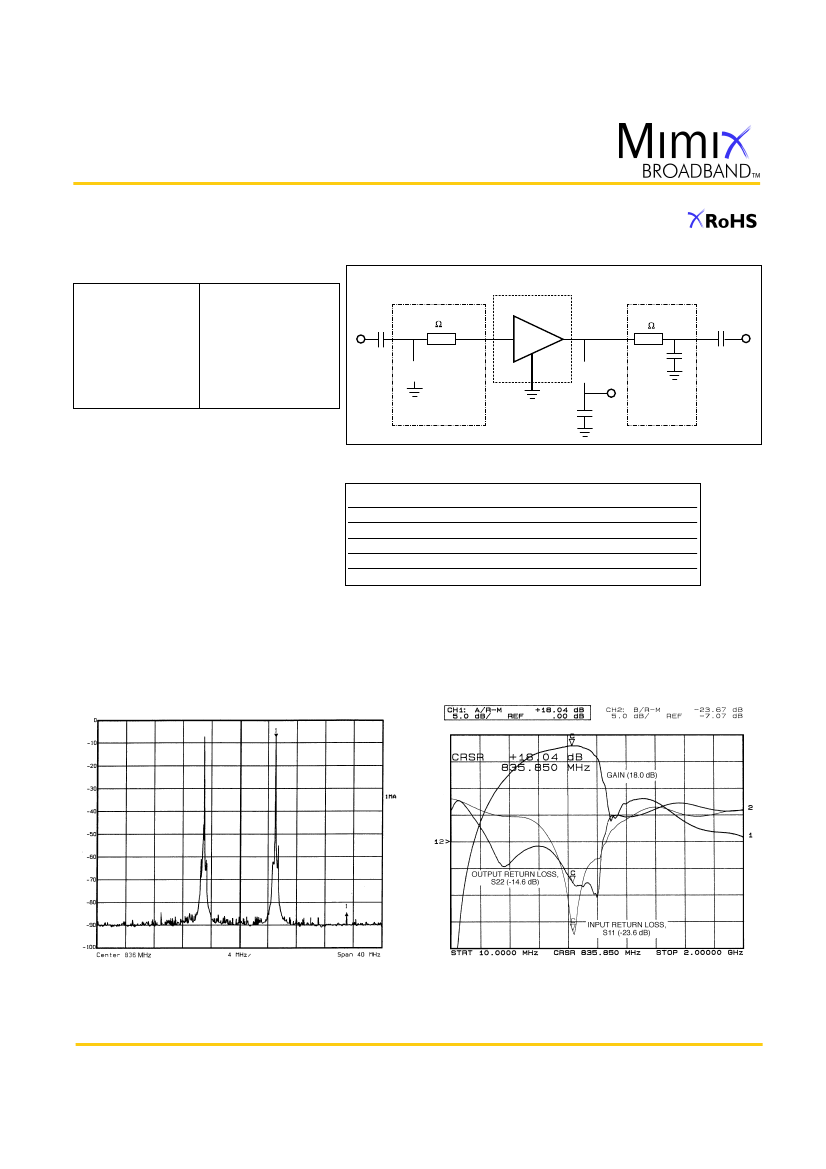

Application Circuit (836 MHz)
Typical Performance (50 Ohm System)
Frequency
Gain
Input Return Loss
Output Return Loss
OIP3
Noise Figure
Bias
836 MHz
18 dB
-23 dB
-14 dB
40 dBm
1.75 dB
Vds = 5V, Id = 175 mA
836 MHz
CMM6004-AH
RF
IN
T1
50
20°
50
T1
30°
C4
100 pF
RF
OUT
uu
uu
L1
6.8 nH
uu
uu
C1
100 pF
L2
22 nH
Vcc
5V
C3
4.7 pF
OUTPUT
MATCHING
NETWORK
INPUT MATCHING
NETWORK
C2
100 pF
Circuit Board Parts List
Part
Type
Reference
Designator
Description
Inductor
Inductor
Capacitor
Capacitor
Capacitor
L1
L2
C1, C4
C2
C3
0603, 6.8 nH
0603, 22 nH
SMD 0805 NPO, 100 pF
0603, 1 pF
SMD 0805, 50V ±0.25 pF 4.7 pF
Typical Performance
IP3 measured with 2 tones at an output power of 5
dBm/tone separated by 10 MHz
Gain, Input Return Loss and Output Return Loss
vs Frequency
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 6
Characteristic Data and Specifications are subject to change without notice.
©2008
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
0.25-6.0 GHz
High Dynamic Range Amplifier
February 2008 - Rev 12-Feb-08
CMM6004-AH

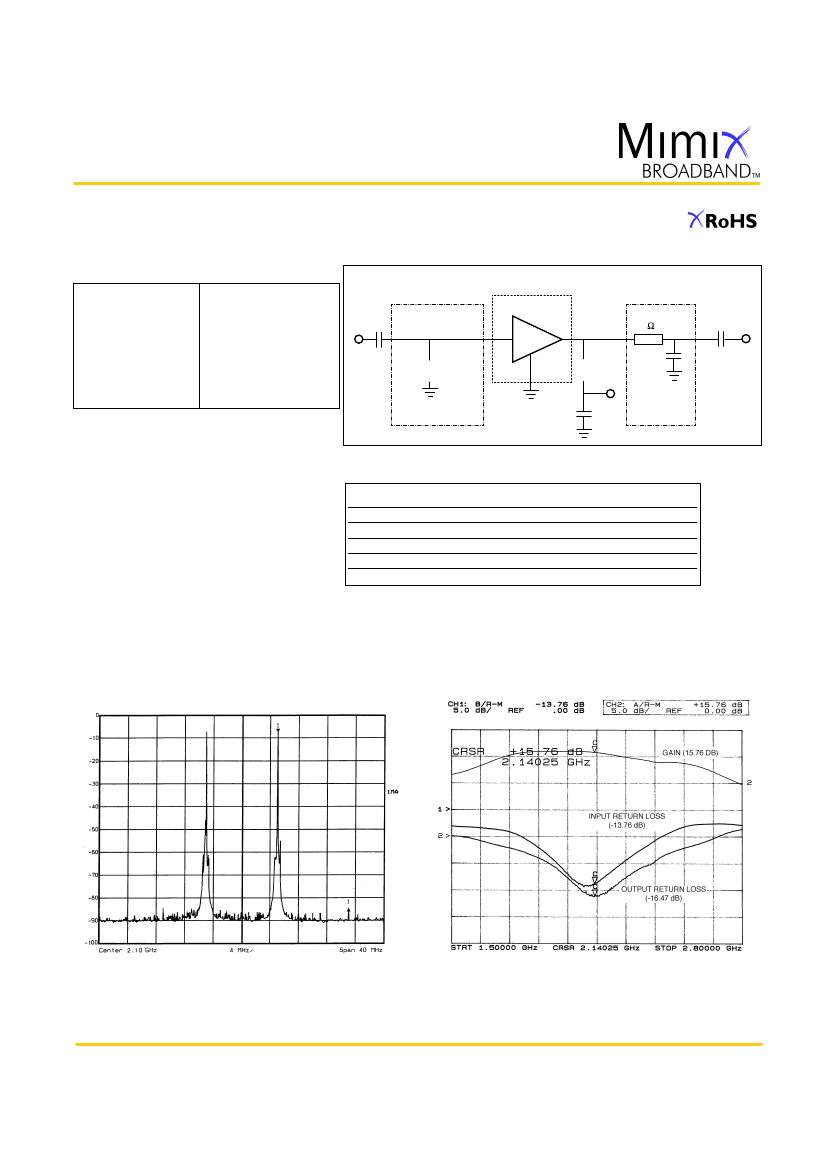

Application Circuit (2.1 GHz)
Typical Performance (50 Ohm System)
Frequency
Gain
Input Return Loss
Output Return Loss
OIP3
Noise Figure
Bias
2.1 GHz
15.8 dB
-14 dB
-16.5 dB
40 dBm
2.95 dB
Vds = 5V, Id = 175 mA
2.1 GHz
CMM6004-AH
RF
IN
T1
50
33°
C4
100 pF
RF
OUT
uu
uu
L1
1.8 nH
uu
uu
C1
100 pF
L2
22 nH
Vcc
5V
C3
1.5 pF
OUTPUT
MATCHING
NETWORK
INPUT MATCHING
NETWORK
C2
100 pF
Circuit Board Parts List
Part
Type
Reference
Designator
Description
Inductor
Inductor
Capacitor
Capacitor
Capacitor
L1
L2
C1, C4
C2
C3
0603, ±0.3, 1.8 nH
0603, 22 nH
SMD 0805 NPO, 100 pF
0603, 1 pF
SMD 0603, 50V ±0.1 pF 1.5 pF
Typical Performance
IP3 measured with 2 tones at an output power of 5
dBm/tone separated by 10 MHz
Gain, Input Return Loss and Output Return Loss
vs Frequency
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 3 of 6
Characteristic Data and Specifications are subject to change without notice.
©2008
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
0.25-6.0 GHz
High Dynamic Range Amplifier
February 2008 - Rev 12-Feb-08
CMM6004-AH

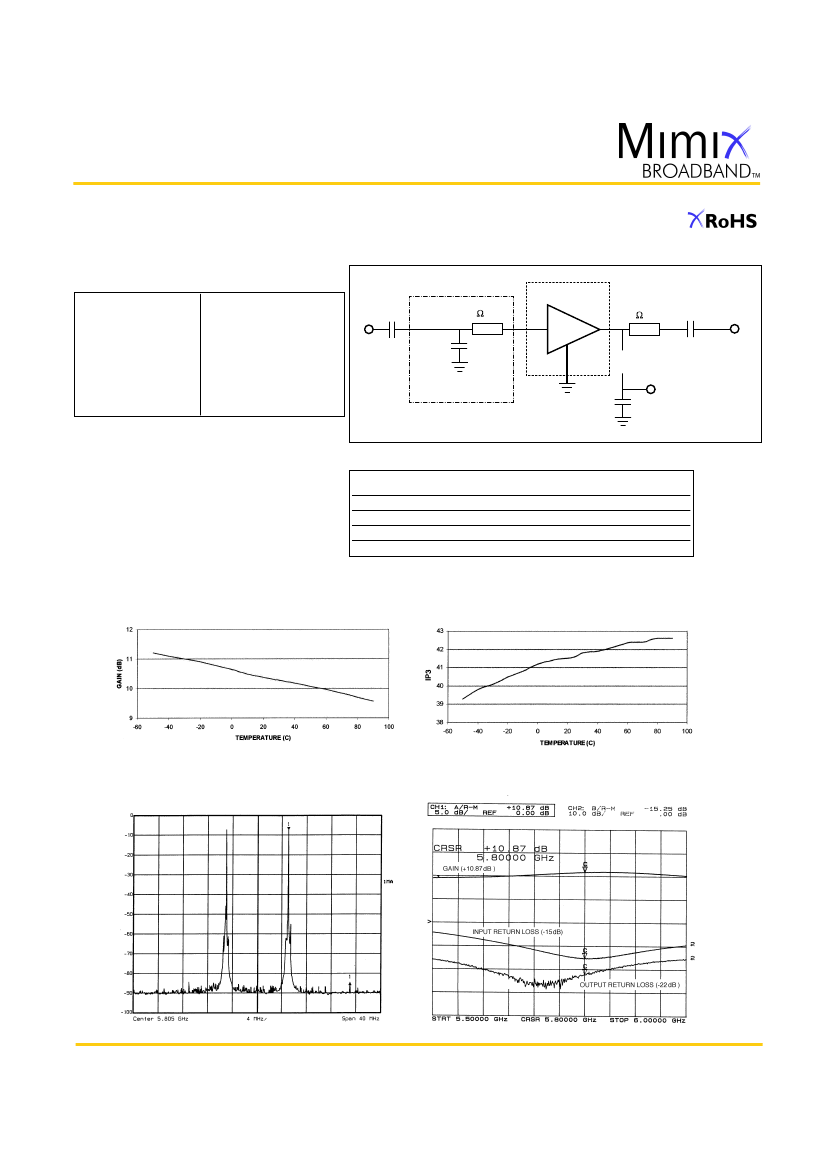

Application Circuit (5.8 GHz)
Typical Performance (50 Ohm System)
Frequency
Gain
Input Return Loss
Output Return Loss
OIP3
Noise Figure
Bias
5.8 GHz
10.5 dB
-11.5 dB
-17.2 dB
40 dBm
3.8 dB
Vds = 5V, Id = 175 mA
5.8 GHz
CMM6004-AH
RF
IN
C2
3.9 pF
INPUT MATCHING
NETWORK
C3
100 pF
T1
50 110°
T1
50 125°
C4
100 pF
RF
OUT
uu
uu
Description
C1
100 pF
L1
6.8 nH
Vcc
5V
Circuit Board Parts List
Part
Type
Reference
Designator
Inductor
Capacitor
Capacitor
Capacitor
L1
C1, C4
C2
C3
0603, 6.8 nH
SMD 0805 NPO, 100 pF
SMD 0805, 3.9 pF
0603, 1 pF
Typical Performance
Gain vs Temperature @ 5.8 GHz
IP3 vs Temperature @ 5.8 GHz
IP3 measured with 2 tones at an output power of 5
dBm/tone separated by 10 MHz
Gain, Input Return Loss and Output Return Loss
vs Frequency
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 4 of 6
Characteristic Data and Specifications are subject to change without notice.
©2008
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
0.25-6.0 GHz
High Dynamic Range Amplifier
February 2008 - Rev 12-Feb-08
CMM6004-AH

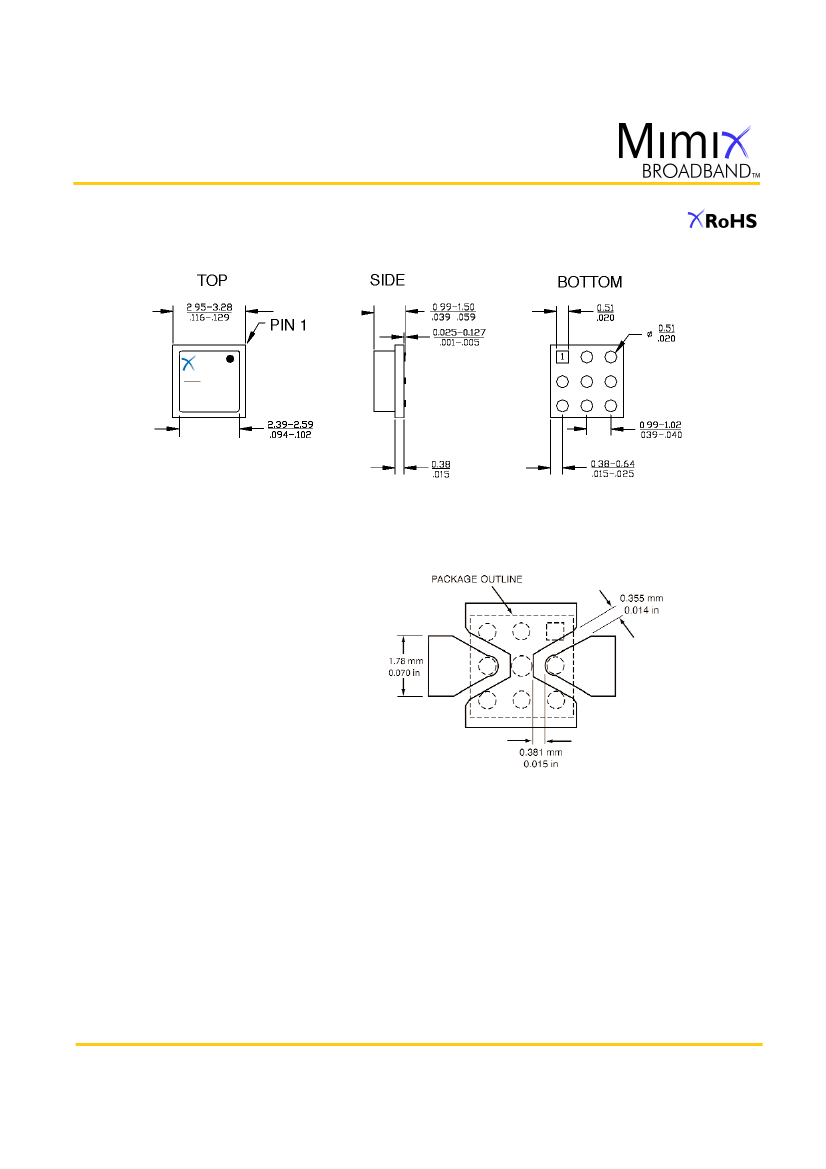

Physical Dimensions
Dimensions in millimeters/inches
Mounting Recommendation
*Board substrate:
RO-4003
Thickness = 31 mil
*Ground vias are critical to RF and
thermal grounding considerations.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 6
Characteristic Data and Specifications are subject to change without notice.
©2008
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
PCB Design
