MT58LC128K18F1LG-7.5TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MT58LC128K18F1LG-7.5TR

Preview

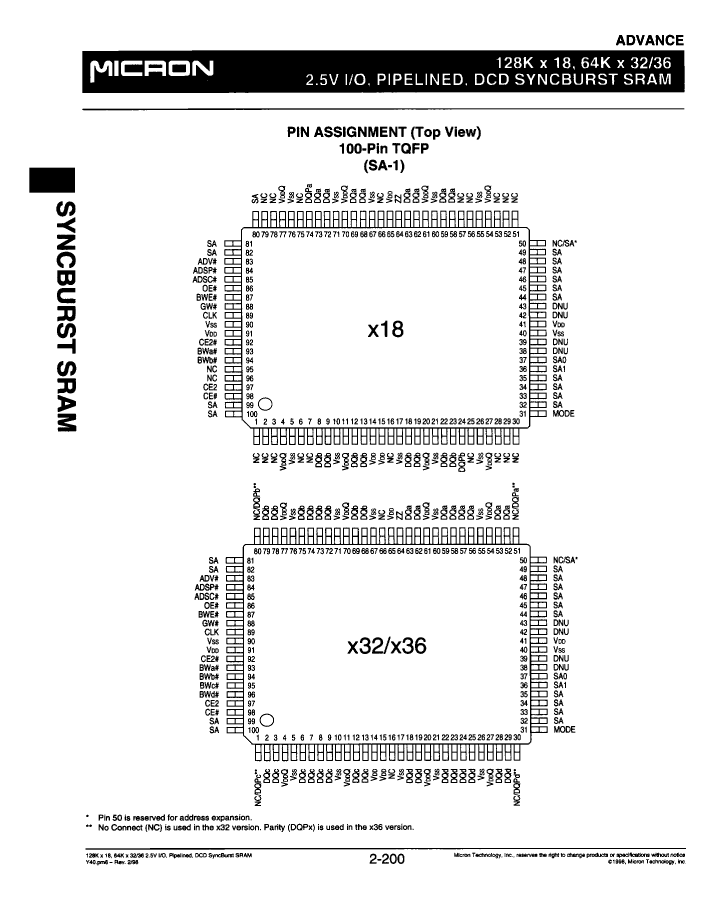

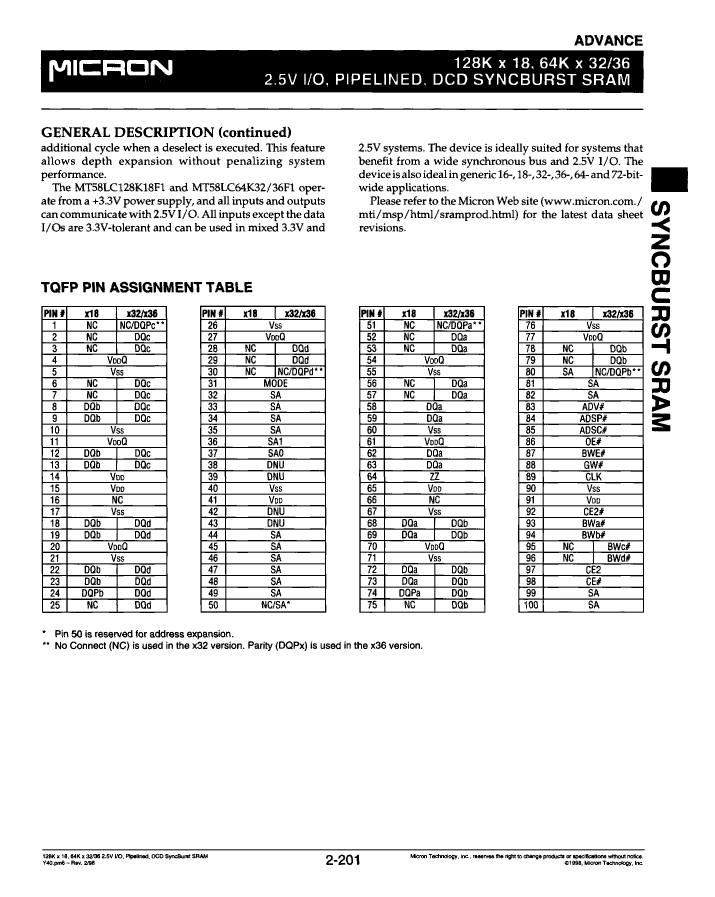

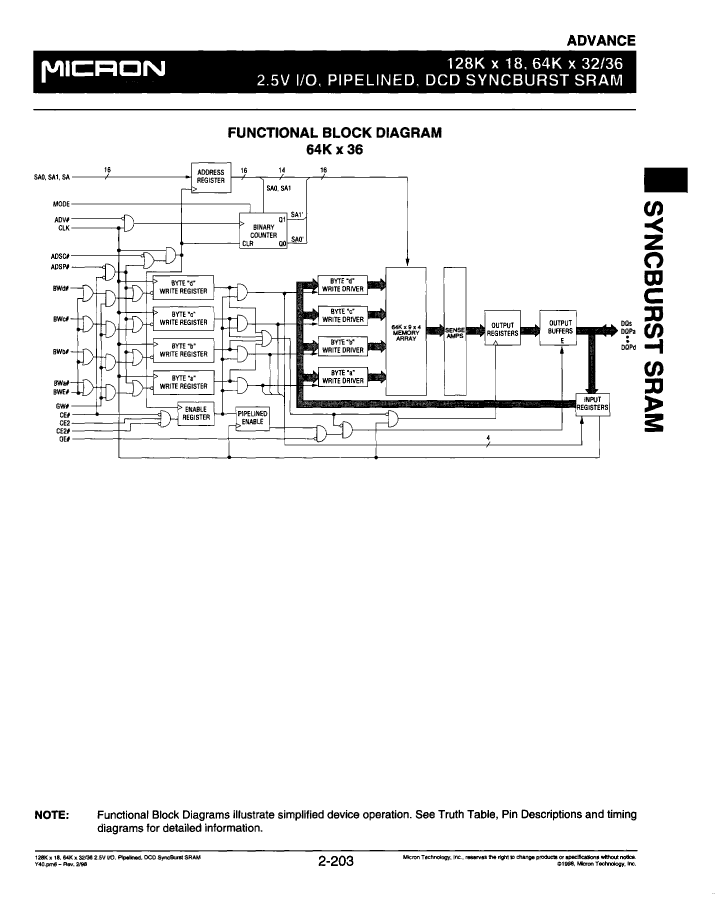

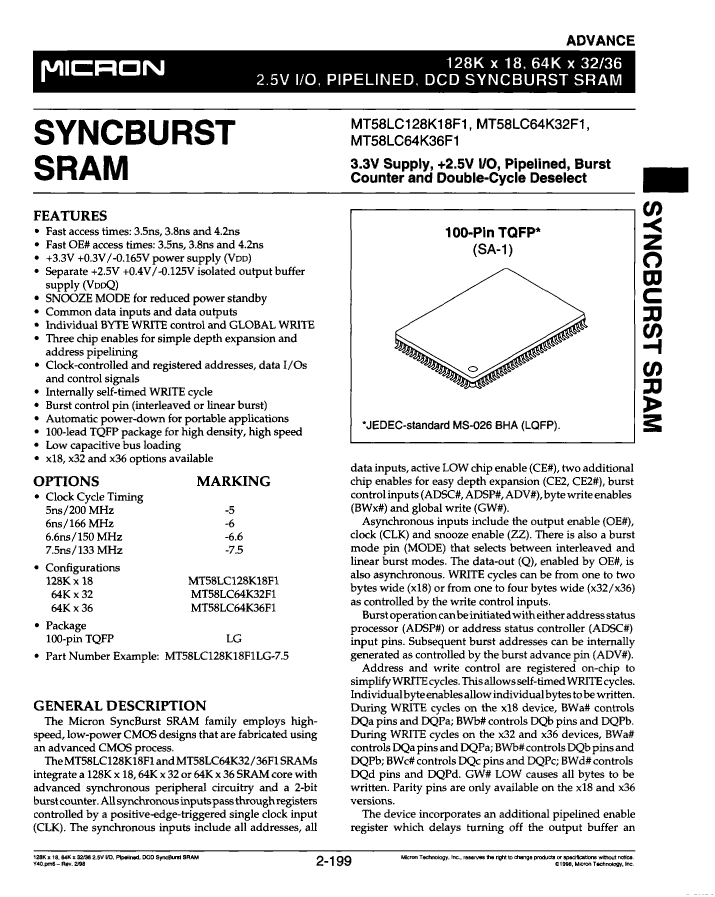

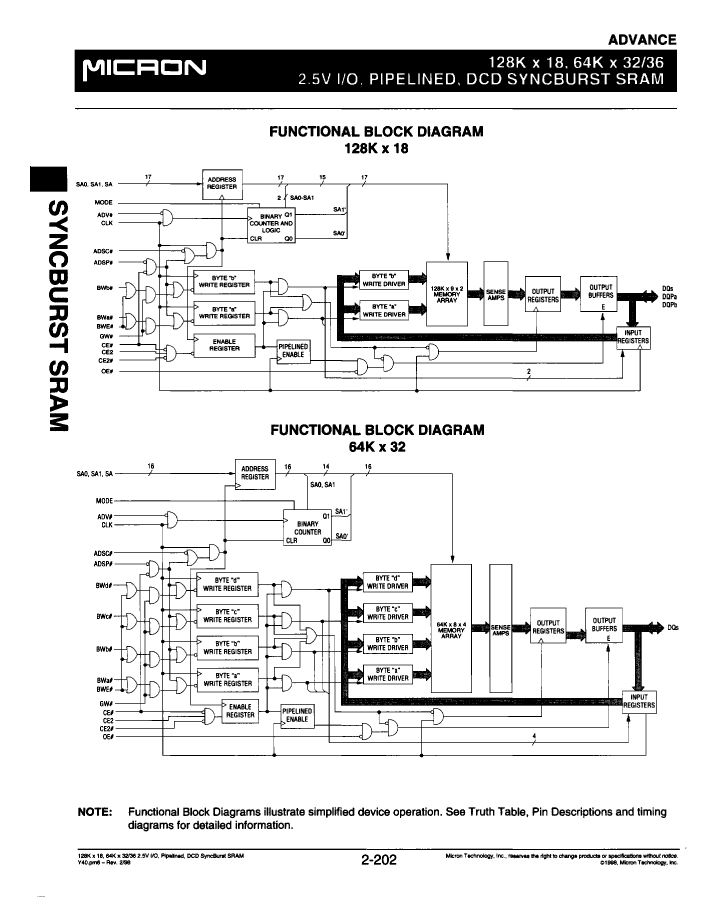

MT58LC128K18F1LG-7.5TR: DescriptionStandard SRAM, 128KX18, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100; Categorystorage storage; File Size669KB，17 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT58LC128K18F1LG-7.5TR Overview

Standard SRAM, 128KX18, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100

MT58LC128K18F1LG-7.5TR Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	LQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
JESD-30 code	R-PQFP-G100
length	20 mm
memory density	2359296 bit
Memory IC Type	STANDARD SRAM
memory width	18
Number of functions	1
Number of terminals	100
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX18
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MT58LC128K18F1LG-7.5TR Related Products

	MT58LC128K18F1LG-7.5TR	MT58LC64K32F1LG-6TR	MT58LC64K36F1LG-6.6TR	MT58LC64K32F1LG-5TR	MT58LC64K32F1LG-7.5TR	MT58LC64K36F1LG-5TR	MT58LC64K32F1LG-6.6TR	MT58LC64K36F1LG-7.5TR	MT58LC64K36F1LG-6TR
Description	Standard SRAM, 128KX18, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX32, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX36, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX32, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX32, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX36, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX32, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX36, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100	Standard SRAM, 64KX36, CMOS, PQFP100, PLASTIC, MS-026, TQFP-100
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	LQFP,	LQFP,	LQFP,	LQFP,	LQFP,	LQFP,	PLASTIC, MS-026, TQFP-100	LQFP,	LQFP,
Contacts	100	100	100	100	100	100	100	100	100
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	2359296 bit	2097152 bi	2359296 bit	2097152 bit	2097152 bit	2359296 bit	2097152 bit	2359296 bit	2359296 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	18	32	36	32	32	36	32	36	36
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	100	100	100	100	100	100	100	100	100
word count	131072 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	128000	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX18	64KX32	64KX36	64KX32	64KX32	64KX36	64KX32	64KX36	64KX36
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Maker	-	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	-
Number of ports	-	1	1	1	-	1	1	-	1
Output characteristics	-	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	-	3-STATE
Exportable	-	YES	YES	YES	-	YES	YES	-	YES
