EURO
QUARTZ
EQXP-HC53 SERIES
Features
·
·
·
·
·
·
Extremely low jitter
Low cost
Express delivery
Stability from ±20ppm, -40 to +85°C
RoHS compliant
Serial ID with comprehensive traceability
HCMOS 5x3.2mm 3.3V OSCILLATOR
Freq: 0.75MHz to 250MHz

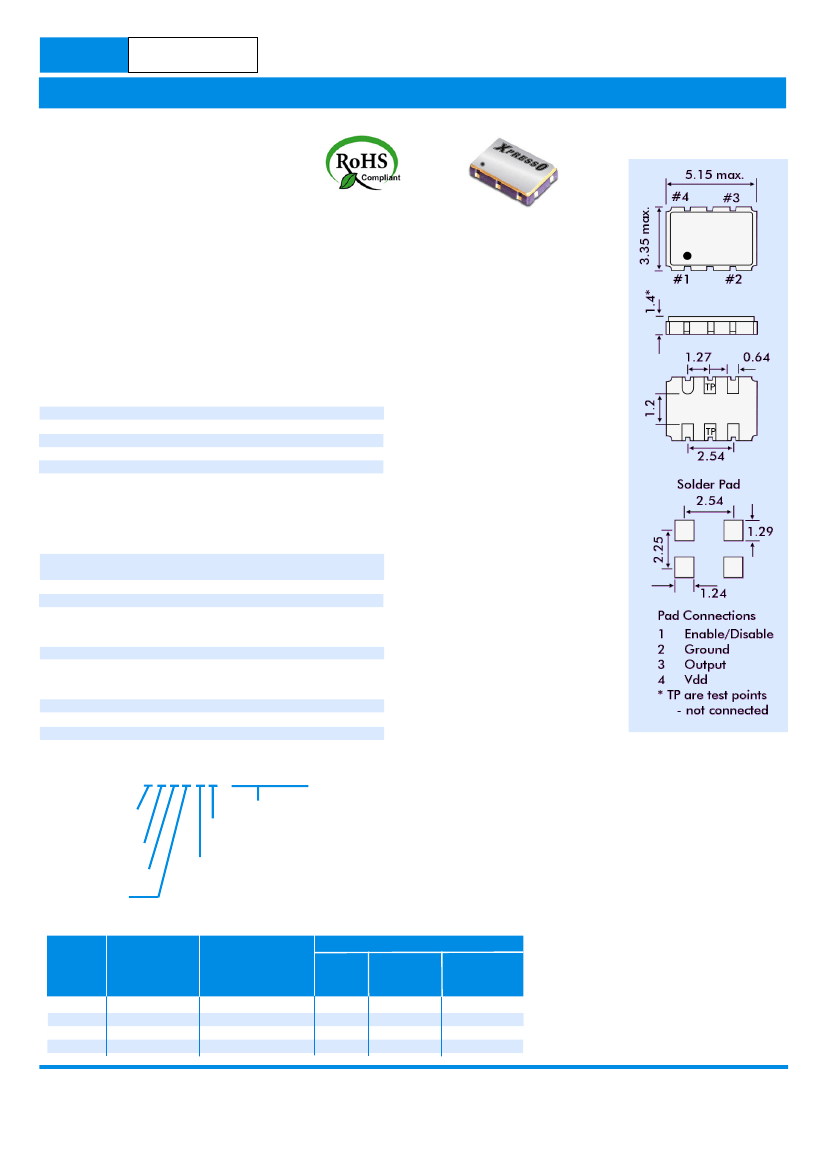

OUTLINE & DIMENSIONS
Description
The XPRESSO range of fully configurable oscillators utilizes a
family of proprietary ASICs developed for noise reduction to
provide oscillators with noise levels comparable to traditional
bulk-produced quartz and SAW-based oscillators.
XPRESSO oscillators are low-cost, low-noise, with a wide
frequency range, excellent ambient performance and
available on very short leadtimes. All XPRESSO oscillators
are 100% final tested .
Electrical Specification
Frequency Range:
Frequency stability:
Operating Temperature Range:
Storage Temperature Range:
Supply Voltage:
Input Current
0.75 ~ 20MHz:
20+ ~ 50MHz:
50+ ~ 130MHz:
130+ ~ 200MHz:
200+ ~ 250MHz:
Output Load:
Start up Time:
Output Enable/Disable Time:
Output Low/High Voltages
0.75 ~ 150MHz:
150+ ~ 250MHz:
Symmetry:
Rise/Fall Times
0.75 ~ 150MHz:
150+ ~ 250MHz:
Moisture Sensitivity Level:
Termination Finish:
Maximum Soldering Parameters:
Model Selection Guide
0.750MHz ~ 250.0MHz
from ±20ppm to ±100ppm
-40° ~ +85°C
-55° ~ +125°C
+3.3 Volts ±5%
32mA max.
35mA max.
47mA max.
55mA max.
60mA max.
15pF standard
30pF <125MHz available
10mS
100ns
10%Vdd max./90%Vdd min.
20%Vdd max./80% Vdd min.
45%/55%
3ns
2ns
1
Au
260°C for 10 seconds
Typical applications
·
Any application requiring an oscillator.
·
SONET
·
Ethernet
·
Storage Area Networks
·
Broadband Access
·
Microprocessors/DSP/FPGA
·
Industrial Controllers
·
Test and measurement
·
Fibre Channel
Supply Format
Tape and Reel, 16mm tape,
8.0mm pitch,
1k reel = 178mmØ
2k reel = 255mmØ
EQXP - H C 5 3 6 R - 106.250000
H = HCMOS
C = Ceramic
5 = 5 x 3.2mm
3 = 3.3V
Jitter Measurements
Rj/Dj Composition
Frequency
Phase Jitter
Time Interval Error Random Deterministic Total Jitter (Tj)
(14*Rj)+Dj
Jitter (Dj)
(MHz)
(12kHz~20MHz)
s
of jitter distribution Jitter (Rj)
(ps)
(ps p-p)
(ps RMS)
(ps RMS)
(ps RMS)
62.5
106.25
125.0
156.25
0.93
0.86
0.75
0.77
2.8
3.2
2.7
3.3
1.28
1.28
1.20
1.27
6.8
8.4
8.0
8.6
25.1
26.6
25.2
26.6
0
5
6
8
Frequency
Blank = -20~+70°C
R = -40 ~ +85°C
=
+
=
=
±100ppm
±50ppm
±25ppm
±20ppm (-20~+70 only)
