UM7002A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UM7002A

UM7002A: DescriptionPin Diode, 200V V(BR), Silicon,; CategoryDiscrete semiconductor diode; File Size306KB，11 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

UM7002A Overview

Pin Diode, 200V V(BR), Silicon,

UM7002A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	O-LEMW-N2
Reach Compliance Code	compliant
ECCN code	EAR99
application	ATTENUATOR; SWITCHING
Minimum breakdown voltage	200 V
Shell connection	ISOLATED
Configuration	SINGLE
Maximum diode capacitance	0.9 pF
Nominal diode capacitance	0.9 pF
Diode component materials	SILICON
Maximum diode forward resistance	1 Ω
Diode resistance test current	100 mA
Diode resistance test frequency	100 MHz
Diode type	PIN DIODE
JESD-30 code	O-LEMW-N2
JESD-609 code	e0
Minority carrier nominal lifetime	2.5 µs
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	10 W
Certification status	Not Qualified
Reverse test voltage	100 V
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

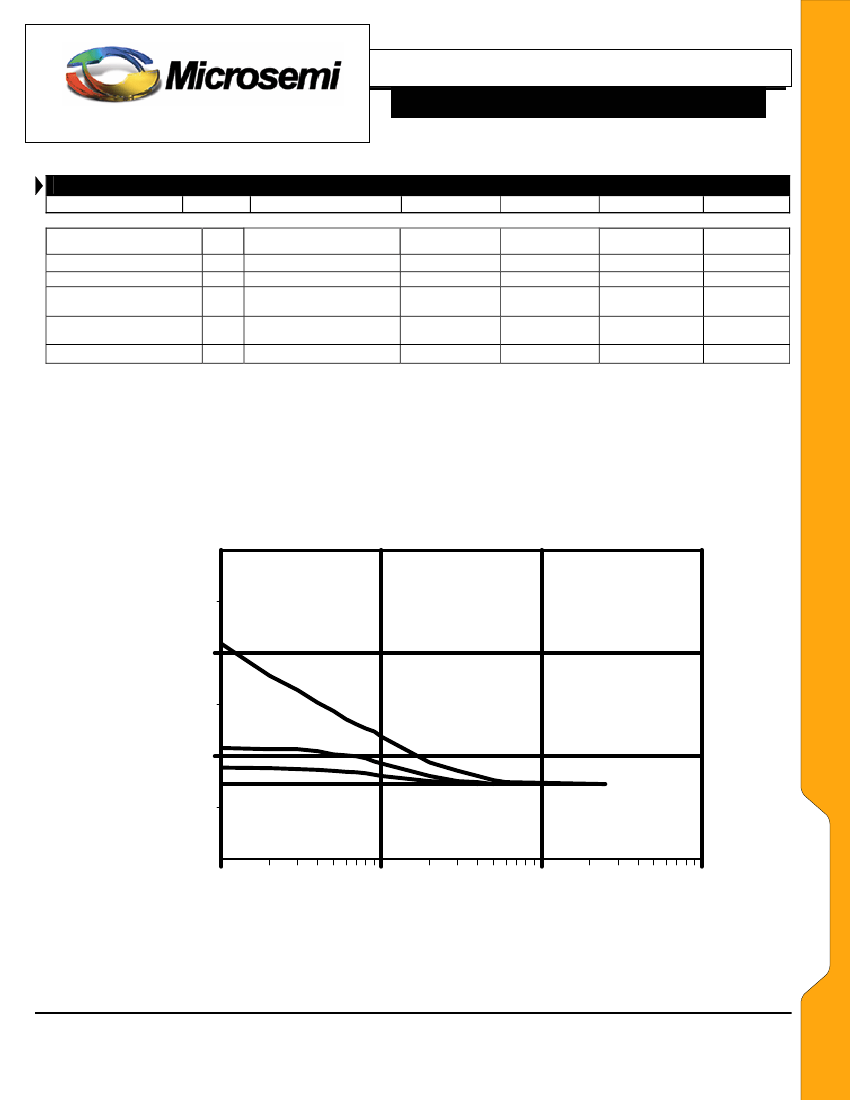

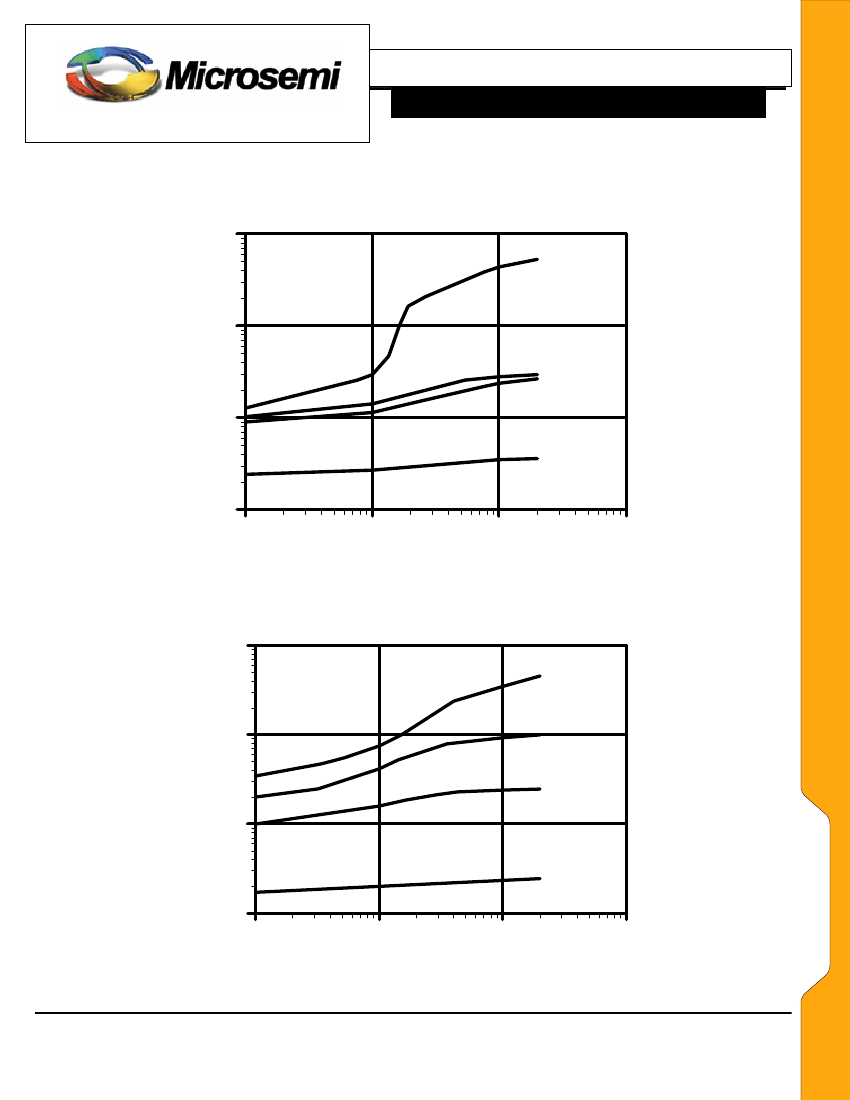

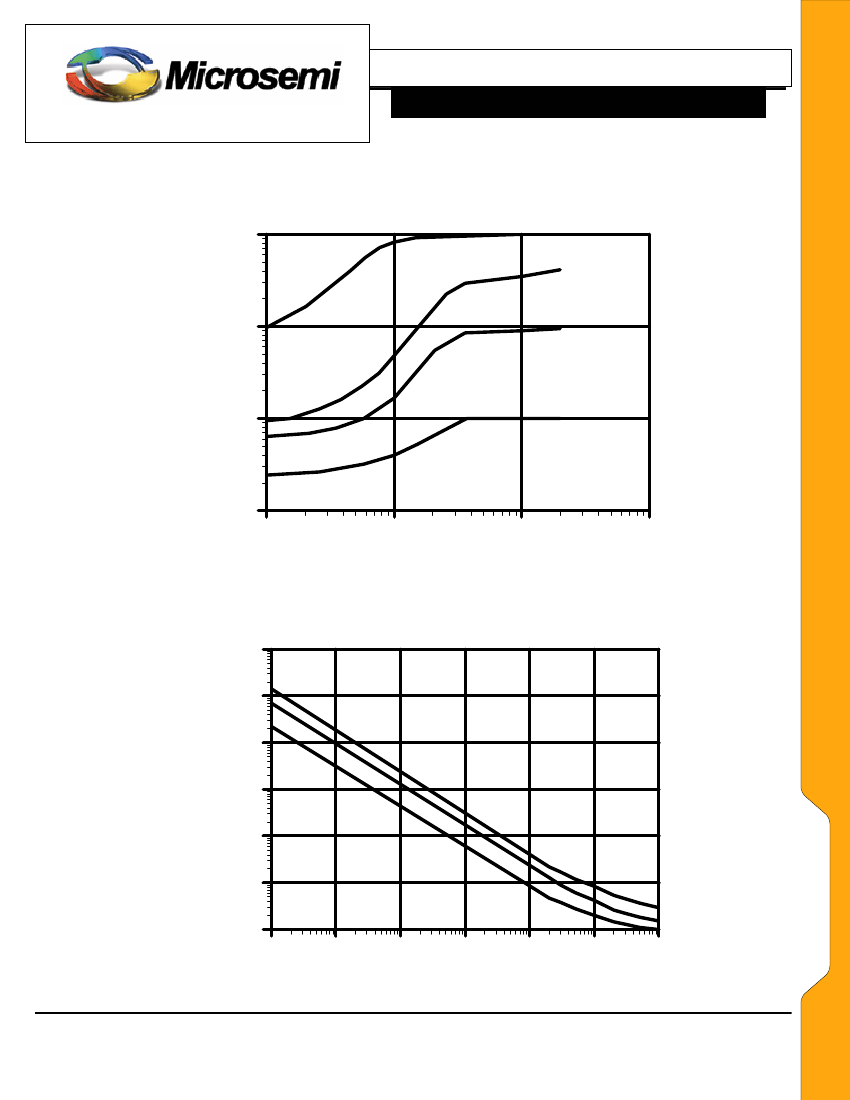

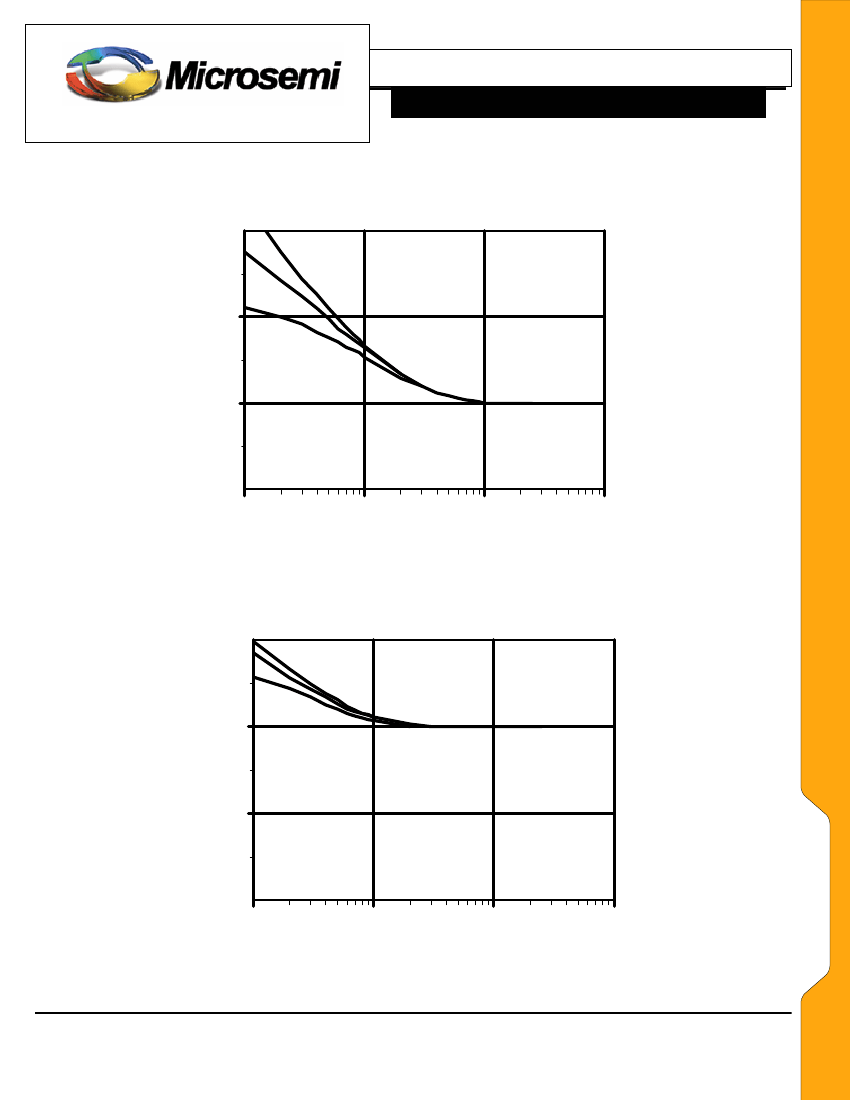

Preview

Download Datasheet

View All

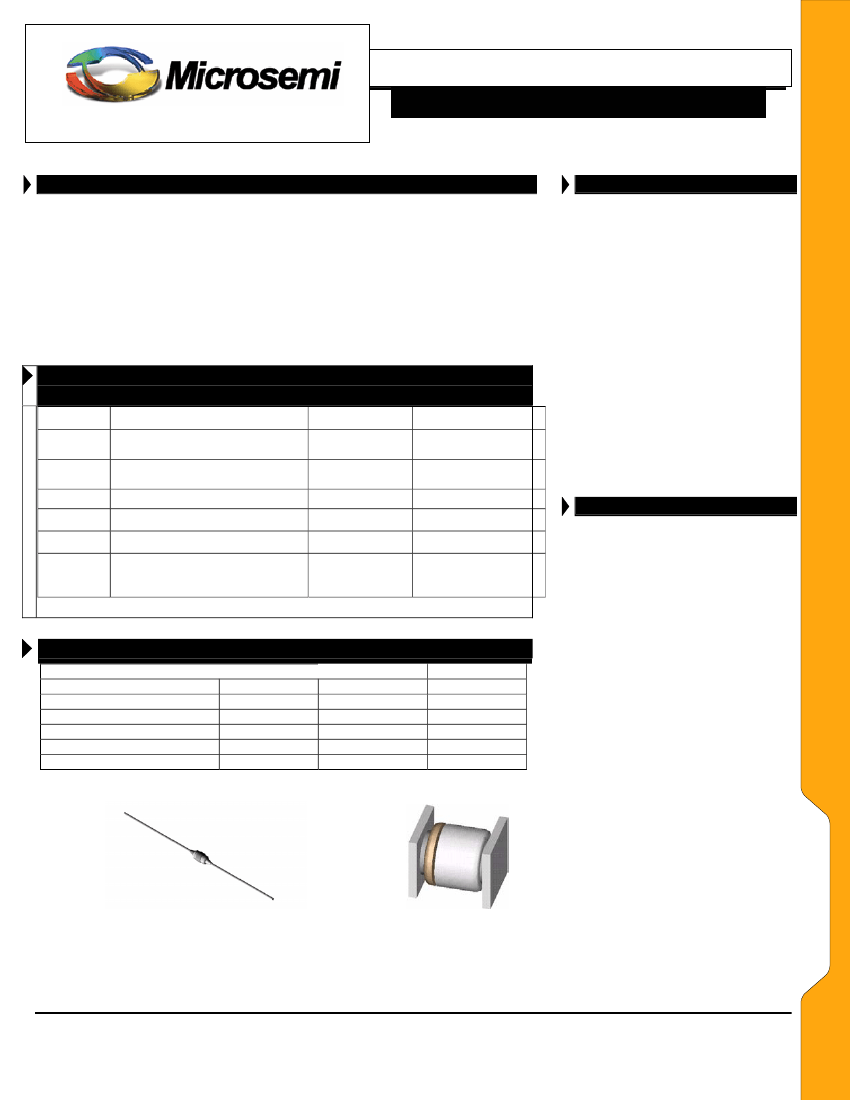

UM7000 / UM7100/UM7200

HIGH POWER PIN DIODES

DESCRIPTION

The UM7000 and UM7100 series offer

moderately high power handling in

combination with reasonably low levels of

both series resistance and capacitance. The

UM7200 series offers the lowest series

resistance, but the highest capacitance

of the group. The differences in specified

performance, for each of the series, results from

different I-region thickness. The three series

have broad applicability in many RF and

microwave switch and attenuator circuits.

Additionally, the UM7100 in leaded versions is

usually the most cost-effective diode choice in

high volume usage.

KEY FEATURES

WWW .

Microsemi

Voltage ratings to 1000V (UM7000)

Average power dissipation to 10 W

Series resistance as low as 0.25

Ω

Carrier lifetime greater than 2.5 µs

Non cavity design

Thermally matched configuration

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

Low capacitance at 0 V bias

Low conductance at 0 V bias

ABSOLUTE MAXIMUM RATINGS AT 25º C

(UNLESS OTHERWISE SPECIFIED)

Package

B&E

All

Condition

25 C Pin Temperature

10 W

5.5 W

1.5 W

10 W

7.5 W

UM7000

UM7100

UM7200

C/W

27.5

C/W

20 C/W

C/W

60 kW

35 kW

20 kW

Compatible with automatic insertion

equipment

½ in. total length to 25

C Contact

Free Air

25 C Stud Temperature

25 C End Cap Temperature

APPLICATIONS/BENEFITS

Isolated stud package available

Surface mount package available

1 us pulse (Single)

VOLTAGE RATINGS

Reverse Voltage @ 10 uA

100

200

400

600

800

1000

UM7001

UM7002

UM7006

UM7010

UM7101

UM7102

UM7104

UM7108

UM7201

UM7202

UM7204

UM7000 SERIES

Style “B”

Style “SM”



2005

Rev. 0, 2005-09-08

Microsemi

Page 1
