DFVS7-MLECPFREQ100B25 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFVS7-MLECPFREQ100B25

DFVS7-MLECPFREQ100B25: DescriptionLVPECL Output Clock Oscillator, 150MHz Min, 260MHz Max; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

DFVS7-MLECPFREQ100B25 Overview

LVPECL Output Clock Oscillator, 150MHz Min, 260MHz Max

DFVS7-MLECPFREQ100B25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	25%
Manufacturer's serial number	DFVS7-MLECP
Installation features	SURFACE MOUNT
Maximum operating frequency	260 MHz
Minimum operating frequency	150 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	19.9mm x 12.9mm x 9.3mm
longest rise time	0.5 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

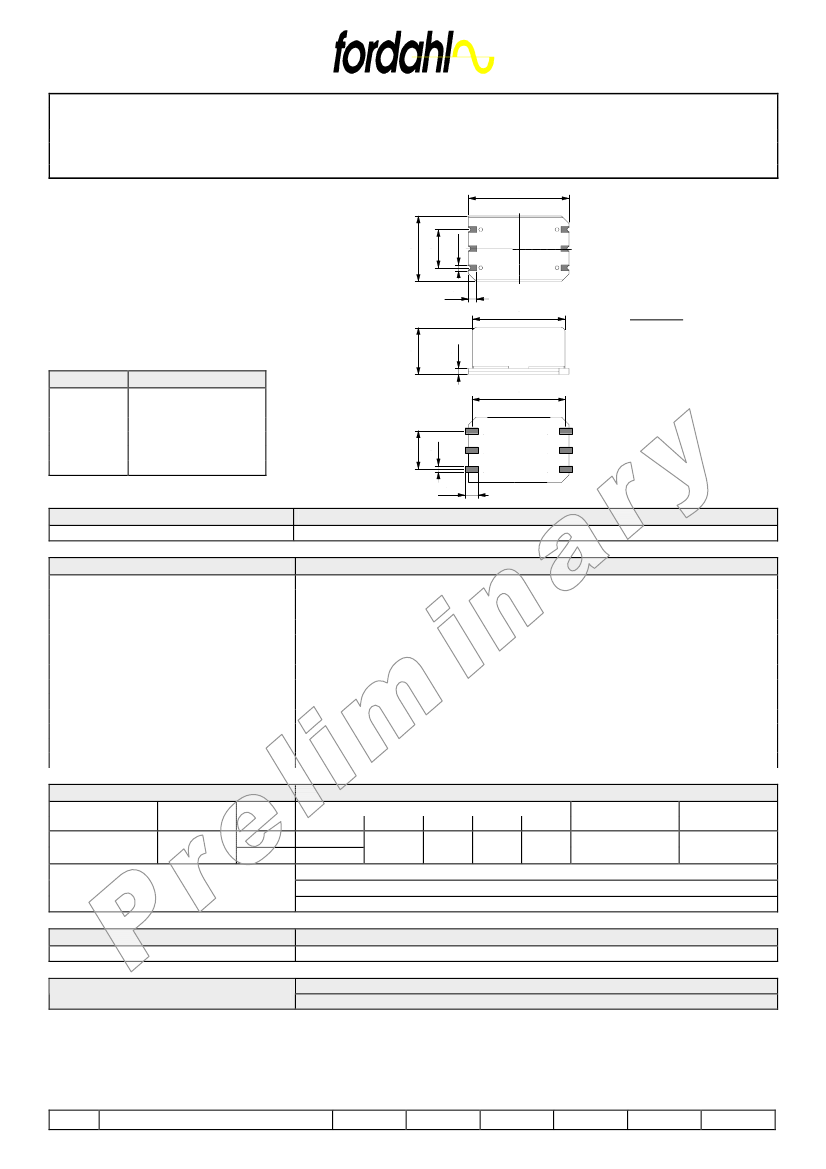

FREQUENCY CONTROL PRODUCTS

SURFACE MOUNT VOLTAGE CONTROL OSCILLATOR

DFV S7-MLECP (3.3 V)

HIGH FREQUENCY VCXO

7.62

1.27

19.9±0.1

CRYSTAL PACKED INTO ITS OWN HOLDER

3.3 V SUPPLY VOLTAGE

VERY LOW JITTER

12.9±0.2

1.6

18.4

9.3±0.1

Marking:

DFV S7-MLECP

Frequency

Code yrwk

Function

V control

GND

Output 2

Output 1

Vcc

DFV S7

1.2

19.0

7.62

1.3

2.6

PC board footprint

TYPE

Frequency Range

DFV S7-MLECP

150 to 260 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle @ 50% level

rise/fall times ( 20 to 80% )

high/low levels

jitter RMS ( 12 kHz to 5 MHz )

complementary output on pin 3

start up

3.3 V ± 5 %

≤

60 mA

LVPECL 100 K ( 50

Ω

to 1.3 V )

45/55...55/45 %

≤

0.5 ns

≥

2.22 V/

≤

1.7 V

≤

0.5 ps

180° phase shifted

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

type

DFV S7-MLECP

Remarks

temperature model

range

code

100B15

0 to 70°C

100B25

temp.

≤

± 15

≤

± 25

detailed tolerances [ ppm ]

stability versus:

@ 25°C

Vcc

load

≤

± 10

≤

±3

≤

± 0.5

ageing

≤

±2

pulling range

positive function

≥

± 100

control

voltage

1.65 V

1.35 V

input impedance

≥

10 kΩ,

modulation bandwidth

≥

10 kHz @ -3dB

ageing is 1 year at 25°C

type + option code + frequency + model code

DFV S7-MLECP 200 MHz 100B15

Please consult factory for -40 to +85°C versions

Preliminary data sheet is subject to change without notice

ORDERING CODE

Example

REMARK

TYPE

DFV S7-MLECP

REV

DATE

17.08.2001

CHECKED

NE/MYP
