ZMCJM9L0K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ZMCJM9L0K

ZMCJM9L0K: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.2A, 60VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size158KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

ZMCJM9L0K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZMCJM9L0K	-	-	View	Buy Now

ZMCJM9L0K Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.2A, 60VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

ZMCJM9L0K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Actuator material	NYLON
Actuator type	LEAF
body width	5.8 mm
body height	6.6 mm
Body length or diameter	12.8 mm
center contact material	SILVER ALLOY
Center contact plating	GOLD
Contact (AC) maximum rated R load	0.1A@125VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.2 A
Contact (DC) maximum rated R load	.2A@60VDC
contact time	SNAP ACTION
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	60 V
Dielectric withstand voltage	1000VRMS V
Electrical life	15000 Cycle(s)
End contact material	SILVER ALLOY
End contact plating	GOLD
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	ZM
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	1.47 N
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.142 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

ZM Series

Subminiature Snap-acting Switches

Features/Benefits

•

Reliable snap-acting mechanism

•

Long electrical and mechanical life

•

Compact size—Ideal when space is limited

•

Various PCB terminals and actuators

•

RoHS compatible

Typical Applications

•

PCB detection switch

•

Communication devices

•

Testing equipment

•

Security/Alarm systems

•

Consumer electronics

Models Available

Specifications

CONTACT RATING: F7: 3A @ 125 VAC; 1.5A @ 250 VAC

M9: 0.2A @ 60 VDC.

ELECTRICAL LIFE: 15,000 Cycles. @ 3A

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 1000 Vrms.

OPERATING TEMPERATURE: –30ºC to 85ºC.

OPERATING FORCE: CJ: 150 grams, CH: 90 grams.

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @

20 V AC or DC max.

Materials

CASE: Nylon 4/6

COVER/ACTUATOR: Nylon 6/6

MOVABLE CONTACTS: Silver, gold plated.

STATIONARY CONTACTS: Silver, gold plated.

TERMINALS: Brass, tin plated.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages K-34 and K-35. For additional options not shown in catalog, consult Customer Service Center.

Series

SP, Mom.

Operating Force

150 grams

90 grams

Electrical Rating

3 A, 125 V AC; 1.5A, 250 VAC

0.2 A, 60 V DC

Actuator

Pin plunger

Leaf

T13

Simulated roller

T23

Simulated roller

Terminations

PC Thru-hole

Left-footed, PC Thru-hole

Right-footed, PC Thru-hole

PC Thru-hole with retention feature

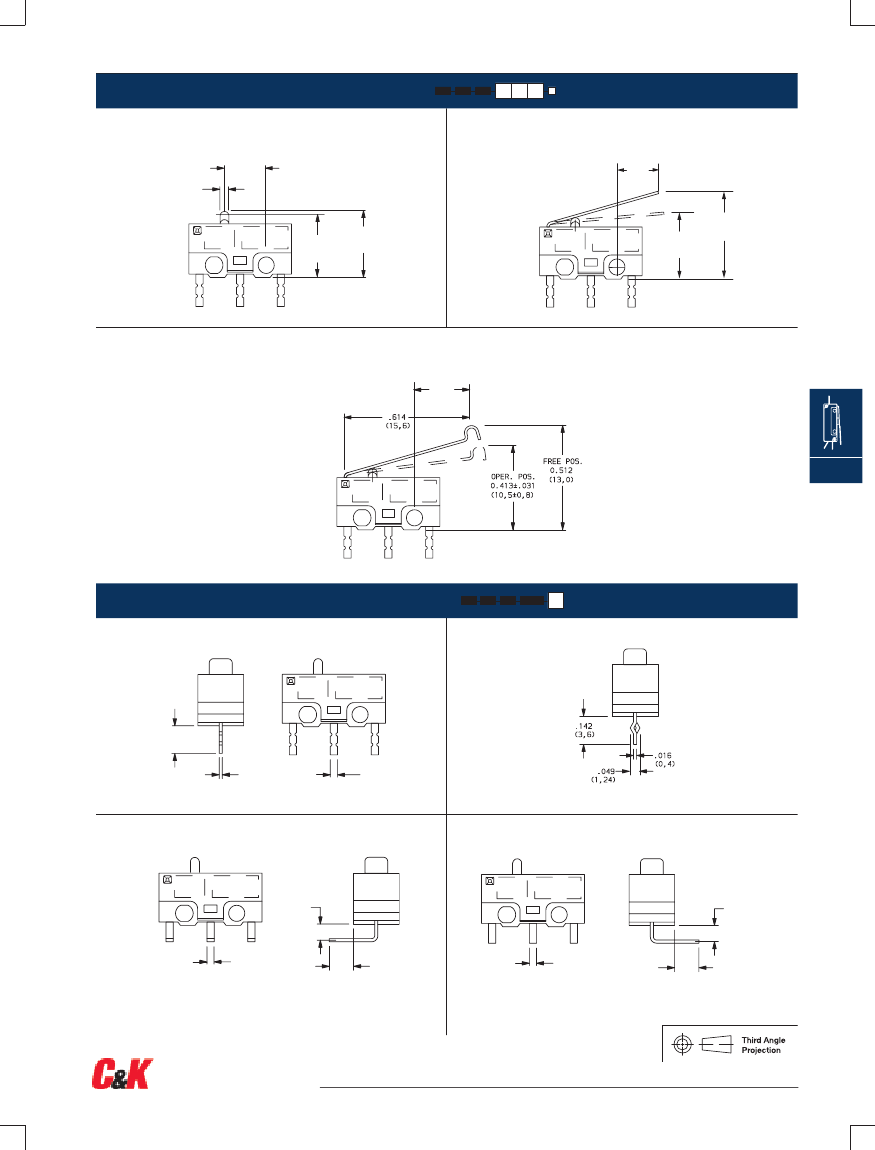

Third Angle

Projection

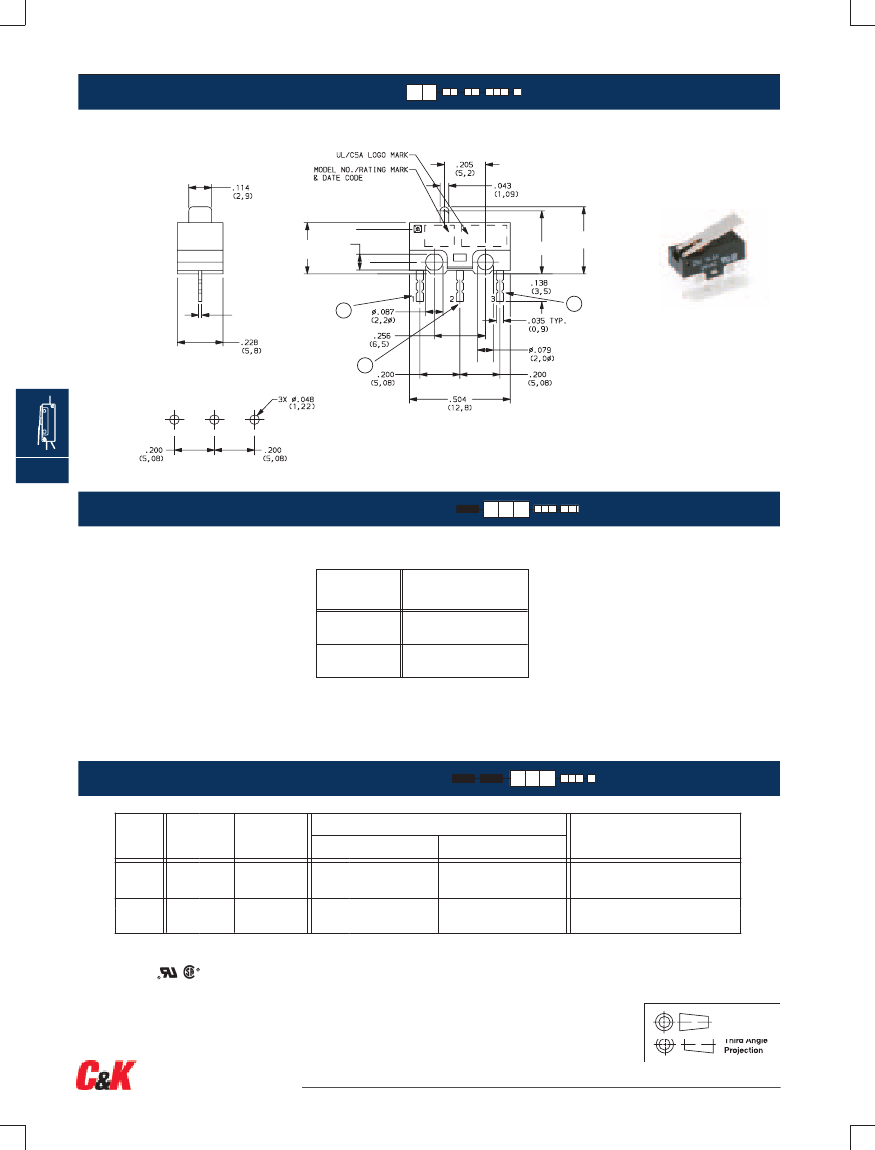

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

K–33

www.ck-components.com
