ZMCJM9P0K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ZMCJM9P0K

ZMCJM9P0K: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.2A, 60VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size203KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

ZMCJM9P0K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZMCJM9P0K	-	-	View	Buy Now

ZMCJM9P0K Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.2A, 60VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

ZMCJM9P0K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator material	NYLON
Actuator type	PIN PLUNGER
body width	5.8 mm
body height	6.6 mm
Body length or diameter	12.8 mm
Contact (AC) maximum rated R load	0.1A@125VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.2 A
Contact (DC) maximum rated R load	.2A@60VDC
contact time	SNAP ACTION
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	60 V
Dielectric withstand voltage	1000VRMS V
Electrical life	15000 Cycle(s)
Shell material	NYLON
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	ZM
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	1.47 N
work location	0.276 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.142 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

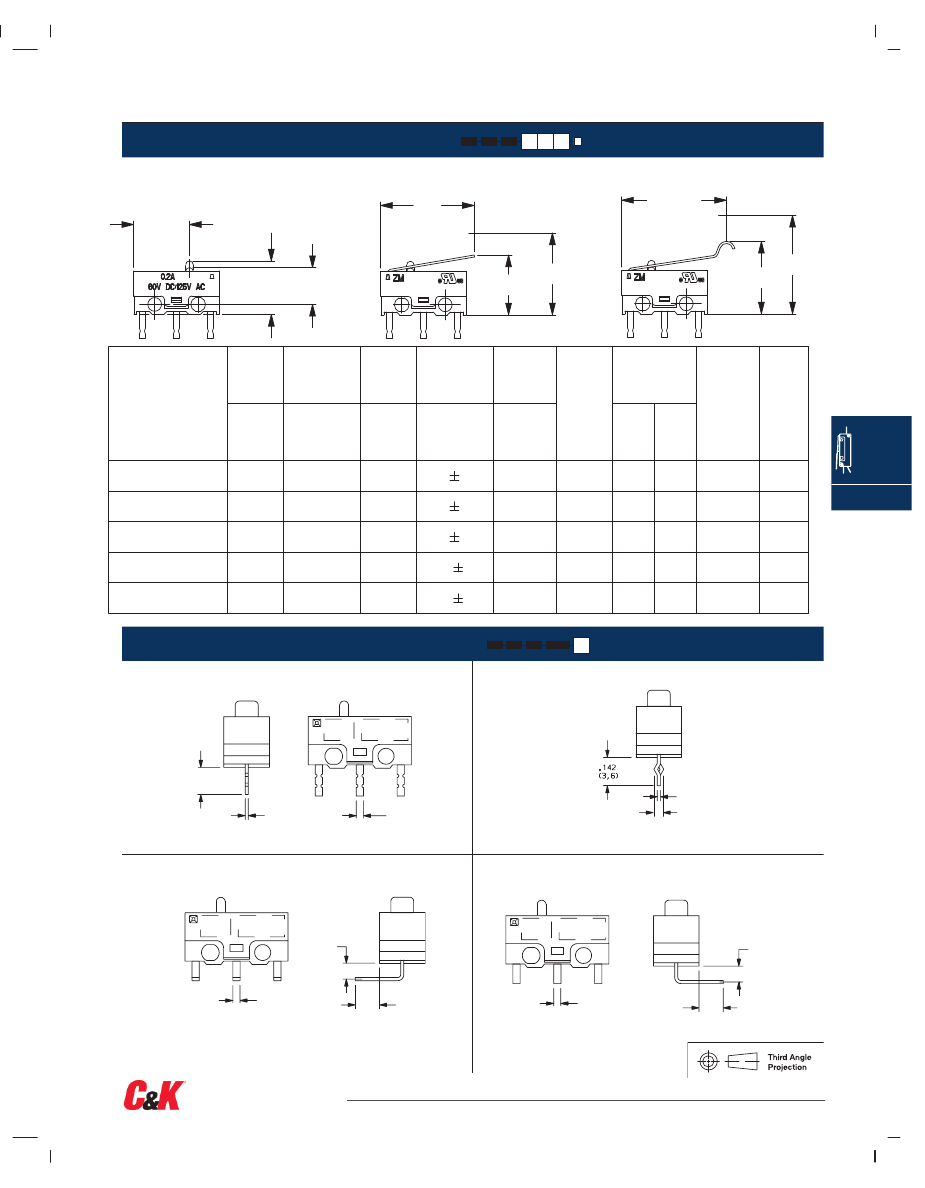

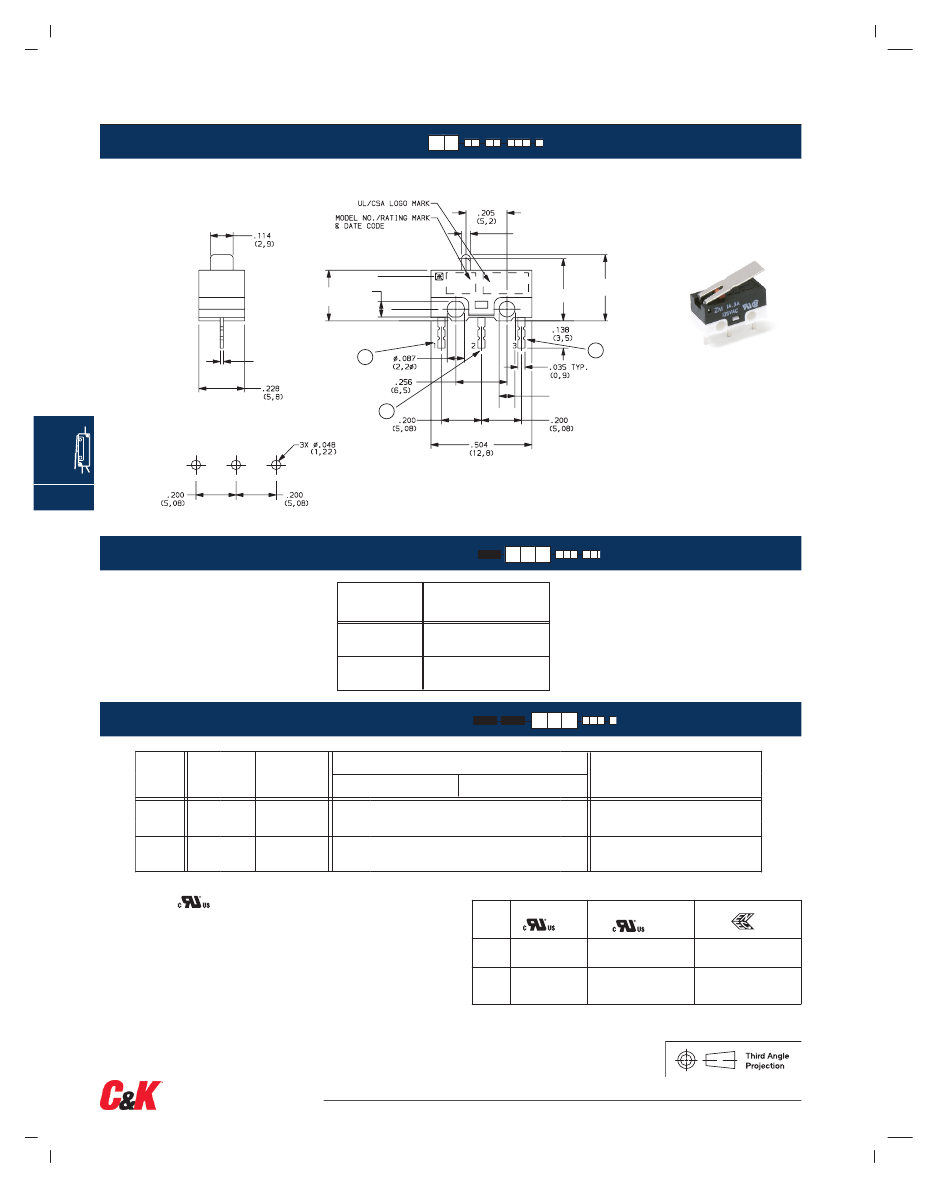

ZM Series

Subminiature Snap-acting Switches

Features/Benefits

•

Reliable snap-acting mechanism

•

Long electrical and mechanical life

•

Compact size—Ideal when space is limited

•

Various PCB terminals and actuators

•

RoHS compliant / compatible

Typical Applications

•

PCB detection switch

•

Communication devices

•

Testing equipment

•

Security/Alarm systems

•

Consumer electronics

UL61058-1

Specifications

CONTACT RATING: F7: 3A @ 125 VAC

M9: 0.2A @ 60 VDC.

ELECTRICAL LIFE: 10,000 Cycles. @ 3A

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 1000 Vrms.

OPERATING TEMPERATURE: –30ºC to 85ºC.

OPERATING FORCE: CJ: 150 grams, CH: 90 grams.

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @

20 V AC or DC max.

Materials

COVER: Nylon 6/6

ACTUATOR BUTTON: Nylon 6/6

CASE: Nylon 6/6

SPRING: SUS

MOVABLE BLADE: BeCu

MOVABLE CONTACT: Silver alloy (M9 option gold plated)

FIXED CONTACTS: Silver alloy (M9 option gold plated)

FIXED TERMINALS: Brass - Ag plated.

ACTUATOR (Leaf / Roller options): SUS

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-48 and J-49. For additional options not shown in catalog, consult Customer Service Center.

Series

SP, Mom.

Operating Force

150 grams

90 grams

Electrical Rating

see chart below

Actuator

Pin plunger

Leaf

T13

Simulated roller

T23

Simulated roller

Terminations

PC Thru-hole

Left-footed, PC Thru-hole

Right-footed, PC Thru-hole

PC Thru-hole with retention feature

Option

Code

1054

3 A 125 V AC

0.1 A 48 V DC

0.2 A 60 V DC

0.1 A 125 V AC

61058-1

3 A 125 V AC

3 A 30 V DC

0.1 A 48 V DC

0.2 A 60 V DC

0.1 A 125 V AC

3 A 125 V AC

0.1 A 48 V DC

0.2 A 60 V DC

0.1 A 125 V AC

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

J–47

www.ck-components.com
