BP80C51FA-1: DescriptionMicrocontroller, 8-Bit, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，13 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

BP80C51FA-1 Overview

Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40

BP80C51FA-1 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

80C51FA/83C51FA

EVENT-CONTROL CHMOS SINGLE-CHIP

8-BIT MICROCONTROLLER

Automotive

Extended Automotive

Temperature Range

(

40 C to

125 C Ambient)

High Performance CHMOS Process

Three 16-Bit Timer/Counters

- Timer 2 is an Up/Down

Timer/Counter

Programmable Counter Array with:

- High Speed Output

- Compare/Capture

- Pulse Width Modulator

- Watchdog Timer Capabilities

8K On-Chip ROM

256 Bytes of On-Chip Data RAM

Boolean Processor

32 Programmable I/O Lines

7 Interrupt Sources

Programmable Serial Channel with:

- Framing Error Detection

- Automatic Address Recognition

TTL and CMOS Compatible Logic

Levels

64K External Program Memory Space

64K External Data Memory Space

MCS 51 Microcontroller Fully

Compatible Instruction Set

Power Saving Idle and Power Down

Modes

ONCE (On-Circuit Emulation) Mode

Available in PLCC and PDIP Packages

(See Packaging Specification, Order

231369)

Available in 12 MHz and 16 MHz

Versions

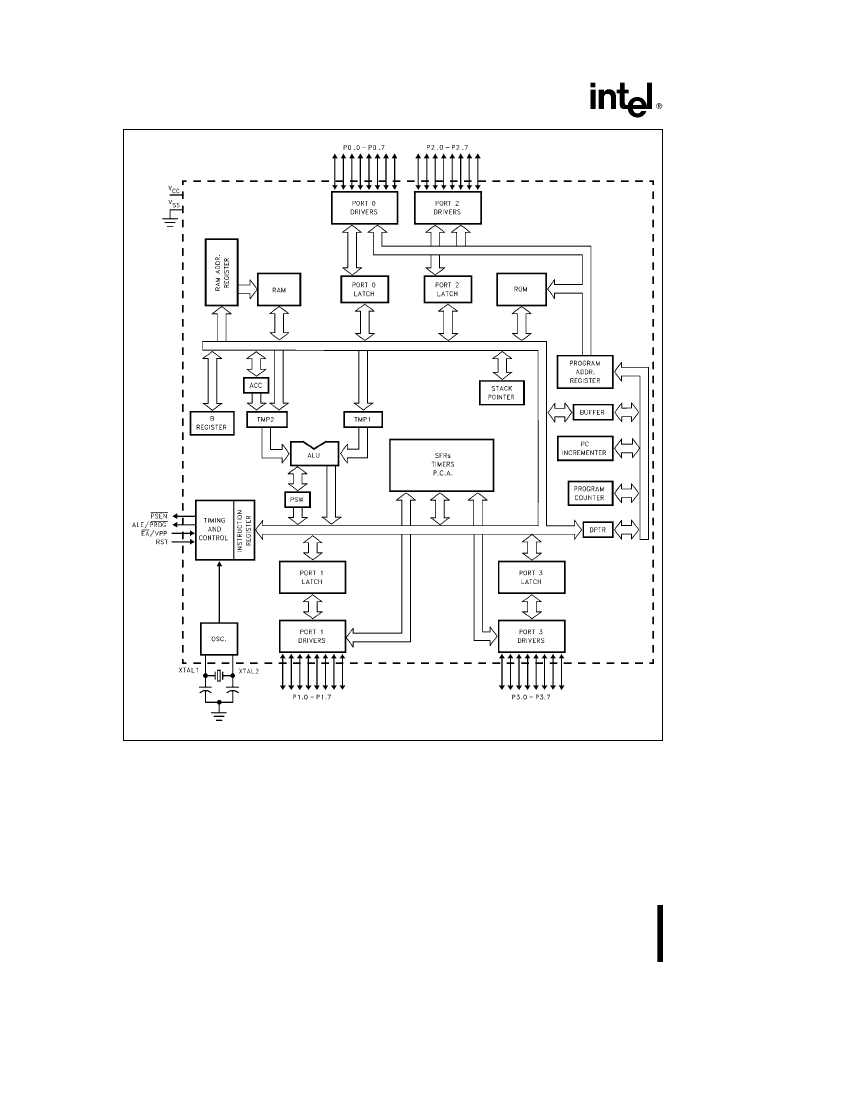

MEMORY ORGANIZATION

PROGRAM MEMORY: Up to 8 Kbytes of the program memory can reside in the on-chip ROM. In addition the

device can address up to 64K of program memory external to the chip.

DATA MEMORY: This microcontroller has a 256 x 8 on-chip RAM. In addition it can address up to 64 Kbytes of

external data memory.

The Intel 80C51FA/83C51FA is a single-chip control oriented microcontroller which is fabricated on Intel's

CHMOS III (83C51FA) ROM technology. For the remainder of this datasheet references to the ROMless

(80C51FA) and ROM (83C51FA) versions will be denoted as 83C51FA. Being a member of the MCS 51

microcontroller family, the 83C51FA uses the same powerful instruction set, has the same architecture, and is

pin-for-pin compatible with the existing MCS 51 microcontroller products. The 83C51FA is an enhanced

version of the 87C51. It's added features make it an even more powerful microcontroller for applications that

require Pulse Width Modulation, High Speed I/O, and up/down counting capabilities such as brake and

traction control. It also has a more versatile serial channel that facilitates multi-processor communications.

NOTICE:

This datasheet contains information on products in full production. Specifications within this datasheet

are subject to change without notice. Verify with your local Intel sales office that you have the latest

datasheet before finalizing a design.

Other brands and names are the property of their respective owners.

Information in this document is provided in connection with Intel products. Intel assumes no liability whatsoever, including infringement of any patent or

copyright, for sale and use of Intel products except as provided in Intel's Terms and Conditions of Sale for such products. Intel retains the right to make

changes to these specifications at any time, without notice. Microcomputer Products may have minor variations to this specification known as errata.

Order Number: 270501-008

June 2004

BP80C51FA-1 Related Products

	BP80C51FA-1	AN83C51FA-1	AP83C51FA-1	BP83C51FA-1	BN83C51FA-1	AN80C51FA-1	AP80C51FA-1	BN80C51FA-1
Description	Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44
Parts packaging code	DIP	LCC	DIP	DIP	LCC	LCC	DIP	LCC
package instruction	DIP,	QCCN,	DIP,	DIP,	QCCN,	QCCN,	DIP,	QCCN,
Contacts	40	44	40	40	44	44	40	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	S-PQCC-N44	R-PDIP-T40	R-PDIP-T40	S-PQCC-N44	S-PQCC-N44	R-PDIP-T40	S-PQCC-N44
Number of I/O lines	32	32	32	32	32	32	32	32
Number of terminals	40	44	40	40	44	44	40	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	DIP	DIP	QCCN	QCCN	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	-	Intel	-	-	Intel	Intel	Intel	Intel
