PMA Series
DC/DC regulators
up to 12A / 60W
Key Features
• Surface mountable
• Low profile, max 8.5mm (0.33 in)
• High efficiency
• Low weight
• Designed For Environment, DfE
• Lead-free / Bromine-free
• Robust design
• Standard and full-feature versions

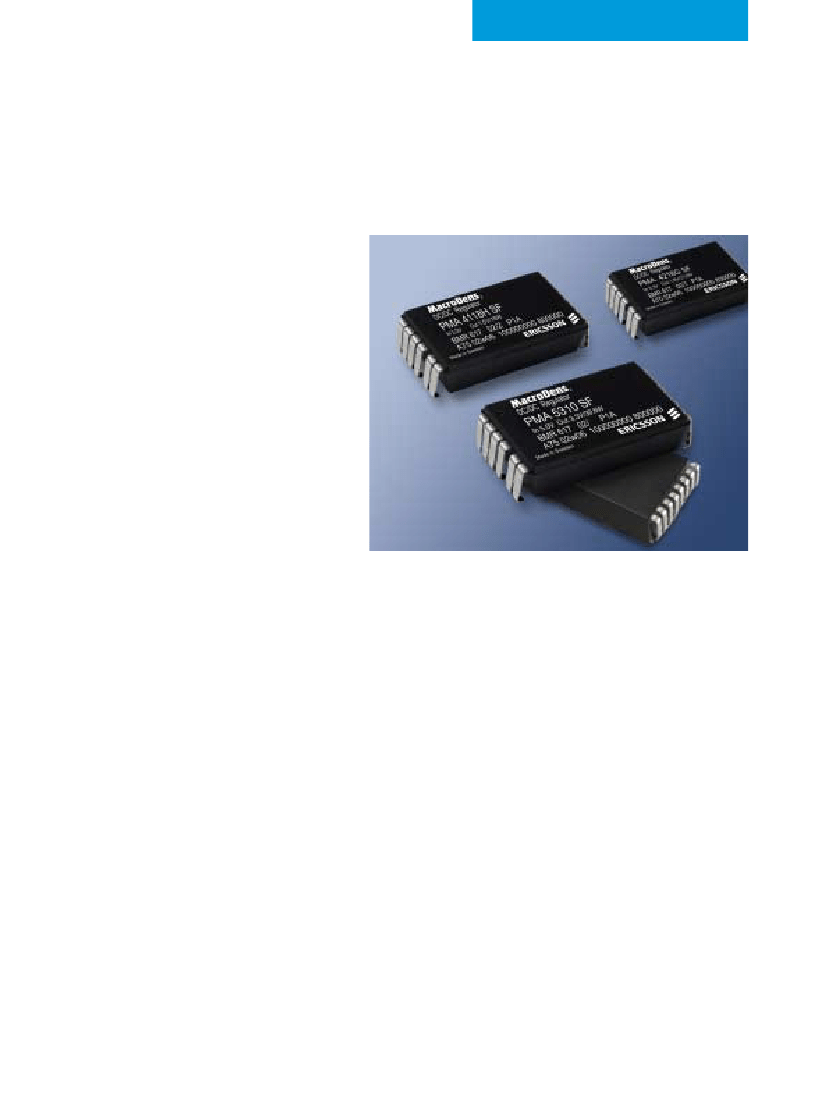

The PMA series of DC/DC regulators are intended
to be used as local distributed power sources in
distributed power architecture level 4. The PMA
series use a ceramic substrate with fine-pitch
components technology and a high degree of silicon
integration. Together with the electrical design using
low Rds-On MOSFET, this provides excellent thermal
management, high reliability and high efficiency.
The high efficiency makes it possible to operate over a
wide temperature range, without adding any external
dissipator. At forced convection cooling >1 m/s
(200 lfm), the PMA typically delivers full power up to
+80 ˚C ambient temperature.
The high reliability and the low profile of the
PMA series makes them particularly suited for the
communications equipment of today and tomorrow
and applications with board spacing down to 15
mm (0.6 in). These products are manufactured using
the most advanced technologies and material to
comply with environmental requirements. Designed
to meet high reliability requirements of systems
manufacturers, the PMA responds to world-class
specifications and has a five-year warranty.
Ericsson Power Modules is an ISO 9001/14001
certified supplier.
E
Product Program
Input Voltage
3.0-3.6 V
Output Voltage
1.2 V
1.5 V
1.8 V
2.5 V
1.2 V
1.5 V
4.5 - 5.5 V
1.8 V
2.5 V
3.3 V
1.2 V
1.5 V
9 - 16 V
1.8 V
2.5 V
3.3 V
5.0 V
S = Surface mount
F = Full-filter feature
Output Current
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
12 A
Output Power
14.4 W
18.0 W
21.6 W
30.0 W
14.4 W
18.0 W
21.6 W
30.0 W
39.6 W
14.4 W
18.0 W
21.6 W
30.0 W
39.6 W
60.0 W
Part No.
PMA 4118L S/SF
PMA 4118H S/SF
PMA 4218G S/SF
PMA 4119 S/SF
PMA 5118L S/SF
PMA 5118H S/SF
PMA 5218G S/SF
PMA 5319 S/SF
PMA 5310 S/SF
PMA 8118L SF
PMA 8118H SF
PMA 8218G SF
PMA 8319 SF
PMA 8410 SF
PMA 8611 SF
Connections
Pin
1-2
3-4
5-6
7
8
1)
9
10
11
12
13
14
1)
2)
Mechanical data
Function
Positive output
Ground
1
14
Designation
+Out
GND
+In
Sync In
Sync select
Sync Out
RC
RC select
V
adj
+S
NC
Pin #1
ID mark
35.2
Pin 1
16,25
16,25
7,55
Positive input
2,8 (x3)
2,2 (x7)
20
12,3
Synchronization input
Connect to ground
when used as slave
Synchronization output
Remote control
Select pin for neg./pos.
logic
2)
Output voltage adjust
Remote sensing
Not connected
7,7
6
7
3,5 (x6)
(29)
1,7 (x8)
2 (x6)
3,5 (x8)
31.5
dimensions in mm
8.5
(36)
Applicable for 4000 and 5000 series.
Not connected (NC) for 8000 series.
Connect to -In for negative logic or leave open for
positive logic on RC pin.
New Product Overview is intended for discussion to determine interest and requirements. Information provided is
believed to be accurate and reliable. Ericsson Power Modules makes no commitment to sample or manufacture for sale
these products and reserves the right to make changes to the product, or information contained herein, without notice.
Ericsson Power Modules
SE-141 75 Kungens Kurva, Sweden
Telephone: +46 8 568 69620
For local sales contacts, please refer to our website
www.ericsson.com/powermodules
or call: Int +46 8 568 69620, Fax: +46 8 568 69599
Americas
Ericsson Inc., Power Modules
+1-877-374-2642
Asia/Pacific
Ericsson Ltd.
+852-2590-7152
New Product Overview
EN/LZT 146 011 R1C
© Ericsson Power Modules AB, March 2003
(15,4)
15,1
