SMF SERIES
200W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
WON-TOP ELECTRONICS
Pb
Features
Low Profile 1.33mm Max. Case Height
200W Peak Pulse Power Dissipation
5.0V – 220V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Typical Response Time < 1nS
Plastic Material – UL Recognition Flammability
Classification 94V-0
A
SOD-123FL
C
D
B
E
G
Dim
A
B
C
D
E
G
H
Min
3.30
2.60
1.65
0.75
0.10
0.93
0.50
Max
3.70
2.95
1.95
1.35
0.20
1.33
0.80
Mechanical Data
Case: SOD-123FL, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band Except Bi-Directional
Weight: 0.017 grams (approx.)
Marking: Device Code
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 5
All Dimensions in mm
H
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation on 10/1000µS Waveform (Note 1, 2, 5)
Peak Pulse Power Dissipation on 8/20µS Waveform (Note 2)
Peak Pulse Current on 10/1000µS Waveform (Note 1)
Peak Forward Surge Current (Note 2, 3)
Maximum Instantaneous Forward Voltage at 25A (Note 3, 4)
Power Dissipation on Infinite Heatsink at T
L
= 75°C
Typical Thermal Resistance, Junction to Ambient (Note 2)
Typical Thermal Resistance, Junction to Lead (Note 2)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
P
PPM
I
PPM
I
FSM
V
F
P
D
R
θJA
R
θJL
T
J
, T
STG
Value
200
1000
See Table 1
20
3.5 / 5.0
0.4
220
100
-55 to +150
Unit
W
W
A
A
V
W
°C/W
°C
Note: 1. Non-repetitive current pulse per Figure 5 and derated above T
A
= 25°C per Figure 1.
2. Mounted on 5.0 x 5.0mm copper pads to each terminal.
3. Measured on 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum. For uni-directional devices only.
4. V
F
< 3.5V for V
BR
≤
200V and V
F
< 5.0V for V
BR
≥
201V.
5. Peak pulse power waveform is 10/1000µS.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
SMF SERIES
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
25
WON-TOP ELECTRONICS
Single Half-Sine-Wave
JEDEC Method
80
20
60
15
40
10
20
5
0
0
15
30 45 60 75 90 105 120 135 150
T
A
, AMBIENT TEMPERATURE (°C)

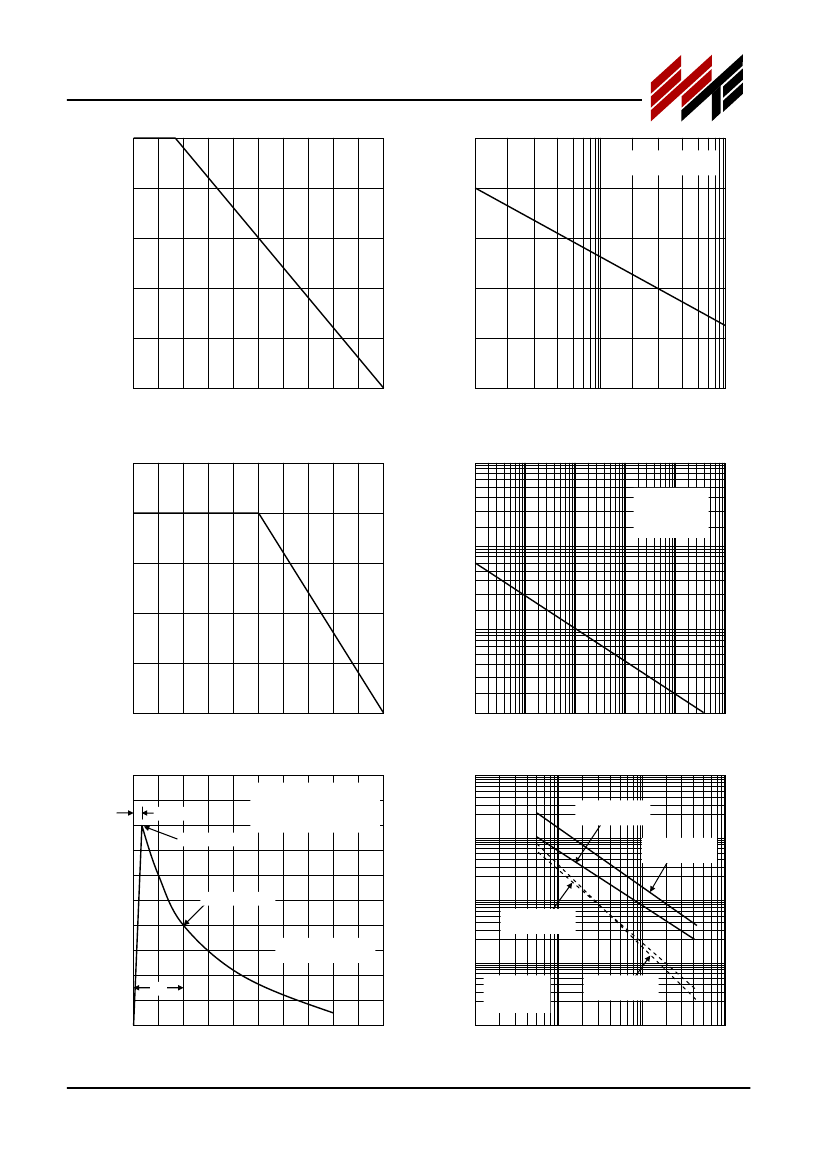

Fig. 1 Pulse Derating Curve
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 2 Forward Surge Current Derating Curve
P
D
, STEADY STATE POWER DISSIPATION (W)
0.5
100
T
A
= 25°C
Non Repetitive
Pulse Waveform
Shown in Fig. 5
0.4
P
PK
, PEAK POWER (kW)
0
15
30 45 60 75 90 105 120 135 150
T
L
, LEAD TEMPERATURE (°C)
Fig. 3 Steady State Power Derating Curve
T
A
= 25°C
Pulse Width (t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
10
0.3
0.2
1
0.1
0
0.1
0.1
1
10
100
1000
t
d
, PULSE WIDTH (µs)
Fig. 4 Pulse Rating Curve
10000
125
t
r
= 10µs
10000
C
J
, JUNCTION CAPACITANCE (pF)
Bi-Directional
@ Zero Bias
I
PPM
, PEAK PULSE CURRENT (%)
100
Peak Value I
PPM
1000
Uni-Directional
@ Zero Bias
75
Half Value I
PP
/2
100
Uni-Directional
@ V
RWM
50
10/1000µs Waveform
as defined by R.E.A.
10
T
J
= 25°C
f = 1MHz
V
sig
= 50mV
p-p
Bi-Directional
@ V
RWM
25
t
d
0
0
1
2
3
t, TIME (ms)
Fig. 5 Pulse Waveform
4
5
1
1
10
100
V
BR
, BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
1000
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
SMF SERIES
WON-TOP ELECTRONICS
Electrical Characteristics (@T
A
=25°C unless otherwise specified) Table 1
Uni-
Directional
Part No.
SMF5.0A
SMF6.0A
SMF6.5A
SMF7.0A
SMF7.5A
SMF8.0A
SMF8.5A
SMF9.0A
SMF10A
SMF11A
SMF12A
SMF13A
SMF14A
SMF15A
SMF16A
SMF17A
SMF18A
SMF19A
SMF20A
SMF22A
SMF24A
SMF26A
SMF28A
SMF30A
SMF33A
SMF36A
SMF40A
SMF43A
SMF45A
SMF48A
SMF51A
SMF54A
SMF58A
SMF60A
SMF64A
SMF70A
SMF75A
SMF78A
SMF80A
SMF85A
SMF90A
SMF100A
SMF110A
SMF120A
SMF130A
SMF140A
SMF150A
SMF160A
SMF170A
SMF180A
SMF190A
SMF200A
SMF220A
Bi-
Directional
Part No.
SMF5.0CA
SMF6.0CA
SMF6.5CA
SMF7.0CA
SMF7.5CA
SMF8.0CA
SMF8.5CA
SMF9.0CA
SMF10CA
SMF11CA
SMF12CA
SMF13CA
SMF14CA
SMF15CA
SMF16CA
SMF17CA
SMF18CA
SMF19CA
SMF20CA
SMF22CA
SMF24CA
SMF26CA
SMF28CA
SMF30CA
SMF33CA
SMF36CA
SMF40CA
SMF43CA
SMF45CA
SMF48CA
SMF51CA
SMF54CA
SMF58CA
SMF60CA
SMF64CA
SMF70CA
SMF75CA
SMF78CA
SMF80CA
SMF85CA
SMF90CA
SMF100CA
SMF110CA
SMF120CA
SMF130CA
SMF140CA
SMF150CA
SMF160CA
SMF170CA
SMF180CA
SMF190CA
SMF200CA
SMF220CA
Device
Marking Code
UNI
FE
FG
FK
FM
FP
FR
FT
FV
FX
FZ
HE
HG
HK
HM
HP
HR
HT
HB
HV
HX
HZ
JE
JG
JK
JM
JP
JR
JT
JV
JX
JZ
XE
XG
XK
XM
XP
XR
XT
XB
XV
XX
XZ
TE
TG
TK
TB
TM
TP
TR
TT
TV
TX
TZ
BI
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LB
LV
LX
LZ
ME
MG
MK
MM
MP
MR
MT
MV
MX
MZ
NE
NG
NK
NM
NP
NR
NT
NB
NV
NX
NZ
PE
PG
PK
PB
PM
PP
PR
PT
PV
PX
PZ
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
80.0
85.0
90.0
100.0
110.0
120.0
130.0
140.0
150.0
160.0
170.0
180.0
190.0
200.0
220.0
Breakdown Voltage
V
BR
(V) @I
T
Min.
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
21.10
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
88.80
94.40
100.00
111.00
122.00
133.00
144.00
155.00
167.00
178.00
189.00
200.00
211.00
224.00
246.00
Max.
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
23.30
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
97.60
104.00
111.00
123.00
135.00
147.00
159.00
171.00
185.00
197.00
209.00
220.00
232.00
247.00
272.00
Maximum
Test
Peak Pulse
Clamping
Current
Current
Voltage @I
PP
I
T
(mA)
I
PP
(A)
V
C
(V)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
30.6
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
129.0
137.0
146.0
162.0
177.0
193.0
209.0
224.0
243.0
259.0
275.0
292.0
308.0
324.0
356.0
21.74
19.42
17.86
16.67
15.50
14.71
13.89
12.99
11.76
10.99
10.05
9.30
8.62
8.20
7.69
7.25
6.85
6.54
6.17
5.63
5.14
4.75
4.41
4.13
3.75
3.44
3.10
2.88
2.75
2.58
2.43
2.30
2.14
2.07
1.94
1.77
1.65
1.59
1.55
1.46
1.37
1.23
1.13
1.04
0.96
0.89
0.82
0.77
0.73
0.68
0.65
0.62
0.56
Reverse
Leakage*
@V
RWM
I
R
(µA)
400
400
250
100
50
25
10
5
2.5
2.5
2.5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
*For bi-directional devices V
RWM
≤
10V, the I
R
limit is double.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
®
SMF SERIES
WON-TOP ELECTRONICS
MARKING INFORMATION
RECOMMENDED FOOTPRINT
0.047
(1.20)
xx
Cathode
xx
= Polarity Band Except Bi-Directional Types
= Device Code, See Table 1
0.072
(1.85)
0.047
(1.20)
inches(mm)
PACKAGING INFORMATION
TAPE & REEL
Inspection Hole
Direction of Unreeling
4mm
178mm
8mm
4mm
8mm
Product ID Label
1.6mm
Reel Diameter
(mm)
178
Quantity
(PCS)
3,000
Inner Box Size
L x W x H (mm)
195 x 135 x 195
Quantity
(PCS)
30,000
Carton Size
L x W x H (mm)
370 x 370 x 420
Quantity
(PCS)
240,000
Approx. Gross Weight
(KG)
10.0
Note:
1. Anti-static plastic reel, white, water clear or blue color. Inspection hole might be varied in different alignment.
2. Components are packed in accordance with EIA standard 481-1 and 481-2.
www.wontop.com
4
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
SMF SERIES
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
SMFxx-T1
1.
2.
Package Type
SOD-123FL
Shipping Quantity
3000/Tape & Reel
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order Lead Free version (with Lead Free finish), add “-LF” suffix to part
number above. For example, SMF5.0A-T1-LF.
WON-TOP ELECTRONICS and
are registered trademarks of Won-Top Electronics Co., Ltd (WTE). WTE has checked all information carefully and
believes it to be correct and accurate. However, WTE cannot assume any responsibility for inaccuracies. Furthermore, this information does not give the
purchaser of semiconductor devices any license under patent rights to manufacturer. WTE reserves the right to change any or all information herein
without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road,
Chine Chen Dist., Kaohsiung 806, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
5
京公网安备 11010802033920号
EEWORLD
