VS8004FC datasheet, PDF - EEWORLD Datasheet

VS8004FC: DescriptionIC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,28PIN,CERAMIC; Categorylogic logic; File Size828KB，14 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

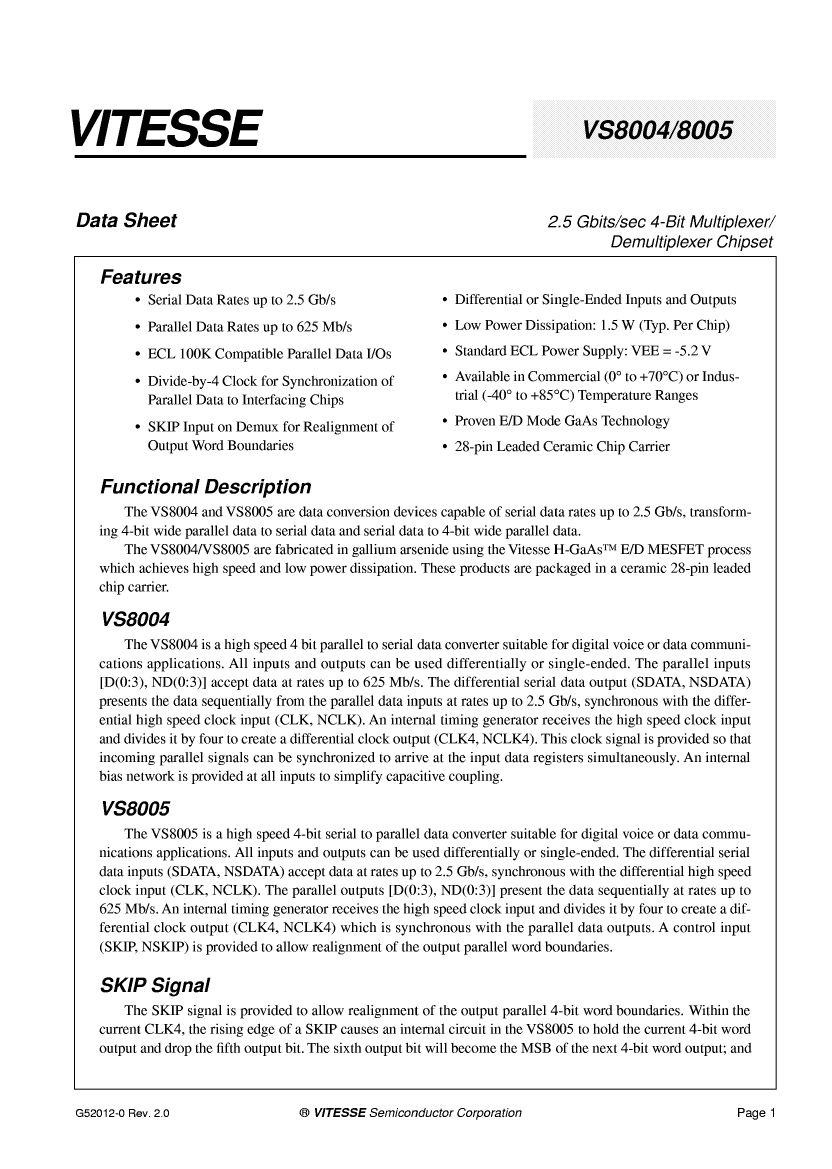

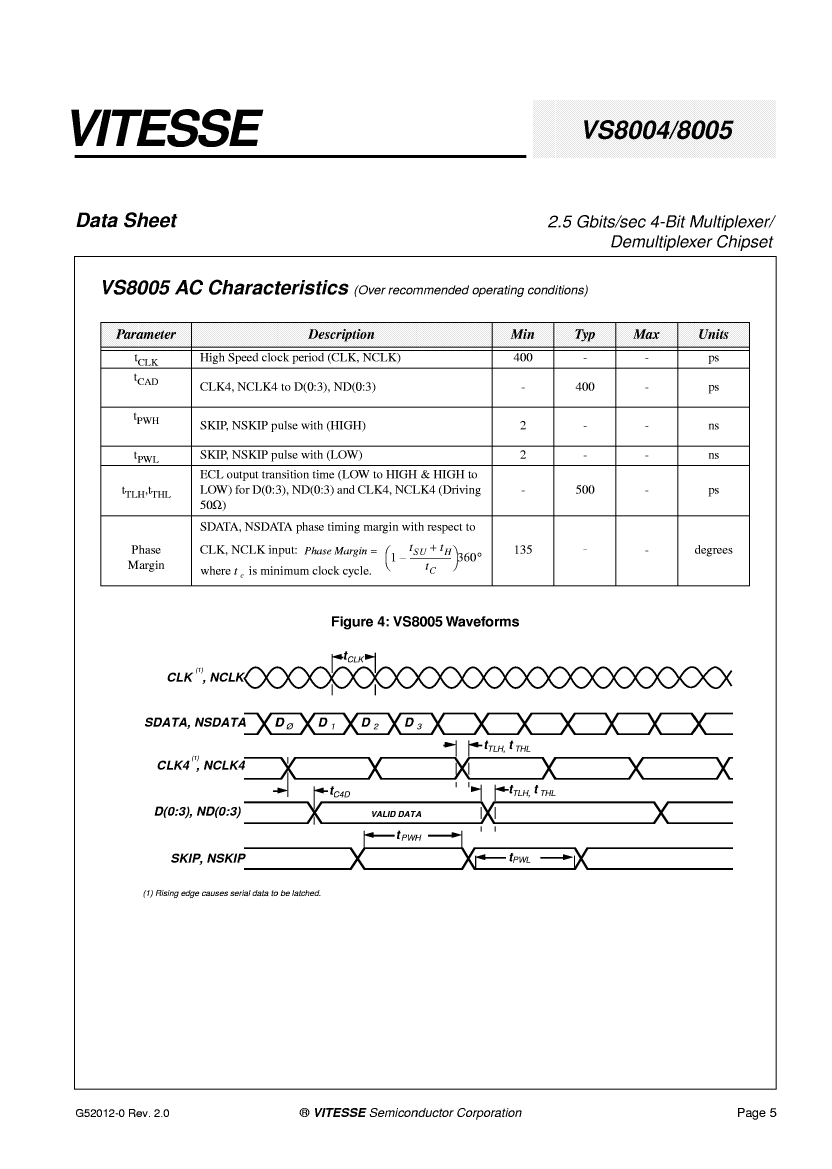

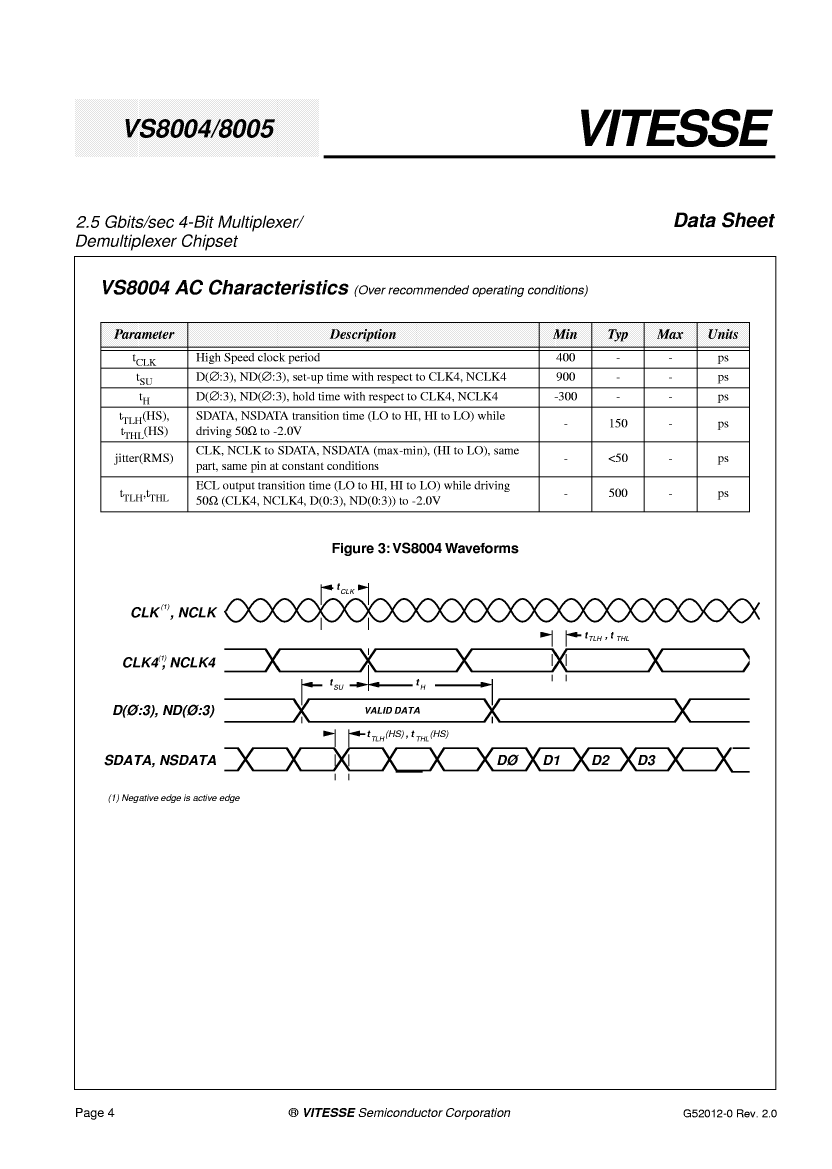

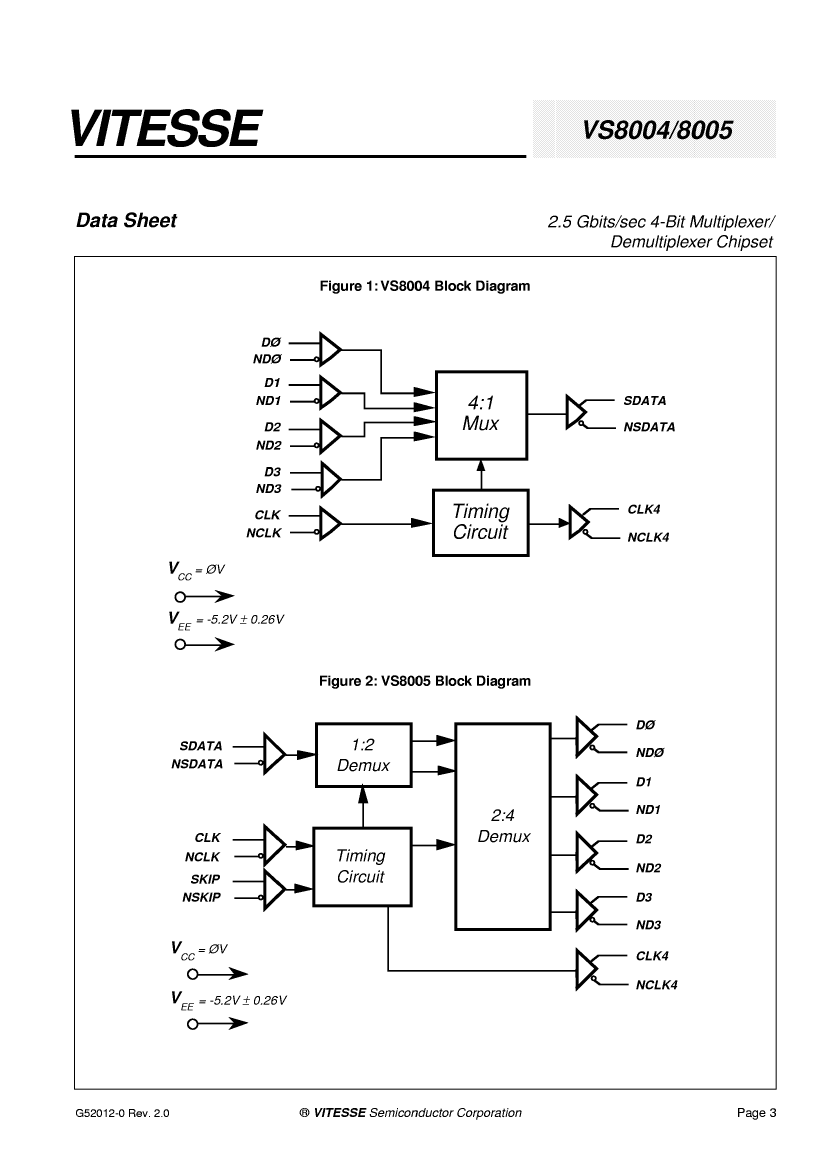

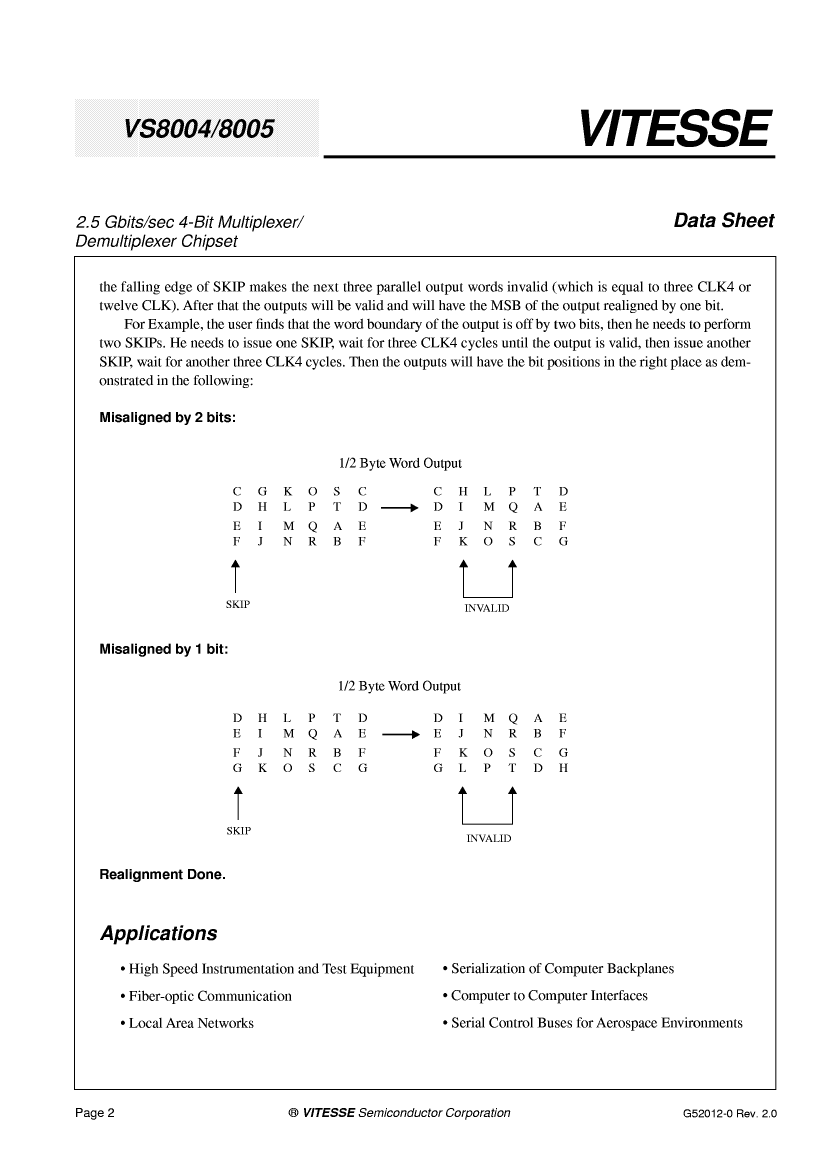

VS8004FC Overview

IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,28PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFF, QFL28,.45SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQFP-F28
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	4
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	QFF
Encapsulate equivalent code	QFL28,.45SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	-5.2 V
Maximum supply current (ICC)	350 mA
Certification status	Not Qualified
surface mount	YES
technology	GAAS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	VS8004FC	VS8005FC	VS8005FI	VS8004FI
Description	IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,28PIN,CERAMIC	IC,DECODER/DEMUX,1-TO-4-LINE,GAAS,QFL,28PIN,CERAMIC	IC,DECODER/DEMUX,1-TO-4-LINE,GAAS,QFL,28PIN,CERAMIC	IC,LOGIC MUX,SINGLE,4-INPUT,GAAS,QFL,28PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	QFF, QFL28,.45SQ	QFF, QFL28,.45SQ	QFF, QFL28,.45SQ	QFF, QFL28,.45SQ
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	S-XQFP-F28	S-XQFP-F28	S-XQFP-F28	S-XQFP-F28
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	MULTIPLEXER
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QFF	QFF	QFF	QFF
Encapsulate equivalent code	QFL28,.45SQ	QFL28,.45SQ	QFL28,.45SQ	QFL28,.45SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK
power supply	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	350 mA	400 mA	400 mA	350 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
technology	GAAS	GAAS	GAAS	GAAS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1
