TMP86C408DM datasheet, PDF - EEWORLD Datasheet

TMP86C408DM: DescriptionIC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PDSO30, 0.65 MM PITCH, PLASTIC, SSOP-30, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size9MB，127 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

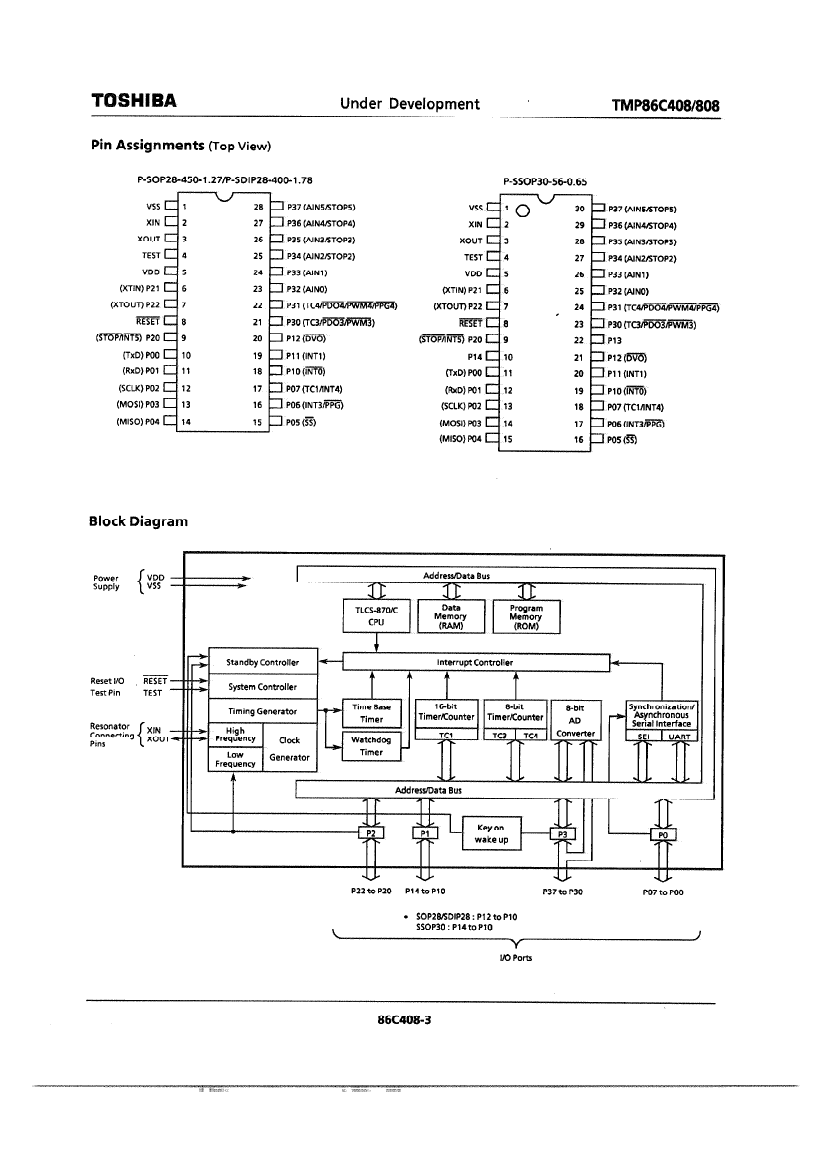

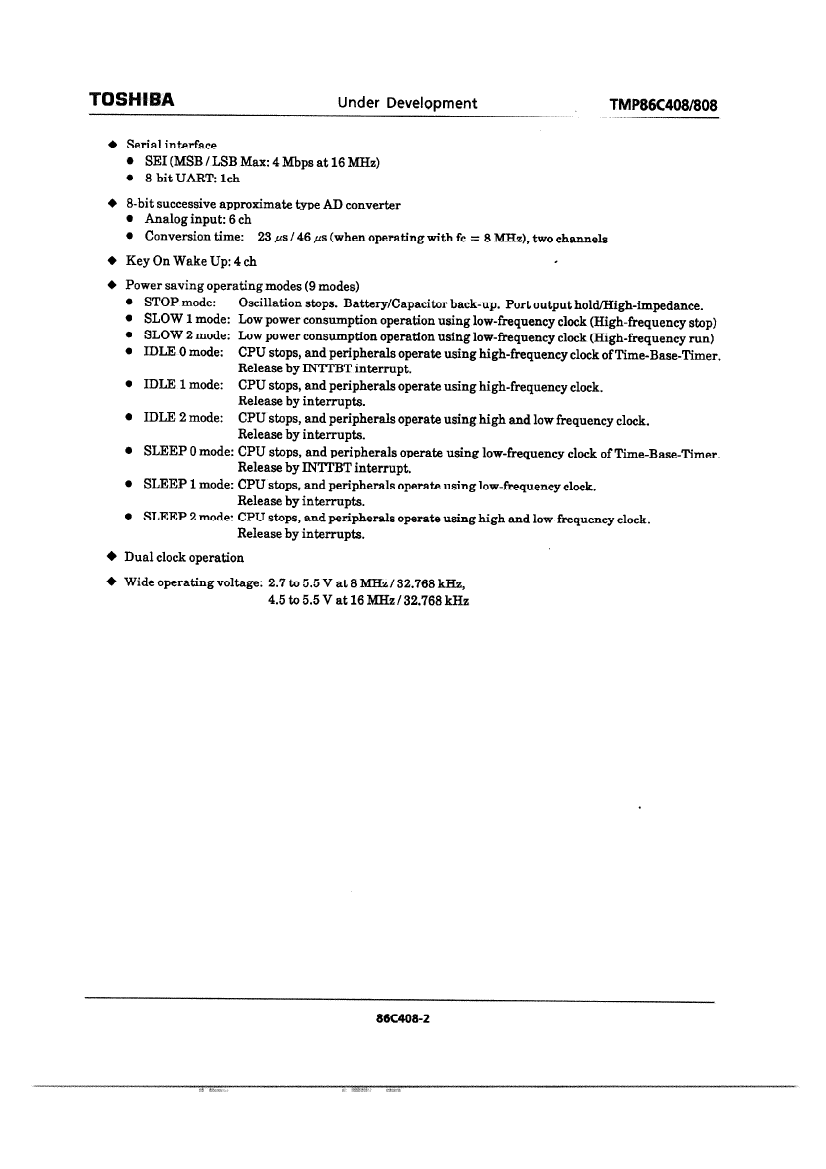

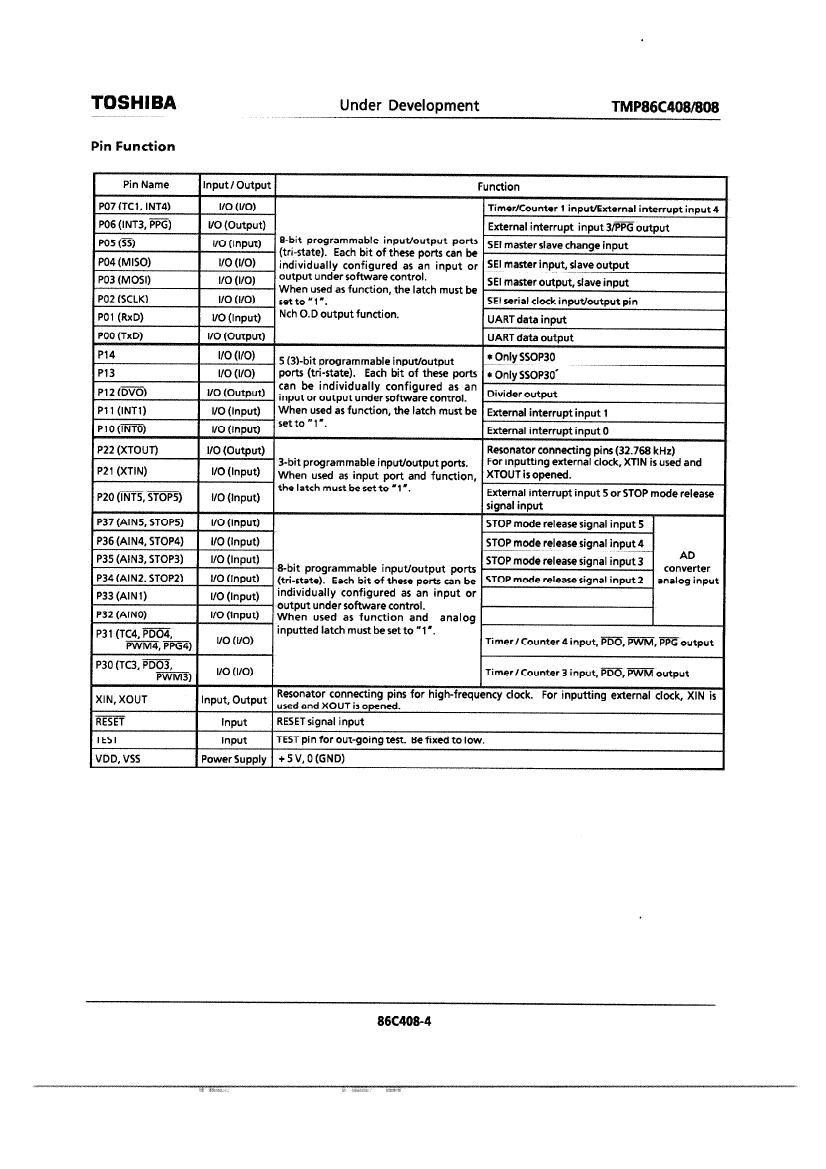

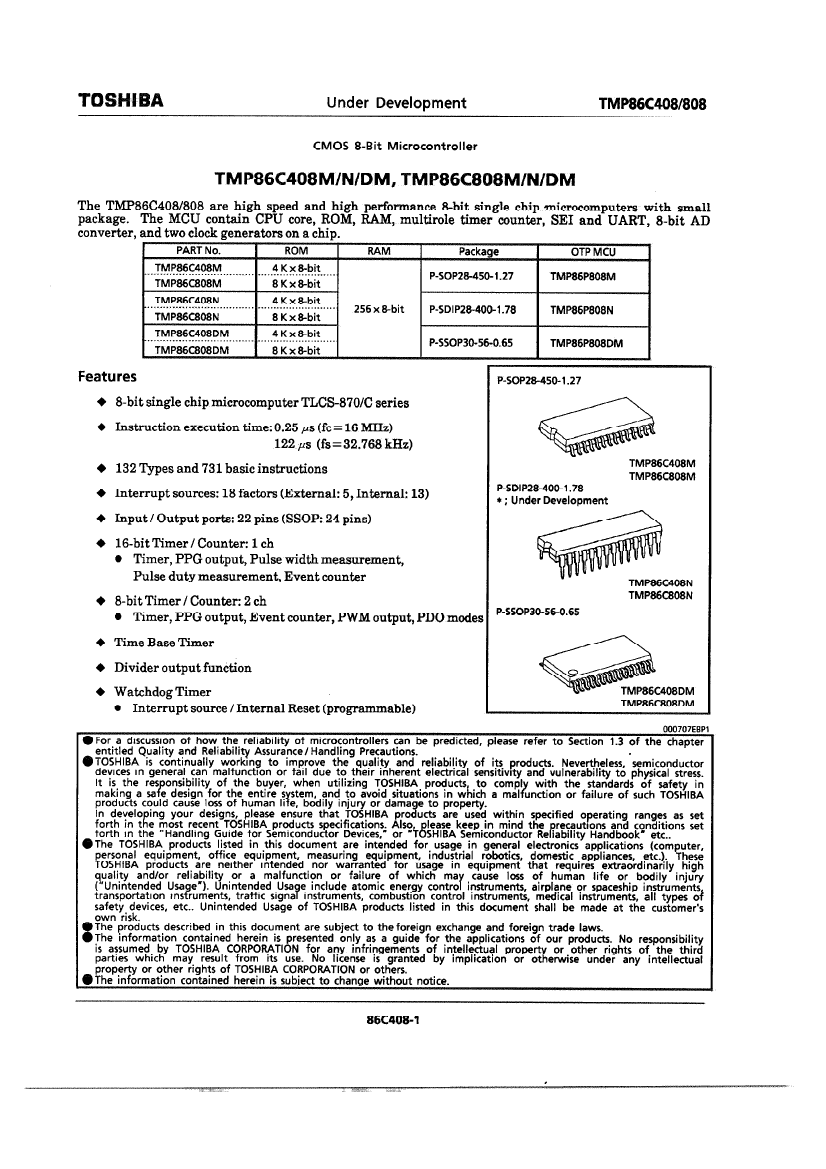

TMP86C408DM Overview

IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PDSO30, 0.65 MM PITCH, PLASTIC, SSOP-30, Microcontroller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SSOP
package instruction	SOP, SSOP30,.3
Contacts	30
Reach Compliance Code	unknown
Has ADC	YES
Other features	OPERATES AT 2.7 V MINIMUM SUPPLY @ 8 MHZ
Address bus width
bit size	8
CPU series	TLCS-870/C
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G30
JESD-609 code	e0
length	9.7 mm
Number of I/O lines	24
Number of terminals	30
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SSOP30,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	4096
ROM programmability	MROM
Maximum seat height	1.6 mm
speed	16 MHz
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.6 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
