53S108-021N5

Description
RF N Connector, Male, Cable Mount, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size67KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

53S108-021N5 Overview

RF N Connector, Male, Cable Mount, Plug, ROHS COMPLIANT

53S108-021N5 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLE: RG 217/U, INSERTION LOSS AND VSWR MAX AT: 4 GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF N CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.05 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number53S108-021N5
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.07
Base Number Matches1

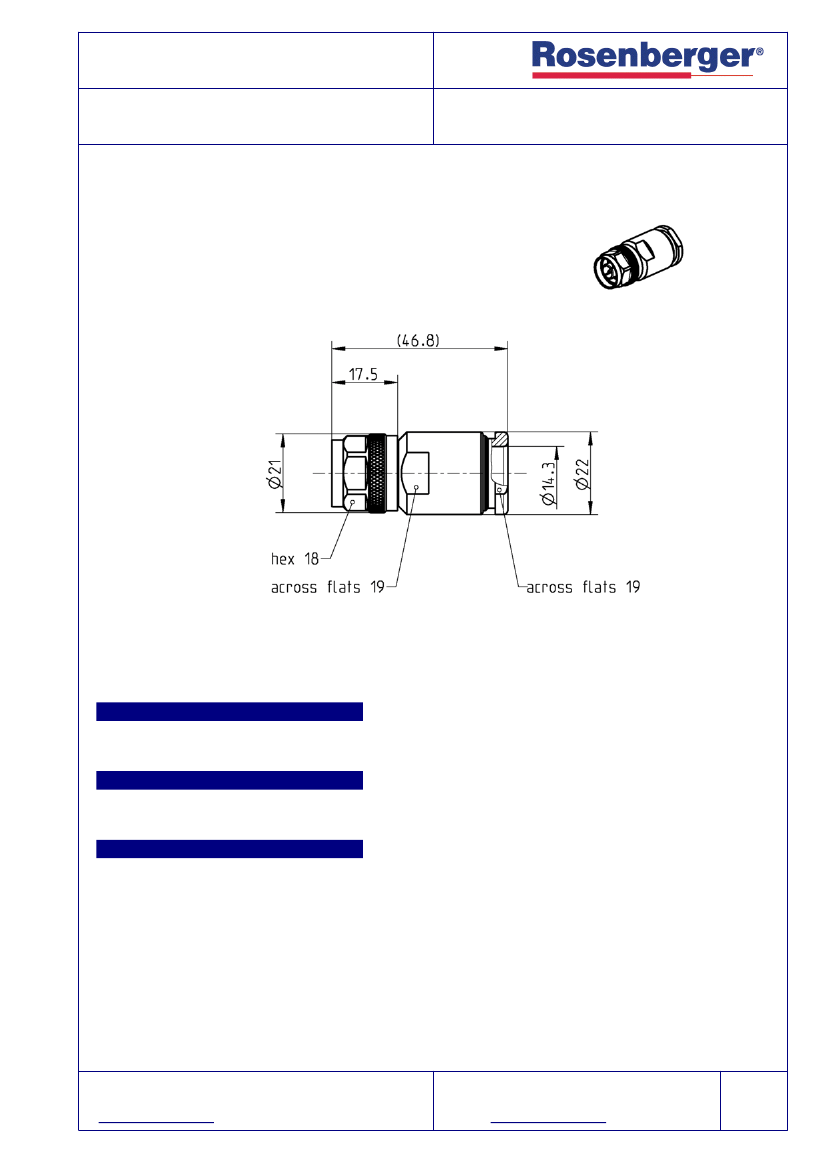

TECHNICAL DATA SHEET
N 50
Ω
STRAIGHT PLUG
53S108-021N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
53 A
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Brass
Brass
Brass
PTFE
Silicone
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
