56K607-106N4: DescriptionRF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size54KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

56K607-106N4 Overview

RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT

56K607-106N4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	APPLICABLE CABLES: RG 141 /U; RG 58 C/U, INSERTION LOSS AND VSWR MAX AT: 8 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	56K607-106N4
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.29
Base Number Matches	1

Preview

Download Datasheet

View All

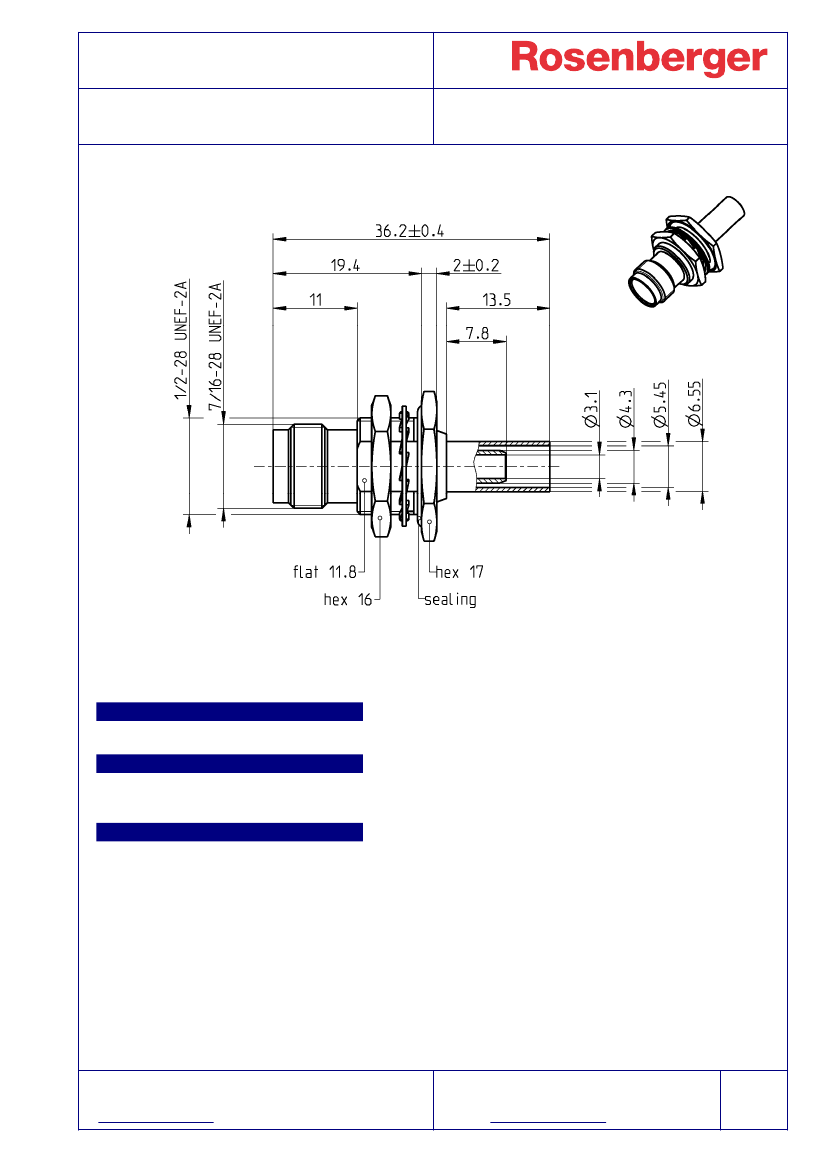

TECHNICAL DATA SHEET

TNC 50

Ω

BULKHEAD JACK

56K607-106N4

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-17, MIL-PRF-39012, DIN EN 122200

Documents

Assembly instruction

Panel piercing

51 P10

B3

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Gasket

Crimping ferrule

Material

Beryllium copper

Brass

PTFE

Silicone

Copper

Plating

Gold, min. 0.8 µm, over chemical nickel

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2

56K607-106N4 Related Products

	56K607-106N4
Description	RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	APPLICABLE CABLES: RG 141 /U; RG 58 C/U, INSERTION LOSS AND VSWR MAX AT: 8 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	56K607-106N4
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.29
Base Number Matches	1
