TECHNICAL DATA SHEET
TNC 50
Ω
BULKHEAD JACK
REVERSE POLARITY
56RK607-802N4

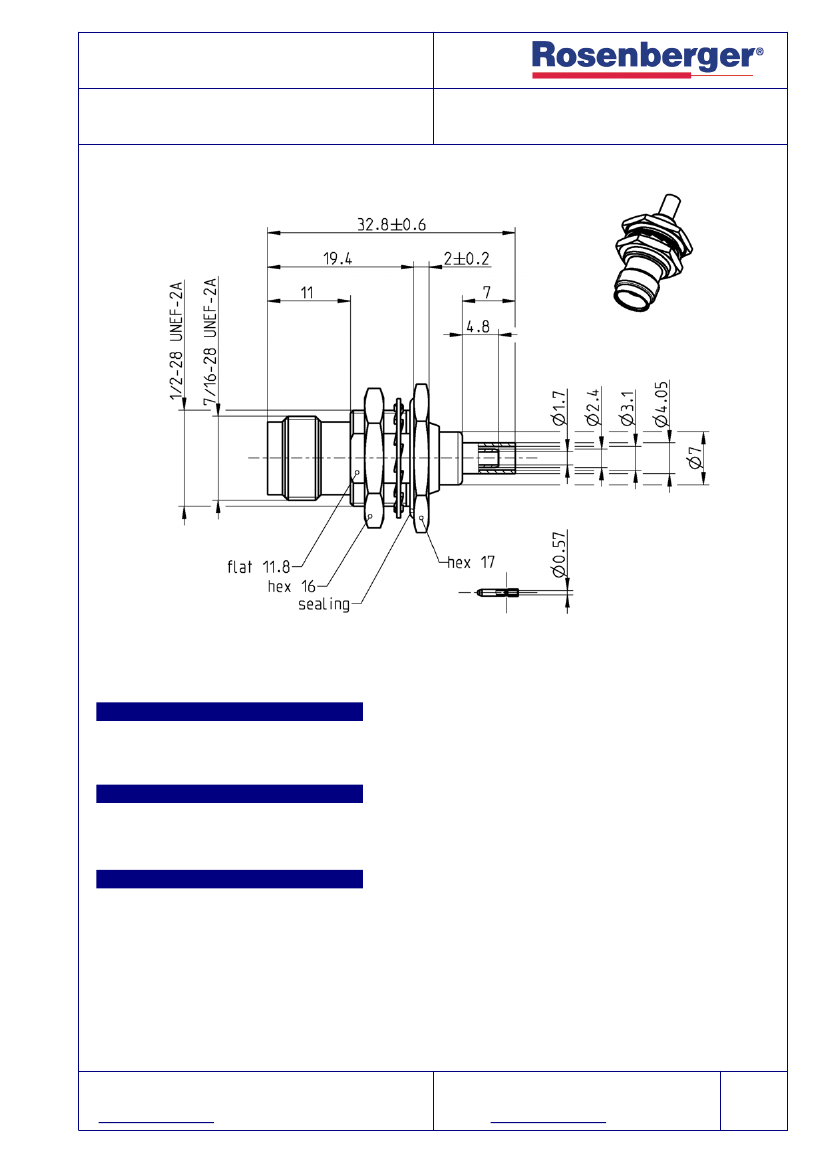

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
Derived from
Compliant with
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
FCC standard (part 15; section 15.203)
Documents
Assembly instruction
Panel piercing
51 T
B3
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Crimping ferrule
RF_35/12.04/3.0
Material
Spring bronze
Brass
Brass
PTFE
Silicone
Copper
Plating
Gold, min. 0.8 µm, over chemical nickel
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
TNC 50
Ω
BULKHEAD JACK
REVERSE POLARITY
56RK607-802N4
50
Ω
DC to 10 GHz
≥
28 dB, DC to 1 GHz
≥
25 dB, 1 to 2 GHz
≥
20 dB, 2 to 4 GHz
≤
0.05 x
f [GHz]
dB, DC to 4 GHz
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
- Limitations are possible due to the used cable type –
≥
5 x10
3
MΩ
≤
1.5 mΩ
≤
1 mΩ
1500 V rms
500 V rms
≤
80 W @ 2 GHz
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 500
≥
15 N
max. 1.7 Nm
0.46 Nm to 0.69 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-45°C to +85°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-402
Suitable cables
RG 316 /U, RG 174 A/U, RG 188 A/U
Packing
Standard
Weight
100 pcs in bag
18.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
07/04/05
Approved
Krautenbacher J.
Date
12/10/06
Rev.
b00
Engineering change number
06-0478
Name
Wallner Markus
Date
12/10/06
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
