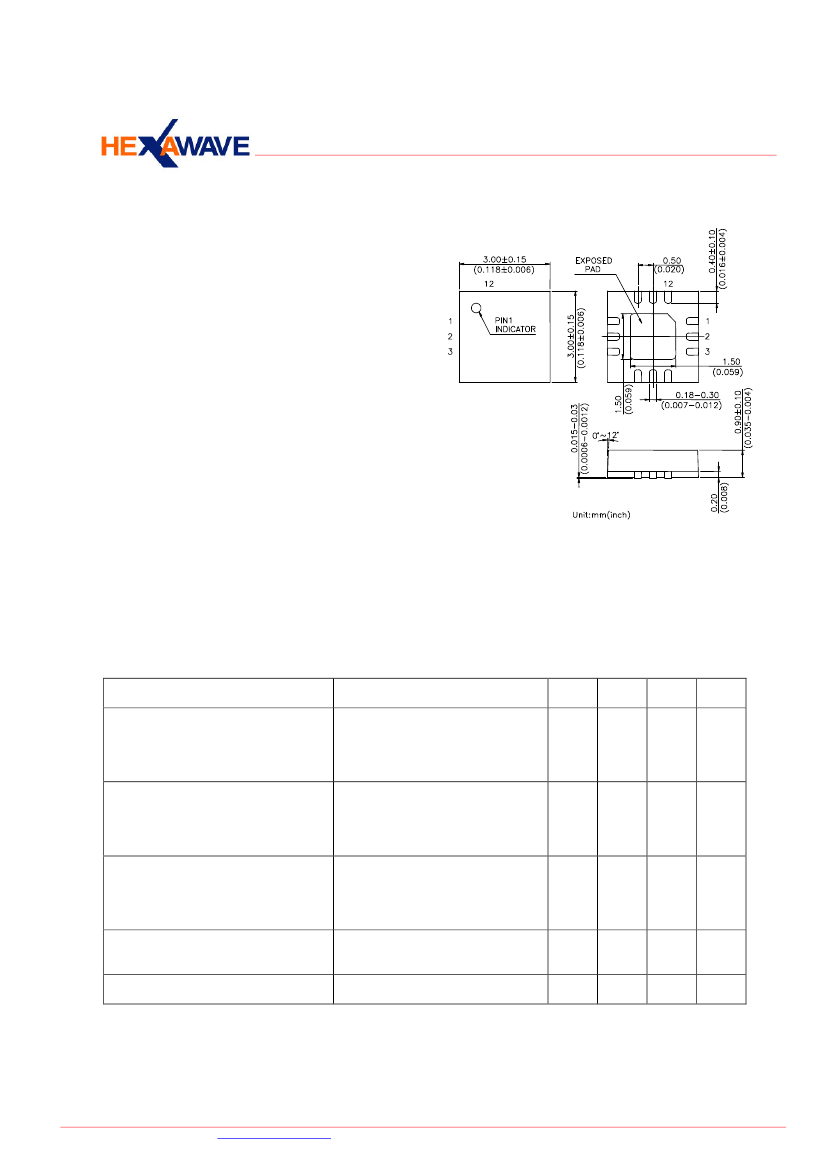

HWS451
!
Features
•
Low Insertion Loss :
0.95 dB @ 2.5 GHz
!
April 2005
V1
QFN12L (3 x 3 mm)
1.25 dB @ 5.8 GHz
•
Isolation:
26 dB @ 2.5 GHz
18 dB @ 5.8 GHz
•
Low DC Power Consumption
•
Miniature QFN12L (3x3 mm) Plastic Lead (Pb)
Free Package
•
PHEMT process
Description
The HWS451 is a GaAs PHEMT MMIC SP4T
switch operating at DC-6 GHz in a low cost
miniature QFN12L (3 x 3 mm) plastic lead (Pb) free
package. The HWS451 features low insertion loss
and high isolation with very low DC power
consumption. This switch can be used in WiMAX or
IEEE 802.11a/b/g WLAN PC card and access point
applications.
Electrical Specifications at 25° with 0, +3V Control Voltages
C
Parameter
Test Conditions
0.10-6.00 GHz
2.40-2.50 GHz
3.30-3.90 GHz
4.90-5.85 GHz
0.10-6.00 GHz
2.40-2.50 GHz
3.30-3.90 GHz
4.90-5.85 GHz
0.10-6.00 GHz
2.40-2.50 GHz
3.30-3.90 GHz
4.90-5.85 GHz
2.00-6.00 GHz
21
Min.
Typ.
1.30
0.95
1.00
1.25
18
26
22
18
15
20
18
15
36
10
200
Max.
1.20
Unit
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
uA
Insertion Loss
Isolation
Return Loss
Input Power for One dB Compression
Control Current
Note: All measurements made in a 50 ohm system with 0/+3.0V control voltages, unless otherwise specified.
Hexawave Inc. 2 Prosperity Road II, Science Park, Hsinchu, Taiwan. TEL 886-3-578-5100 FAX 886-3-577-0512
http://www.hw.com.tw
All specifications are subject to change without notice.
HWS451
!

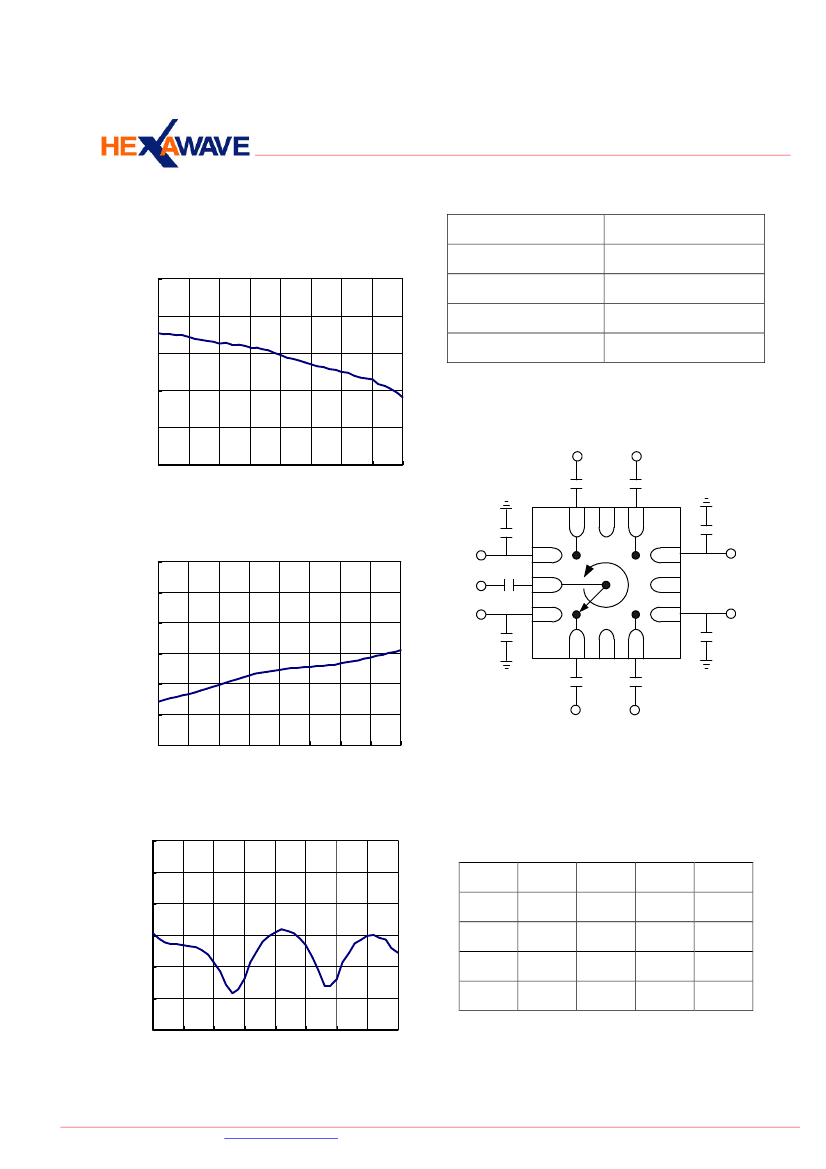

Typical Performance Data with 8pF
Capacitors @ +25°
C
Insertion Loss vs Frequency
-0.6
-0.8
-1.0
-1.2
-1.4
-1.6
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
!
April 2005
V1
Absolute Maximum Ratings
Parameter
RF Input Power
Control Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+36 dBm @ +3V
+6V
-40° to +85°
C
C
-65° to +150°
C
C
Insertion Loss(dB)
Pin Out (Top View)
Frequency(GHz)
B
B
12
11
10
A
Isolation vs Frequency
-5
-10
Isolation(dB)
A
1
2
B
9
8
7
4
B
-15
A
3
5
6
B
A
-20
-25
-30
-35
2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Frequency(GHz)
Return Loss vs Frequency
-5
-10
Note:
1. DC blocking capacitors C
B
=8pF are required on all
RF ports.
2. RF by-pass capacitors C
A
=8pF.
3. Exposed pad in the bottom must be connected to
ground by via holes.
Logic Table for Switch On-Path
VC1
1
0
0
0
VC2
0
1
0
0
VC3
0
0
1
0
VC4
0
0
0
1
RFC
RF1
RF2
RF3
RF4
Return Loss(dB)
-15
-20
-25
-30
-35
2.0
2.5
3.0
Frequency(GHz)
3.5
4.0
4.5
5.0
5.5
6.0
‘1’ = +3V to +5V
‘0’ = 0V to +0.2V
Hexawave Inc.
2 Prosperity Road II, Science Park, Hsinchu, Taiwan. TEL 886-3-578-5100 FAX 886-3-577-0512
http://www.hw.com.tw
All specifications are subject to change without notice.
