ANT515-80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ANT515-80

ANT515-80: DescriptionRF/Microwave Termination, 0 MHz - 1000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1; CategoryWireless rf/communication Radio frequency and microwave; File Size254KB，2 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ANT515-80 Overview

RF/Microwave Termination, 0 MHz - 1000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1

ANT515-80 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=4000W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	49.03 dBm
JESD-609 code	e4
Maximum operating frequency	1000 MHz
Minimum operating frequency
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

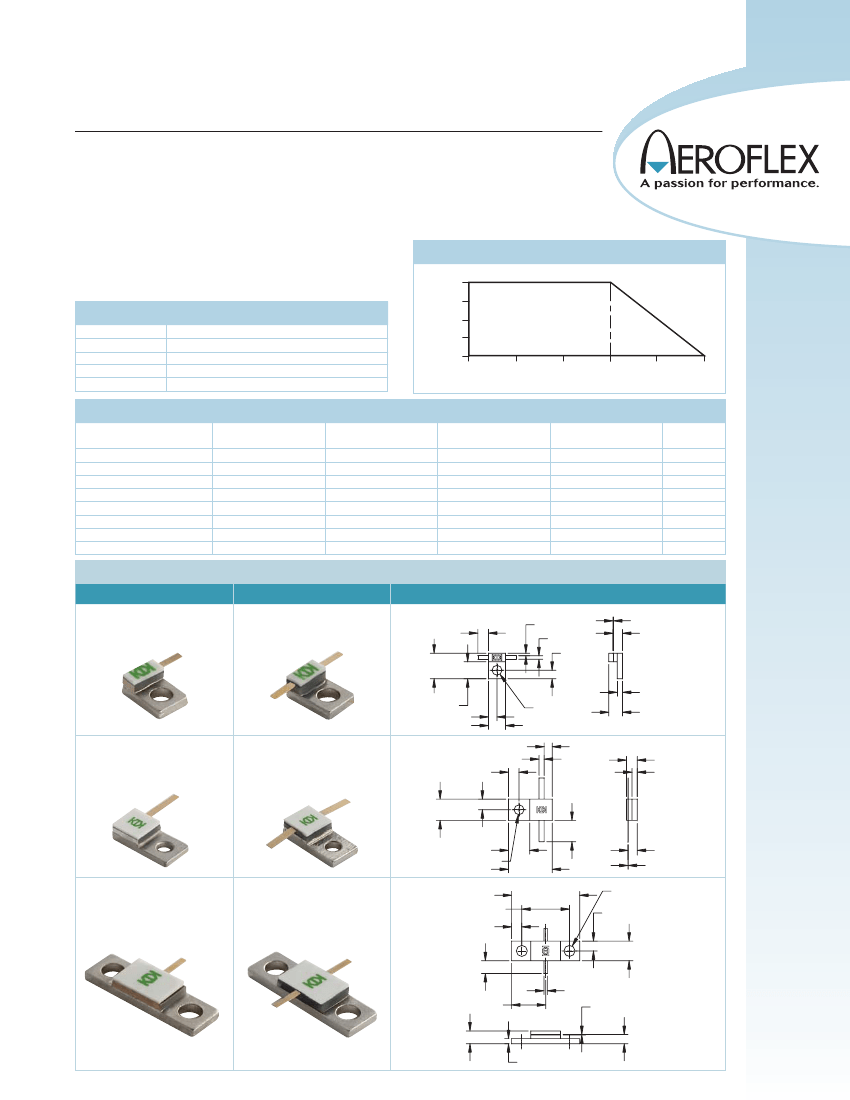

SERIES ANT, ANR

RESISTORS & TERMINATIONS

GENERAL INFORMATION

These high power devices are designed to dissipate power in R.F.

circuits when mounted to an appropriate heat sink. The termina-

tions provide a low VSWR under maximum power conditions. The

resistor configurations are typically used in “Wilkinson” type power

divider networks, or to terminate 3 dB stripline or microstrip hybrids.

Aluminum nitride is used for those applications where the use and

disposal of beryllium oxide is a concern.

RoHS

High Power, Aluminum Nitride, Thin Film, Drop-in – 10-600 Watts, DC-4 GHz

NOTES

1. Input power ratings are based on flange

temperature of 100° C maximum.

2. 50 and 100 Ohms standard. Other values

from 10-500 ohms available on special order.

Contact factory for details. Standard tolerance ±5%.

Specify resistance value when ordering.

3. VSWR applies to termination style only.

AVERAGE POWER DERATING CURVE

% OF RATED POWER

100

125

FLANGE TEMPERATURE —

°C

150

POWER DERATING

GENERAL SPECIFICATIONS

Resistive Element

Substrate

Cover

Mounting Flange

Tab

Thin Film

Aluminum Nitride

Alumina Ceramic

Copper, Nickel Plated per QQ-N-290

Beryllium Copper, Gold Plated per MIL-G-45204

PERFORMANCE SPECIFICATIONS

Model

ANT & ANR 300-10

ANT & ANR 51

5-40

ANT & ANR 51

5-80

ANT & ANR 800-100

ANT & ANR 870-1

ANT & ANR 975-200

ANT & ANR 1

250-400

ANT & ANR 1900-600

Frequency

Range

DC-4.0 GHz

DC-2.5 GHz

DC-1.0 GHz

DC-2.0 GHz

DC-1.0 GHz

DC-500 MHz

Input Power

(Watts Avg.)

100

200

400

600

VSWR (Typical)

(Note 3)

1.25:1

1.1

5:1

1.25:1

1.50:1

Capacitance

(pF) (Typ.)

1.0

1.6

1.4

4.5

7.0

5.0

Figure

No.

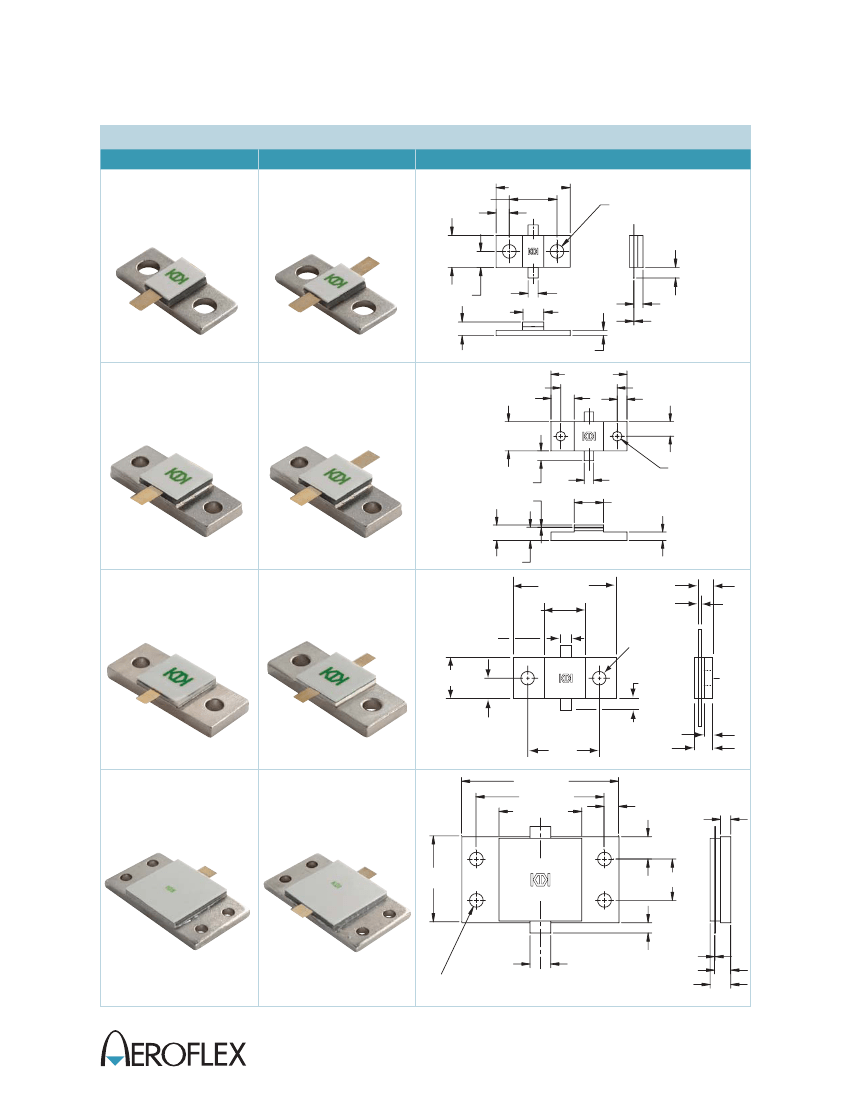

PHYSICAL DIMENSIONS

TERMINATIONS (ANT) SERIES

ANT 300-10

— 10 WATTS

Flange Mounted

RESISTORS (ANR) SERIES

ANR 300-10

— 10 WATTS

Flange Mounted

FIGURES

FIG. 1

.125 [3.17] MIN

.030 [0.76]

.040 [1.02]

.100 [2.54]

.300 [7.62]

.062 [1.57]

.200 [5.08]

.100 [2.54]

.116 [ 2.95]

.200 [5.08]

.160 [4.06]

MAX

.005±.001 [0.13±0.03]

.110 [2.79]

ANT 515-40

— 40 WATTS

ANT 515-80

— 80 WATTS

Flange Mounted

ANR 515-40

— 40 WATTS

ANR 515-80

— 80 WATTS

Flange Mounted

FIG. 2

.060 [1.52] TYP

.125 [3.18]

.095 [2.41]

.160

MAX

.062 [1.57]

.250 [6.35]

.125 [3.18]

.250 [6.35]

MIN

.515

(13.08)

.800 [20.32]

.130 [3.3]

.003±.001

[0.08±0.03]

.130 [3.30]

THRU 2 PLS

.115 [2.92]

.250 [6.35]

MIN

.116 [2.95]

ANT 800-100

— 100 WATTS

Flange Mounted

ANR 800-100

— 100 WATTS

Flange Mounted

FIG. 3

.560 [14.22]

.120 [3.05]

.230 [5.84]

.150 [3.81] MIN

.040 [1.02]

.005±.001 [0.13±0.03]

TAB THICKNESS

.108 [2.74]

.060 [1.52]

.400 [10.16]

.150 [3.81] MAX

KEY:

Inches [Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

REV

7/06

ANT515-80 Related Products

	ANT515-80	ANT870-150	ANT975-200	ANT515-40	ANT800-100	ANT1900-600	ANT300-10	ANT1250-400
Description	RF/Microwave Termination, 0 MHz - 1000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 2000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 1000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 2500 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 2000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 500 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 4000 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1	RF/Microwave Termination, 0 MHz - 500 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT, FM-1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	49.03 dBm	51.76 dBm	53.01 dBm	46.02 dBm	50 dBm	57.78 dBm	40 dBm	56.02 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Maximum operating frequency	1000 MHz	2000 MHz	1000 MHz	2500 MHz	2000 MHz	500 MHz	4000 MHz	500 MHz
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.15	1.25	1.5	1.25	1.5
Other features	I/P POWER-MAX(PEAK)=4000W	I/P POWER-MAX(PEAK)=4000W	I/P POWER-MAX(PEAK)=4000W	I/P POWER-MAX(PEAK)=2000W	-	I/P POWER-MAX(PEAK)=10000W	I/P POWER-MAX(PEAK)=1000W	-
Base Number Matches	1	1	1	1	1	-	-	-
Maker	-	Aeroflex	Aeroflex	-	Aeroflex	Aeroflex	Aeroflex	Aeroflex
