AD7522TQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD7522TQ

AD7522TQ: DescriptionIC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size167KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD7522TQ Overview

IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter

AD7522TQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Converter type	D/A CONVERTER
Enter bit code	BINARY
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.1%
Number of digits	10
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

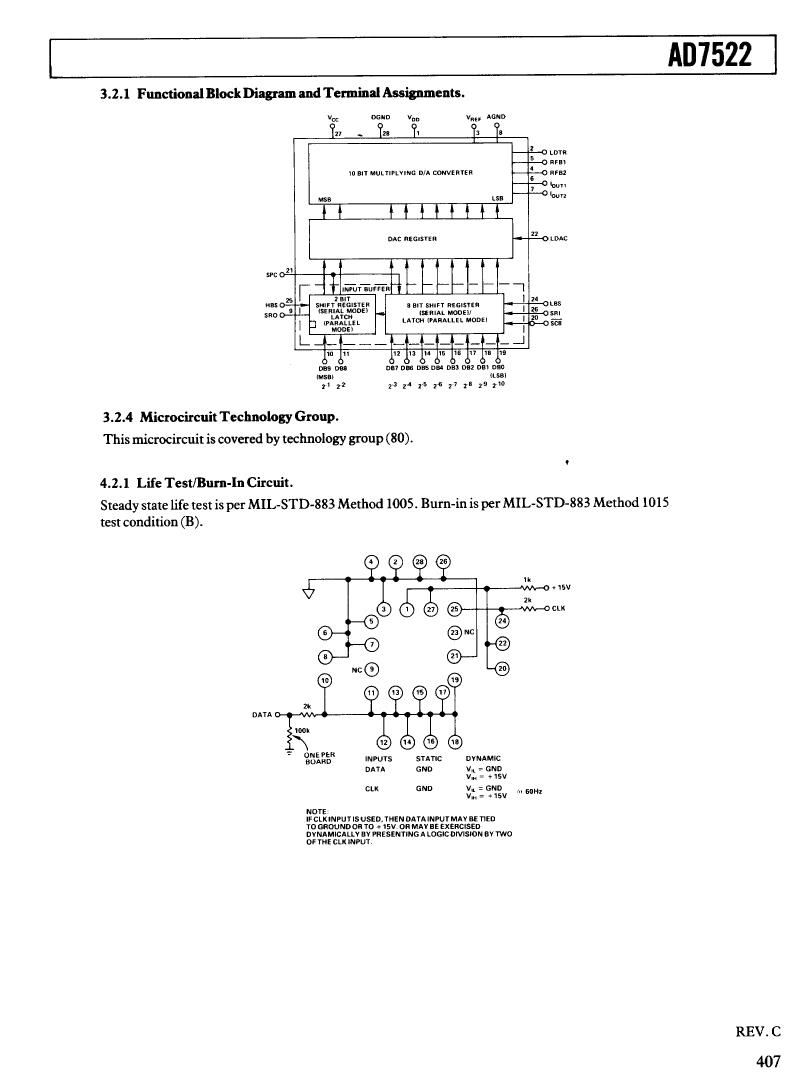

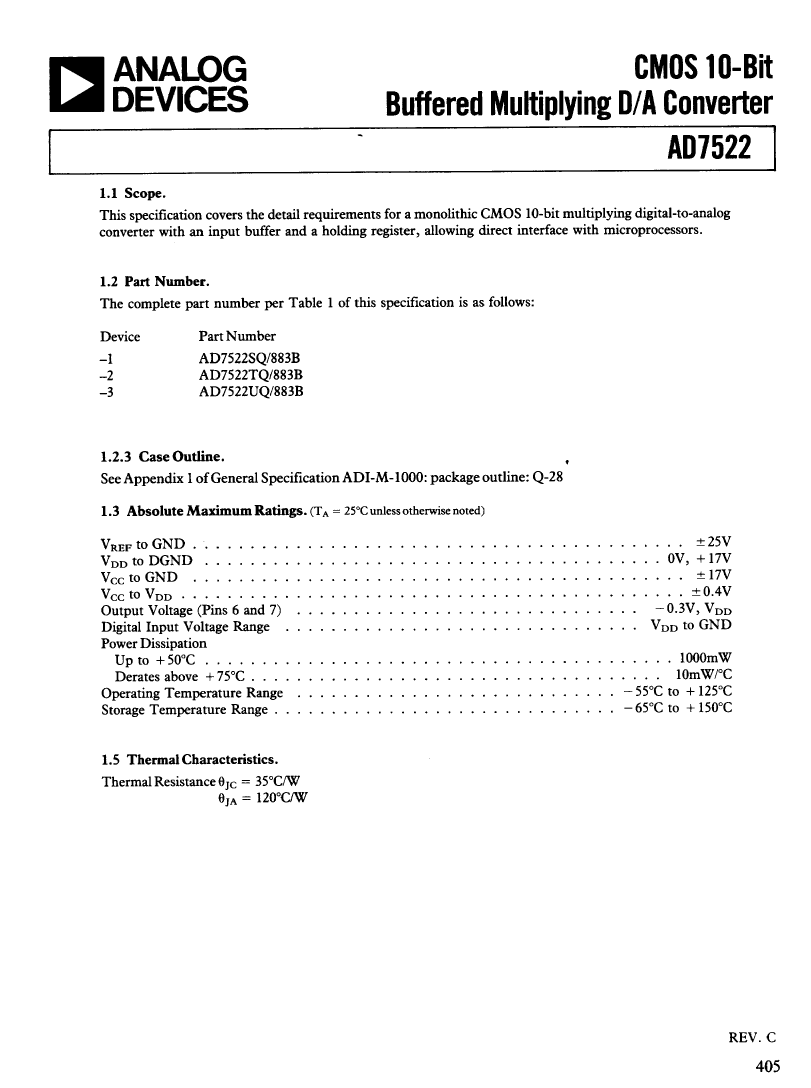

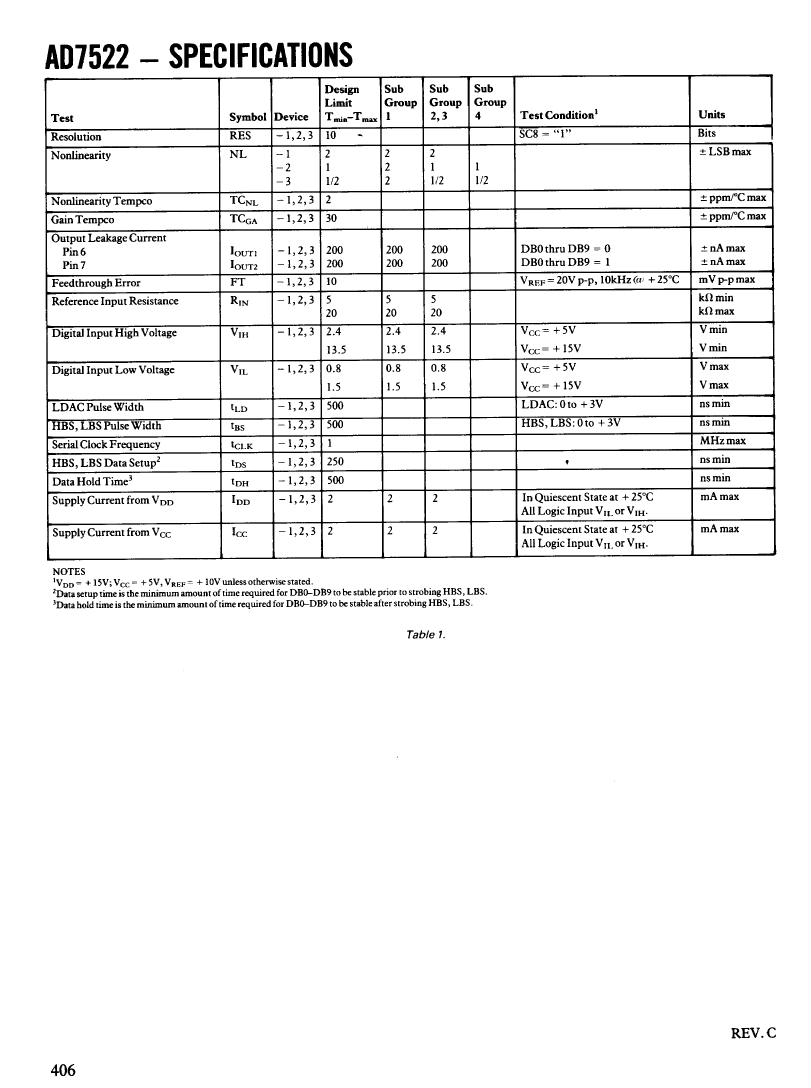

Preview

Download Datasheet

View All

AD7522TQ Related Products

	AD7522TQ	AD7522UD/883B	AD7522SD/883B	AD7522KN/+	AD7522JN/+	AD7522TD/883B
Description	IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,10-BIT,CMOS,DIP,28PIN, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
JESD-30 code	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-PDIP-T28	R-PDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.1%	0.05%	0.2%	0.1%	0.2%	0.1%
Number of digits	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,15 V	5,15 V	5,15 V	5,15 V	5,15 V	5,15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	-	Contains lead
ECCN code	3A001.A.2.C	3A001.A.2.C	-	EAR99	EAR99	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Base Number Matches	1	1	1	1	1	-
