Line Voltage Regulation (Vin = min. to max. at full load)
1.5V to 6.5V
0.2
0.4%
9V to 15.5V
0.1
0.2%
Load Regulation (10 to 100% full load)
1.5V to 6.5V
0.4
0.6%
9V to 15.5V
0.25
0.4%
Note: Operation under no load will not damage these devices, however they may not meet all specifications. A minimum load of 6mA is recommended
Dynamic Load Stability
100% <-> 50% load
±75mV
100% <-> 10% load
±100mV
Note: The R-783.3-0.5 requires Vin>5.5V to meet the Dynamic Load Stability Specification.
Ripple & Noise (without Output Capacitor)
1.5V to 6.5V
20mVp-p
30mVp-p
9V to 15.5V
30mVp-p
40mVp-p
Ripple & Noise (with Output Capacitor=100µF)
1.5V to 6.5V
15mVp-p
20mVp-p
9V to 15.5V
25mVp-p
35mVp-p
Temperature Coefficient
-40°C ~ +85°C ambient
0.015%/°C
Max capacitance Load
with normal start-up time, no external components
220µF
with <1 second start up time + diode protection circuit
6800µF
Switching Frequency
280
330
380kHz
Quiescent Current
Vin = min. to max. at 0% load
5
7mA
Operating Temperature Range
-40°C
+85°C
Operating Case Temperature
+100°C
Storage Temperature Range
-55°C
+125°C
Case Thermal Impedance
70°C / W
Case Material
Non-Conductive Black Plastic
Potting Material
Silicone (UL94V-0)
Conducted Emissions (with filter)
EN55022
Class B
Radiated Emissions (with filter)
EN55022
Class B
ESD
EN61000-4-2
Class A
Radiated Immunity
EN61000-4-3
Class A
Fast Transient
EN61000-4-4
Class A
Conducted Immunity
EN61000-4-6
Class A
Magnetic Field Immunity
EN61000-4-8
Class A
Package Weight
1.9g
Packing Quantity
42pcs per Tube
MTBF (+25°C)
using MIL-HDBK 217F
21098 x 10³ hours
Detailed Information see
Application Notes chapter "MTBF"
(+71°C)
Certifications
IEC/EN General Safety
EMC
R-78-0.5
}
using MIL-HDBK 217F
Report: LVD 1603123
Report: 5A111502E
4212 x 10³ hours
IEC/EN-60950-1, 2nd Edition + AM:2
EN55022, EN61000, EN55024
www.recom-power.com
REV: 2/2017
I-3
INNOLINE
DC/DC-Converter
Characteristics
R-78xx-0.5
Series
Ripple
Vo=12V,15 V
Vo=9V
Vo=5V
Vo=3.3V
Vo=1.8V
Vo=1.5V
50
Vo=12V
Vo=15V
Vo=9V
Vo=5V
Vo=3.3V
Vo=1.8V
Vo=1.5V
Vin (V)
10
20
30 34
Efficiency
100
50
25
Efficiency (%)
Vin (V)
10
20
30 34

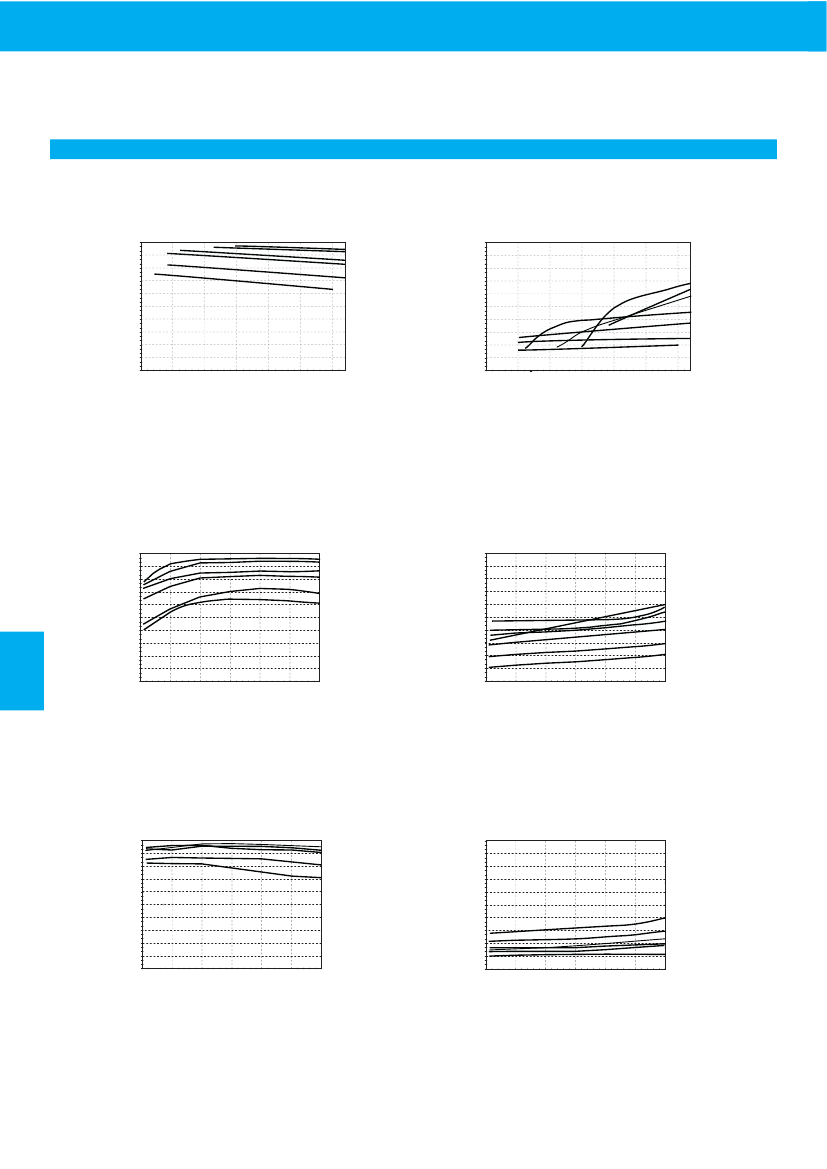

Efficiency Vs
Vin (Full Load)
Ripple (mV)
Ripple Vs
Vin (Full Load)
100
50
Vo=15V
Vo=12V
Vo=5V
Vo=3.3V
Vo=1.8V
Vo=1.5V
50
25
R-78-0.5
Efficiency (%)
Ripple (mV)
Vo=12V
Vo=15V
Vo=9V
Vo=5V
Vo=3.3V
Vo=1.8V
Vo=1.5V
0.1
0.2
0.3
0.4
0.5
0.6
0.1
0.2
0.3
0.4
0.5
0.6
Output Current ( A )
Efficiency Vs
Load ( Vin=Max )
Output Current ( A )
Ripple Vs
Load ( Vin=24V )
100
Vo=12V,15V
Vo=5V
Vo=3.3V
Vo=1.8V
Vo=1.5V
50
50
25
Vo=15V
Vo=12V
Vo=1.8V
Vo=3.3, 9V
Vo=5V
Vo=1.5V
0.1
0.2
0.3
0.4
0.5
0.6
Efficiency (%)
0.1
0.2
0.3
0.4
0.5
0.6
Output Current ( A )
Efficiency Vs
Load ( Vin=Min )
Ripple (mV)
Output Current ( A )
Ripple Vs
Load ( Vin=Min )
I-4
REV: 2/2017
www.recom-power.com
INNOLINE
DC/DC-Converter
Optional Diode Protection Circuit
Optional Protection 1:
Add a blocking diode to Vout if
current can flow backwards into
the output, as this can damage
the converter when it is powered
down.
The diode can either be fitted
across the device if the source is
low impedance or fitted in series
with the output (recommended).
R-78xx-0.5
Series
Optional Protection 2:
+Vin
R-78xx-xx
+Vout
+Vin
R-78xx-xx
Schottky Diode
Vout=
+Vout -
0.3V
GND
GND
GND
GND
+Vin
Application example:
Driving a high capacitive load
R-78xx-xx
+Vout
6800µF
GND
GND
Application Examples
High efficiency, isolated, dual unregulated outputs
DC/DC Converter ( 1:1 )
+Vin
R-78-0.5
R-78xx-0.5
+Vout
Com
C1
GND
C1 , C2 : optional
C2
- Isolated dual outputs
- Wide input range 4.75V to 34V
GND
www.recom-power.com
REV: 2/2017
I-5
INNOLINE
DC/DC-Converter
Application Examples
Isolated (up to 6KV), wide Input range regulated output
DC/DC Converter ( 1:1 )
+Vin
R-78xx-0.5
Series
R-78xx-1.0
C1
C2
- High isolation voltage
- Improved loading / line regulation
- Wide Input Voltage Range
- Point-of-Load Architecture
+Vout
GND
GND
C1, C2 : optional
Package Style and Pinning (mm)
R-78-0.5
SIP3 PIN Package
7.55
10.2
RECOM
R-785.0-0.5
0.51 typ.
****
Pb
Front
RECOM
R-785.0-0.5
****
Pb
4.10
0.7 ± 0.1
1 2 3
Recommended Footprint Details
11.50
0.25
Bottom View
1.00 ø+0.15/0
2.54
2.0
Top View
Pin Connections
Pin #
1
+Vin
2
GND
3
+Vout
xx.x ±0.5mm
xx.xx ±0.25mm
3.21
5.08
2.54
The product information and specifications are subject to change without prior notice. RECOM products are not authorized for use in safety-critical applications (such as life support) without RECOM’s explicit
written consent. A safety-critical application is defined as an application where a failure of a RECOM product may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The buyer
shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications.
