51536R-LF1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> 51536R-LF1

Preview

51536R-LF1: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size88KB，1 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

51536R-LF1 Overview

Telecom Transformer, ROHS COMPLIANT

51536R-LF1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH AND HEIGHT DIMENSIONS INCLUDE TERMINALS ALSO
Certification	IEC
high	10.54 mm
length	9.78 mm
Installation features	SURFACE MOUNT
physical size	L9.78XB9.14XH10.54 (mm)
main impedance	100 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

more than you expect

Analog Devices xDSL

SignalTransformers

Features



RoHS compatible versions available

Good total harmonic distortion

characteristics

Optimized for size and performance

Customization available

100 Ohm Line Impedance

Designed to meet IEC950 require-

ments for 250VAC working voltage

Part Number IC Number

Application

RoHS Mechanical Schematic

AD6485

AD6486

AD6488 Transmit for all CPE ISDN Apps;

51534R‐LF1

YES

1

UTOPIA, PCI or USB

Eagle

Eagle‐II

Eagle‐III

AD6485

AD6486

AD6488 Transmit for all CPE POTS Apps;

51536R‐LF1

YES

1

UTOPIA, PCI or USB

Eagle

Eagle‐II

Eagle‐III

AD6485

AD6486

AD6488 Receive for all CPE ISDN Apps;

51537R‐LF1

YES

1

UTOPIA, PCI or USB

Eagle

Eagle‐II

Eagle‐III

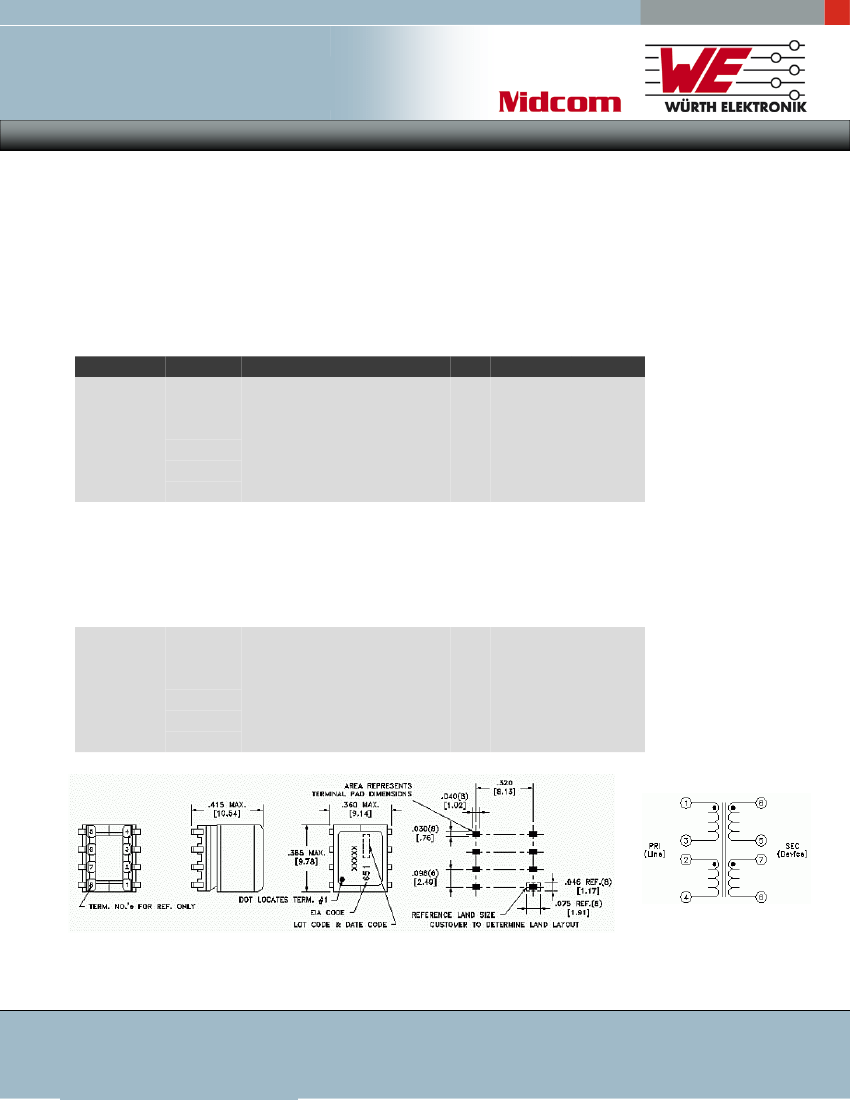

Mechanical 1

Schematic 1

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

T: 605.886.4385

www.we-online.com ~ email: sales@midcom-inc.com

F: 605.886.4486

www.we-online.com/midcom

midcom@we-online.com

26-Apr-10

1/1

51536R-LF1 Related Products

	51536R-LF1	51534R-LF1	51537R-LF1
Description	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	BREADTH AND HEIGHT DIMENSIONS INCLUDE TERMINALS ALSO	BREADTH AND HEIGHT DIMENSIONS INCLUDE TERMINALS ALSO	BREADTH AND HEIGHT DIMENSIONS INCLUDE TERMINALS ALSO
Certification	IEC	IEC	IEC
high	10.54 mm	10.54 mm	10.54 mm
length	9.78 mm	9.78 mm	9.78 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	L9.78XB9.14XH10.54 (mm)	L9.78XB9.14XH10.54 (mm)	L9.78XB9.14XH10.54 (mm)
main impedance	100 OHMS	100 OHMS	100 OHMS
surface mount	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	9.14 mm	9.14 mm	9.14 mm
Base Number Matches	1	1	1
Manufacturer's serial number	-	51534R	51537R
