CY28401

100 MHz Differential Buffer for PCI Express and SATA

Features

• CK409 or CK410 companion buffer

• Eight differential 0.7V clock pairs

• Individual OE controls

• Low CTC jitter (< 50 ps)

• Programmable bandwidth

• SRC_STOP# power management control

• SMBus Block/Byte/Word Read and Write support

• 3.3V operation

• PLL Bypass-configurable

• Divide by 2 programmable

• 48-pin SSOP package

Functional Description

The CY28401 is a differential buffer and serves as a

companion device to the CK409 or CK410 clock generator.

The device is capable of distributing the Serial Reference

Clock (SRC) in PCI Express and SATA implementations.

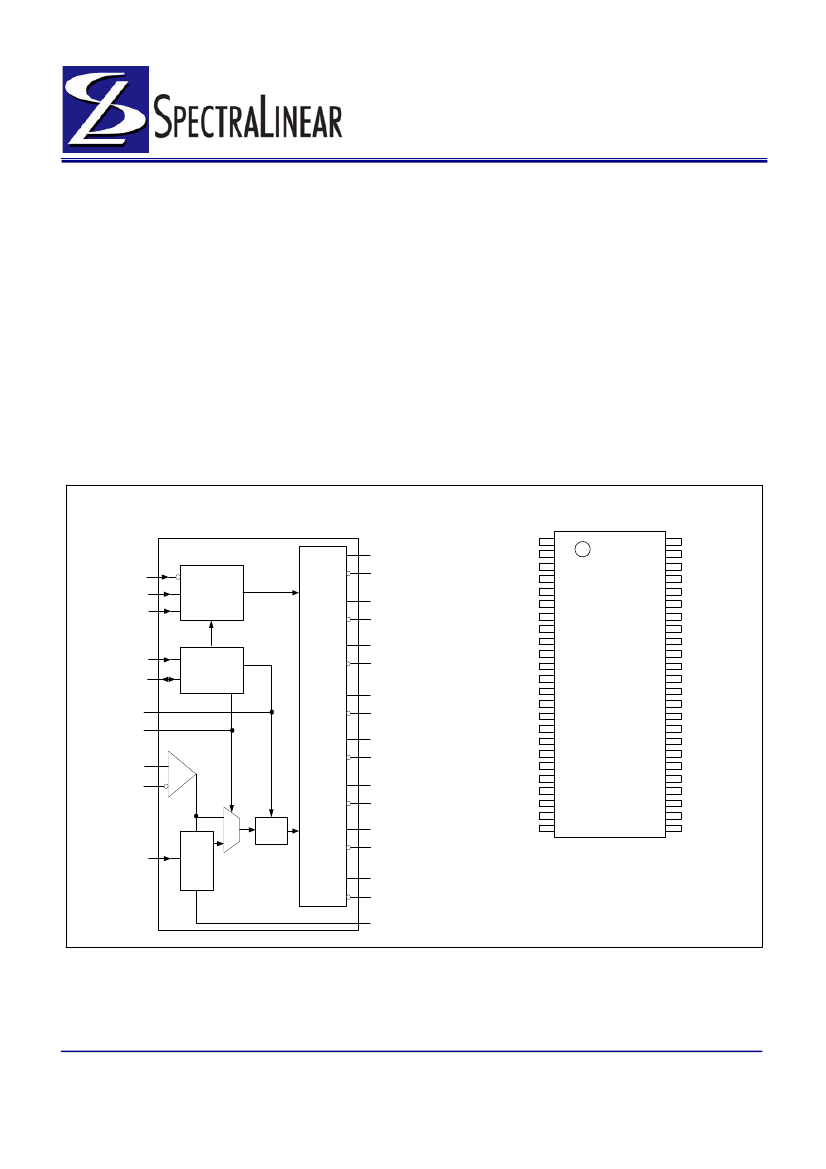

Block Diagram

Pin Configuration

SRC_DIV2#

VDD

VSS

SRCT_IN

SRCC_IN

OE_0

OE_3

DIFT0

DIFCO

VSS

VDD

DIFT1

DIFC1

OE_1

OE_2

DIFT2

DIFC2

VSS

VDD

DIFT3

DIFC3

PLL/BYPASS#

SCLK

SDATA

VDD_A

VSS_A

IREF

LOCK

OE_7

OE_4

DIFT7

DIFC7

VSS

VDD

DIFT6

DIFC6

OE_6

OE_5

DIFT5

DIFC5

VSS

VDD

DIFT4

DIFC4

HIGH_BW#

SRC_STOP#

PWRDWN#

VSS

DIFT0

OE_[0:7]

SRC_STOP#

PWRDWN#

DIFC0

Output

Control

DIFT1

DIFC1

DIFT2

SCLK

SDATA

SRC_DIV2#

PLL/BYPASS#

SMBus

Controller

Output

Buffer

DIFC2

DIFT3

DIFC3

DIFT4

DIFC4

DIFT5

DIFC5

CY28401

SRCT_IN

SRCC_IN

DIV

HIGH_BW#

DIFT6

DIFC6

PLL

DIFT7

DIFC7

LOCK

48 SSOP

Rev 1.0, November 21, 2006

2200 Laurelwood Road, Santa Clara, CA 95054

Tel:(408) 855-0555

Fax:(408) 855-0550

Page 1 of 13

www.SpectraLinear.com
