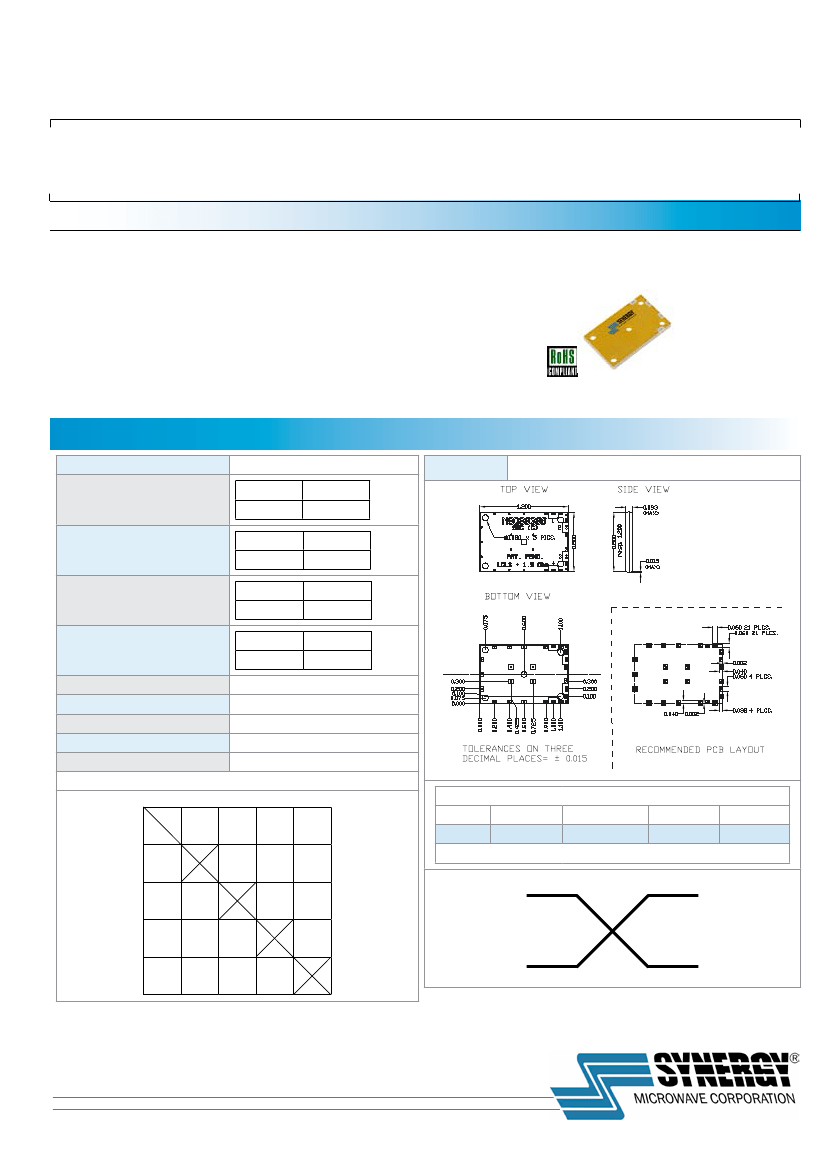

90º HYBRID

SURFACE MOUNT MODEL:

MSQ80300

WIDE BANDWIDTH

FEATURES:

►

Wide Bandwidth

►

Small Package Size, Surface Mount

►

Building Block For:

- Power Amplifiers

- Image Rejection Mixers

- I & Q / SSB Modulators

- Phase Shifters & More...

800 - 3000 MHz

SPECIFICATIONS (Rev. A 10/04/07)

Frequency

Insertion Loss (dB) *

800 - 3000 MHz

Typ.

0.5

Typ.

0.7

Typ.

2.0

Typ.

18

Max.

1.0

Max.

1.0

Max.

5.0

Min.

13

Package #

325

Amplitude Unbalance (dB)

Phase Unbalance (Deg.)

Isolation (dB)

Power Rating

Impedance

VSWR

Operating Temperature Range

Storage Temperature Range

20 Watts Ave. (CW)

50 Ohms (Nom.)

1.35:1 (Typ.) / 1.60:1 (Max.)

-55 to +85 °C

-55 to +100 ºC

PORT CONFIGURATION

Input

1

Isolated*

4

+90º Output

3

0º Output

2

GND

All Others

* Insertion loss in excess of the theoretical 3 dB coupling.

PHASING DIAGRAM

OUT

IN

1

2

3

4

1

0º

+90º

ISO

* Terminate ISOLATED port with 50 Ohms.

1

PORT DIAGRAM

2

0º

ISO

+90º

4

3

+90º

ISO

0º

4

ISO

+90º

0º

3

2

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
