ZT5000 Series TCXO
500 kHz – 100 MHz
GREENRAY INDUSTRIES, INC.
PRECISION QUARTZ TECHNOLOGY
(Rev A)

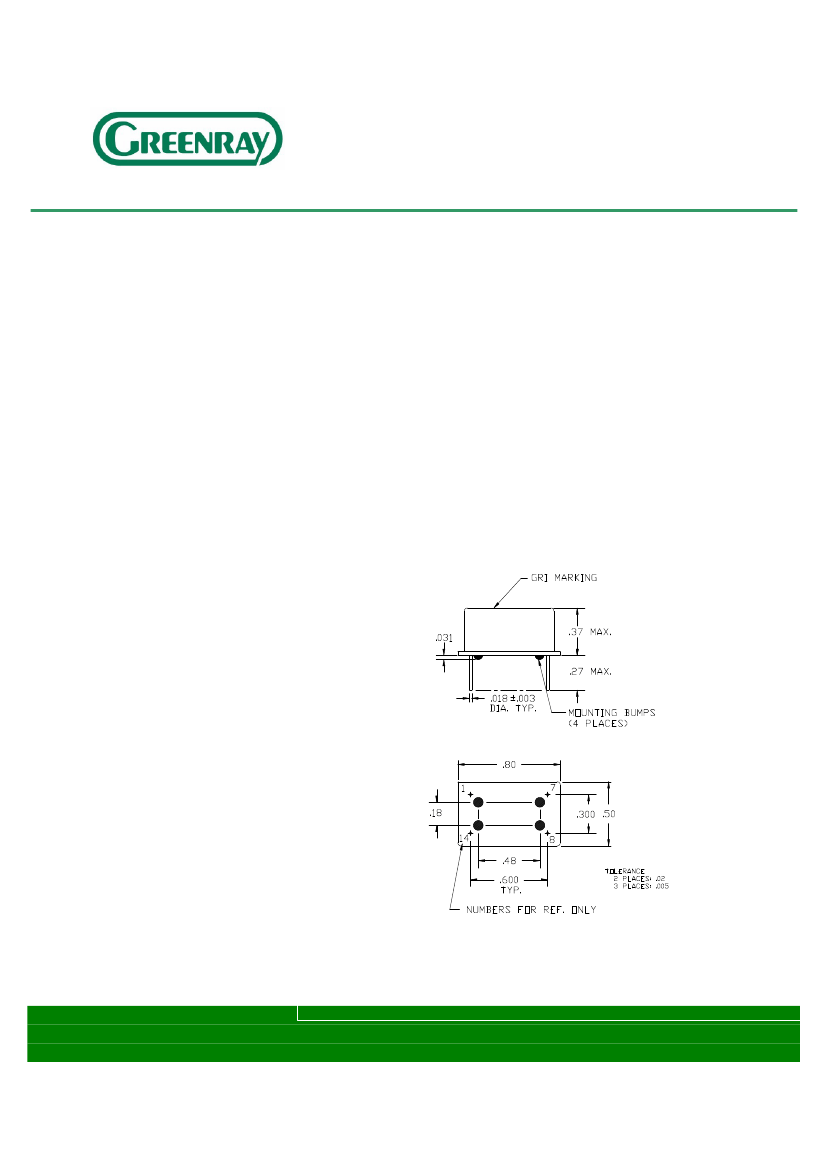

4 PIN DIP Package
3.3V or 5.0V Supply
Ideal for Communications and Test Equipment
SPECIFICATIONS
Frequency
Output
Load
Temp Stability
Aging
Input Voltage
Input Current
Phase Noise
(typ @ 10MHz)
Frequency Adjust
500.0 kHz to 100.0 MHz
HCMOS or Sinewave (Sine available from 10 to 30 MHz)
HCMOS – 15pF
Sinewave – 50 ohms
Temp Range
Tolerance
Option
-6
-20 to +70°C
±1x10
N16
-6
-40 to +85°C
±5x10
T56
st
±1ppM 1 year; 0.5ppM/yr thereafter (10MHz typ)
+5.0VDC ±5% or +3.3VDC ±5%
< 20 mA (10 MHz)
10 Hz
-85 dBc/Hz
100 Hz
-110 dBc/Hz
1 kHz
-130 dBc/Hz
10 kHz
-145 dBc/Hz
±5.0ppM typ, positive slope
0 to V
supply
EFC
Output
HCMOS
Sinewave
HCMOS
Sinewave
Ordering Information
Model
Input V
ZT5000
+5.0
ZT5001
+5.0
ZT5002
+3.3
ZT5003
+3.3
Ordering Example:
ZT5000-N16-10.0 MHz
(Model-Stability-Frequency)
Pin Connections:
1
7
8
14
- EFC
- 0V/Case Gnd
- Output
- Supply V
To inquire about available custom parameters, please contact us at
sales@greenrayindustries.com.
840 West Church Rd., Mechanicsburg, PA 17055
Tel: 717-766-0223 Fax: 717-790-9509
www.greenrayindustries.com email: sales@greenrayindustries.com
