T50243000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> T50243000

T50243000: DescriptionDatacom Transformer, ISDN Application(s), 1:2; CategoryPower management transformer; File Size96KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

T50243000 Overview

Datacom Transformer, ISDN Application(s), 1:2

T50243000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMMON MODE CHOKES AVAILABLE, COMPATIBLE WITH AM79C30A; T7259; MTC-2072; MT8930
application	ISDN
high	10.88 mm
Insulation voltage	3000 V
length	13.97 mm
Manufacturer's serial number	T5024
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	13.97mm X 13.97mm X 10.88mm
Primary inductance	22000 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:2
width	13.97 mm
Base Number Matches	1

Preview

Download Datasheet

View All

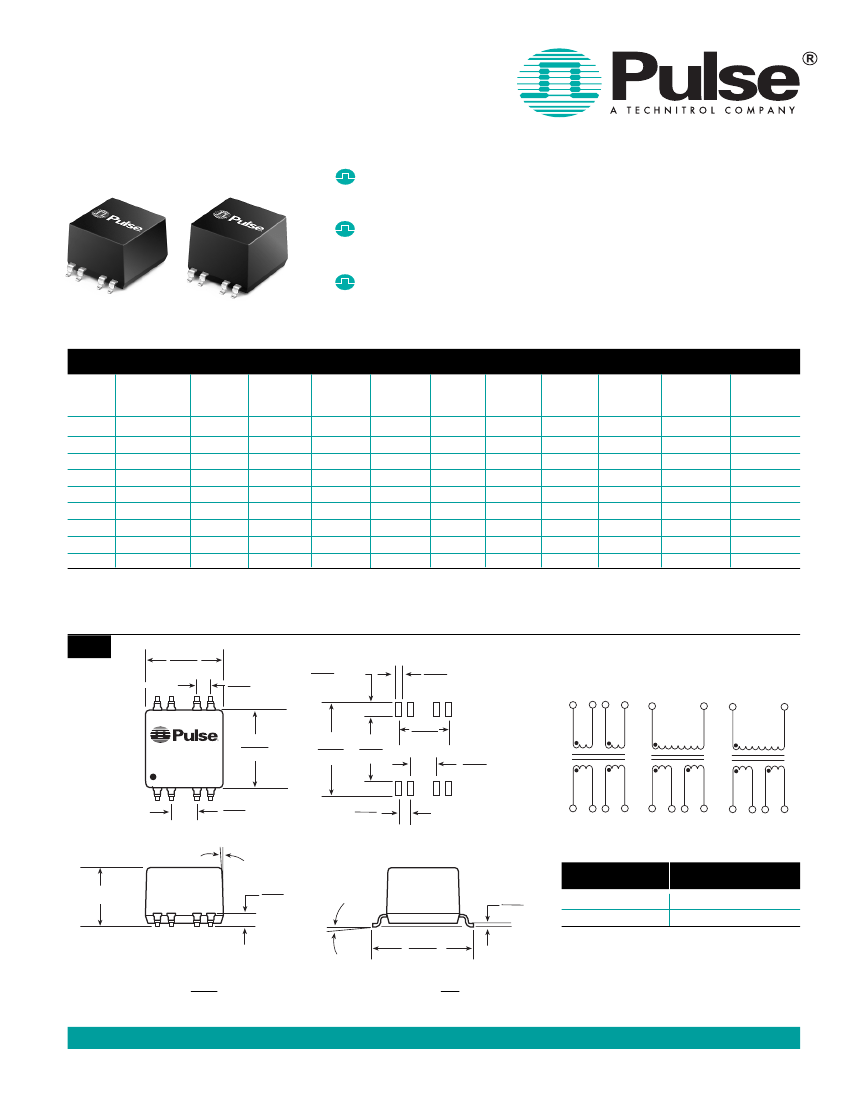

ISDN S-INTERFACE

TRANSFORMERS

Surface Mount, Single, 1.5 and 3KVrms

Meets the pulse waveform template of CCITT I.430,

using recommended transformer and chip pair

Compact SMT transfer-molded package with 1.5KV

and 3KV compatible footprints

Options for Terminal, Line Card and NT Box

Applications

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Part

Ratio Pri:Sec

Number

( ± 2%)

T5020

T5021

T5022

T5023

T5033

T5024

T5025

T5026

T5036

1:2

1:1

1:2.5

1:2

1:1

1:2.5

1:2

OCL Pri

(mH MIN)

Sec

(µH MAX)

(pF MAX)

120

150

120

CD Pri

(pF MAX)

180

100

DCR Pri

(Ω MAX)

2.5

1.3

DCR Sec

(Ω MAX)

5.2

2.5

3.0

1.3

3.5

3.0

(mA MAX)

Isolation

Voltage

(Vrms MIN)

1500

3000

Primary

Pins

1-10, 5-6

6-7,9-10

6-7, 9-10

6-7,9-10

Package /

Schematic

VAL 1/B

VAL 1/C

VAL 1/A

VAL 2/A

Note:

See table for package heights (1 and 2).

Mechanical

VAL

.550

13,97

.100

2,54

PE-502X

Date Code

Country of

Origin

Schematic

.050

1,30 TYP

.120

3,05 TYP

(8-pin)

10 9 7

(8-pin)

(10-pin)

.550

13,97

.200

5,08

.760 .520

19,30 13,20

.400

10,16

.200

5,08

.100

2,54

SUGGESTED PAD LAYOUT

2 4

1 10 5

MAX

.060

1,52

Package

Type

Package

Height (A MAX)

°-

.010

0,25

.715

18,16

VAL 1

VAL 2

.394/10,00 MAX

.429/10,88 MAX

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

NOTE:

Optional tape and reel packaging can be

ordered by adding a

“T”

suffix to the part number

(ie:T5020T).

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 32181071

•

China 86 769 5538070

•

Taiwan 886 2 26980228

www.pulseeng.com

T633.A (1/06)
