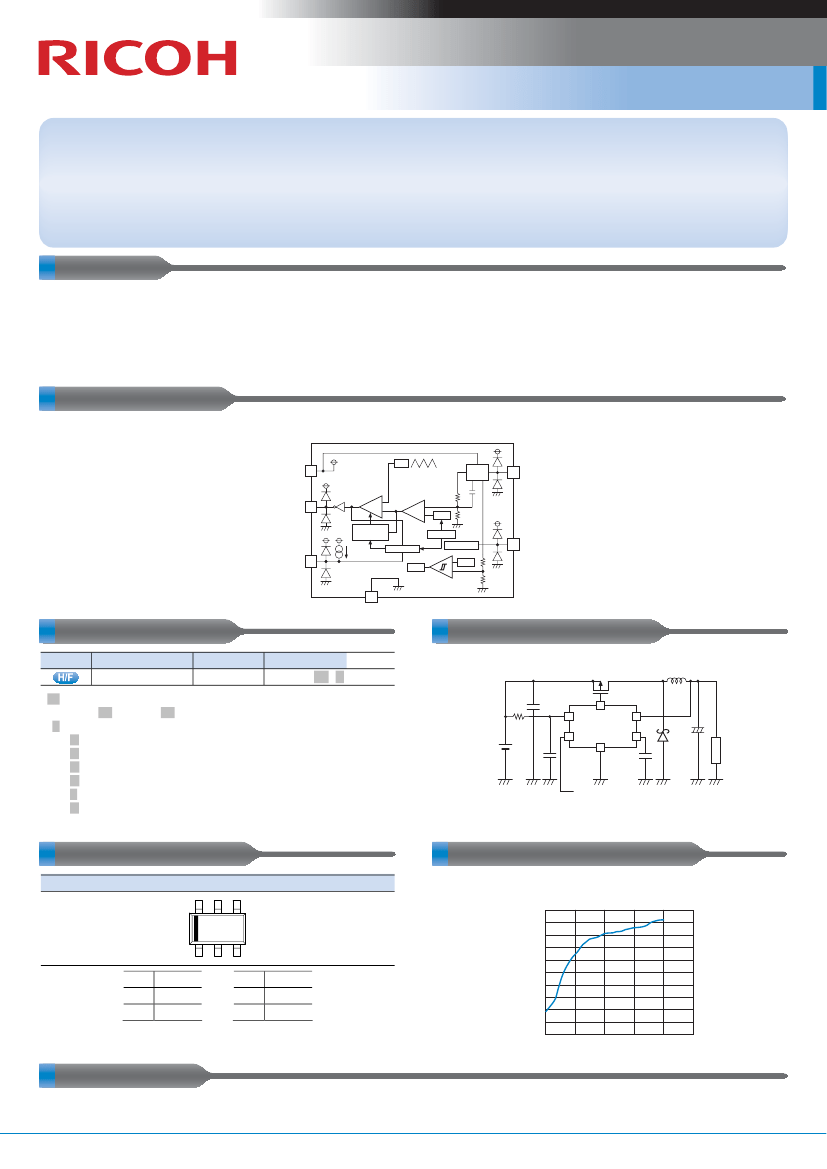

R1225N Series
18.5V Input PWM/VFM Step-down DC/DC Controller with Ext. Tr.
The R1225N Series are low supply current CMOS-based PWM/VFM controlled step-down DC/DC controllers with an external output
transistor. By simply using a power transistor, an inductor, a diode, and a capacitor as external components, a high-efficiency step-down
DC/DC converter can be easily configured. The PWM/VFM alternative circuit automatically switches to VFM control in the smaller output
current range and provides high efficiency even in the smaller output current range. The version with fixed PWM control is also available.
The latch type protection circuit embedded into the device latches the power MOS in the "OFF" state when the oscillator maximum duty
cycle continues for a predetermined period of time. Protection time is adjustable by the capacity of an external capacitor of the DLY pin.
R1225N also includes an under-voltage lockout circuit (UVLO) that stops DC/DC operation and prevents malfunction when the supply
voltage falls below the UVLO detector threshold and reduces supply current.
FEATURES
•
Supply Current (I
DD1
)······················· Typ. 20μA (A, B, J, K Versions),
•
•
•
•
Typ. 30μA (C Version),
Typ. 40μA (D Version) (No switching)
Standby Current (I
standby
) ················· Max. 0.5μA (CE="L")
Input Voltage Range (V
IN
) ··············· 2.3V to 18.5V
Output Voltage Range (V
OUT
)·········· 1.2V to 6.0V (Internally fixed)
Output Voltage Accuracy ················± 2%
•
Oscillator Frequency (f
osc
) ···············180kHz, 300kHz, 500kHz
•
Oscillator Maximum Duty Cycle (Maxduty) ··Min. 100%
•
UVLO Detect Voltage (V
UVLO
)··········Typ. 2.0V
•
Soft Start Time (t
start
) ··························Typ. 10ms
•
Latch Type Protection Circuit··········Delay time for protection
•
Package··········································SOT-23-6W
Typ. 20ms
BLOCK DIAGRAM
R1225Nxx2x
V
IN
OSC
2
Start
func
6
V
OUT
EXT
1
-
+
PWM/VFM
CONTROL
-
Amp
+
Vref
Soft Start
Protection
DLY
3
Chip Enable
+
-
Vref
4
CE
UVLO
5
GND
SELECTION GUIDE
Halogen Free
Package
SOT-23-6W
Q'ty per Reel
Part No.
3,000 pcs R1225N.xx.2.
∗
-TR-FE
TYPICAL APPLICATION
R1225Nxx2x
L
PMOS
R1
C1
2
4
1
.xx.
: Specify the output voltage within the range of
1.2V (.12.) to 6.0V (.60.) in 0.1V steps.
.
∗
.
: Specify the oscillator frequency, modulation method.
.A.
: 300kHz, PWM/VFM,
.B.
: 500kHz, PWM/VFM,
.C.
: 300kHz, fixed PWM,
.D.
: 500kHz, fixed PWM,
.J.
: 180kHz, PWM/VFM,
.K.
: 180kHz, fixed PWM
V
IN
EXT V
OUT
CE GND DLY
5
6
3
C2
C4
CE CONTROL
PMOS : HAT1044M, L : 27μH, SD : RB063L-30,
C1 : 10μF, C2 : 0.1μF, C3 : 47μF, C4 : 0.02μF, R1 : 10Ω
PACKAGE (Top View)
SOT-23-6W
6
5
4
TYPICAL CHARACTERISTIC
R1225N332A Efficiency vs. Output Current
100
90
80
Efficiency
η
(%)
V
IN
=7V, L=CDRH127(10μH)
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Output Current I
OUT
(mA)
10000
1
2
3
1
2
3
EXT
V
IN
DLY
4
5
6
CE
GND
V
OUT
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
No.EK-097-121001
•
Power source for battery-powered equipment
Step-down DC/DC Converter
LOAD
+
SD -
C3
