CTCDRH124-220K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTCDRH124-220K

CTCDRH124-220K: DescriptionGeneral Purpose Inductor, 22uH, 10%, 1 Element, SMD; CategoryPassive components inductor; File Size440KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTCDRH124-220K Overview

General Purpose Inductor, 22uH, 10%, 1 Element, SMD

CTCDRH124-220K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.07 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTCDRH124
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum rated current	2.9 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

ctparts.com

SMD Shielded Power Inductors

SPECIFICATIONS

Please specify tolerance code when ordering.

CTCDRH124-3R9_

J = ±5%, K = ±10% L = ±15%

M = ±20%, N = ±30%

L Test

DCR

Inductance

Freq.

Max.

Ω

(µH)

(kHz)

(Ω)

3.9

4.7

6.8

8.2

100

120

150

180

220

270

330

1.0

.02

.03

.04

.05

.06

.07

.08

.10

.13

.16

.19

.22

.26

.31

.38

.53

.62

.70

.87

.99

NEW!

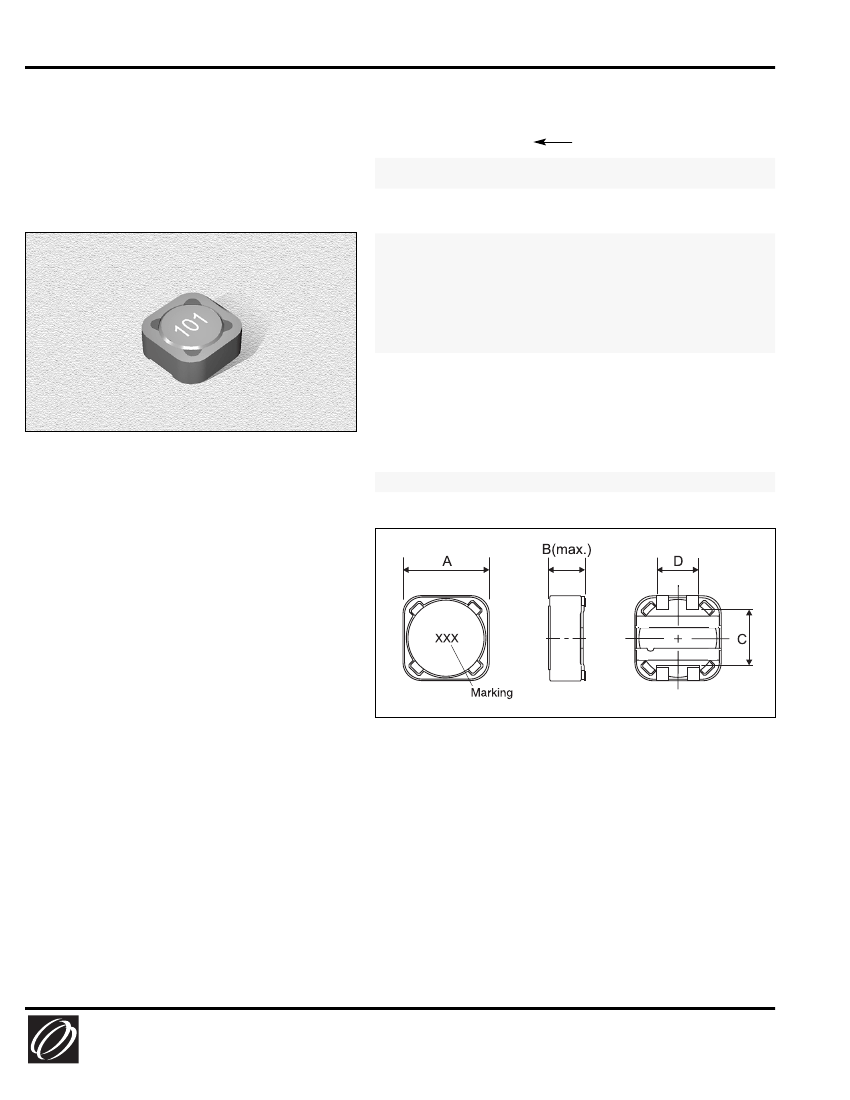

CTCDRH124 Series

From 3.9 µH to 330 µH

Part

Number

Not shown at actual size.

IDC

Max.

(A)

6.5

5.7

4.9

4.6

4.5

4.0

3.2

3.1

2.9

2.8

2.7

2.1

1.9

1.8

1.5

1.3

1.2

1.1

1.0

0.9

0.8

0.6

0.5

CTCDRH124-3R9_

CTCDRH124-4R7_

CTCDRH124-6R8_

CTCDRH124-8R2_

CTCDRH124-100_

CTCDRH124-120_

CTCDRH124-150_

CTCDRH124-180_

CTCDRH124-220_

CTCDRH124-270_

CTCDRH124-330_

CTCDRH124-390_

CTCDRH124-470_

CTCDRH124-560_

CTCDRH124-680_

CTCDRH124-820_

CTCDRH124-101_

CTCDRH124-121_

CTCDRH124-151_

CTCDRH124-181_

CTCDRH124-221_

CTCDRH124-271_

CTCDRH124-331_

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-25°C to +80°C

Inductance Tolerance:

±5%, ±10%, ±15%, ±20%, ±30%

Testing:

Inductance is tested on an HP4284A at 1.0 kHz

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

Magnetically shielded

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

12±0.5

0.47±0.02

4.5

0.18

7.6±0.2

0.3±0.007

5±0.2

0.2±0.007

Technologies

Volume Manufacturer of Inductive Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice.

CENTRAL

7.12.14.01
