SMBJ6.5A-TP-HF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ6.5A-TP-HF

SMBJ6.5A-TP-HF: DescriptionTrans Voltage Suppressor Diode, 600W, 6.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size339KB，9 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric View All

SMBJ6.5A-TP-HF Overview

Trans Voltage Suppressor Diode, 600W, 6.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN

SMBJ6.5A-TP-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PDSO-C2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	7.98 V
Minimum breakdown voltage	7.22 V
Breakdown voltage nominal value	7.6 V
Maximum clamping voltage	11.2 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Maximum repetitive peak reverse voltage	6.5 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

SMBJ5.0

THRU

SMBJ440CA

Transient

Voltage Suppressor

5.0 to 440 Volts

600 Watt

DO-214AA

(SMB) (LEAD FRAME)

Features

For surface mount applicationsin or der to optimize

board space

•

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

Fast response time: typical less than 1.0ps from 0 volts to

minimum

Low inductance

UL Recognized File #

E331408

Halogen

free available upon request by adding suffix "-HF"

•

Mechanical Data

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Terminals: solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes pos it ive end (cathode)

except Bidirectional

Maximum soldering temperature: 260 C for 10 seconds

Maximum Ratings @ 25 C Unless Otherwise Specified

Peak Pulse Current on

See Table 1 Note:

10/1000us waveform

Peak Pulse Power

600W

Note:

Dissipation

Operation And Storage T

, T

STG

-55 C to

Temperature Range

+175

Thermal Resistance

thJC

thJL

C/W

DIM

DIMENSIONS

INCHES

MIN

.083

.075

.002

.006-

.030

.200

.160

.130

MIN

2.13

1.91

0.051

0.152

0.76

5.08

4.06

3.30

MAX

.096

.083

.008

.012

.050

.220

.185

.155

MAX

2.44

2.11

0.203

0.305

1.27

5.59

4.70

3.94

NOTE

NOTES:

High Temperature Solder Exemptions Applied, see EU Directive Annex 7.

SUGGESTED SOLDER

PAD LAYOUT

0.106"

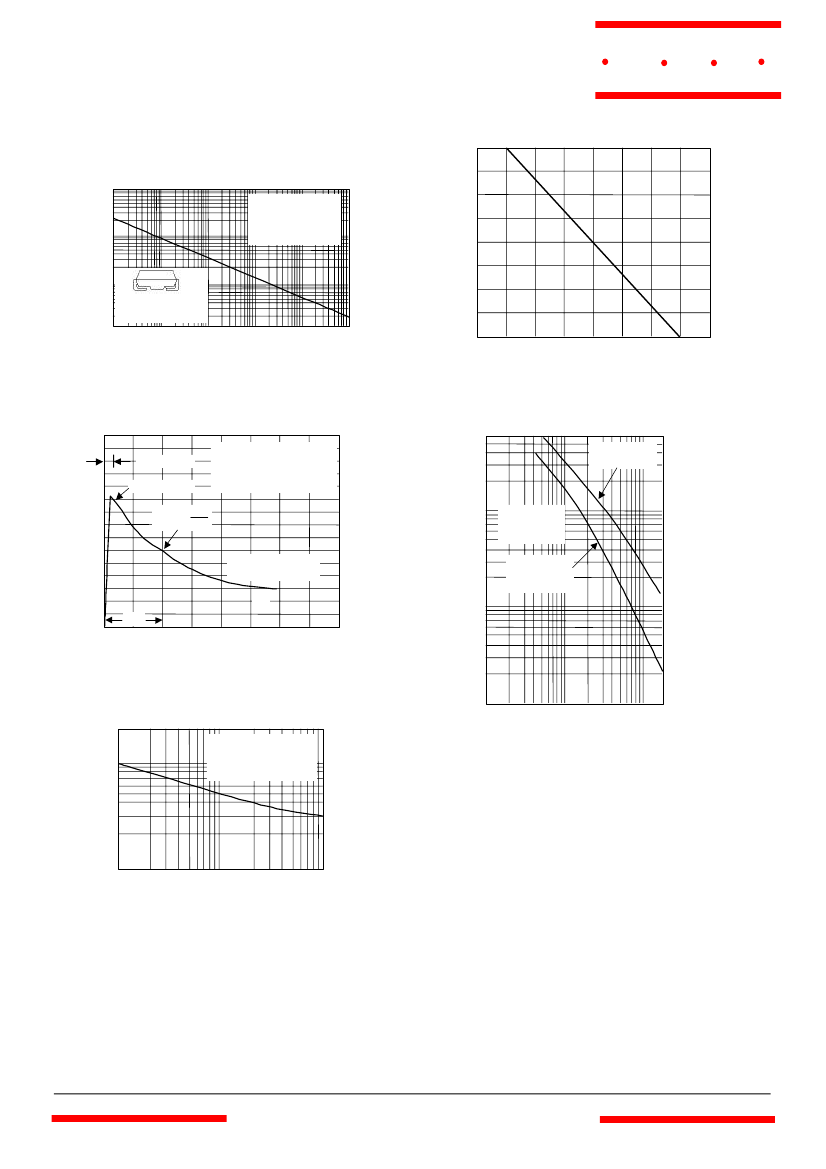

Non-repetitive current pulse, per Fig.3 and derated above

=25 C per Fig.2.

Mounted on 5.0mm copper pads to each terminal.

Peak pulse current waveform is 10/1000us, with maximum duty

Cycle of 0.01%.

Unidirectional and bidirectional available,for bidirectional devices

add 'C' suffix to the pn#, i.e.SMBJ5.0CA

For bi-directional type having Vrwm of 10 Volts and less, the IR

limit is double.

0.082”

0.050”

Revision:

www.mccsemi.com

1 of 9

2013/07/18
