Features
n
Multiturn / Cermet / Industrial / Sealed
n
5 terminal styles
n
Tape and reel packaging available
n
Chevron seal design
n
Listed on the QPL for style RJ24 per
PL
IA
N
T
5.23
(.206)
2.54
(.100)
n
Mounting hardware available
2.54
(H-117P)
(.100)
(.095)
3
n
RoHS compliant* version available
2
n
For trimmer applications/processing
2.54
1
guidelines, click here
(.100)
2.54
(.100)
2.41
MIL-R-22097 and RJR24 per High-Rel
Mil-R-39035
OM
*R
oH
S
2

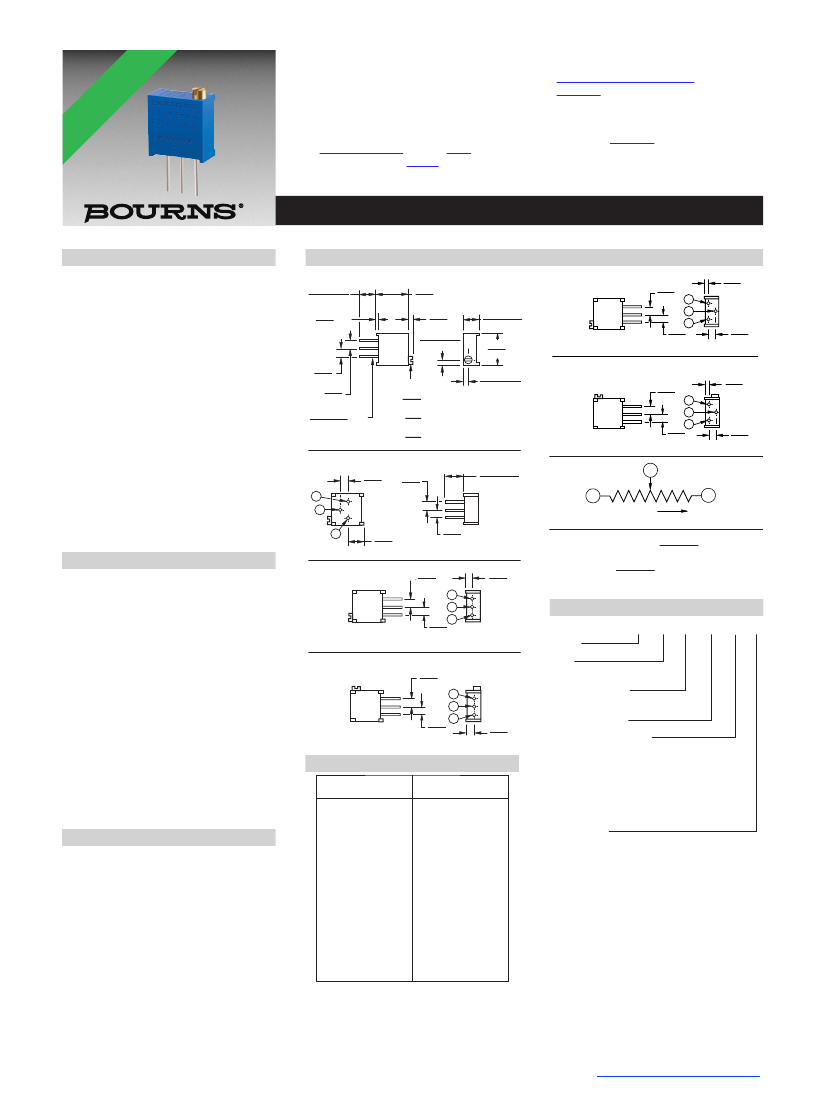

3296 - 3/8 ” Square Trimpot Trimming Potentiometer
1
®
3
C
2.54
(.100)
2.41
(.095)
Electrical Characteristics
Standard Resistance Range
......................10 ohms to 2 megohms
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(tighter tolerance available)
Absolute Minimum Resistance
........................... 1 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
........................ 1.0 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage .................................. ±0.01 %
Resistance ............................ ±0.05 %
Resolution ................................... Infinite
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 900 vac
70,000 Feet ............................ 350 vac
Effective Travel .................25 turns nom.
Environmental Characteristics
Power Rating (300 volts max.)
70 °C ...................................... 0.5 watt
125 °C ....................................... 0 watt
Temperature Range ... -55 °C to +125 °C
Temperature Coefficient ... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(2 %
ΔTR,
10 Megohms IR)
Vibration ....... 20 G (1 %
ΔTR;
1 %
ΔVR)
Shock ......... 100 G (1 %
ΔTR;
1 %
ΔVR)
Load Life.. 1,000 hours 0.5 watt @ 70 °C
(3 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Rotational Life .......................200 cycles
(4 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Moisture Sensitivity Level .................N/A
ESD Classification (HBM) .....................2
Physical Characteristics
Torque............................. 3.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals .......................Solderable pins
Weight ....................................... 0.03 oz.
Marking........................... Manufacturer’s
trademark, resistance code, wiring
diagram, date code, mfr’s. model
number and style
Wiper ............... 50 % (Actual TR) ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Adjustment Tool..............................H-90
†“Fluorinert” is a registered trademark of 3M Co.
Product Dimensions
Common Dimensions
LE
AD
6.40 ± 1.32
(.252 ± .052)
.38
MIN.
(.015)
10.03
(.395)
3296Y
2.54
(.100)
3
2
1
F
RE
E
1.14
(.045)
1.52
(.060)
1.27 ± 0.1
(.050 ± .004)
4.83 ± .13
(.190 ± .005)
9.53
(.375)
1.27 ± 0.1
(.050 ± .004)
2.54
(.100)
2.54
(.100)
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
2.54
(.100)
2.54
(.100)
3296Z
2.54
(.100)
3
2
1
.51 ± .03 DIA.
(.020 ± .001)
ADJ. SLOT
2.19 DIA.
(.086)
.56
WIDE
X
(.022)
.76
DEEP
X
(.030)
1.14
(.045)
2.54
(.100)
2.54
(.100)
3296P
2.54
(.100)
3
2
1
2.54
(.100)
6.4 ± 1.32
(.252 ± .052)
2
CCW
WIPER
1
CLOCKWISE
3
CW
5.23
(.206)
2.54
(.100)
2.54
(.100)
3296W
2.41
(.095)
3
2
MM
DIMENSIONS:
(INCHES)
0.25
TOLERANCES: ±
EXCEPT WHERE NOTED
(.010)
2.54
1
(.100)
How To Order
Model
Style
3296 W - 1 - 103 __ LF
3296X
2.54
(.100)
3
2
Standard or Modified
Product Indicator
-1 = Standard Product
2.41
(.095)
2.54
1
(.100)
Resistance Code
Packaging Designator
Blank = Tube (Standard)
R = Tape and Reel (X and W Pin Styles
Only)
A = Ammo Pack (X and W Pin Styles Only)
Tape and reel material meets Antistatic
ANSI/ESD 5541-2003 packaging standards.
Terminations
LF =
100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
2,000,000
1.14
2.54
Resistance
(.045)
(.100)
3
Code
2
200
1
500
100
2.54
101
(.100)
201
2.54
(.100)
2.54
(.100)
3
2
1
2.54
(.100)
501
102
202
502
103
203
253
503
104
204
254
504
105
205
1.14
(.045)
2.54
(.100)
Popular values listed in boldface. Special
resistances available.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
