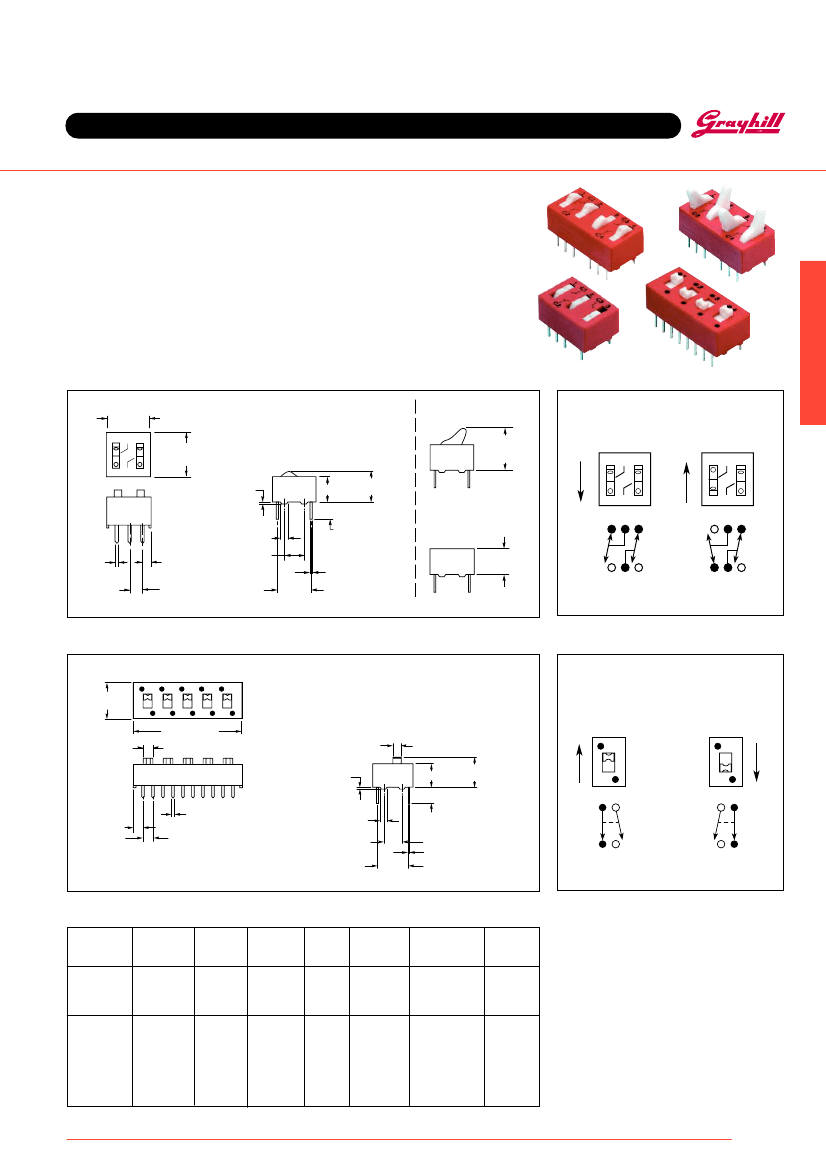

Thru-Hole DIP Switches
SERIES 76 and 78
SPDT
FEATURES
• Raised and Recessed Rocker,
and Toggle Actuated Styles
• SPDT with a Common Pole, or
SPDT with 2 Isolated Circuits
• Spring and Ball Contact
• Top Tape Seal Option for
Most Styles
DIP Switches
DIMENSIONS: Series 76
Series 76 Raised Rocker
.380 ± .010
(9,65 ± 0,25)
1
C1
2
In inches (and millimeters)
Toggle-DIP
.447 ± .015
(11,35 ± 0,38)
TYP.
CIRCUITRY: Series 76
SPDT with Common
True Form C Switching
.380 ± .010
(9,65 ± 0,25)
C2
A = .247 ± .010
(6,27 ± 0,25)
.295 + .000 –.020
(7,49 –0,51)
1
C1
2
1
C1
2
.020 + .005 –.000
(0,51 + 0,13)
A
C2
C2
1
C1
.050 ± .005
(1,27 ± 0,13)
.020
± .002
(0,51
± 0,05)
TYP.
.090 ± .005
(2,29 ± 0,13)
TYP.
.100 ± .005
(2,54 ± 0,13)
TYP.
.156 + .015 –.010
(3,96 + 0,38 –0,25)
Recessed Rocker
1
C1
.180 ± .010
(4,57 ± 0,25)
C
L
C
L
.012 ± .001
(0,30 ± 0,03)
.300 + .030 –.000
(7,62 + 0,76)
.247 ± .010
(6,27 ± 0,25)
DIMENSIONS: Series 78
Series 78 Slide
0.380 ± .005
(9,65 ± 0,13)
1
2
3
4
5
In inches (and millimeters)
CIRCUITRY: Series 78
SPDT, 2 Circuits
(No Commons)
Dot on cover indicates active terminal when
slide is on that side of switch. Contact is made
with terminal on opposite side.
.070 (1,78) REF.
.295 + .000 –.020
(7,49 –0,51)
DIM. A
SEE CHART
.100 ± .002
(2,54 ± 0,05)
1
1
.020
± .002
(0,51
± 0,05)
.020 ± .002 (0,51 ± 0,05) TYP.
.090 ± .005 (2,29 ± 0,13) TYP.
.100 ± .005 (2,54 ± 0,13) TYP.
C C
L L
A
.156 + .015 –.010
(3,96 + 0,38 –0,25) TYP.
A = .245 + .000 –.020
(6,22 + 0,51)
.180 ± .010 (4,57 ± 0,25)
.012 ± .001 (0,30 ± 0,03)
.300 + .030 –.000
(7,62 + 0,76)
.050 ± .005
(1,27 ± 0,13)
TYP.
C
L
C
L
To create common poles, tie together 2
adjoining terminals on 1 (either) side of switch.
ORDERING INFORMATION
Circuitry
SPDT
Form
C
SPDT
2
Circuits
Positions Length
Inches
2
3
4
1
2
3
4
5
6
0.380"
0.580"
0.780"
0.280"
0.480"
0.680"
0.880"
1.080"
1.280"
Length
Metric
9,7mm
14,7mm
19,8mm
7,1mm
12,2mm
17,3mm
22,4mm
27,4mm
32.5mm
No./
Tube
27
18
13
35
21
15
12
9
8
Raised
Type*
76SC02
76SC03
76SC04
78J01
78J02
78J03
78J04
78J05
78J06
Recessed
Rockers*
76RSC02
76RSC03
76RSC04
—
—
—
—
—
Toggle-
DIP*
76STC02
76STC03
76STC04
—
—
—
—
—
ADDITIONAL INFORMATION
For Specifications, see page B-16. For Options
and Accessories, see pages B-20 and
B-21.
Available from your local Grayhill Distributor.
For prices and discounts, contact a local Sales
Office, an authorized local Distributor or Grayhill.
*To order top seal versions, add "S" to the Grayhill part number. Not available on Toggle-DIP.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
B-14
Thru-Hole DIP Switches
SPECIFICATIONS: Standard and Military Qualified Styles
Ratings
Mechanical Life:
Operations per switch position
Make-and-break Current Rating:
Operations
per switch position at these resistive loads
1 mA, 5 Vdc; 50 mA, 30 Vdc; or 150 mA, 30 Vdc:
10 mA, 30 Vdc; or 10 mA, 50 mVdc:
10 mA, 50 mVdc; or 25 mA, 24 Vdc; or 100 mA, 6 Vdc:
Contact Resistance:
Initially:
After life, at 10 mA, 50 mVdc, open circuit:
Insulation Resistance:
Minimum, at 100 Vdc between adjacent closed
contacts and also across open switch contacts
Initially (Mohms):
After life (Mohms):
Dielectric Strength:
Minimum voltage (AC,
RMS) measured between adjacent closed
contacts and also across open switch contacts.
lnitially:
After life:
Current Carry Rating:
Maximum rise of 20°C
Switch Capacitance:
At 1 megahertz
Operating Temperature Range:
Storage Temperature Range:
76
20,000
78
20,000
90B
5,000
10,000
—
—
≤
30 mΩ
≤
100 mΩ
10,000
—
—
≤
30 mΩ
≤
100 mΩ
—
2,000
2,000
≤
20 mΩ
≤
100 mΩ
DIP Switches
5,000
1,000
5,000
1,000
5,000
1,000
750 V
500 V
5A
2 pF
-40°C to + 85°C
-55°C to + 85°C
750 V
500 V
4A
2 pF
-40°C to + 85°C
-55°C to + 85°C
500 V
500 V
3A
2 pF
-40°C to + 85°C
-55°C to + 85°C
Mechanical Ratings
Vibration Resistance:
Per Method 204, Test
Condition B, 1 mS opening (10 mS allowed)
Mechanical Shock:
Per Method 213, Test
Condition A. 1 mS opening (10 mS allowed)
Thermal Shock Resistance:
Per specification;
no failures; passes contact resistance.
Terminal Strength:
Per specification
Thermal Aging:
1,000 hours at 85°C; no failures.
Soldering Information
Series 90 MIDIP and Series 76 recessed rocker
(76RSB style) sealed switches have been tested
to EIA Standard RS-448-2. Similar performance
can be expected from other sealed Series 76 and
78 DIP switches.
Solderability:
Per MIL-STD-202, Method 208
Resistance to Soldering Heat:
76RSB: Passes
EIA Standard using two, four, and six second
soldering time. 90: Per MIL-S-83504, six second
test.
Fluxing:
Per EIA RS-448-2 with flux touching
switch body.
Cleaning:
76RSB, 90: Passes immersion test
using water/detergent. Acceptable solutions
include 1-1-1 trichlorethane, freon, (TF, TE, or
TMS), isopropyl alcohol, detergent (140°F
maximum). Terpene acceptable for Series 90 only.
Solutions which are not recommended include
acetone, methylene chloride, freon TMC.
®
Materials and Finishes
Shorting Member (Ball):
Brass, gold-plated
10 microinches minimum over nickel barrier.
Base Contacts:
Copper alloy, gold-plated
10 microinches minimum over nickel barrier.
Terminals:
Copper alloy, solder-plated over nickel
barrier.
Non-Conductive Parts:
Thermoplastic (UL94V-O)
Potting Material:
Epoxy, 76,78 only.
Protective Cover:
76,78, only-Polycarbonate.
Environmental Ratings
Meets all requirements of MIL- S-83504. Where
Grayhill performance is superior, the MIL spec is
listed in parentheses.
Moisture Resistance:
Per specification, Method
106.
Tape and Reel Packaging
Tape Seal:
76, 78:
Polyester film
90:
Polyimide film or foil
Tape Seal Integrity:
Passes gross leak test using
125°C flourinert for 20 seconds minimum.
Reference MIL-STD-202, Method 112.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
B-16
