Datasheet> All Categories > semiconductor> Discrete semiconductor> BAS70-06

Preview

BAS70-06: Description0.07 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size266KB，3 Pages; ManufacturerBILIN; Websitehttp://www.galaxycn.com/

Download Datasheet Parametric Compare View All

BAS70-06 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS70-06	-	-	View	Buy Now

BAS70-06 Overview

0.07 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAS70-06 Parametric

Parameter Name	Attribute value
Number of terminals	3
Number of components	2
Processing package description	ROHS COMPLIANT PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	MATTE Tin
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Craftsmanship	SCHOTTKY
structure	COMMON ANODE, 2 ELEMENTS
Diode component materials	silicon
Maximum power consumption limit	0.2500 W
Diode type	Signal diode
Maximum repetitive peak reverse voltage	70 V
Maximum average forward current	0.0700 A

Preview

Download Datasheet

View All

BL

Galaxy Electrical

Surface mount schottky barrier diode

FEATURES

Low turn-on voltage.

Fast switching.

Production specification

BAS70/-04/-05/-06

Pb

Lead-free

BAS70

BAS70-04

PN Junction guard ring for transient and

ESD protection.

Ultra-small surface mount package.

Also available in lead free version.

BAS70-05

BAS70-06

APPLICATIONS

High speed switching applications.

Circuit protecting.

Voltage clamping.

SOT-23

ORDERING INFORMATION

Type No.

BAS70

BAS70-04

BAS70-05

BAS70-06

Marking

73

74

75

76

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Reverse Voltage

RMS Reverse voltage

Forward Continuous Current

Non-Repetitive Peak Forward Surge Current

@t

p

<1.0s

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Operating Junction Temperature Range

Storage Temperature Range

Symbol

V

RRM

V

RWM

V

R

V

R(RMS)

I

F

I

FSM

P

d

R

θjA

T

j

T

STG

Limits

70

49

70

100

200

625

-55 to +125

-65 to +150

Unit

V

mA

mW

℃/W

℃

Document number: BL/SSSKC030

Rev.A

www.galaxycn.com

1

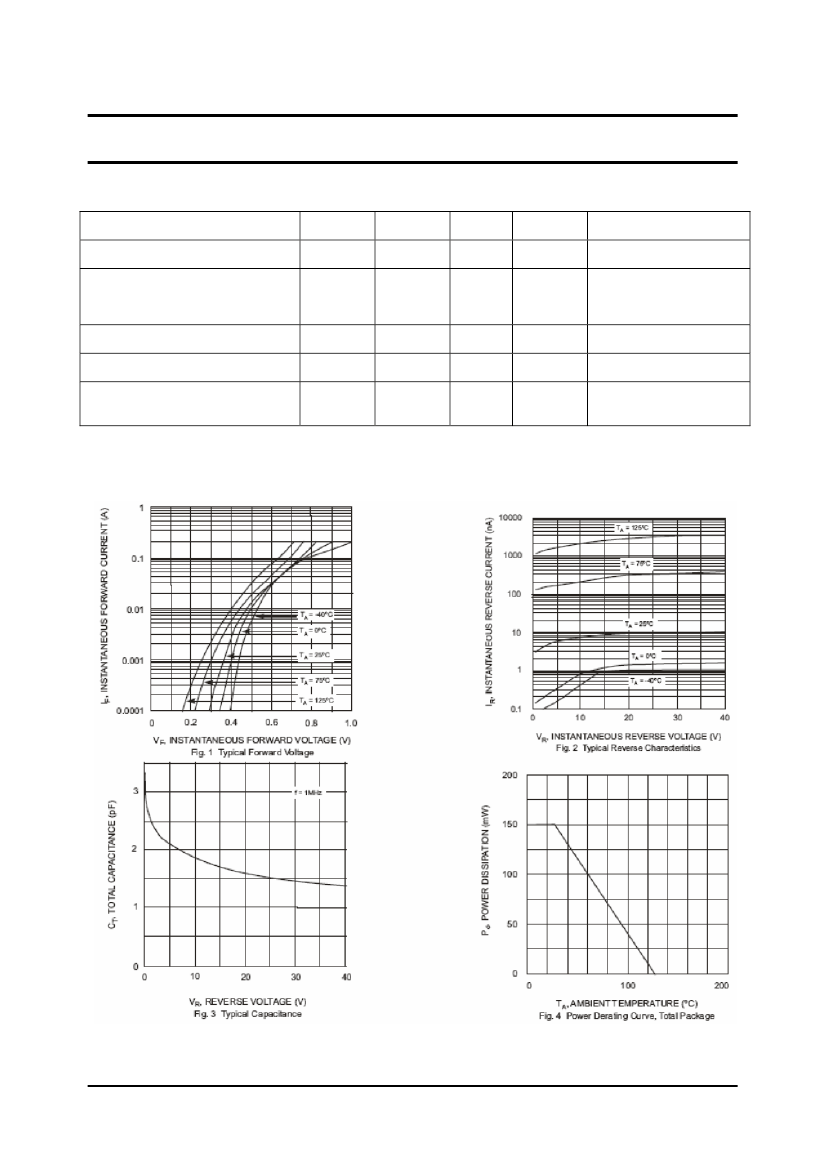

BAS70-06 Related Products

	BAS70-06	BAS70	BAS70-04	BAS70-05
Description	0.07 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 70 V, SILICON, SIGNAL DIODE	0.07 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.07 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Number of terminals	3	3	3	3
Number of components	2	1	2	2
Processing package description	ROHS COMPLIANT PACKAGE-3	Plastic, SOT-23, 3 PIN	LEAD FREE, MINIATURE PACKAGE-3	PLASTIC PACKAGE-3
state	ACTIVE	DISCONTINUED	ACTIVE	ACTIVE
packaging shape	Rectangle	Rectangle	RECTANGULAR	Rectangle
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	Yes	Yes	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	pair	pair	DUAL	pair
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	PLASTIC/EPOXY	Plastic/Epoxy
Craftsmanship	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
structure	COMMON ANODE, 2 ELEMENTS	single	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	silicon	silicon	SILICON	silicon
Diode type	Signal diode	Signal diode	SIGNAL DIODE	Signal diode
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V
Maximum average forward current	0.0700 A	0.2000 A	0.0700 A	0.0700 A
terminal coating	MATTE Tin	tin lead	-	MATTE Tin
Maximum power consumption limit	0.2500 W	0.2000 W	-	0.2500 W
