OXL/MIL50/SES/H/RD

Description
Single Color LED, Red, Clear Diffused,
CategoryLED optoelectronic/LED    photoelectric
File Size49KB，5 Pages
ManufacturerOxley Group Ltd
Websitehttps://www.oxleygroup.com
Environmental Compliance
Download Datasheet Parametric Compare View All

OXL/MIL50/SES/H/RD Overview

Single Color LED, Red, Clear Diffused,

OXL/MIL50/SES/H/RD Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
colorRED
ConfigurationSINGLE
Maximum forward current0.02 A
Lens typeCLEAR DIFFUSED
Nominal luminous intensity1200.0 mcd
Installation featuresPANEL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height16.5 mm
method of packingBULK
shapeCYLINDRICAL
surface mountNO
Terminal pitch2.54 mm
perspective80 deg
Base Number Matches1

Preview

Download Datasheet

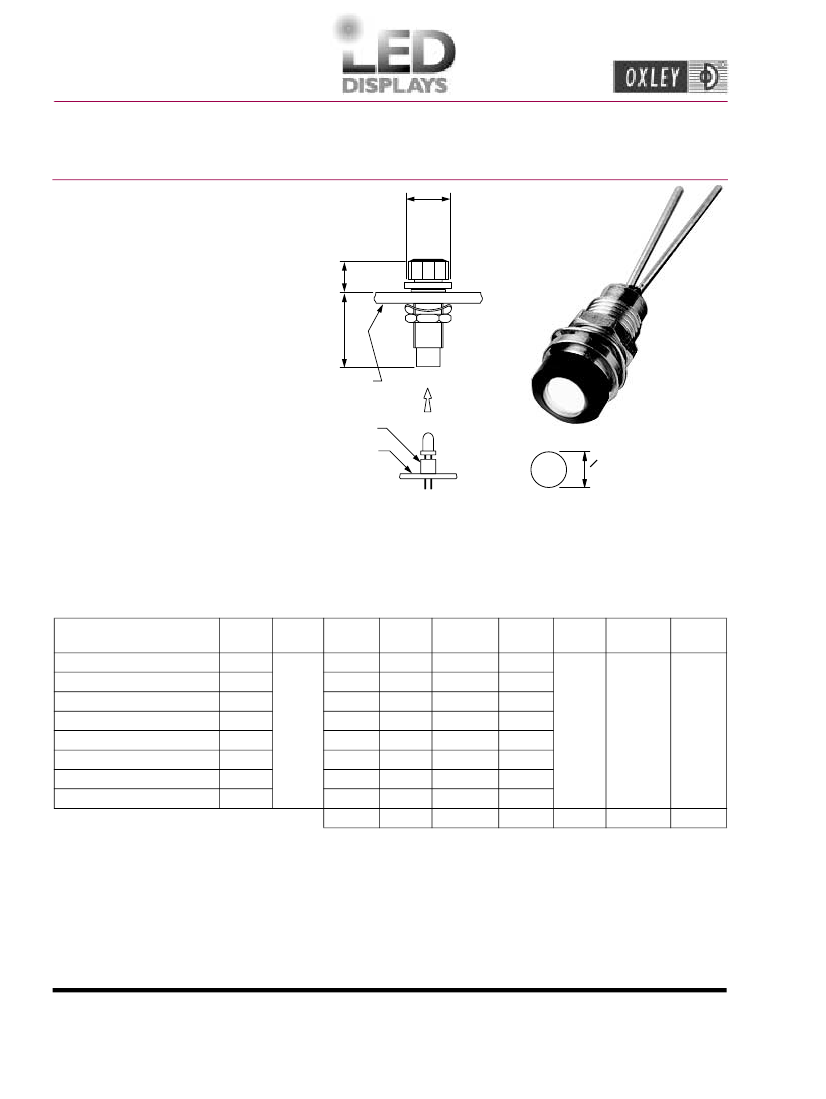

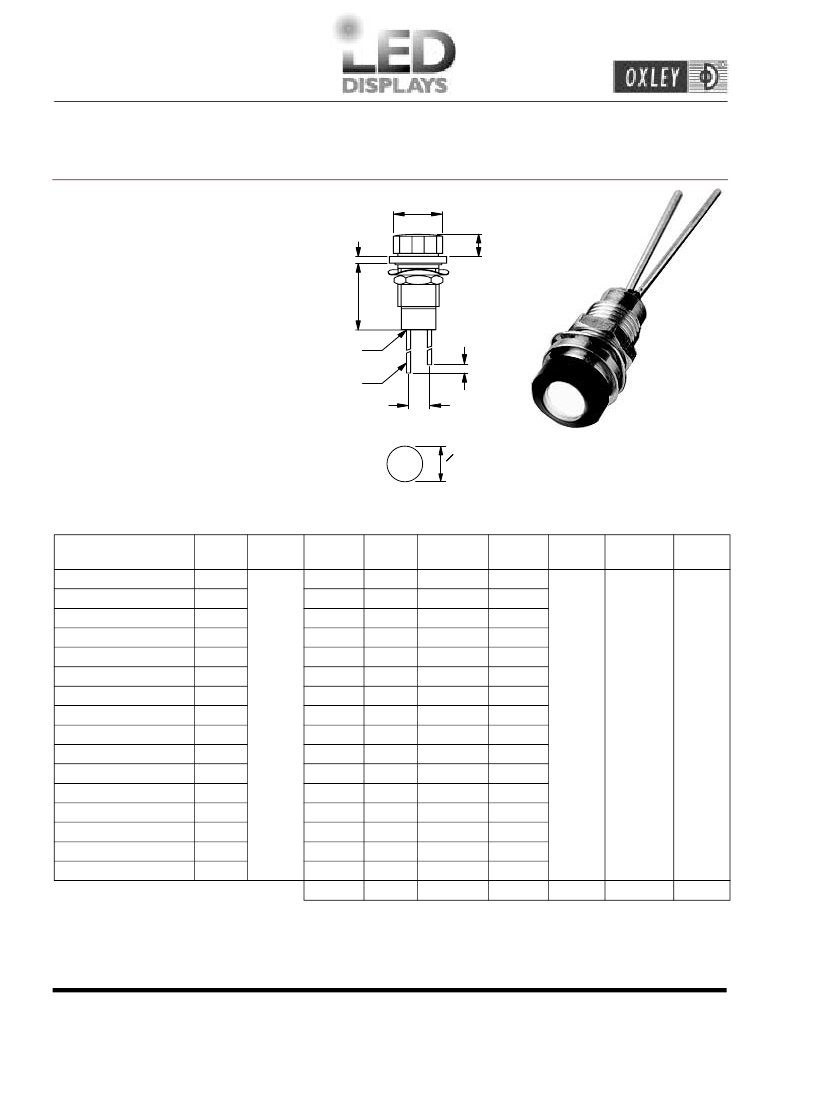

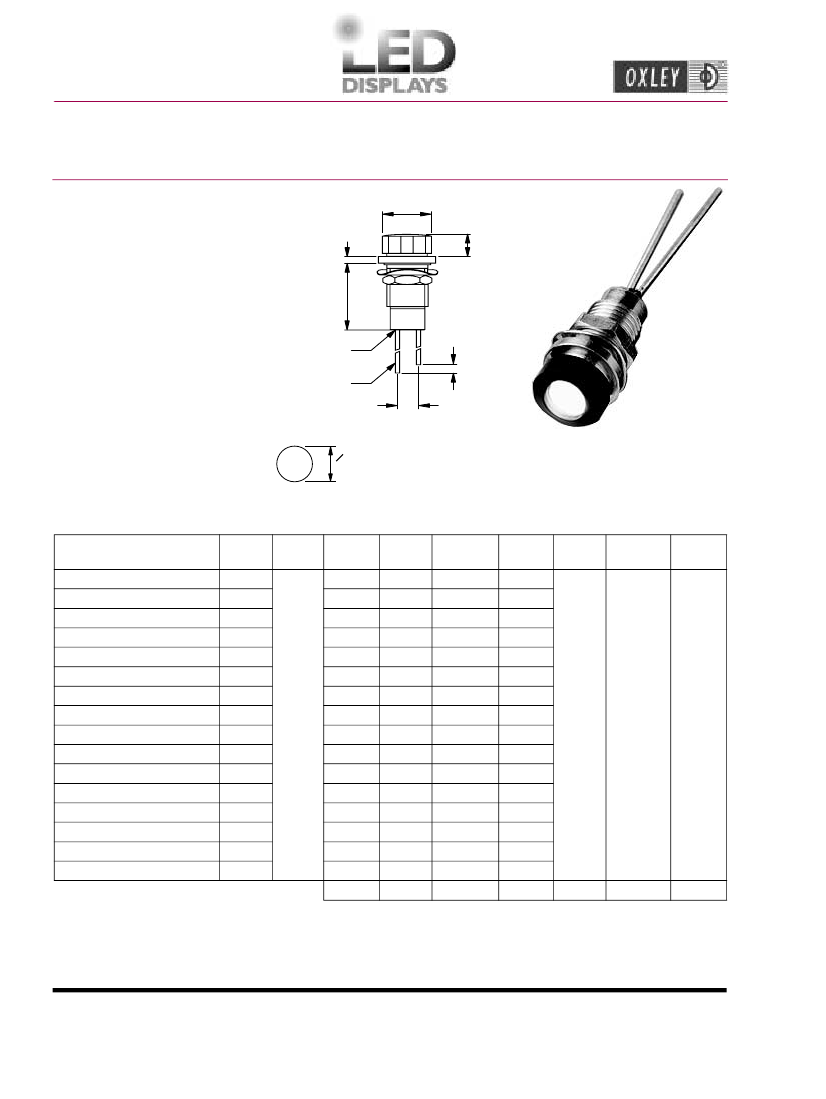

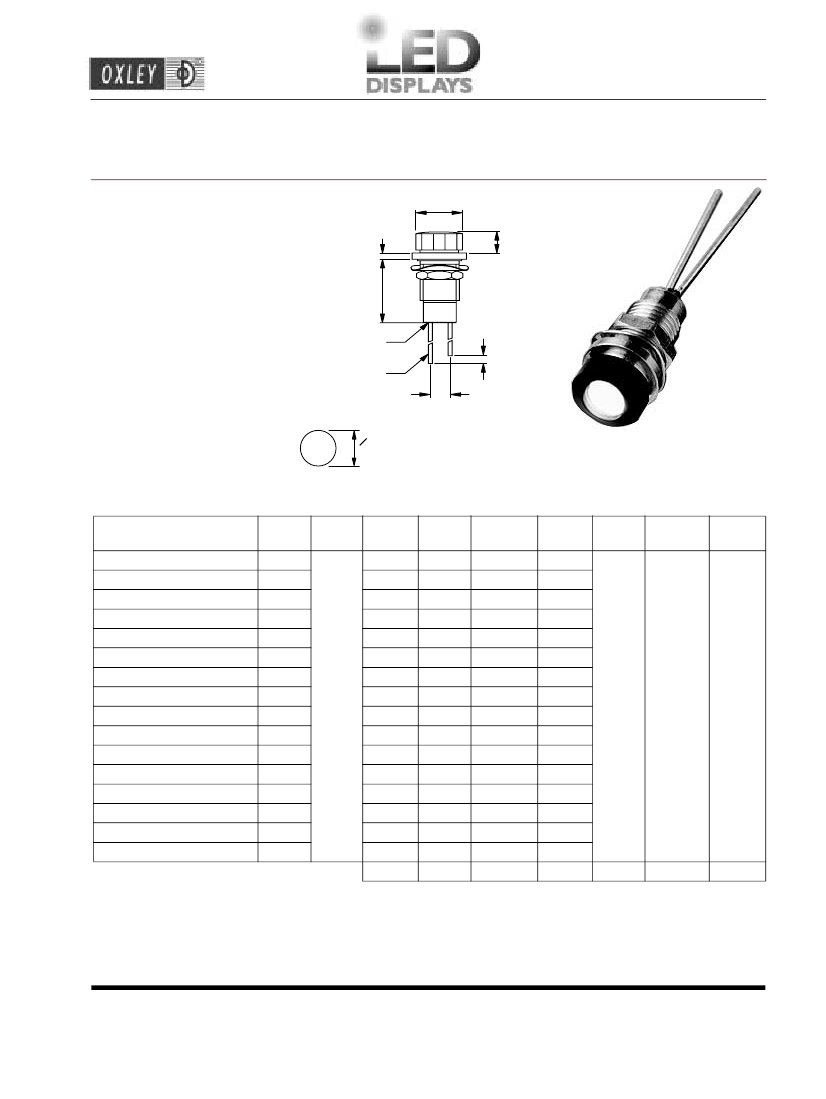

Type No. - OXL/MIL50
Sub-Miniature
Flat Lens
Features
Rugged glass and metal
construction;
Sealed top and rear to IP67;
Ideal where panel space is
at a premium;
Black anodised bezel for
harsh environment.
1.2 mm
(0.047") Typ
11 mm
(0.433") max.
1 mm
(0.039")
6 mm
(0.236") A/F
Single Chip LED
IP67 - Ø5.0
4.5 mm
(0.177") max.
Red mark
denotes anode
Terminations
0.45 mm (0.018") Nom
x 12 mm (0.427") min.
+
-
2.54 mm (0.1")
Nom CRS
O5 mm
(0.197")
Mounting Hole
(OXL/MIL50/- or OXL/MIL50/SES/-)
Ordering Information and Technical Characteristics (Ta = 25°C)
Ordering
Information
OXL/MIL50/RD
OXL/MIL50/YW
OXL/MIL50/GN
OXL/MIL50/H/RD
OXL/MIL50/H/YW
OXL/MIL50/H/GN
OXL/MIL50/H/BE
OXL/MIL50/H/WE
OXL/MIL50/SES/RD
OXL/MIL50/SES/YW
OXL/MIL50/SES/GN
OXL/MIL50/SES/H/RD
OXL/MIL50/SES/H/GN
OXL/MIL50/SES/H/BE
Colour
Red
Yellow
Green
Red
Yellow
Green
Blue
White
Red
Yellow
Green
Red
Lens
Green
Blue
Diffused
Clear
Flat
Lens
Type
Forward Current Luminous Reverse Viewing Operating Storage
Voltage (mA)
Intensity
Voltage Angle
Temp
Temp
2.2
2.2
2.2
1.9
2.2
3.6
3.6
3.6
2.2
2.2
2.2
1.9
2.2
3.6
3.6
3.6
V
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
mA
20
20
20
1200
1000
1250
1200
1000
20
20
20
1200
1000
1250
1200
1000
mcd
°C
°C
Mean time before failure 90,000 hrs
+85
+100
80°
to
to
-40
-40
OXL/MIL50/SES/H/YW Yellow
OXL/MIL50/SES/H/WE White
For NVG compatible options please add
NVG
to the end of the order information.
e.g. OXL/MIL50/SES/NVG - 10 - Green, 20 - Yellow and 30 - Red
14
www.oxleygroup.com/lamps
ODC: SMEPD: 40565/2-10/2000
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: (203) 488 1033
Oxley UK
Electronics Componenst Division
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 582621
