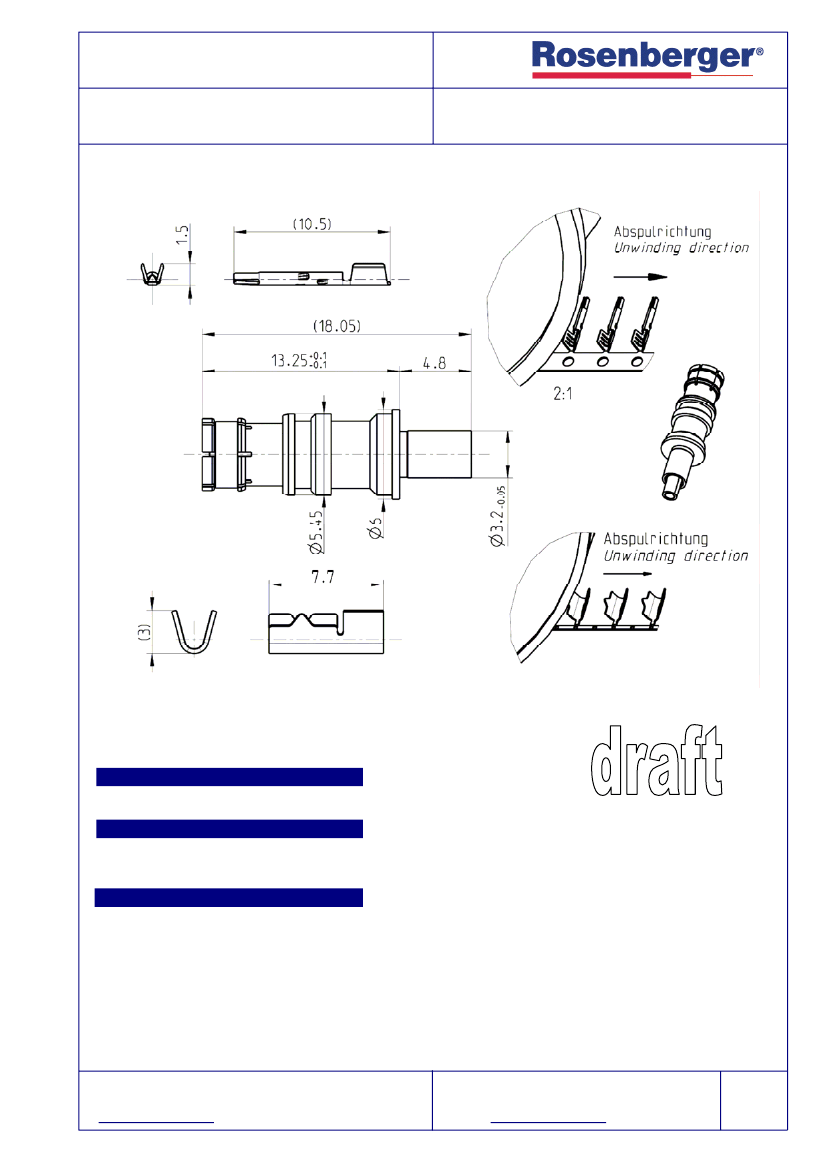

TECHNICAL DATA SHEET
FAKRA - HF
STRAIGHT JACK
59K13O-101A4
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
DIN 72594; DIN 72594-1
Documents
Assembly instruction
TBD
Material and plating
Connector parts
Center contact
Outer contact
Locking ring
Dielectric
Crimping sleeve
RF_35/12.04/3.0
Material
Spring bronze
Brass
Stainless steel
PA 12
Spring bronze
Plating
Gold, min. 0.8 µm, over chemical nickel
Nickel, 3-6 µm
Tin, 0.5-2 µm
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 4 GHz
≥
23 dB, DC to 1 GHz
≥
19 dB, DC to 2 GHz
≥
17 dB, DC to 3 GHz
≥
16 dB, DC to 4 GHz
≤
0.1 x
f(GHz)
dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
≥
65 dB up to 1 GHz
STRAIGHT JACK
59K13O-101A4
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
RF-leakage ( optional )
- Limitations are possible due the used cable type
Mechanical data
Mating cycles
Engagement force
Disengagement force
≥
25
≤
25 N
≥
2N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
-40°C to +85°C / 105°C
DIN 72594-2 clause 6.2
DIN 72594-2 clause 6.3
DIN 72594-2 clause 6.1
DIN 72594-2 clause 6.4
compliant
Tooling
Crimping tool
Crimp insert
TBD
11W15c-501
Suitable cables
Cable type
RG 178 ; RG 196
Packing
Standard
Weight
10 / 500 / 5.000 / 20.000 pcs in box; center contact on reel
TBD g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Thomas Höfling
Date
06/03/07
Approved
Thomas Höfling
Date
07/04/08
Rev.
a00
Engineering change number
08-0082
Name
W_Winterholler
Date
07/04/08
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
