TECHNICAL DATA SHEET
FAKRA - HF
STRAIGHT JACK
59K16A-110T4
59K16A-110/90
59K16A-102/20E
59S16A-110/41

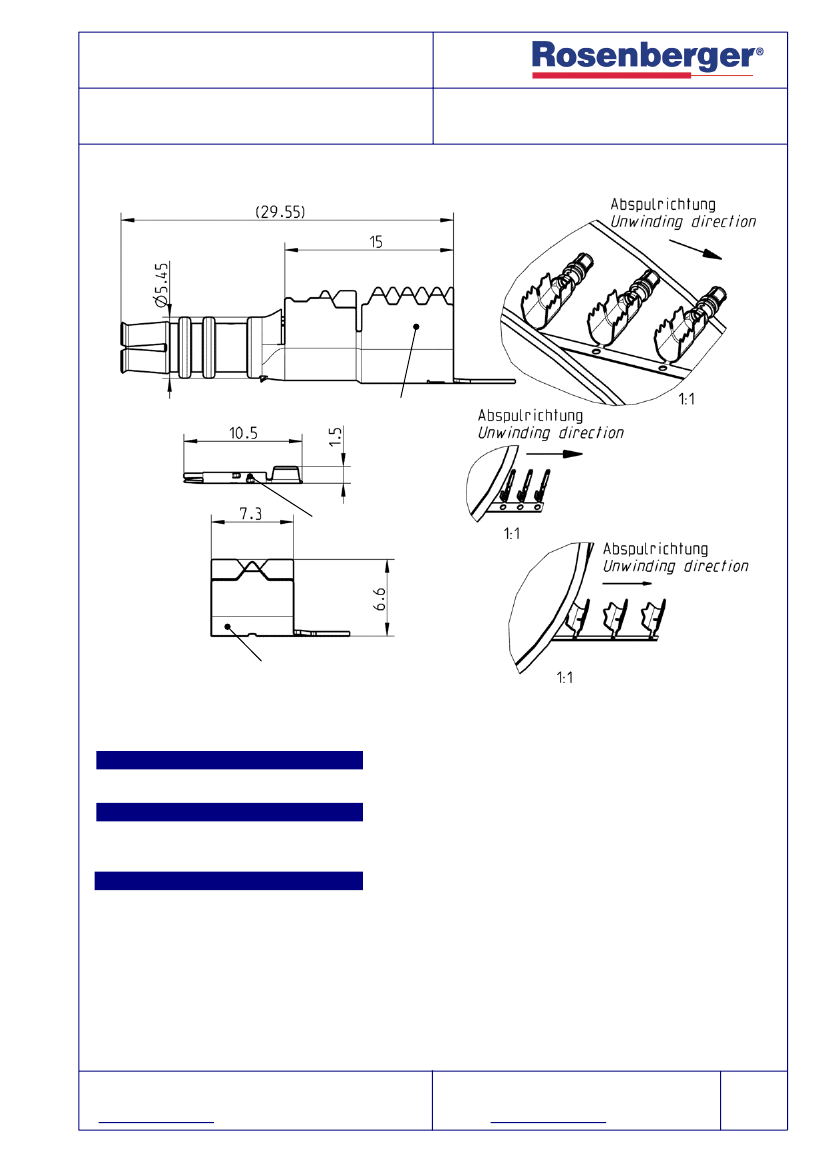

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
DIN 72594-1
Documents
Assembly instruction
MA_59V044
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Crimping sleeve
Material
Spring bronze
Spring bronze
PA 12
Stainless steel
Plating
Gold, min. 0.15 µm, over chemical nickel
Tin, 1,5-3 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/3
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
RF-leakage ( optional )
- Limitations are possible due to the used cable type -
STRAIGHT JACK
59K16A-110T4
50
Ω
DC to 3 GHz
≤
N/A
≤
0.1 x dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
≥
53 dB up to 1 GHz
Mechanical data
Mating cycles
Engagement force
Disengagement force
≥
25
≤
25 N
≥
2N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
- Limitations are possible due to the used cable type -
-40°C to +105°C
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
compliant
6.2
6.3
6.1
6.4
Tooling
Crimp dimension acc. to assembly instruction !
Serie Tool:
Crimping applicator (59K16A-110/90)
19150006
Crimping applicator (59S16A-110/41)
19150005
Crimping applicator (59K16A-102/20E)
19150007
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/3
TECHNICAL DATA SHEET
FAKRA - HF
Suitable cables
Cable type
RG 62
STRAIGHT JACK
59K16A-110T4
Packing
Standart
59K16A-110/90
59S16A-110/41
59K16A-102/20E
Weight
33000 pcs (22 reel/carton; 1500 pcs on reel)
76000 pcs (38 reel/carton; 2000 pcs on reel)
500/5000/20000 pcs on reel
1.86 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rainer Bippus
Date
18/09/06
Approved
Zebhauser
Date
03/03/09
Rev.
b00
Engineering change number
09-0070
Name
Mühlfellner
Date
04/02/09
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
3/3
