UPD28C04G-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> UPD28C04G-25

UPD28C04G-25: Description512X8 EEPROM 5V, 250ns, PDSO24, 0.450 INCH, PLASTIC, SOP-24; Categorystorage storage; File Size347KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD28C04G-25 Overview

512X8 EEPROM 5V, 250ns, PDSO24, 0.450 INCH, PLASTIC, SOP-24

UPD28C04G-25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	0.450 INCH, PLASTIC, SOP-24
Contacts	24
Reach Compliance Code	compliant
Maximum access time	250 ns
command user interface	NO
Data polling	YES
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	24
word count	512 words
character code	512
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.5
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
switch bit	NO
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

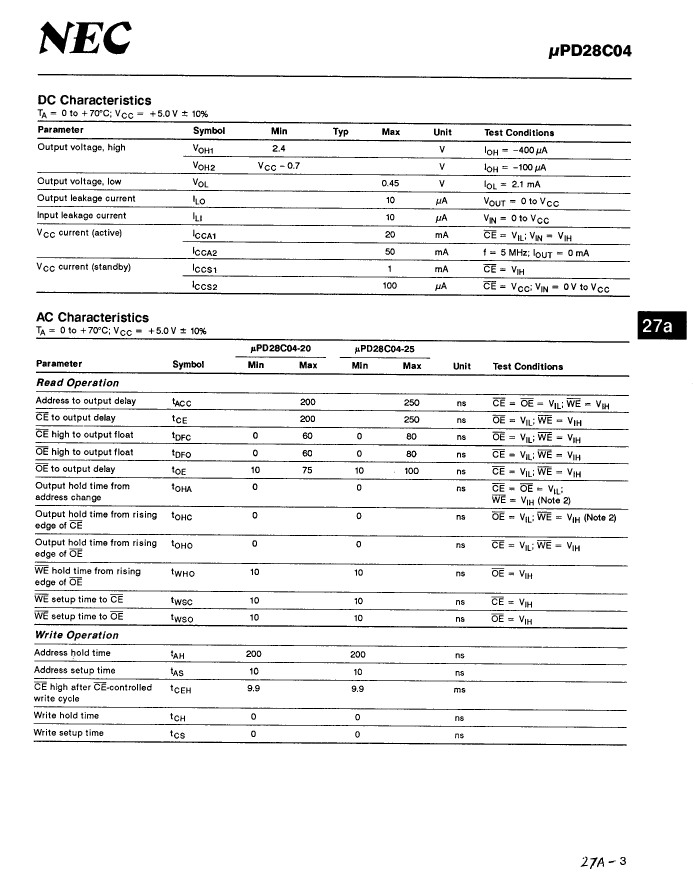

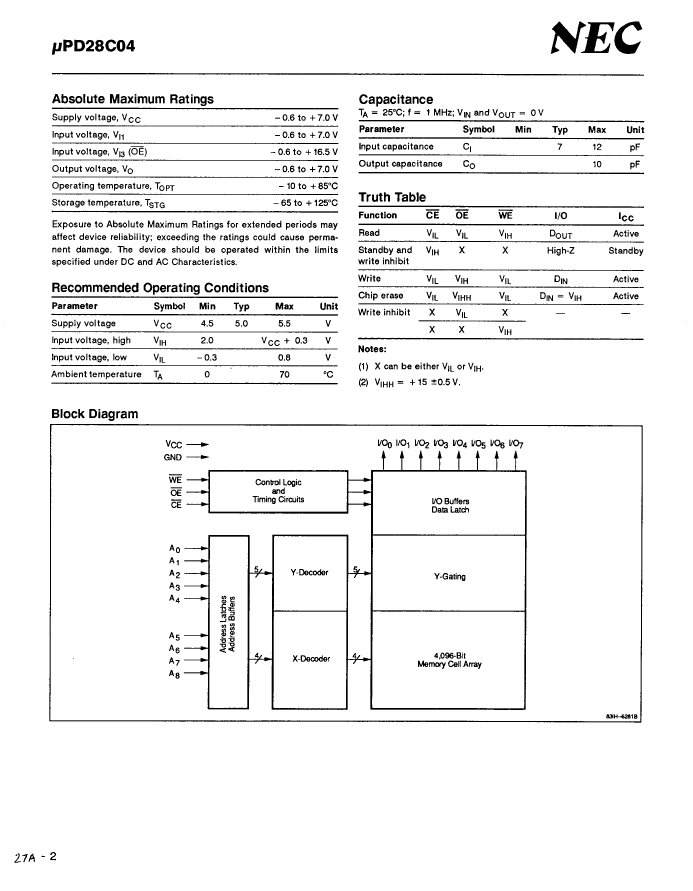

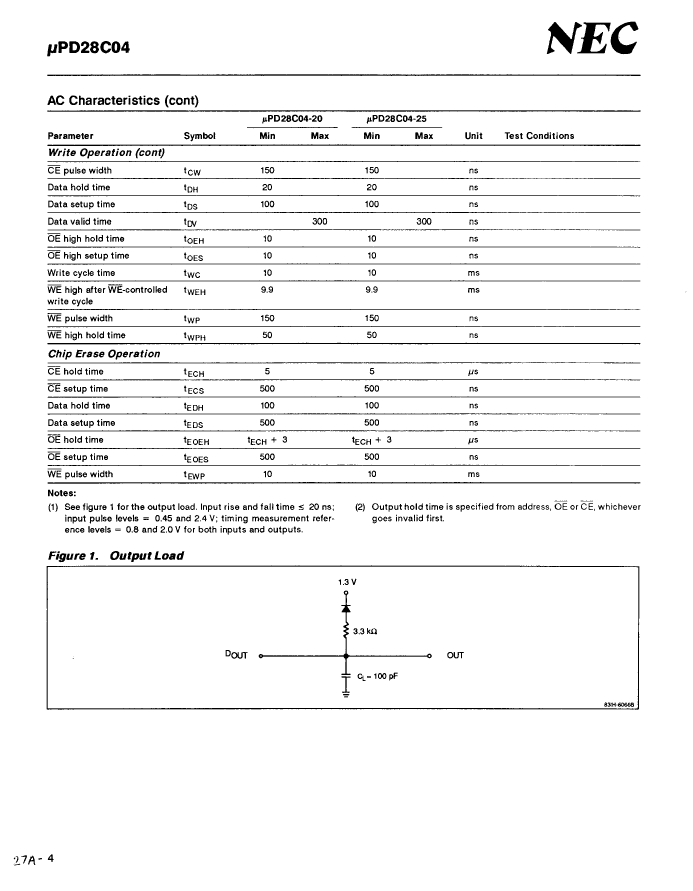

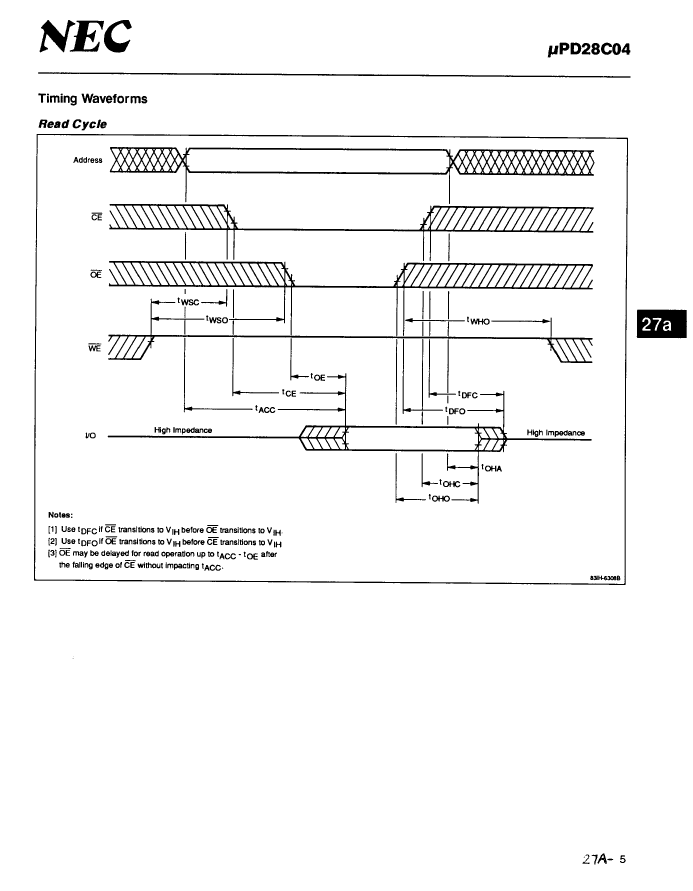

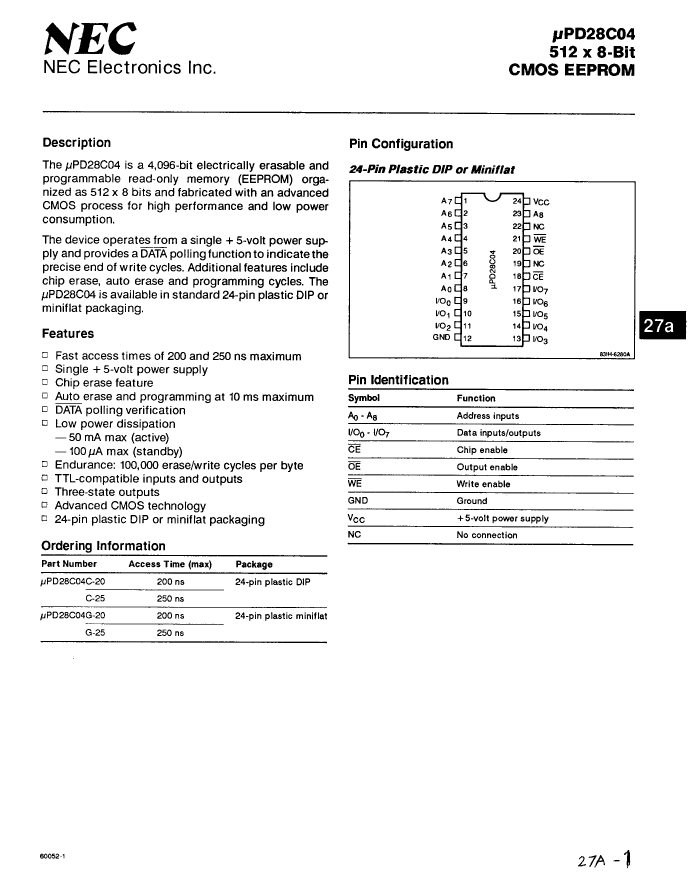

Preview

Download Datasheet

View All

UPD28C04G-25 Related Products

	UPD28C04G-25	UPD28C04C-25	UPD28C04G-20
Description	512X8 EEPROM 5V, 250ns, PDSO24, 0.450 INCH, PLASTIC, SOP-24	512X8 EEPROM 5V, 250ns, PDIP24, 0.600 INCH, PLASTIC, DIP-24	512X8 EEPROM 5V, 200ns, PDSO24, 0.450 INCH, PLASTIC, SOP-24
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	SOIC
package instruction	0.450 INCH, PLASTIC, SOP-24	PLASTIC, DIP-24	0.450 INCH, PLASTIC, SOP-24
Contacts	24	24	24
Reach Compliance Code	compliant	unknown	unknown
Maximum access time	250 ns	250 ns	200 ns
command user interface	NO	NO	NO
Data polling	YES	YES	YES
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24
JESD-609 code	e0	e0	e0
memory density	4096 bit	4096 bit	4096 bit
Memory IC Type	EEPROM	EEPROM	EEPROM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	24	24	24
word count	512 words	512 words	512 words
character code	512	512	512
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	512X8	512X8	512X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Encapsulate equivalent code	SOP24,.5	DIP24,.6	SOP24,.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
switch bit	NO	NO	NO
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms
Maker	-	Renesas Electronics Corporation	Renesas Electronics Corporation
