M38510/34101BAA datasheet, PDF

M38510/34101BAA: DescriptionD Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, TTL, 0.280 X 0.260 INCH, 0.085 INCH HEIGHT, FP-14; Categorylogic logic; File Size2MB，99 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric View All

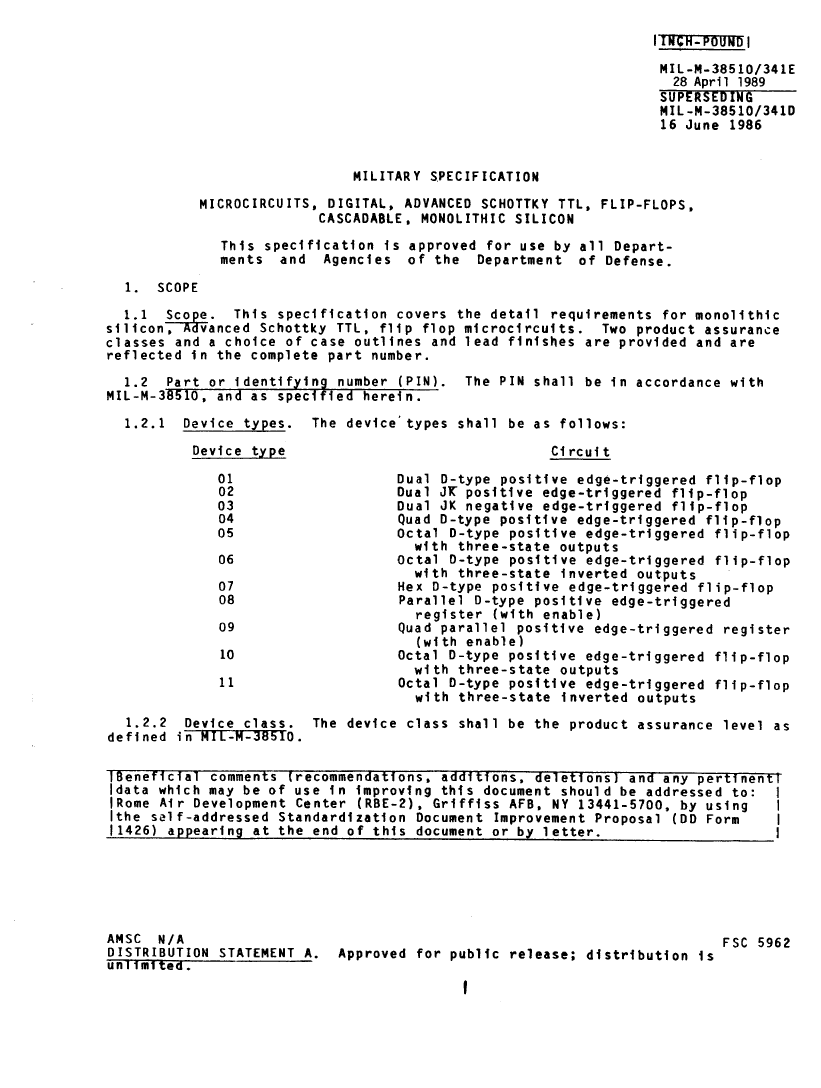

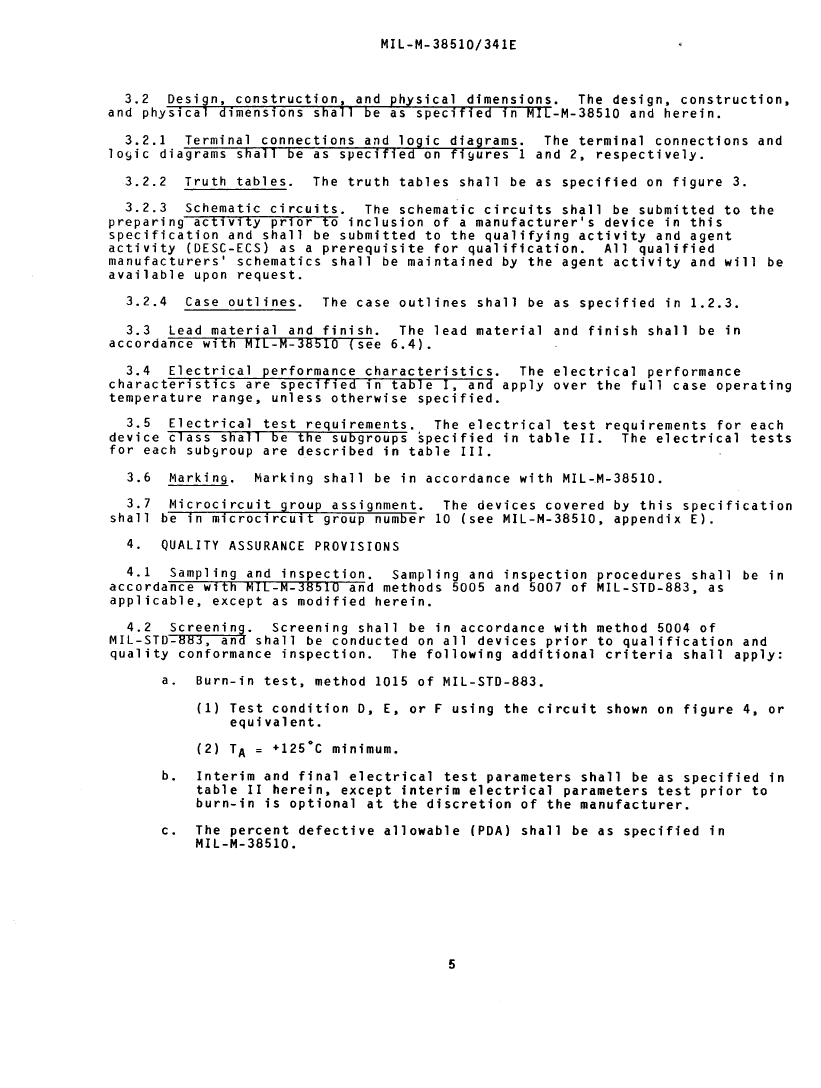

M38510/34101BAA Overview

D Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, TTL, 0.280 X 0.260 INCH, 0.085 INCH HEIGHT, FP-14

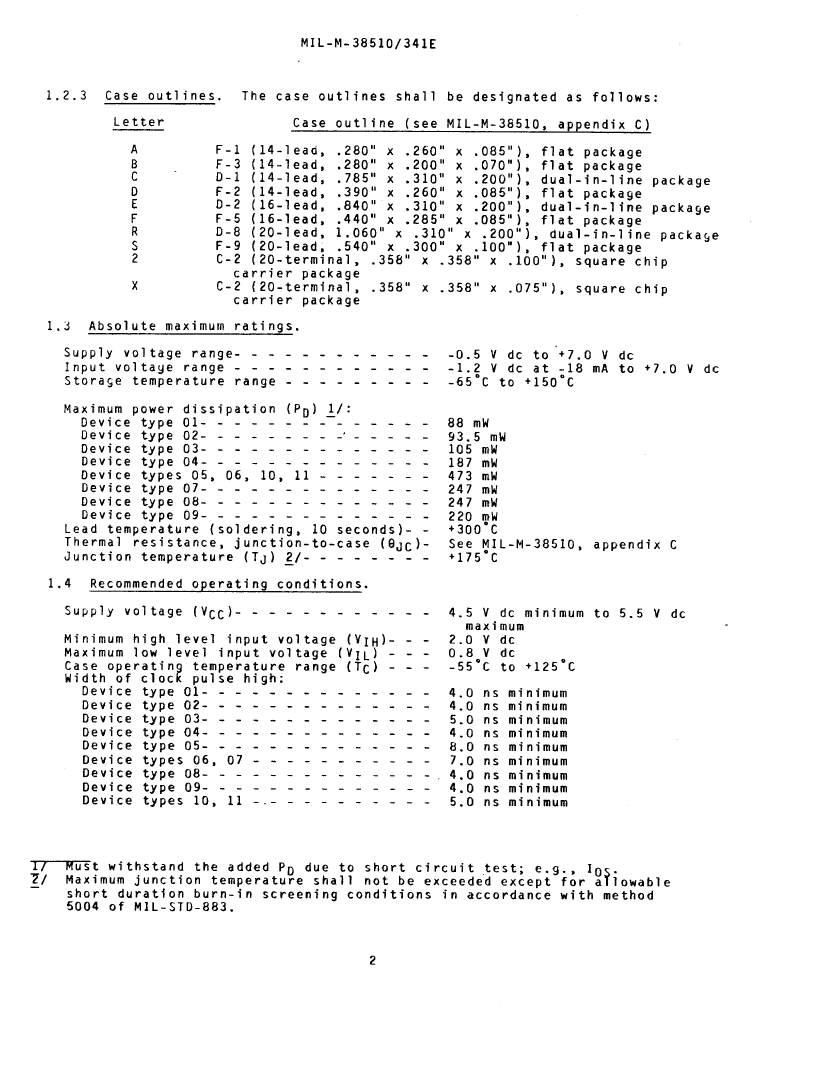

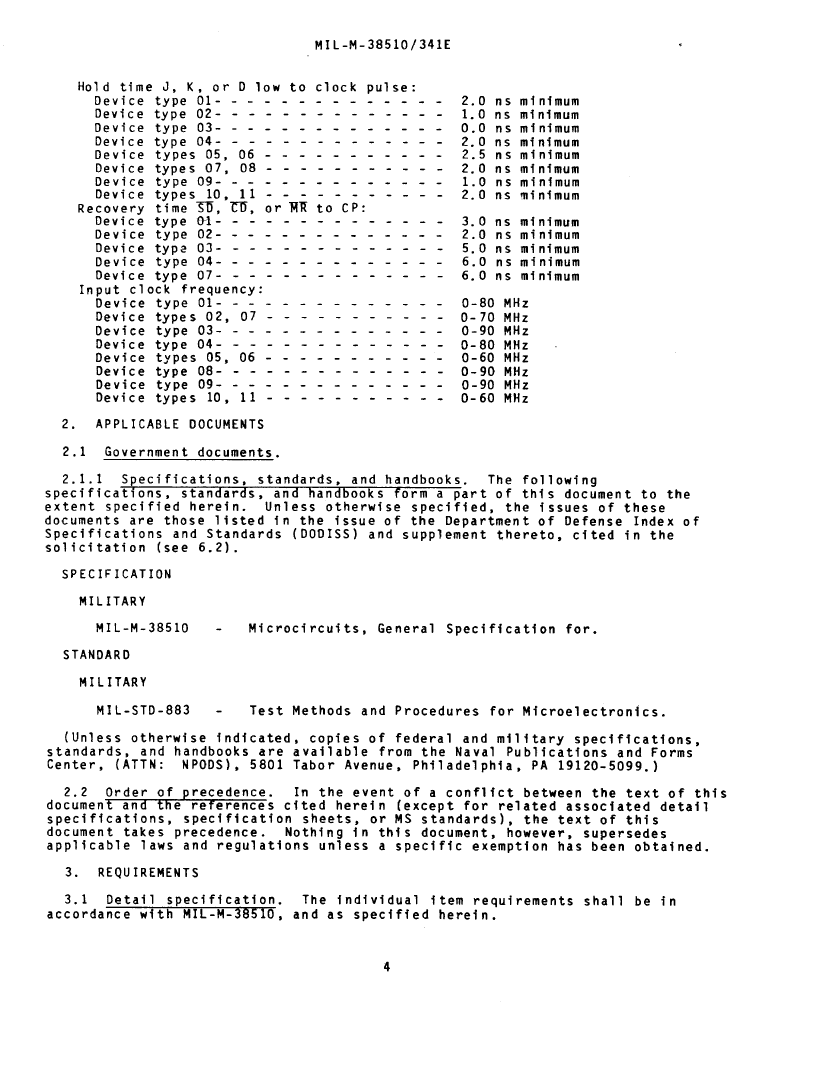

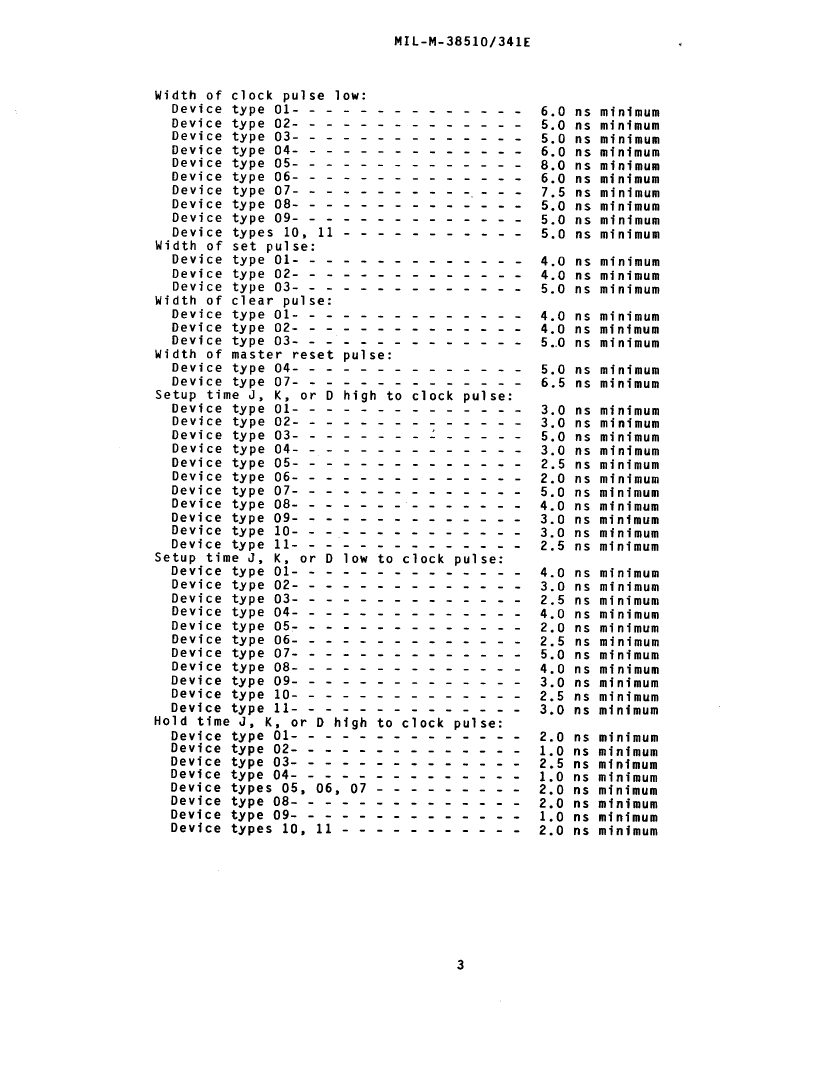

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	80000000 Hz
MaximumI(ol)	0.02 A
Number of digits	1
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	16 mA
propagation delay (tpd)	10.5 ns
Certification status	Qualified
Filter level	MIL-M-38510 Class B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	80 MHz
Base Number Matches	1
