Datasheet
Voltage Detector IC Series
Low Voltage Standard
CMOS Voltage Detector ICs
BU48xx series
BU49xx series
●Key
Specifications
Detection voltage:
0.9V to 4.8V
0.1V steps
±1.0%
0.55µA (Typ.)
-40° to +125°
C
C
●General
Description
ROHM standard CMOS reset IC series is a high-accuracy,
low current consumption reset IC series. The lineup was
established with two output types (Nch open drain and
CMOS output) and detection voltage range from 0.9V to
4.8V in increments of 0.1V, so that the series may be
selected according to the application at hand.
●Features
Ultra-low current consumption
High accuracy detection, Ultra-low voltage detection
Two output types (Nch open drain and CMOS output)
Wide operating temperature range
Very small and low height package
Package SSOP5 and SOP4 is similar to SOT-23-5 and
SC-82 respectively (JEDEC)
●Typical
Application Circuit
V
DD1
V
DD2
High accuracy detection voltage:
Ultra-low current consumption:
Operating temperature range:
●Package
SSOP5
2.90mm x 2.80mm x 1.25mm
SOP4
2.00mm x 2.10mm x 0.95mm
VSOF5
1.60mm x 1.60mm x 0.60mm
SOT89-3F
4.50mm x 4.15mm x 1.50mm
●Applications
All electronic devices that use micro controllers and logic
circuits
V
DD1
R
L
BU48xx
C
IN
C
L
(Capacitor for
noise filtering)
R
ST
Micro
controller
BU49xx
C
IN
R
ST
Micro
controller
C
L
(Capacitor for
noise filtering)
GND
（Open
Drain Output type）
BU48xx series
GND
（CMOS
Output type）
BU49xx series
○Product
structure：Silicon monolithic integrated circuit
○This
product is not designed for protection against radioactive rays
.
www.rohm.com
TSZ02201-0R7R0G300060-1-2
© 2014 ROHM Co., Ltd. All rights reserved.
1/13
03.Feb.2014 Rev.010
TSZ22111・14・001
BU48xx series
BU49xx series
Datasheet
●Connection
Diagram & Pin Descriptions
SSOP5
TOP VIEW
SOP4
TOP VIEW
N.C.
N.C.
GND
4
N.C.
3
Marking
Lot. No
Marking
1
Lot. No
V
OUT
PIN
No.
1
2
3
4
5
Symbol
V
OUT
V
DD
GND
N.C.
N.C.
V
DD
GND
Function
Reset output
Power supply voltage
GND
Unconnected terminal
Unconnected terminal
PIN
No.
1
2
3
4
V
OUT
Symbol
V
OUT
V
DD
N.C.
GND
2
V
DD
Function
Reset output
Power supply voltage
Unconnected terminal
GND
VSOF5
TOP VIEW
SOT89-3F
TOP VIEW
GND V
DD
4
5
Marking
Lot.No
Marking
1 2 3
V
OUT
SUB N.C
PIN
No.
1
2
3
4
5
Lot. No
1
V
OUT
PIN
No.
1
2
3
Symbol
V
OUT
V
DD
GND
2
3
V
DD
GND
Function
Reset output
Power supply voltage
GND
Symbol
V
OUT
SUB
N.C.
V
DD
GND
Function
Reset output
Substrate*
Unconnected terminal
Power supply voltage
GND
*Connect the substrate to V
DD
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/13
TSZ02201-0R7R0G300060-1-2
03.Feb.2014 Rev.010
BU48xx series
BU49xx series
Datasheet

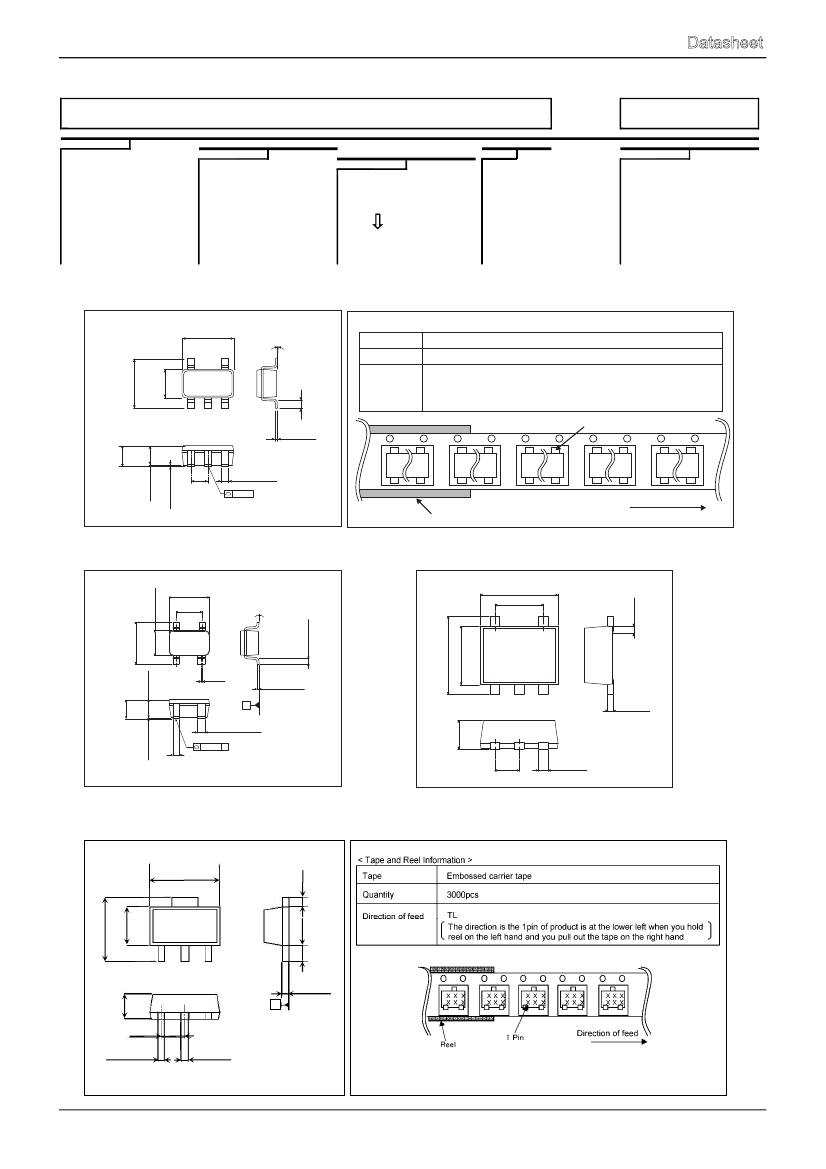

●Ordering
Information
B
Part
Number
U
x
x
x
x
x
-
T
R
Output Type
48 : Open Drain
49 : CMOS
Reset Voltage Value
09 : 0.9V
0.1V step
48 : 4.8V
Package
G
: SSOP5
F
: SOP4
FVE : VSOF5
FP3 : SOT89-3F
Packaging and
forming specification
TR : Embossed
tape
and reel
SSOP5
2.9±0.2
5
4
+
6
°
4
° −4°
<Tape and Reel information>
Tape
Quantity
Direction
of feed
Embossed carrier tape
3000pcs
TR
The direction is the 1pin of product is at the upper right when you hold
+0.2
1.6
−0.1
2.8±0.2
1
2
3
0.2Min.
(
reel on the left hand and you pull out the tape on the right hand
1pin
)
+0.05
0.13
−0.03
1.25Max.
1.1±0.05
0.05±0.05
+0.05
0.42
−0.04
0.95
0.1
Direction of feed
(Unit : mm)
Reel
∗
Order quantity needs to be multiple of the minimum quantity.
SOP4
+0.2
1.25 –0.1
2.0±0.2
1.3
4
3
VSOF5
0.2MAX
+6
°
4
°
–4
°
1.6±0.05
1.0±0.05
5
4
0.27±0.15
0.9±0.05
1
2
0.05
+0.05
0.13 –0.03
S
1.05Max.
(MAX 1.28 include BURR)
2.1±0.2
1.6
±
0.05
1.2
±
0.05
1
2
3
0.13±0.05
0.6MAX
0.05±0.05
+0.05
0.42 –0.04
0.1
+0.05
0.32 –0.04
S
0.5
0.22±0.05
(Unit : mm)
(Unit : mm)
SOT89-3F
0.61
3
0.42±0.02
S
4.5±0.1
4.15±0.1
1
1.6MAX
2
1.50
0.425±0.045
0.505±0.045
(Unit : mm)
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
1.045±0.155
2.5±0.1
3/13
TSZ02201-0R7R0G300060-1-2
03.Feb.2014 Rev.010
BU48xx series
●Lineup
BU49xx series
Datasheet
Output Type
Detection Voltage Marking
4.8V
4.7V
4.6V
4.5V
4.4V
4.3V
4.2V
4.1V
4.0V
3.9V
3.8V
3.7V
3.6V
3.5V
3.4V
3.3V
3.2V
3.1V
3.0V
2.9V
2.8V
2.7V
2.6V
2.5V
2.4V
2.3V
2.2V
2.1V
2.0V
1.9V
1.8V
1.7V
1.6V
1.5V
1.4V
1.3V
1.2V
1.1V
1.0V
0.9V
JR
JQ
JP
JN
JM
JL
JK
JJ
JH
JG
JF
JE
JD
JC
JB
JA
HZ
HY
HX
HW
HV
HU
HT
HS
HR
HQ
HP
HN
HM
HL
HK
HJ
HH
HG
HF
HE
HD
HC
HB
HA
Open Drain
Part Number
BU4848
BU4847
BU4846
BU4845
BU4844
BU4843
BU4842
BU4841
BU4840
BU4839
BU4838
BU4837
BU4836
BU4835
BU4834
BU4833
BU4832
BU4831
BU4830
BU4829
BU4828
BU4827
BU4826
BU4825
BU4824
BU4823
BU4822
BU4821
BU4820
BU4819
BU4818
BU4817
BU4816
BU4815
BU4814
BU4813
BU4812
BU4811
BU4810
BU4809
Marking
LH
LG
LF
LE
LD
LC
LB
LA
KZ
KY
KX
KW
KV
KU
KT
KS
KR
KQ
KP
KN
KM
KL
KK
KJ
KH
KG
KF
KE
KD
KC
KB
KA
JZ
JY
JX
JW
JV
JU
JT
JS
CMOS
Part Number
BU4948
BU4947
BU4946
BU4945
BU4944
BU4943
BU4942
BU4941
BU4940
BU4939
BU4938
BU4937
BU4936
BU4935
BU4934
BU4933
BU4932
BU4931
BU4930
BU4929
BU4928
BU4927
BU4926
BU4925
BU4924
BU4923
BU4922
BU4921
BU4920
BU4919
BU4918
BU4917
BU4916
BU4915
BU4914
BU4913
BU4912
BU4911
BU4910
BU4909
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/13
TSZ02201-0R7R0G300060-1-2
03.Feb.2014 Rev.010
BU48xx series
BU49xx series
Datasheet
●Absolute
Maximum Ratings
Parameter
Symbol
Limits
Unit
Power Supply Voltage
V
DD
-0.3 to +7
V
Nch Open Drain Output
GND-0.3 to +7
Output Voltage
V
OUT
V
CMOS Output
GND-0.3 to V
DD
+0.3
Output Current
Io
70
mA
*1*4
SSOP5
540
Power
*2*4
SOP4
Pd
400
mW
Dissipation
*3*4
VSOF5
210
Operation Temperature Range
T
opt
-40 to +125
°
C
Ambient Storage Temperature
Tstg
-55 to +125
℃
*1 When used at temperatures higher than Ta=25℃, the power is reduced by 5.4mW per 1℃ above 25℃.
*2 When used at temperatures higher than Ta=25℃, the power is reduced by 4.0mW per 1℃ above 25℃.
*3 When used at temperatures higher than Ta=25℃, the power is reduced by 2.1mW per 1℃ above 25℃.
*4 When a ROHM standard circuit board (70mm×70mm×1.6mm, glass epoxy board)is mounted.
●Electrical
Characteristics
Parameter
Symbol
Condition
V
DD
=H L , Ta=25℃,R
L
=470k
Ta=+25°
C
Ta=-40° to 85°
C
C
Ta=85° to 125°
C
C
Ta=+25°
C
Ta=-40° to 85°
C
C
Ta=85° to 125°
C
C
Ta=+25°
C
Ta=-40° to 85°
C
C
Ta=85° to 125°
C
C
Ta=+25°
C
Ta=-40° to 85°
C
C
Ta=85° to 125°
C
C
Ta=+25°
C
Ta=-40° to 85°
C
C
Ta=85° to 125°
C
C
*1
VDET=1.8V
VDET=2.5V
Detection Voltage
V
DET
VDET=3.0V
VDET=3.3V
VDET=4.2V
Detection Voltage
Temperature Coefficient
Hysteresis Voltage
V
DET
/∆T Ta=-40℃ to 125℃
V
DD
=L H L
Ta=-40℃ to 125℃
R
L
=470k
Min.
V
DET
(T)
×0.99
1.782
1.741
1.718
2.475
2.418
2.386
2.970
2.901
2.864
3.267
3.191
3.150
4.158
4.061
4.009
-
Limits
Typ.
V
DET
(T)
1.8
-
-
2.5
-
-
3.0
-
-
3.3
-
-
4.2
-
-
±30
V
DET
×0.05
V
DET
×0.05
Max.
V
DET
(T)
×1.01
1.818
1.860
1.883
2.525
2.584
2.615
3.030
3.100
3.139
3.333
3.410
3.452
4.242
4.341
4.394
-
V
DET
×0.08
V
DET
×0.07
Unit
V
ppm/℃
V
DET
≤1.0V
V
DET
≥1.1V
∆V
DET
V
DET
×0.03
V
DET
×0.03
V
*1 Guaranteed by design.(Outgoing inspection is not done on all products.)
V
DET
(T) : Standard Detection Voltage (0.9V to 4.8V, 0.1V step)
R
L
: Pull-up resistor to be connected between V
OUT
and power supply.
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/13
TSZ02201-0R7R0G300060-1-2
03.Feb.2014 Rev.010
