OPA547T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> OPA547T

OPA547T: DescriptionOP-AMP, 5000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PSFM7; CategoryAnalog mixed-signal IC Amplifier circuit; File Size317KB，16 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

OPA547T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OPA547T	-	-	View	Buy Now

OPA547T Overview

OP-AMP, 5000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PSFM7

OPA547T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	FM-7
Reach Compliance Code	unknow
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA
Maximum bias current (IIB) at 25C	0.5 µA
Nominal Common Mode Rejection Ratio	95 dB
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-PSFM-T7
JESD-609 code	e0
low-bias	NO
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-30 V
Number of functions	1
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP7,.15,.2TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
power	YES
power supply	+-30 V
Certification status	Not Qualified
Nominal slew rate	6 V/us
Maximum slew rate	15 mA
Supply voltage upper limit	60 V
Nominal supply voltage (Vsup)	30 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	SINGLE
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	100000

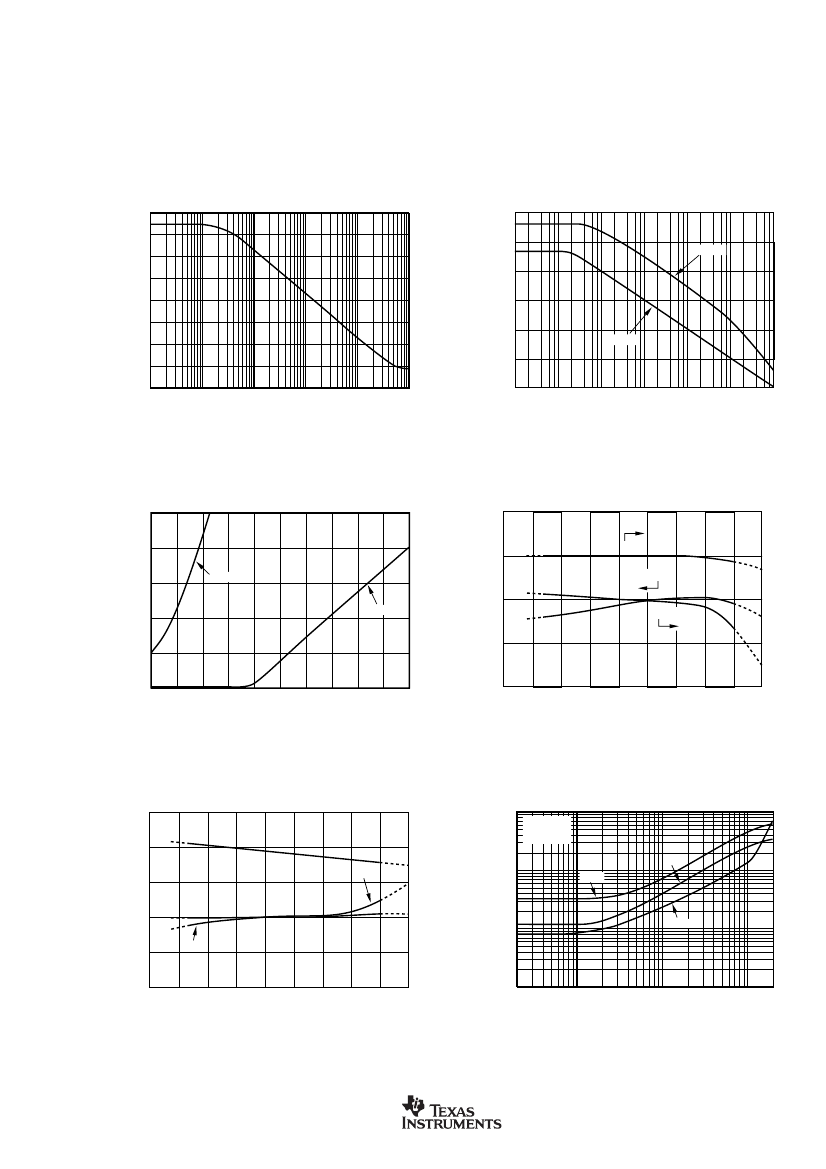

Preview

Download Datasheet

View All

OPA547

OPA

547

OPA

547

SBOS056A – JANUARY 2002

High-Voltage, High-Current

OPERATIONAL AMPLIFIER

FEATURES

WIDE SUPPLY RANGE

Single Supply: +8V to +60V

Dual Supply:

4V to

30V

HIGH OUTPUT CURRENT:

500mA Continuous

WIDE OUTPUT VOLTAGE SWING

FULLY PROTECTED:

Thermal Shutdown

Adjustable Current Limit

OUTPUT DISABLE CONTROL

THERMAL SHUTDOWN INDICATOR

HIGH SLEW RATE: 6V/µs

LOW QUIESCENT CURRENT

PACKAGES:

7-Lead TO-220

7-Lead DDPAK Surface-Mount

DESCRIPTION

The OPA547 is a low cost, high-voltage/high-current opera-

tional amplifier ideal for driving a wide variety of loads. A

laser-trimmed monolithic integrated circuit provides excel-

lent low-level signal accuracy and high output voltage and

current.

The OPA547 operates from either single or dual supplies for

design flexibility. In single supply operation, the input

common-mode range extends below ground.

The OPA547 is internally protected against over-tempera-

ture conditions and current overloads. In addition, the

OPA547 was designed to provide an accurate, user-selected

current limit. Unlike other designs which use a “power”

resistor in series with the output current path, the OPA547

senses the load indirectly. This allows the current limit to be

adjusted from 0 to 750mA with a 0 to 150µA control signal.

This is easily done with a resistor/potentiometer or con-

trolled digitally with a voltage-out or current-out DAC.

The Enable/Status (E/S) pin provides two functions. An

input on the pin not only disables the output stage to

effectively disconnect the load but also reduces the quies-

cent to conserve power. The E/S pin output can be moni-

tored to determine if the OPA547 is in thermal shutdown.

The OPA547 is available in an industry-standard

7-lead staggered TO-220 package and a 7-lead DDPAK

surface-mount plastic power package. The copper tab allows

easy mounting to a heat sink or circuit board for excellent

thermal performance. It is specified for operation over the

extended industrial temperature range, –40°C to +85°C.

V+

APPLICATIONS

VALVE, ACTUATOR DRIVER

SYNCHRO, SERVO DRIVER

POWER SUPPLIES

TEST EQUIPMENT

TRANSDUCER EXCITATION

AUDIO AMPLIFIER

–

OPA547

LIM

(0.25W

Signal Resistor)

E/S

V–

sets the current limit

value from 0 to 750mA.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

www.ti.com
