FSTUD16450 Configurable 4-Bit to 20-Bit Bus Switch with -2V Undershoot Protection and Selectable Level
Shifting
January 2001
Revised October 2006
FSTUD16450
Configurable 4-Bit to 20-Bit Bus Switch with
-2V Undershoot Protection and Selectable Level Shifting
General Description
The Fairchild Universal Bus Switch FSTUD16450 provides
4-bit, 5-bit, 8-bit, 10-bit, 16-bit, 20-bit of high-speed CMOS
TTL-compatible bus switching. The low On Resistance of
the switch allows inputs to be connected to outputs without
adding propagation delay or generating additional ground
bounce noise.

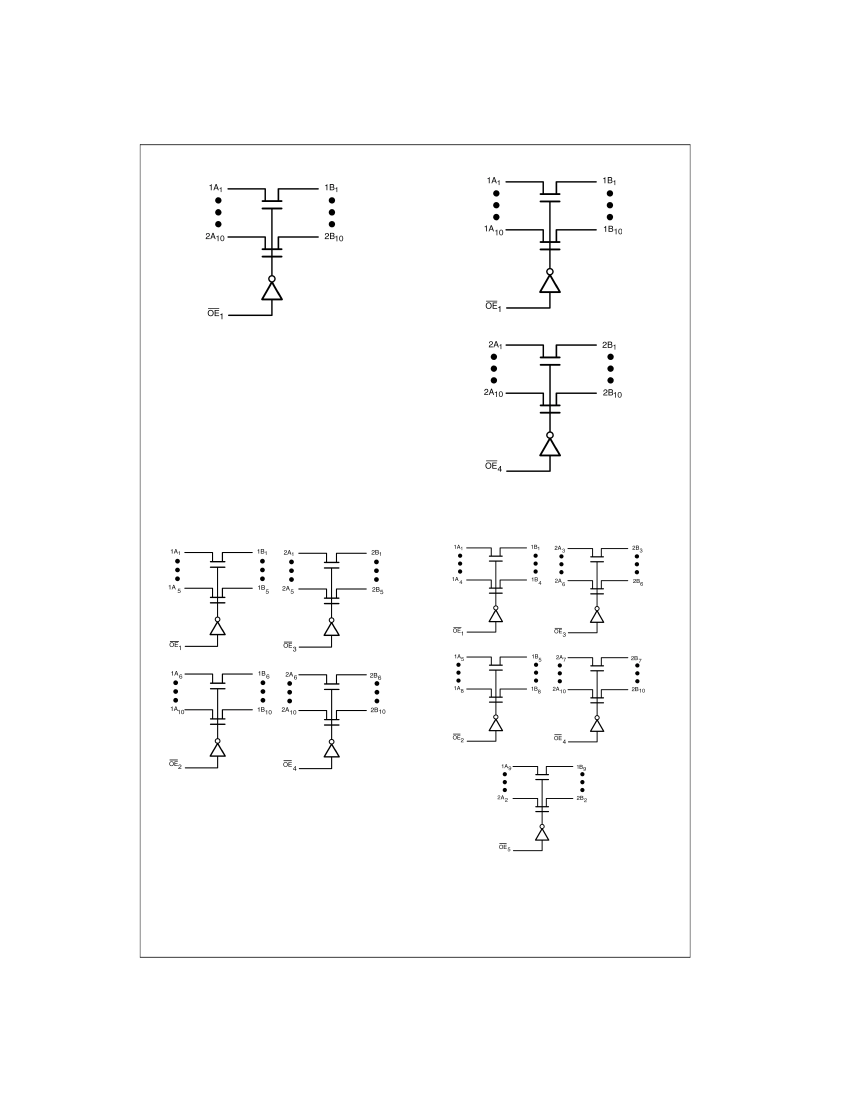

The FSTUD16450 is designed to allow “customer” configu-
ration control of the enable connections. The device is
organized as either a 4-bit, 5-bit, 10-bit or 20-bit bus switch.
8-bit and 16-bit configurations are also achievable (see
Functional Description). The device's bit configuration is
chosen through select pin logic. (see Truth Table). When
OE
x
is LOW, Port A
x
is connected to Port B
x
. When OE
x
is
HIGH, the switch is OPEN.
The A and B Ports are “undershoot hardened” with UHC®
protection to support an extended range to 2.0V below
ground. Fairchild's integrated “Undershoot Hardened
Circuit” (UHC) senses undershoot at the I/Os, and
responds by preventing voltage differentials from develop-
ing and turning on the switch.
Another key device feature is the addition of a level shifting
select pin, “S
2
”. When S
2
is LOW, the device behaves as a
standard N-MOS switch. When S
2
is HIGH, a diode to V
CC
is integrated into the circuit allowing for level shifting
between 5V inputs and 3.3V outputs.
Features
s
Undershoot hardened to
−
2V (A and B Ports)
s
Voltage level shifting
s
4
Ω
switch connection between two ports
s
Minimal propagation delay through the switch
s
Low l
CC
s
Zero bounce in flow-through mode
s
Control inputs compatible with TTL level
s
See Applications Note AN-5008 for details
s
Also packaged in plastic Fine-Pitch Ball Grid Array
(FBGA) (Preliminary)
Applications Note
Select pins S
0
, S
1
, S
2
are intended to be used as static
user configurable control pins. The AC performance of
these pins has not been characterized or tested. Switching
of these select pins during system operation may tempo-
rarily disrupt output logic states and/or enable pin controls.

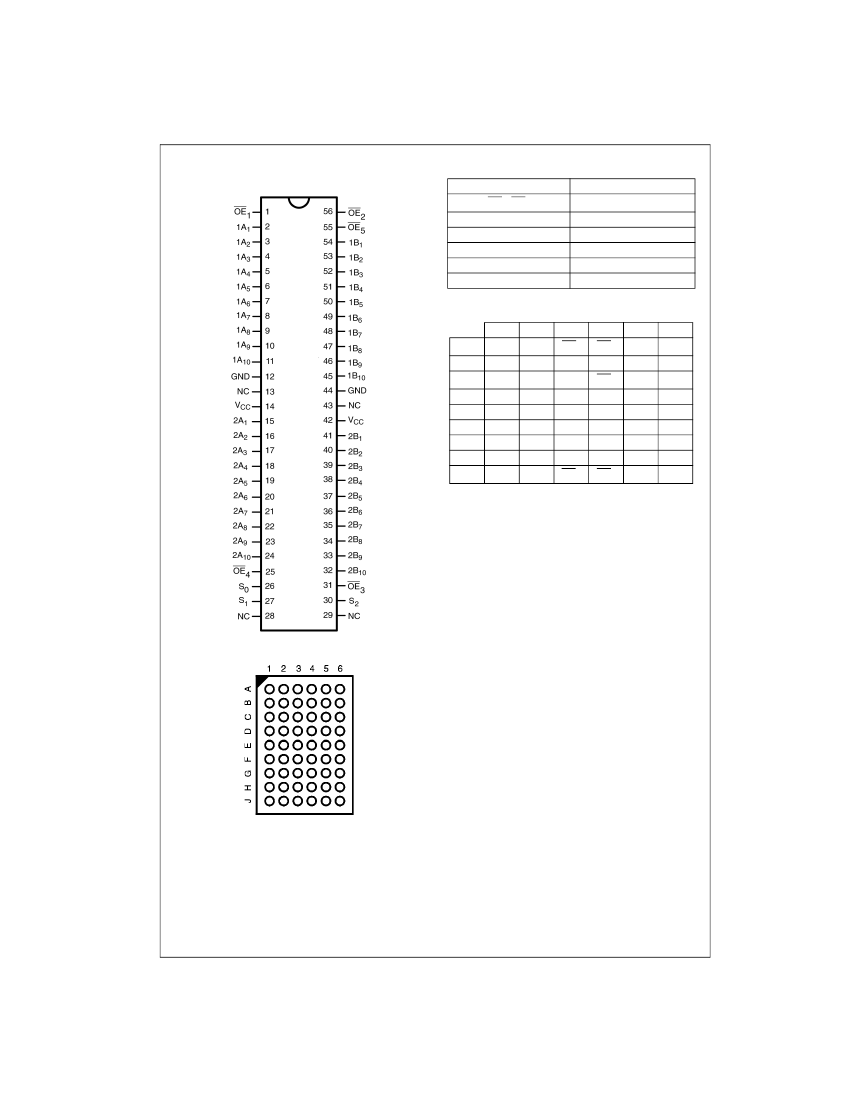

Ordering Code:
Order Number
FSTUD16450GX
(Note 1)
FSTUD16450MTD
Package Number
BGA54A
(Preliminary)
MTD56
Package Description
54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide
[Tape and Reel]
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Note 1:
BGA package available in Tape and Reel only.
UHC® is a registered trademark of Fairchild Semiconductor Corporation.
© 2001 Fairchild Semiconductor Corporation
DS500391
www.fairchildsemi.com
