Datasheet> All Categories > Passive components> capacitor> BCM1H4R7MD

BCM1H4R7MD: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 4.7uF; CategoryPassive components capacitor; File Size279KB，2 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

BCM1H4R7MD Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 4.7uF

BCM1H4R7MD Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM
length	12.5 mm
Manufacturer's serial number	BCM(1HD)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	BCM(1HD)
Terminal pitch	5 mm
Base Number Matches	1

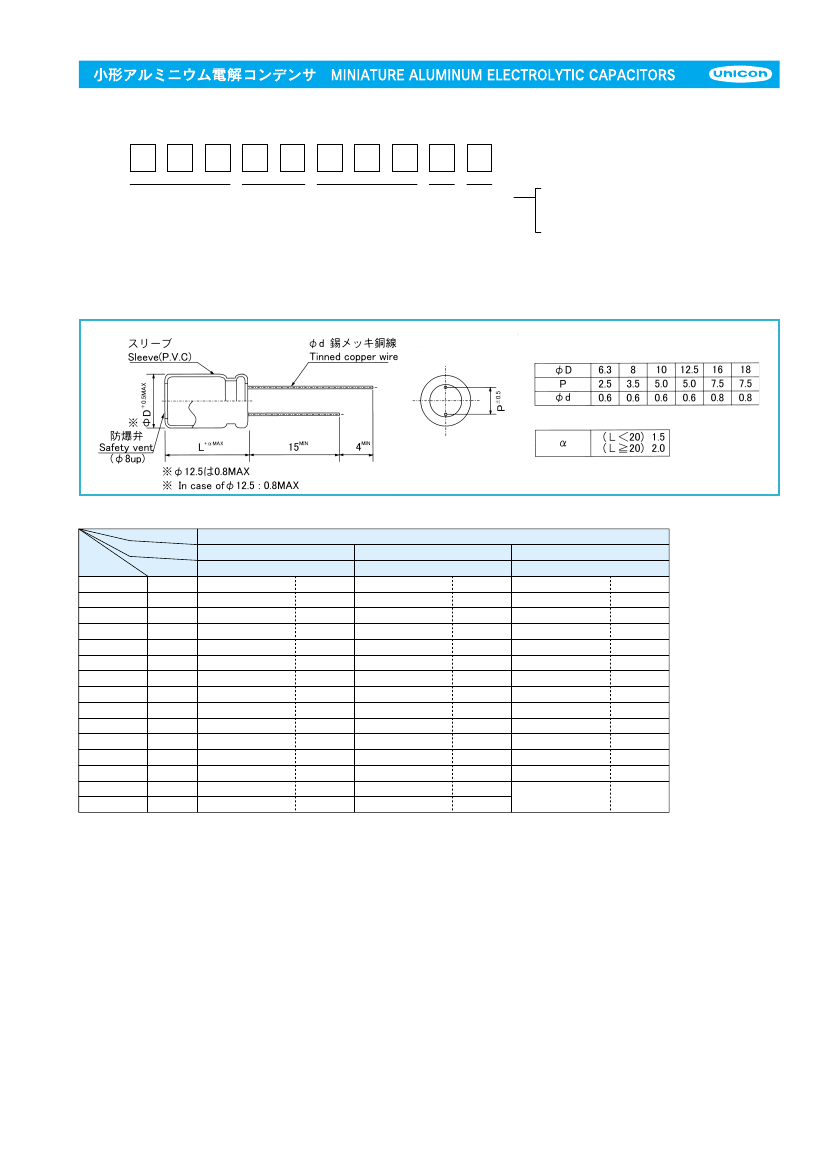

Preview

Download Datasheet

View All

BCM

04 ½スピーカーネットワーク用（85℃）

RADIAL TYPE SPEAKER NETWORK

スピーカーネットワーク用

シリーズ

Speaker network

SERIES

■

特長 FEATURES

・

Hi-Fi スピーカーネットワーク用として 3 タイプを用意

Designed for high-fidelity speaker network, available in three types.

・

温度特性、周波数特性に優れ原音再生に最適

Excellent stability for temperature and frequency fluctuation, suitable for

reproduction of high-fidelity sound.

・

リード線に無酸素銅を½用

Tinned copper wire.

■

仕様 SPECIFICATIONS

項目 Items

½ 用温度範囲

Operating Temperature Range

定格電圧範囲

Rated Voltage Range

静電容量範囲

Nominal Capacitance Range

静電容量許容差

Capacitance Tolerance

漏れ電流

Leakage Current

損失角の正接

Dissipation Factor

特性

Characteristics

−40 ＋85℃

∼

50V.DC

0.47 100μF

∼

±20％（20℃，1kHz)

I=0.03CV 又は 3μAのいずれか大きい値以下（5分値）

I=0.03CV or 3μA whichever is greater, after 5 minutes application of rated voltage.

特性

・1kHz

Characteristics

20℃

tanδ(MAX)

0.08

0.06

0.05

85℃中にて定格電圧を 250時間毎極性反転し1000時間印加後、下記規格を満足する。

After 1000 hours application of rated voltage at 85℃, reversing polarity at each 250 hours.,

capacitors meet the characteristics requirements mentioned below.

静電容量変化率初期値の±20％以内

Capacitance Change Within ±20％ of initial value.

損失角の正接初期規格値の200％以下

Dissipation Factor

200％ or less of initial specified value.

漏れ電流初期規格値以下

Leakage Current

Initial specified value or less.

85℃1000時間無負荷放½後、上記高温負荷特性の規格を満足する。

（½し、JIS C-5102 4.4項の電圧処理後）

After leaving capacitors under no load at 85℃ for 1000 hours and applying voltage according to

JIS C-5102 4.4, they meet the specified value for load life characteristics listed above.

黒色チューブに½色印刷

White print on black sleeve.

JIS C-5141 特性Ｗ

Characteristics Ｗ of JIS C-5141.

高温負荷特性

Load Life

高温無負荷特性

Shelf Life

表示

Marking

BCM1H4R7MD Related Products

	BCM1H4R7MD	BCM1H4R7MS	BCM1H470MD	BCM1H470MP	BCM1H4R7MP	BCM1H010MS
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 4.7uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 4.7uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 47uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 47uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 4.7uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 1uF
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4.7 µF	4.7 µF	47 µF	47 µF	4.7 µF	1 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm	16 mm	16 mm	18 mm	10 mm	10 mm
dielectric materials	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
length	12.5 mm	25 mm	31.5 mm	35.5 mm	20 mm	20 mm
Manufacturer's serial number	BCM(1HD)	BCM(1HS)	BCM(1HD)	BCM(1HP)	BCM(1HP)	BCM(1HS)
negative tolerance	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	50 V	50 V
series	BCM(1HD)	BCM(1HS)	BCM(1HD)	BCM(1HP)	BCM(1HP)	BCM(1HS)
Terminal pitch	5 mm	7.5 mm	7.5 mm	7.5 mm	5 mm	5 mm
Base Number Matches	1	1	1	1	1	-
