BAV99T-TP-HF Overview

Rectifier Diode,

BAV99T-TP-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.075 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.15 W
Maximum repetitive peak reverse voltage	85 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Features

•

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BAS16T

BAW56T

BAV70T

BAV99T

150mW 85Volt

Switching Diode

•

Halogen

free available upon request by adding suffix "-HF"

Ultra-Small Surface Mount Package

For General Purpose Switching Applications

High Conductance

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

BAS16T

Marking : A2

BAW56T

Marking : JD

BAV70T

Marking : JJ

BAV99T

Marking : JE

SOT-523

Maximum Ratings

Operating Temperature: -55 C to +150 C

Storage Temperature: -55 C to +150 C

Electrical Characteristics @ 25 C Unless Otherwise Specified

Peak Repetitive

Reverse Voltage

Continuous

Forward Current

Power Dissipation

Peak Forward Surge

Current @t=1.0us

@t=1.0ms

@t=1.0s

Maximum

Instantaneous

Forward Voltage

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Typical Total

Capacitance

Reverse Recovery

Time

RRM

FSM

85V

75mA

150mW

4.0A

1.0A

0.5A

715mV

855mV

1000mV

1250mV

2 A

0.03 A

1.5pF

4nS

= 1mA

= 10mA;

= 50mA

= 150mA

=75Volts

=25Volts

Measured at

1.0MHz, V

=0V

IF = IR = 10mA,

Irr = 0.1 x IR,

RL = 100

DIMENSIONS

INCHES

MIN

MAX

.059

.067

.030

.033

.057

.069

.020 Nominal

.035

.043

.000

.004

.028

.031

.004

.008

.010

.014

MIN

MAX

1.50

1.70

0.75

0.85

1.45

1.75

0.50Nominal

0.90

1.10

.000

.100

.70

0.80

.100

.200

.25

.35

DIM

NOTE

Revision:

www.mccsemi.com

1 of 3

2013/01/01

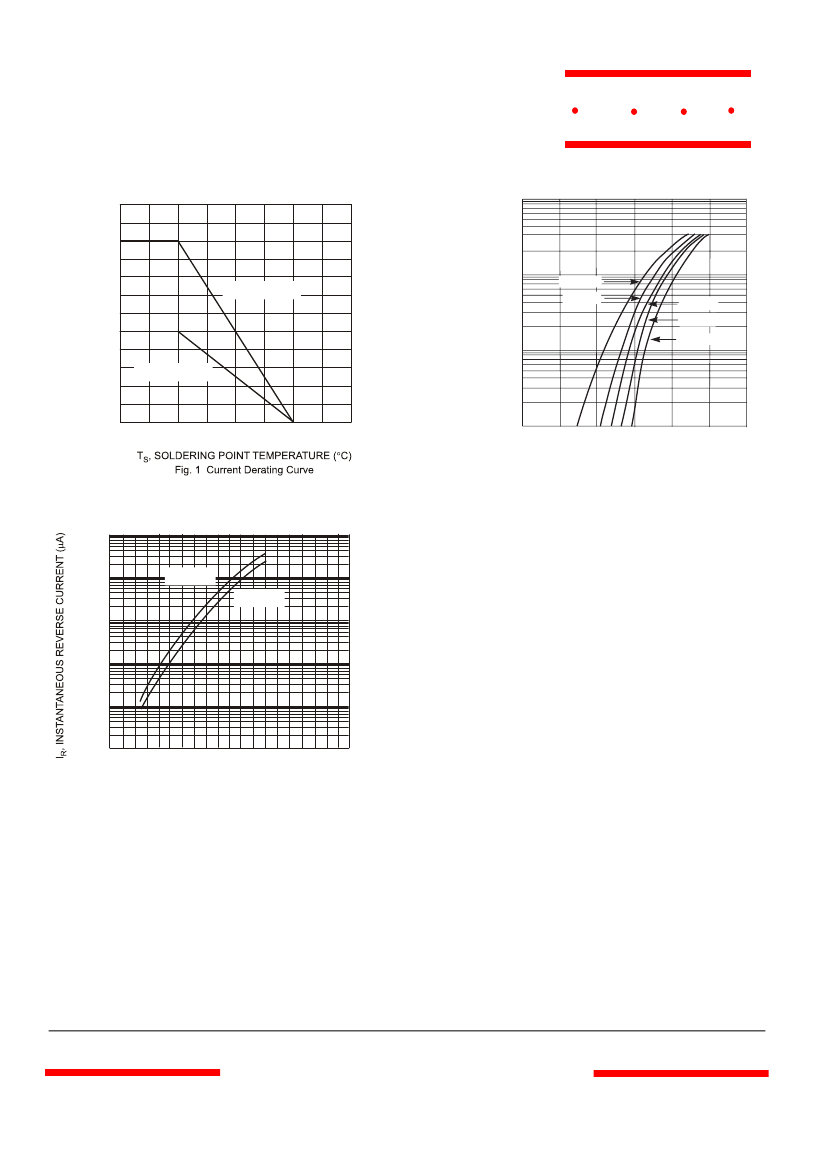

BAV99T-TP-HF Related Products

	BAV99T-TP-HF	BAV70T-TP-HF	BAW56T-TP-HF	BAS16T-TP-HF
Description	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Humidity sensitivity level	1	1	1	1
Number of components	2	2	2	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.075 A	0.075 A	0.075 A	0.075 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W
Maximum repetitive peak reverse voltage	85 V	85 V	85 V	85 V
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	0.004 µs
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10
Base Number Matches	1	1	1	-
