CPT50140D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CPT50140D

CPT50140D: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 40V V(RRM), Silicon, PACKAGE-2; CategoryDiscrete semiconductor diode; File Size139KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

CPT50140D Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 40V V(RRM), Silicon, PACKAGE-2

CPT50140D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-XUFM-X2
Reach Compliance Code	unknown
ECCN code	EAR99
application	POWER
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-XUFM-X2
Maximum non-repetitive peak forward current	5000 A
Number of components	2
Phase	1
Number of terminals	2
Maximum output current	250 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	NO
technology	SCHOTTKY
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

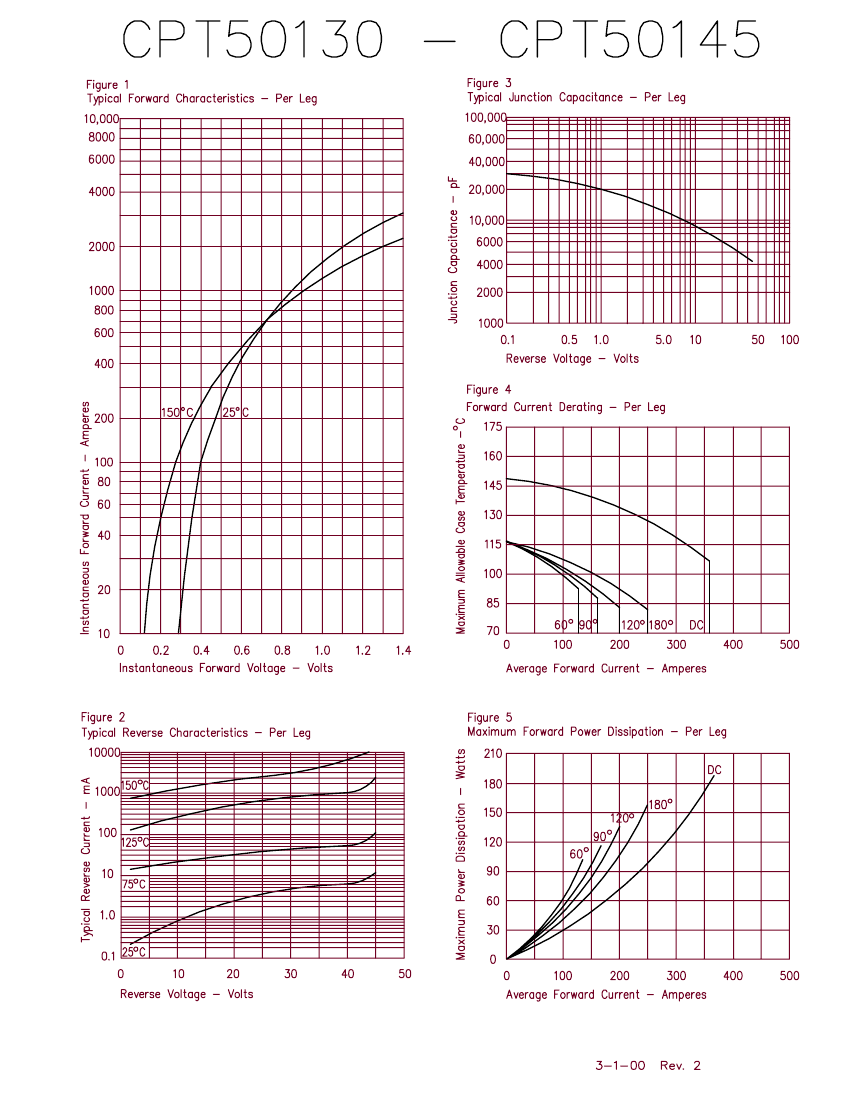

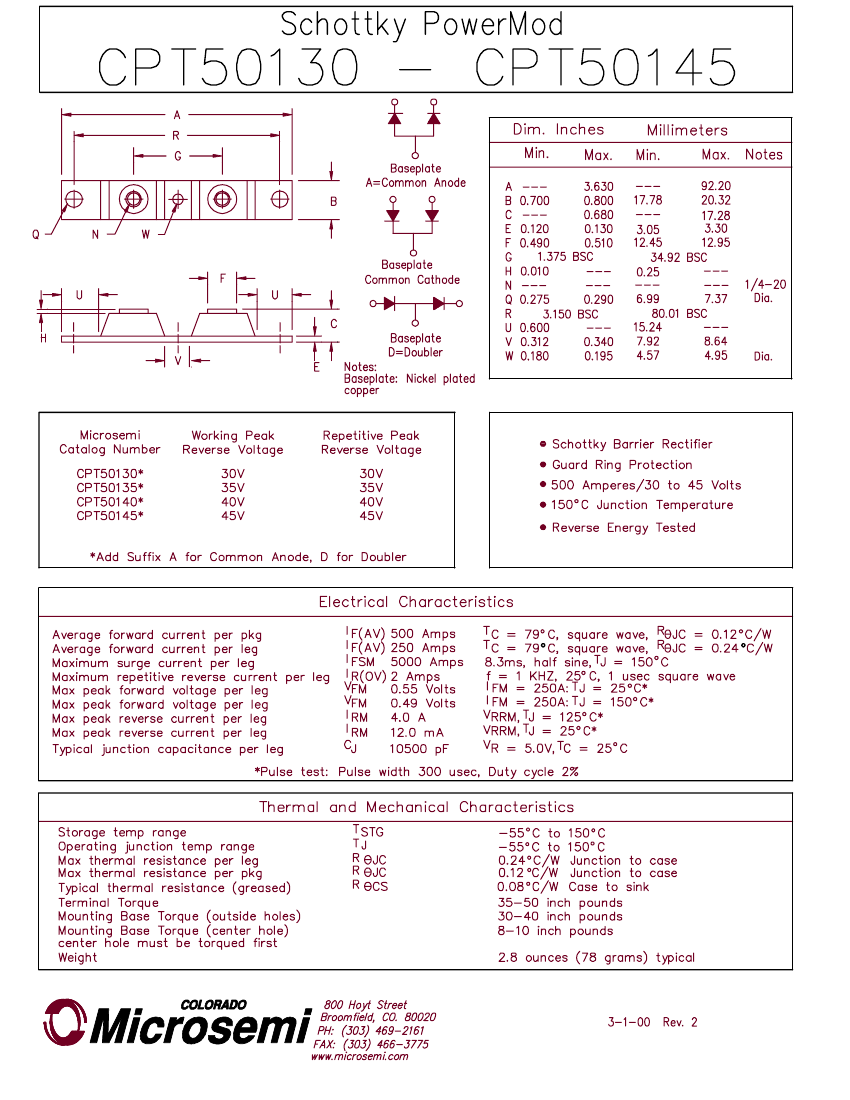

Preview

Download Datasheet

View All

CPT50140D Related Products

	CPT50140D	CPT50130A	CPT50130D	CPT50135D
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 40V V(RRM), Silicon, PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 30V V(RRM), Silicon, PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 30V V(RRM), Silicon, PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 2 Element, 250A, 35V V(RRM), Silicon, PACKAGE-2
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	POWER	POWER	POWER	POWER
Shell connection	ANODE AND CATHODE	ANODE	ANODE AND CATHODE	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Maximum non-repetitive peak forward current	5000 A	5000 A	5000 A	5000 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum output current	250 A	250 A	250 A	250 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	30 V	30 V	35 V
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	-
Maker	-	Microsemi	Microsemi	Microsemi
