SURFACE MOUNT LED
1111C Series
Flat Lens Type 1.6X0.8mm
■
Absolute Maximum Ratings
Pure Green
BG
Power Dissipation
Forward Current
Peak Forward Current
Reverse Voltage
Operating Temp.
Storage Temp.
Derating
*
Pd
I
F
I
FM
V
R
Topr
Tstg
∆I
F
70
25
60
4
-30~+85
-40~+100
Green
PG
70
25
60
4
-30~+85
-40~+100
PY
70
25
60
4
-30~+85
-40~+100
0.36
Yellow
AY
70
25
60
4
-30~+85
-40~+100
Orange
AA
70
25
60
4
-30~+85
-40~+100
Red
BR
57.5
25
60
4
-30~+85
-40~+100
Ta = 25°C
Units
mW
mA
mA
V
°C
°C
mA /
°C
*
The current derating for operation applies when temperature is above 25°C.
• I
FM
Condition : tw
≤
1ms, Duty
≤
1/20
_
_
■
Electro-Optical Characteristics
Part No.
Material
BG1111C
PG1111C
PY1111C
AY1111C
AA1111C
BR1111C
Units
GaP
GaP
GaP
GaAsP
GaAsP
GaAlAs
Chip
Emitted Color
Pure Green
Green
Yellow
Orange
Red
White
Milky
Luminous Intensity
Lens
Color
MIN
1.4
3.8
7.0
2.0
2.0
7.0
mcd
I
V
TY P
2.4
6.4
11.7
3.4
3.4
11.7
mcd
I
F
20
20
20
20
20
20
mA
λ
d
TYP
558
567
572
590
605
647
nm
Wavelength
λ
p
TYP
555
560
570
580
605
660
nm
∆λ
TYP
30
30
30
30
30
30
nm
I
F
20
20
20
20
20
20
mA
TYP
2.1
2.1
2.1
2.2
2.2
1.7
V
Forward Voltage
V
F
MAX
2.8
2.8
2.8
2.8
2.8
2.3
V
I
F
20
20
20
20
20
20
mA
Ta = 25°C
Reverse Current
I
R
MAX
100
100
100
100
100
100
µ
A
V
R
4
4
4
4
4
4
V
■

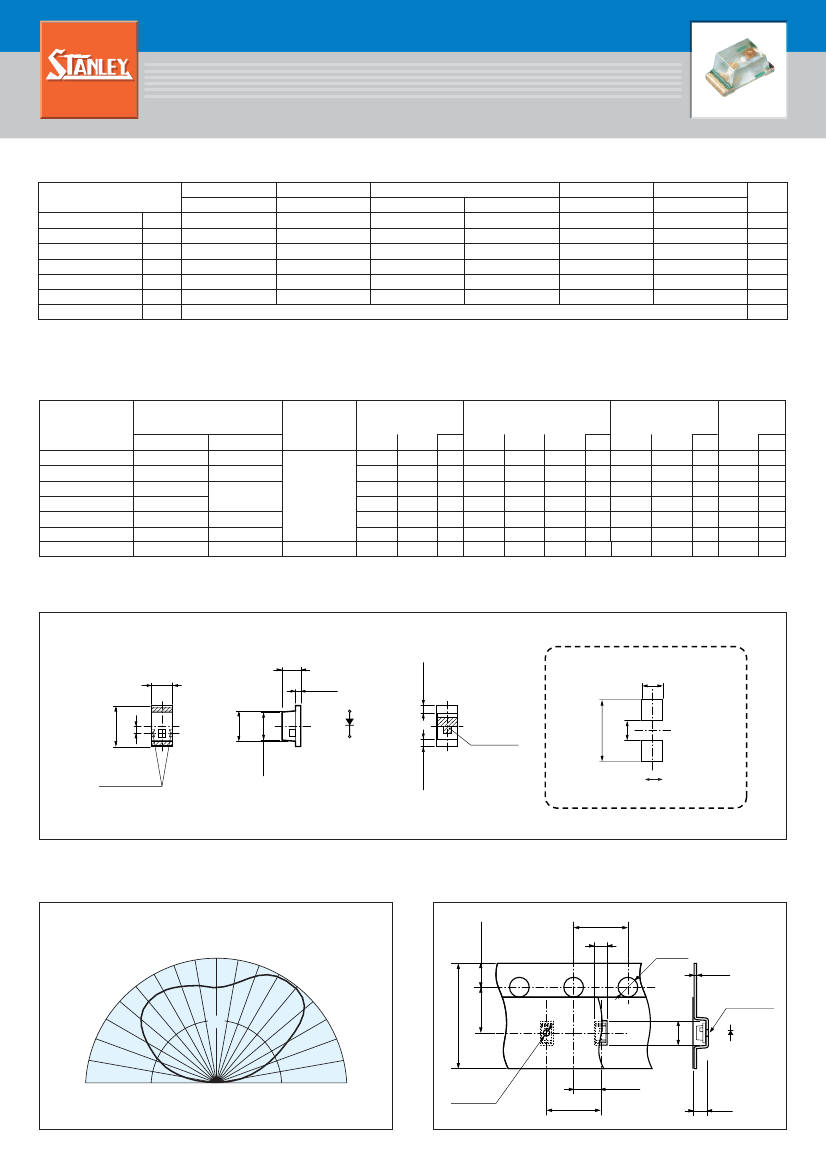

Package Dimensions
Recommended Soldering pad
0.35
±
0.1
(0.8)
1
0.2
±
0.1
1
1
1.6
±
0.1
1.2
±
0.1
(0.28)
(2.4)
(0.8)
Unit : mm
0.7
±
0.1
0.8
±
0.1
1.1
±
0.1
2
0.35
±
0.1
2
Polarity Mark
2
Cathode Mark
PWB Camber direction
※The dimension of BR type is defined the chip position of the symmetry at the center line (C.L.)
■
Spatial Distribution
■
Taping Specification
1.75±0.1
4±0.1
（1）
φ1.5
＋0.1
0
（0.2）
3.5±0.05
Unit : mm
0˚
30˚
30˚
0.5
90˚
90˚
（
φ0.5）
Center Hole
4±0.1
2±0.05
（0.9）
（1.85）
60˚
60˚
8±0.2
Center Hole
︵
︶
*
Quantity 4,000 pcs/Reel
■
SURFACE MOUNT LED
BG1111C
■

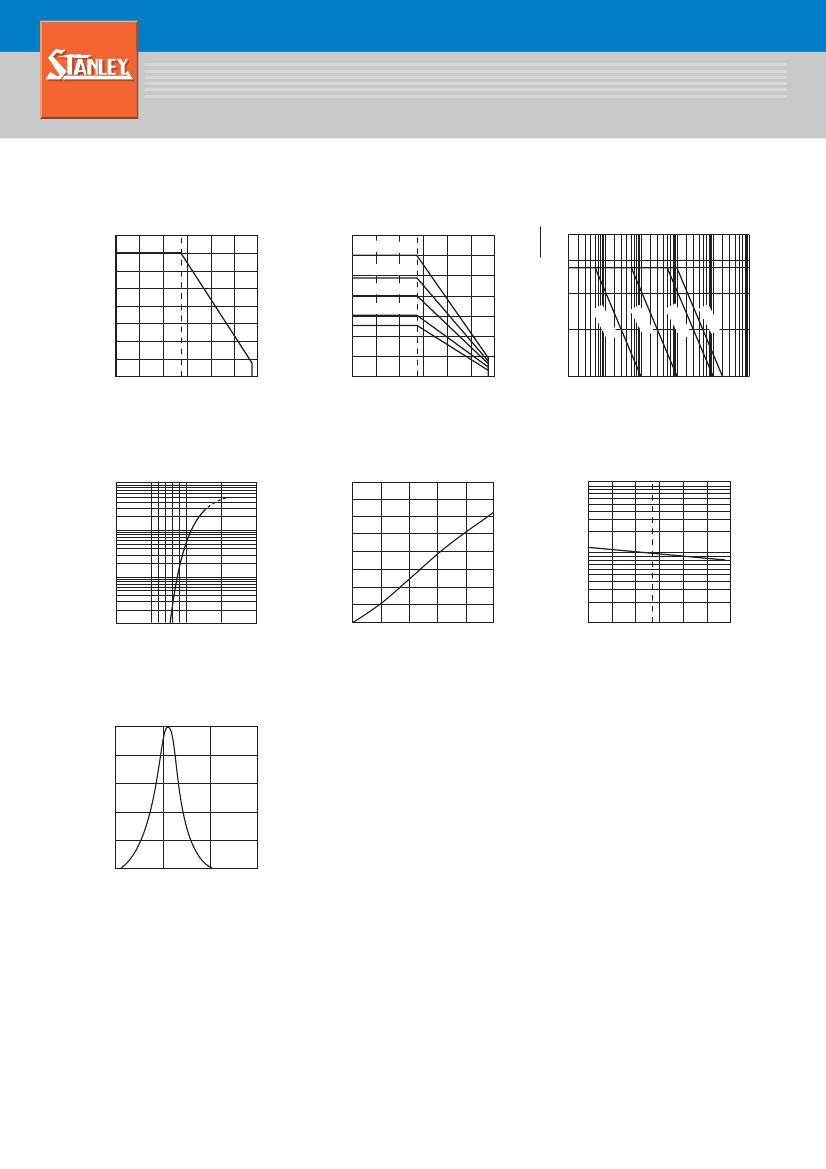

Power Dissipation vs. Ambient Temperature
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
I
PEAK
MAX.
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
80
70
60
50
40
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
70
60
50
40
30
20
10
Duty 5%
Duty 10%
Duty 20%
Duty 50%
DC
_
f
≥
50Hz
_
tw
≤
1ms
3
2.5
2.4
2
Ta=25˚C
Hz
50
z
0H
10
10
kH
Hz
1k
1.5
z
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
1
1
10
1
10
2
10
3
10
4
10
5
Pulse Duration
■
Forward Voltage vs. Forward Current
Ta=25˚C
Forward Current I
F
(mA)
■
Forward Current vs. Relative Intensity
1.6
1.4
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10
5
Relative Intensity
Ta=25˚C
I
F
=20mA
100
50
30
20
10
5
2
1
0.5
0.2
0.1
1.0
1.5
2.0
2.5
3.0
Forward Voltage V
F
(V)
1.2
1
0.8
0.6
0.4
0.2
0
5
10
15
20
25
2
1
0.5
0.2
0.1
-30 -10 10 30 50
70 90
Forward Current I
F
(mA)
Ambient Temperature Ta(˚C)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=20mA
0.8
0.6
0.4
0.2
0
500
550
600
650
Wave Length
λ(nm)
■
SURFACE MOUNT LED
PG1111C
■
Power Dissipation vs. Ambient Temperature
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
I
PEAK
MAX.
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
80
70
60
50
40
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
70
60
50
40
30
20
10
Duty 5%
Duty 10%
Duty 20%
Duty 50%
DC
_
f
≥
50Hz
_
tw
≤
1ms
3
2.5
2.4
2
Ta=25˚C
Hz
50
z
0H
10
10
kH
Hz
1k
1.5
z
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
1
1
10
1
10
2
10
3
10
4
10
5
Pulse Duration
■
Forward Voltage vs. Forward Current
Ta=25˚C
Forward Current I
F
(mA)
■
Forward Current vs. Relative Intensity
1.6
1.4
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10
5
Relative Intensity
Ta=25˚C
100
50
30
20
10
5
2
1
0.5
0.2
0.1
1.0
1.5
2.0
2.5
3.0
Forward Voltage V
F
(V)
I
F
=20mA
1.2
1
0.8
0.6
0.4
0.2
0
5
10
15
20
25
2
1
0.5
0.2
0.1
-30 -10 10 30 50
70 90
Forward Current I
F
(mA)
Ambient Temperature Ta(˚C)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=20mA
0.8
0.6
0.4
0.2
0
500
550
600
650
Wave Length
λ(nm)
■
SURFACE MOUNT LED
PY1111C
■
Power Dissipation vs. Ambient Temperature
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
I
PEAK
MAX.
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
80
70
60
50
40
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
70
60
50
40
30
20
10
Duty 5%
Duty 10%
Duty 20%
Duty 50%
DC
_
f
≥
50Hz
_
tw
≤
1ms
3
2.5
2.4
2
Ta=25˚C
Hz
50
z
0H
10
10
kH
Hz
1k
1.5
z
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
1
1
10
1
10
2
10
3
10
4
10
5
Pulse Duration
■
Forward Voltage vs. Forward Current
Ta=25˚C
Forward Current I
F
(mA)
■
Forward Current vs. Relative Intensity
1.6
1.4
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10
5
Relative Intensity
Ta=25˚C
100
50
30
20
10
5
2
1
0.5
0.2
0.1
1.0
1.5
2.0
2.5
3.0
Forward Voltage V
F
(V)
I
F
=20mA
1.2
1
0.8
0.6
0.4
0.2
0
5
10
15
20
25
2
1
0.5
0.2
0.1
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
Forward Current I
F
(mA)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=20mA
0.8
0.6
0.4
0.2
0
500
550
600
650
Wave Length
λ(nm)
■
SURFACE MOUNT LED
AY1111C
■
Power Dissipation vs. Ambient Temperature
Power Dissipation Pd(mW)
■
Ambient Temperature vs. Maximum Forward Current
Maximum Forward Current I
F
(mA)
I
PEAK
MAX.
■
Pulse Duration vs.Maximum Tolerable Peak Current
Ratio of Maximum Tolerable Peak Current
I
DC
MAX.
80
70
60
50
40
30
20
10
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
70
60
50
40
30
20
10
Duty 5%
Duty 10%
Duty 20%
Duty 50%
DC
_
f
≥
50Hz
_
tw
≤
1ms
3
2.5
2.4
2
Ta=25˚C
Hz
50
z
0H
10
10
kH
Hz
1k
1.5
z
0
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
1
1
10
1
10
2
10
3
10
4
10
5
Pulse Duration
■
Forward Voltage vs. Forward Current
100
50
30
20
10
5
2
1
0.5
0.2
0.1
1.0
1.5
2.0
2.5
3.0
Forward Voltage V
F
(V)
■
Forward Current vs. Relative Intensity
Ta=25˚C
1.4
Relative Intensity
■
Ambient Temperature vs. Relative Intensity
10
5
Relative Intensity
Ta=25˚C
I
F
=20mA
Forward Current I
F
(mA)
1.2
1
0.8
0.6
0.4
0.2
0
5
10
15
20
25
2
1
0.5
0.2
0.1
-30 -10 10 30 50 70 90
Ambient Temperature Ta(˚C)
Forward Current I
F
(mA)
■
Spectral Distribution
1.0
Relative Intensity
Ta=25˚C
I
F
=20mA
0.8
0.6
0.4
0.2
0
500
550
600
650
Wave Length
λ(nm)
