1684410000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1684410000

1684410000: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1684410000 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,

1684410000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	STAGGERED CONFIGURATION
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

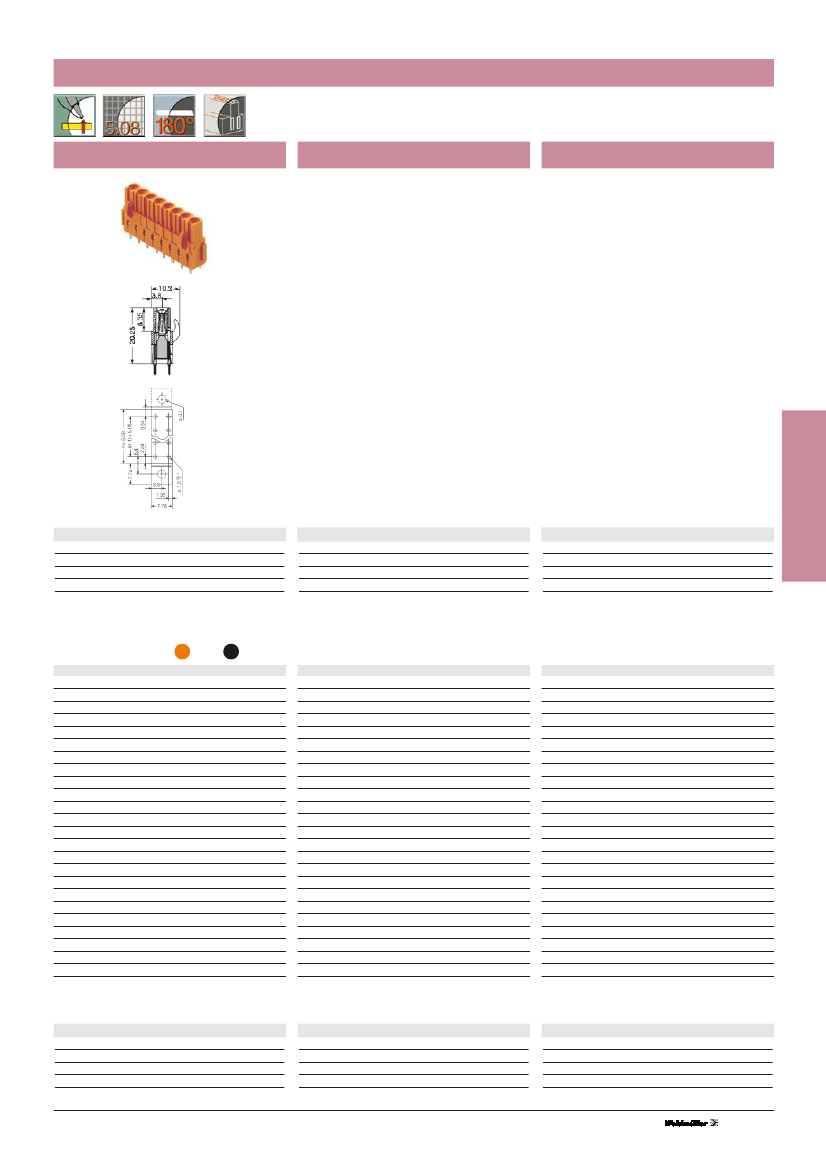

Preview

Download Datasheet

View All

Omnimate Range - Pitch 5.08 mm

Socket blocks BLL 5.08/180B

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

Technical Data

VDE

CSA

Technical Data

VDE

CSA

*Overvoltage category III / Pollution severity 3

Additional technical data see page 217

Solder pin length

Colour

Poles

3.2 mm

4.5 mm

Type

BLL 5.08/2/180B

BLL 5.08/3/180B

BLL 5.08/4/180B

BLL 5.08/5/180B

BLL 5.08/6/180B

BLL 5.08/7/180B

BLL 5.08/8/180B

BLL 5.08/9/180B

BLL 5.08/10/180B

BLL 5.08/11/180B

BLL 5.08/12/180B

BLL

5.08/13/180B

5.08/14/180B

5.08/15/180B

5.08/16/180B

5.08/17/180B

5.08/18/180B

5.08/19/180B

5.08/20/180B

5.08/21/180B

5.08/22/180B

5.08/23/180B

5.08/24/180B

Cat. No.

1682730000

1682740000

1682750000

1682760000

1682770000

1682780000

1682790000

1682800000

1682810000

1682820000

1682830000

1682840000

1682850000

1682860000

1682870000

1682880000

1682890000

1682900000

1682910000

1682920000

1682930000

1682940000

1682950000

Cat. No.

1684230000

1684240000

1684250000

1684260000

1684270000

1684280000

1684290000

1684300000

1684310000

1684320000

1684330000

1684340000

1684350000

1684360000

1684370000

1684380000

1684390000

1684400000

1684410000

1684420000

1684430000

1684440000

1684450000

Qty.

100

Accessories

Fixing

Marking

Coding

Miscellaneous

Page

193

196

199

–

127

Omnimate Range

Pitch 5.08 mm
